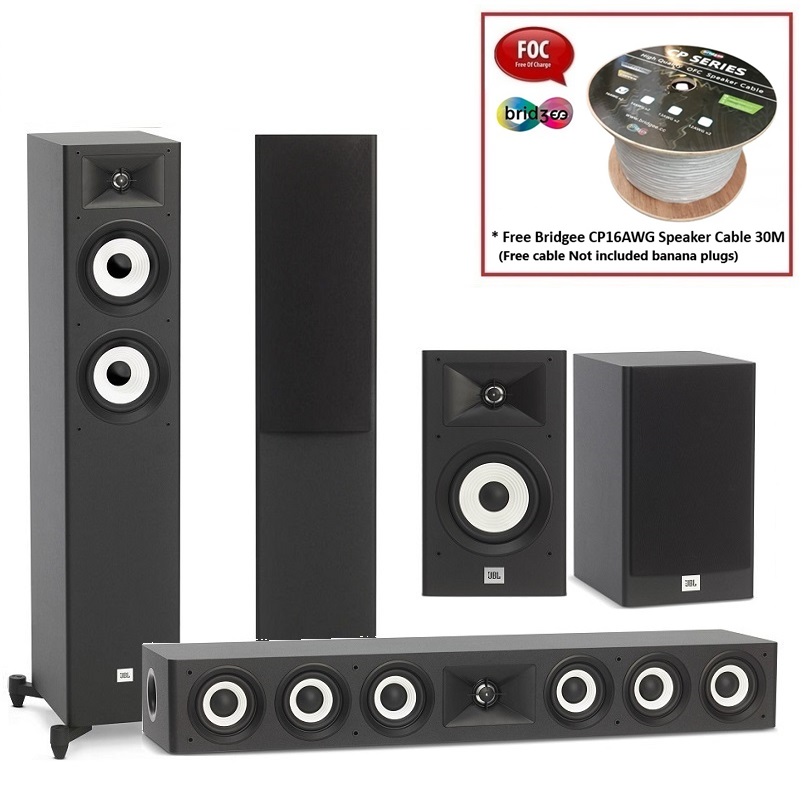

JBL Stage A170 5.0 Speaker Package

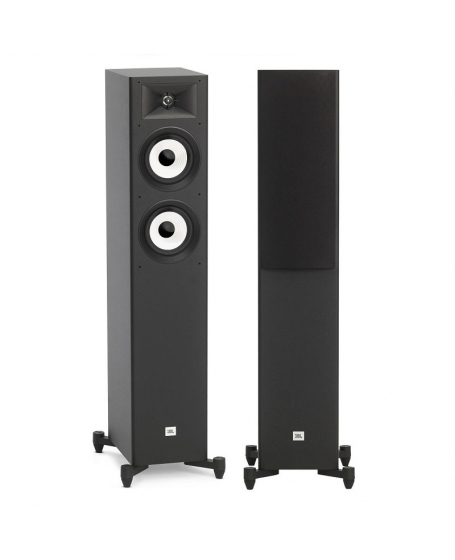

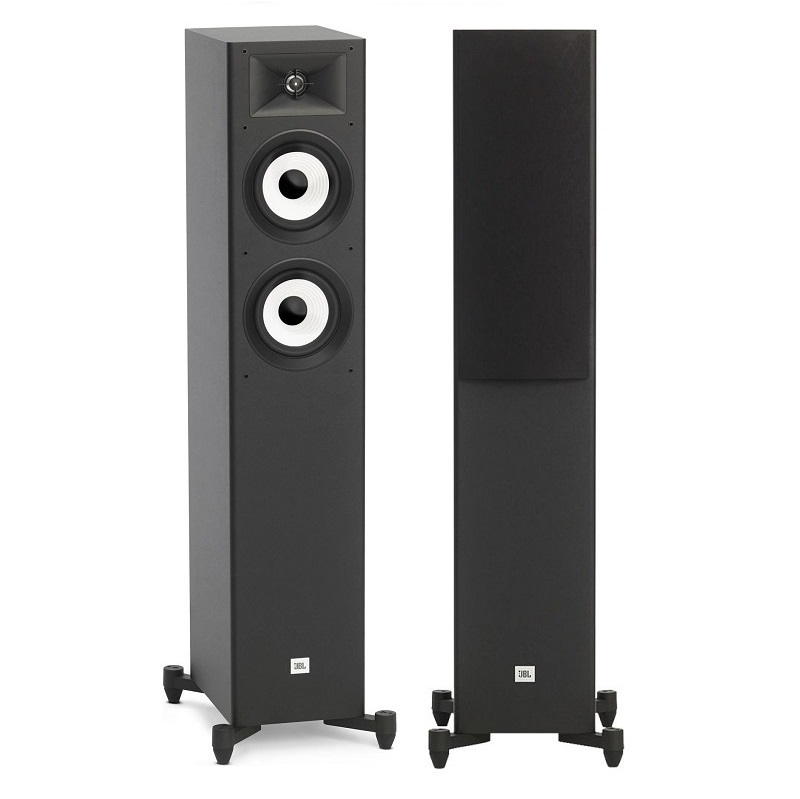

JBL Stage A170 Floor Standing Speakers

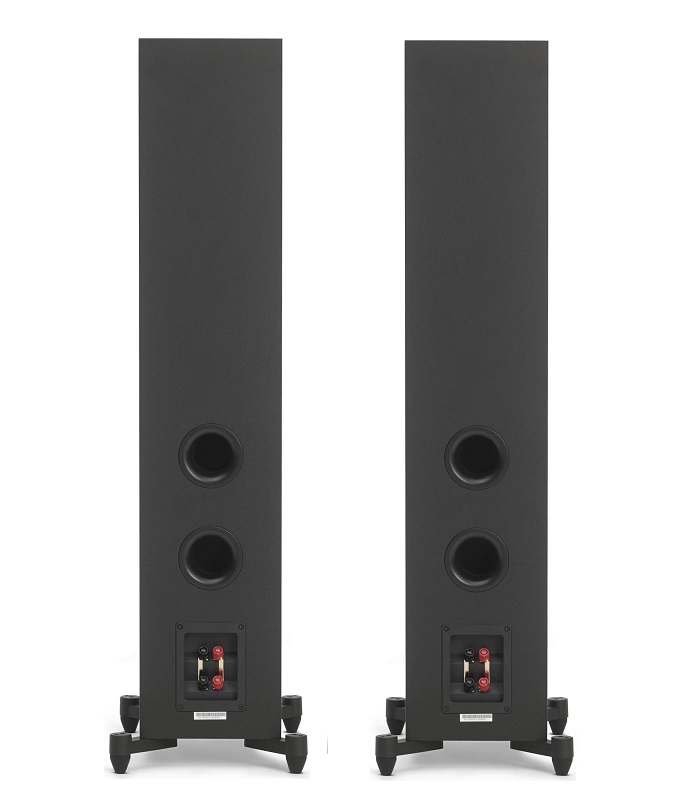

JBL's new Stage A170 floor standing speakers feature a triple driver, 2.5-way configuration with dual rear firing bass reflex ports and out-rigger style feet.

The A170 speakers are the smallest floor standing speakers of JBL's Stage series, which means you get some of the benefits of floor standing speakers - raised listening position, larger cabinets and bi-amping capability - but without being too overbearing and obtrusive to your living space.

Key Features
- 2.5 way, dual 5.25" woofers, 1" aluminium tweeter
- JBL engineered high definition imaging waveguide
- Polycellullose woofers deliver more uniform pistonic motion for deeper, tighter bass
- Recommended Power: 20 - 200 watts
- Frequency Response: 44Hz - 40kHz

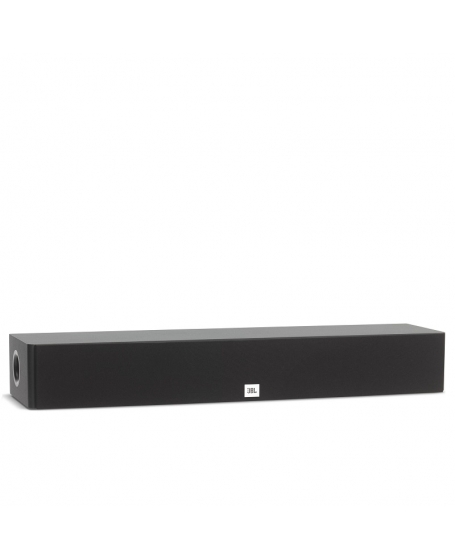

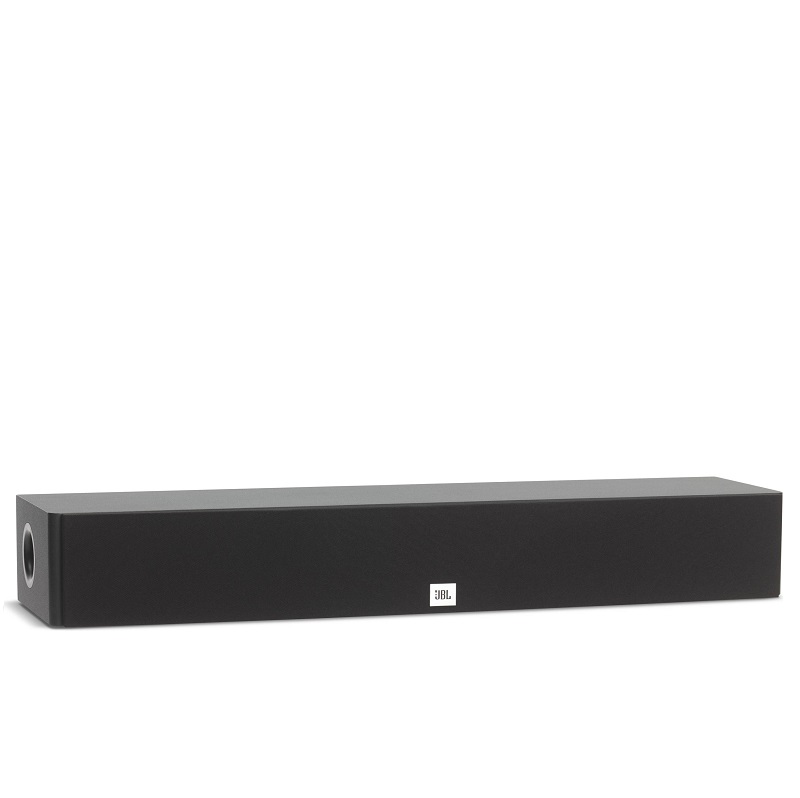

JBL Stage A135C Centre Speaker

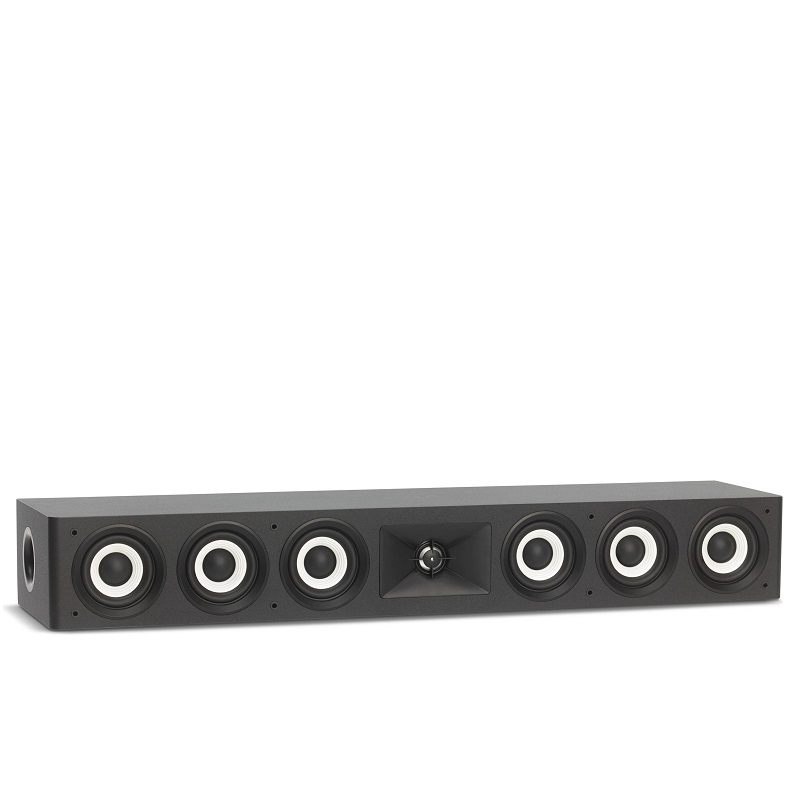

The A135C centre speaker features a total of six 3" drivers, 2-way configuration with a 1" aluminium dome tweeter and a high-definition imaging waveguide design.

The slimline design of the A135C looks great under a TV or projector screen.

Key Features
- 2 way, six 3" woofers, 1" aluminium tweeter
- Polycellullose woofers deliver more uniform pistonic motion for deeper, tighter bass
- Recommended Power: 20 – 150 Watts
- Frequency Response: 75Hz – 40kHz

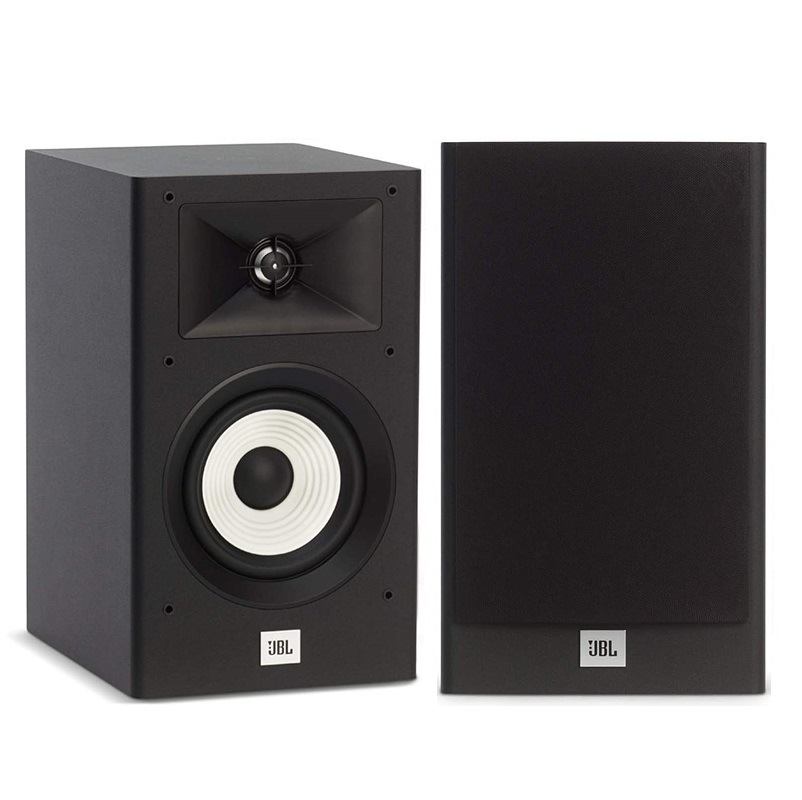

JBL Stage A120 Bookshelf Speakers

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the Stage A120 is the 4.5-inch 2-way bookshelf loudspeaker of the JBL Stage Series. The narrow footprint features a 2-way design with patented High-Definition Imaging (HDI™) waveguide geometry, 1-inch (25mm) Aluminum dome tweeter, and 4.5-inch (114mm) Polycellulose cone woofers for signature JBL bass.

Key Features
– 2 way, 4.5″ woofer, 1″ aluminium tweeter
– JBL engineered high definition imaging waveguide
– Polycellullose woofers deliver more uniform pistonic motion for deeper, tighter bass
– Recommended Power: 20 – 125 watts
– Frequency Response: 60Hz – 40kHz

General Specifications
A170 Floor Standing Speakers
2.5 way, dual 5.25", 1" aluminum tweeter floor standing loudspeakerYes
2 x 5.25" (133mm) Polycellulose Low-Frequency WooferYes
New High Definition Imaging (HDI) WaveguideYes
1” (25mm) Aluminum Dome TweeterYes
Recommended Amplifier Power20 – 200W
Frequency Response44Hz – 40kHz
Sensitivity89dB @ 1M, 2.83V
Nominal Impedance6 Ohms
Crossover Frequencies1.8kHz, 2.8kHz
Enclosure TypeBass-Reflex via Rear-Firing Tuned Port
Dimensions (W x D x H)190 x 255 x 930mm
Weight31.61 lbs (14.34kg)

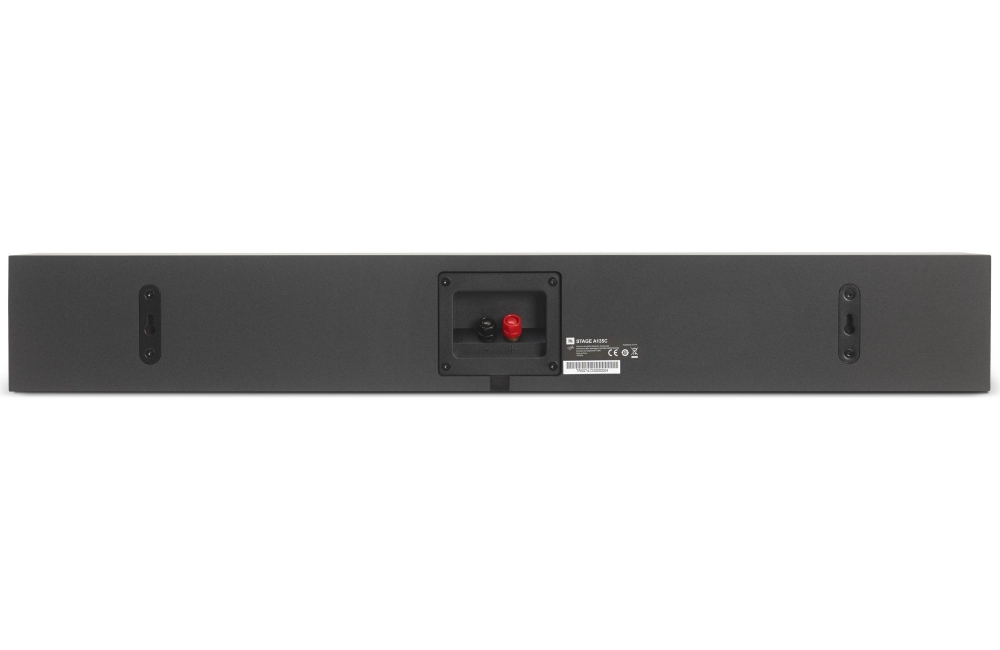

A135C Center
2 way, 6 x 3" woofer, 1" aluminum tweeter center loudspeakerYes
6 x 3" (76mm) Polycellulose Low-Frequency WooferYes
New High Definition Imaging (HDI) WaveguideYes
1” (25mm) Aluminum Dome TweeterYes
Recommended Amplifier Power20 – 150W
Frequency Response75Hz – 40kHz
Sensitivity90dB @ 1M, 2.83V
Nominal Impedance6 Ohms
Crossover Frequencies2.5kHz
Enclosure TypeBass-Reflex via Rear-Firing Tuned Port
Dimensions (W x D x H)745 x 166 x 104mm
Weight16.42 lbs (7.45kg)

A120 Bookself Speaker
2 way, 4.5" woofer, 1" aluminum tweeter bookshelf/surround loudspeakers
4.5" (114mm) Polycellulose Low-Frequency Woofer
New High Definition Imaging (HDI) Waveguide
1” (25mm) Aluminum Dome Tweeter
Recommended Amplifier Power 20 – 125W
Frequency Response 60Hz – 40kHz
Sensitivity 86dB @ 1M, 2.83V
Nominal Impedance 6 Ohms
Crossover Frequencies 3.2kHz

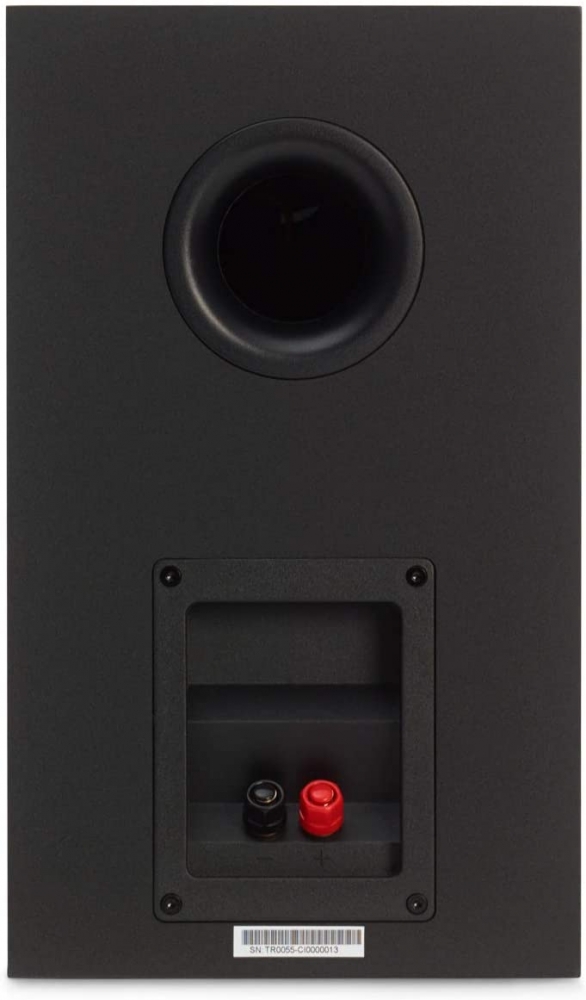

Enclosure Type Bass-Reflex via Rear-Firing Tuned Port
Dimensions (W x D x H) 170 x 170 x 285mm
Weight (each) 8.40 lbs (3.81kg)
