JBL Stage A190 5.0 Speaker Package

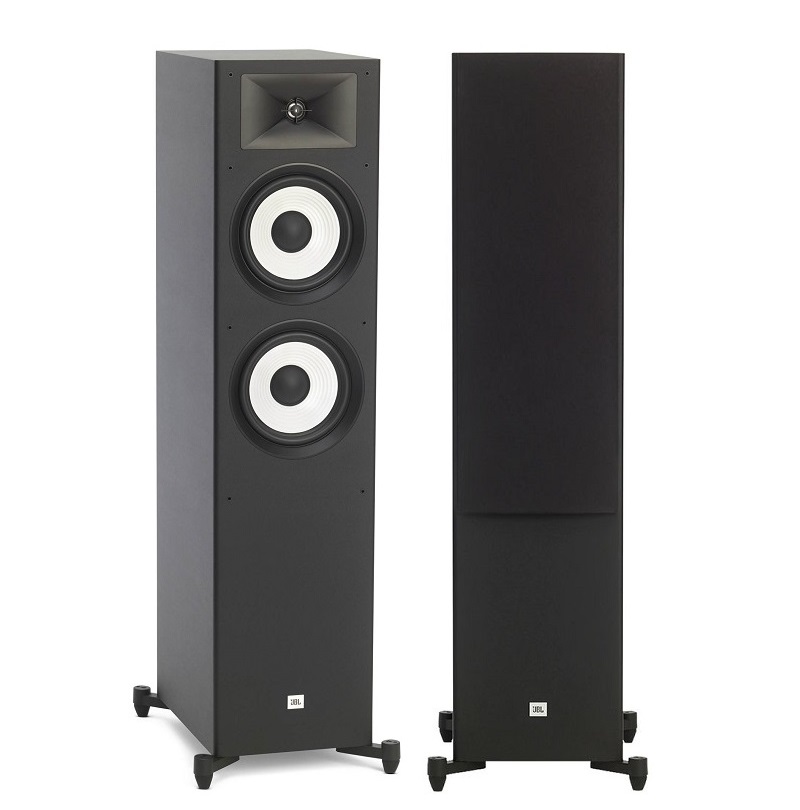

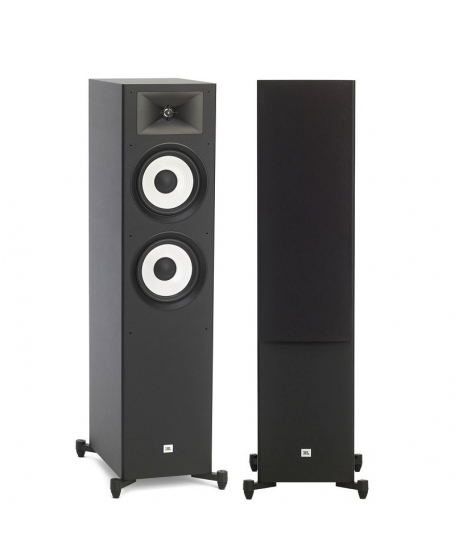

JBL Stage A190 Floor Standing Speakers

JBL's new Stage series loudspeakers are designed to bring the excitement of the cinema going experience and the thrill of a live-concert to your very own living room. Featuring JBL designed polycellulose woofers which provide deep, signature JBL bass along with a 1" aluminium dome tweeter with a high-definition waveguide design, the JBL Stage loudspeakers capture every note of the audio spectrum and combines them into pure listening pleasure.

Available in Pantone Black finishes, the JBL Stage are a stylish addition to any modern home theatre system.

Key Features
- 2.5 way, dual 8" woofers, 1" aluminium tweeter
- JBL engineered high definition imaging waveguide
- Polycellullose woofers deliver more uniform pistonic motion for deeper, tighter bass
- Recommended Power: 20 - 225 watts
- Frequency Response: 36Hz - 40kHz

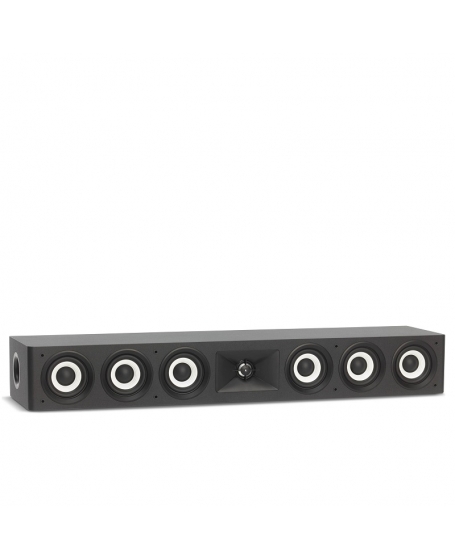

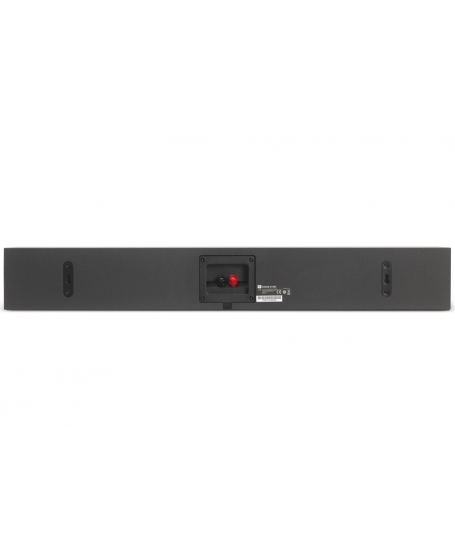

JBL Stage A135C Centre Speaker

The A135C centre speaker features a total of six 3" drivers, 2-way configuration with a 1" aluminium dome tweeter and a high-definition imaging waveguide design.

The slimline design of the A135C looks great under a TV or projector screen.

Key Features
- 2 way, six 3" woofers, 1" aluminium tweeter
- Polycellullose woofers deliver more uniform pistonic motion for deeper, tighter bass
- Recommended Power: 20 – 150 Watts
- Frequency Response: 75Hz – 40kHz

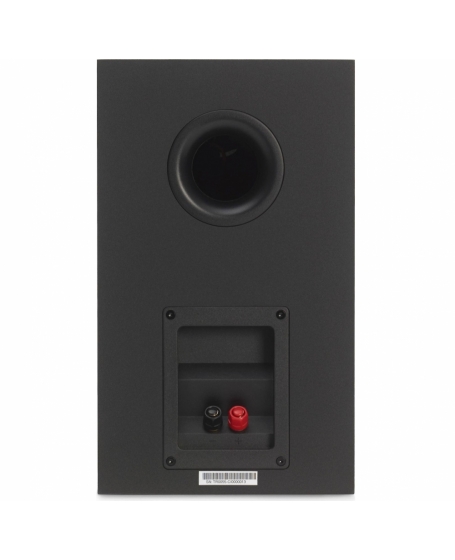

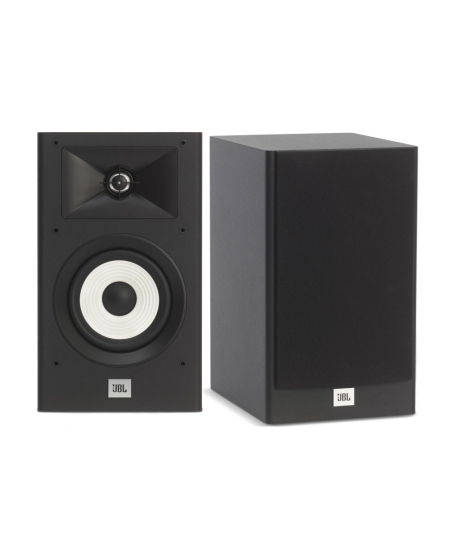

JBL Stage A130 Bookshelf Speakers

JBL's new Stage A130 bookshelf speakers are the big brothers to the A120s. Despite taking up very little space in a room, these speakers perform excellently thanks to JBL's technology and unique design.

Key Features
- 2 way, 5.25" woofer, 1" aluminium tweeter
- JBL engineered high definition imaging waveguide
- Polycellullose woofers deliver more uniform pistonic motion for deeper, tighter bass
- Recommended Power: 20 - 125 watts
- Frequency Response: 55Hz - 40kHz

General Specifications

A190 Floorstanding
2.5 way, dual 8", 1" aluminum tweeter floor standing loudspeakerYes
2 x 8" (203mm) Polycellulose Low-Frequency WooferYes
New High Definition Imaging (HDI) WaveguideYes
1” (25mm) Aluminum Dome TweeterYes
Recommended Amplifier Power20 – 225W
Frequency Response36Hz – 40kHz
Sensitivity91dB @ 1M, 2.83V
Nominal Impedance6 Ohms
Crossover Frequencies1.4kHz, 2.0kHz

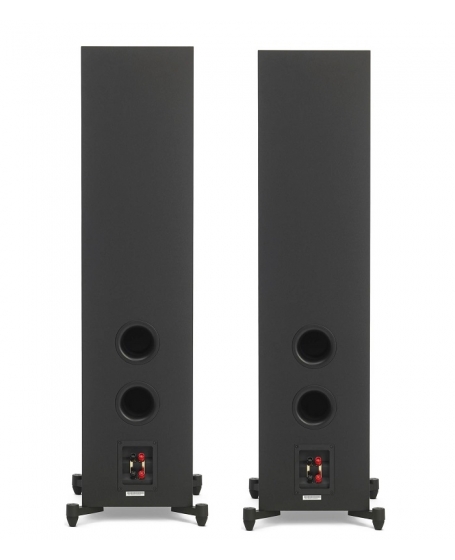

Enclosure TypeBass-Reflex via Rear-Firing Tuned Port
Dimensions (W x D x H)260 x 370 x 1070mm
Weight49.74 lbs (22.56kg)

A135C Center
2 way, 6 x 3" woofer, 1" aluminum tweeter center loudspeakerYes
6 x 3" (76mm) Polycellulose Low-Frequency WooferYes
New High Definition Imaging (HDI) WaveguideYes
1” (25mm) Aluminum Dome TweeterYes
Recommended Amplifier Power20 – 150W
Frequency Response75Hz – 40kHz
Sensitivity90dB @ 1M, 2.83V
Nominal Impedance6 Ohms
Crossover Frequencies2.5kHz
Enclosure TypeBass-Reflex via Rear-Firing Tuned Port
Dimensions (W x D x H)745 x 166 x 104mm
Weight16.42 lbs (7.45kg)

A130 Bookself Speaker
2 way, 5.25" woofer, 1" aluminum tweeter bookshelf loudspeakersYes
5.25" (133mm) Polycellulose Low-Frequency WooferYes
New High Definition Imaging (HDI) WaveguideYes
1” (25mm) Aluminum Dome TweeterYes
Recommended Amplifier Power20 – 125W
Frequency Response55Hz – 40kHz
Sensitivity86dB @ 1M, 2.83V
Nominal Impedance6 Ohms
Crossover Frequencies3.2kHz
Enclosure TypeBass-Reflex via Rear-Firing Tuned Port
Dimensions (W x D x H)190 x 230 x 321mm
Weight (each)12.02 lbs (5.45kg)
