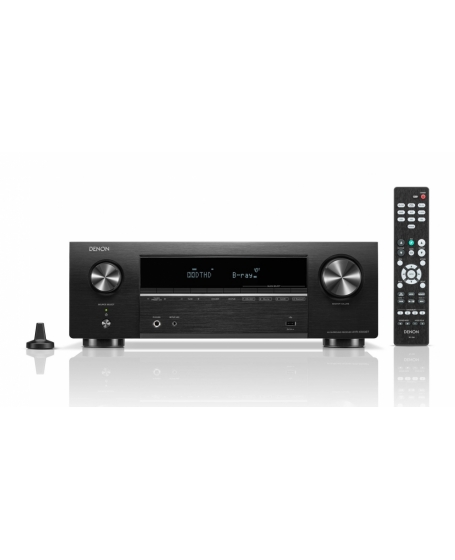

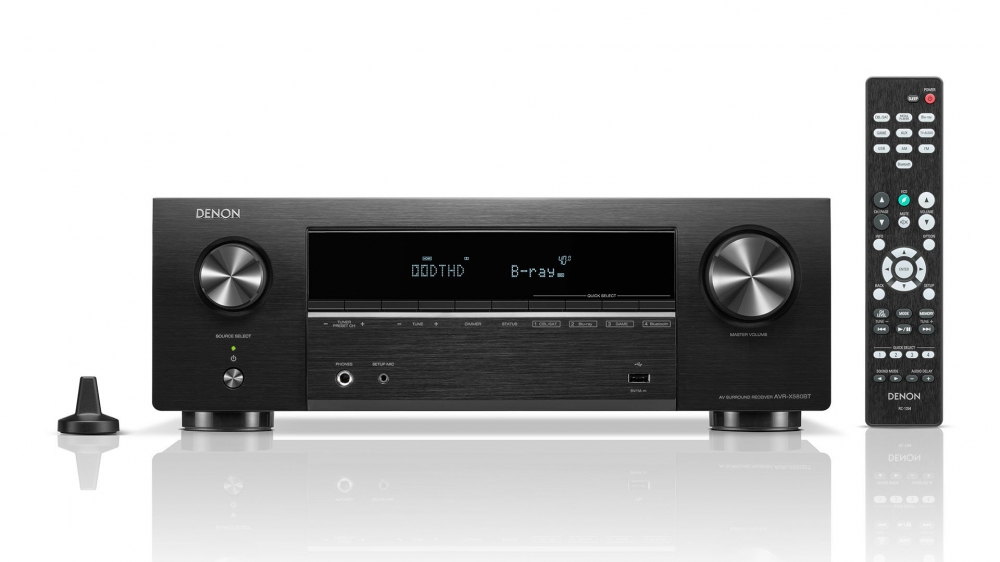

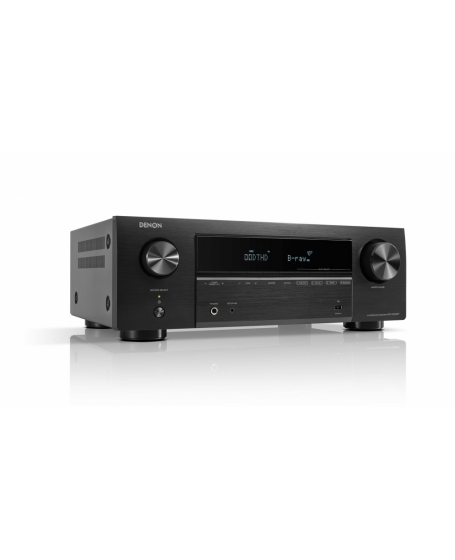

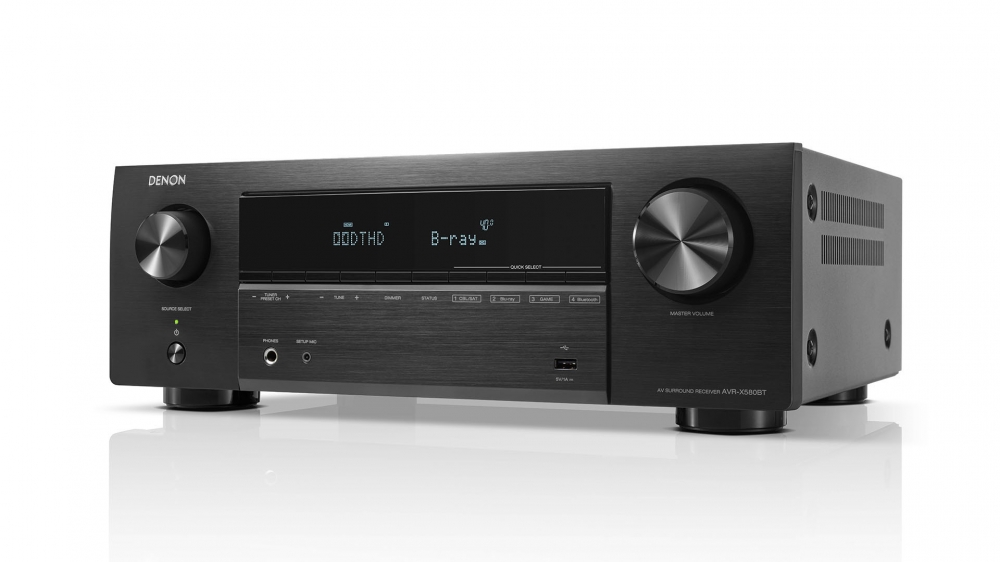

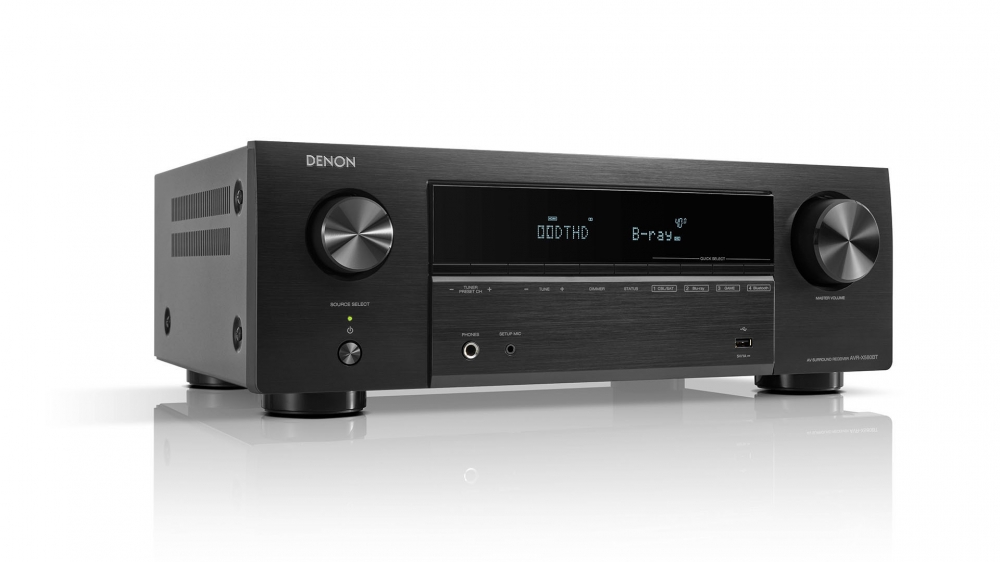

AVR-X580BT

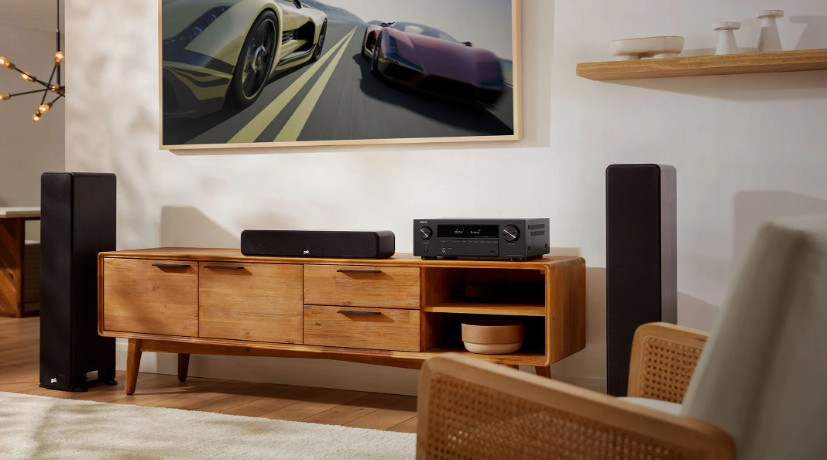

Bring movies to life in smaller spaces with amazing 8K picture quality and true surrount sound. Enjoy all your favourite entertainment with 5.2 channel surround sound and wireless music streaming via Bluetooth.

Key Features

• True surround sound experience.: Supports Dolby TrueHD and DTS-HD for high-fidelity, loseless surround sound playback as well as Dolby and DTS umixers upt to 5.1 channels.
• Affordable 8K: Supports the latest 8K HDMI technology so you can enjoy amazing picture quality.
• Easy music streaming: Stream audio from your favourite music service via Bluetooth from any smart device.
• Lag-free gaming: Brings together the latest technologies to ensure a smooth, lag-free gaming expericence.

Dolby TrueHD

High-fidelity lossless DolbyTrueHD and Dolby Digital, DolbyDigital Plus signal decoder, andDolby Pro Logic II upmixer for 2-channel audio signals to createa full 5.1 surround soundexperience.

DTS Surround Technology

High-fidelity lossless DTS-HD and DTS Surround, DTS 96/24signal decoding, along with DTSNeo 6 upmixer for 2-channelaudio signals to create a full 5.1surround sound experience.

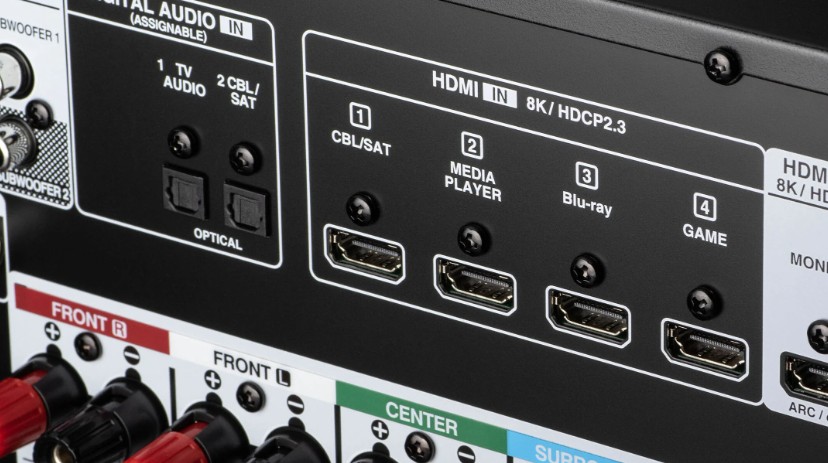

HDMI Connectivity with ARC/eARC

Supports the latest technology on all HDMI inputs and the output. ARC (Audio Return Channel) or eARC (Enhanced Audio Return Channel) makes playing TV audio through your AV receiver simple with just a single HDMI connection. eARC provides HD and 3D audiotransmission such as Dolby TrueHD, DTS HD Master Audio, and Dolby Atmos while ARC is limited to conventional 5.1ch audio formats or PCM.

8K / HDCP 2.3

Enjoy pristine picture quality onyour 8K TV or projector.8K/60Hz pass-through and 8Kupscaling on 1080p or 4Kcontent is supported on all fourHDMI inputs and one output.Supports HDCP 2.3, the latestcopy protection standard, forpeace of mind when streamingcopy protected content.

Brilliant color from HDR 10+

Supports HDR (High Dynamic Range), HLG (Hybrid Log Gamma), as well as Dynamic HDR and HDR10+ pass-through. HLG offers HDR technology overbroadcast content. Both Dynamic HDR and HDR10+ use dynamic metadata to optimize shadows and highlights as screens change.

Dolby Vision

Dolby Vision is a stunning HDR imaging technology that brings extraordinary color, contrast, and brightness to the screen. Compatible with Dolby Vision so you can enjoy Dolby Vision content from a compatible source device and TV.

Next-generation gaming

Supports Variable Refresh Rate (VRR), Quick Frame Transport (QFT), and Auto Low Latency Mode (ALLM) for smooth, lagfree gaming experience when connected with the compatible gaming devices.

Wireless music streaming via Bluetooth

Enjoy listening to your favoriteaudio content wirelessly fromyour smart devices.

High-resolution audio via USB input

Discover the incredible fidelity of high-resolution audio tracks and enjoy music as the artist intended. A front USB port supports up to 24bit/192kHz hires audio playback from a USB drive. Supported audio formats are MP3, WMA, WAV, MPEG-4/AAC, FLAC, and ALAC.

Quick Select

Press one of the four QuickSelect buttons on the frontpanel to easily store andretrieve your favorite audiosettings, such as an inputsource, volume level, or soundmode. You can also accessQuick Select buttons on theDenon 500 series remote appdownloaded on your phone.

Denon 500 Series Remote App

This iOS or Android control appallows you to turn the receiver on and off, select an inputsource, adjust volume level, andbrowse music from your phoneor in a USB drive whenconnected to the receiver.

Dual subwoofer outputs

Immerse yourself in evenlydistributed, accurate bass. Twosubwoofer outputs smooth outlow frequencies and providebetter dispersion. No audiblepeaks or dips—just powerful,room-filling bass.

Guided Setup Asisstant on TV

Award-winning Denon Setup Assistant provides simple, clear instructions to get started. Just connect your AV receiver to your TV and follow the instructions on the TV screen to connect your speakers, perform speaker measurements, and connect source devices.

Auto Setup and Room EQ

As part of setup, follow the instructions on your TV to complete speaker setup and measurement using the included microphone. The receiver uses the measurements to optimize sound for the room, bringing the best out of your system. Just sit back and enjoy great sound.

Model Number
AVR-X580BT
Specs
Audio Section
Rated Output:
Front:
- 70 W + 70 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.08 % T.H.D.)
- 90 W + 90 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)
Centre:
- 70 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.08 % T.H.D.)
- 90 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)
Surround:
- 70 W + 70 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.08 % T.H.D.)
- 90 W + 90 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)
Output connectors: 6 – 16 Ω/ohms

Analog
Input sensitivity/Input impedance: 200 mV/47 kΩ/kohms
Frequency response: 10 Hz - 100 kHz - +1, -3 dB (Direct mode)
S/N: 98 dB (IHF–A weighted, Direct mode)

Tuner Section
FM: μV at 75 Ω/ohms, 0 dBf = 1 x 10 –15 W
Reception frequency range: FM = 87.5 MHz – 108.0 MHz, AM = 522 kHz – 1611 kHz
Effective sensitivity: FM = 1.2 μV (12.8 dBf), AM = 18 μV
50 dB sensitivity: MONO - 2.8 μV (20.2 dBf)
S/N ratio:
- MONO - 70 dB (IHF–A weighted, Direct mode)
- STEREO - 67 dB (IHF–A weighted, Direct mode)
Distortion:
- MONO - 0.7 % (1 kHz)
- STEREO - 1.0 % (1 kHz)

Bluetooth Section
Communications system: Bluetooth Version 4.2
Transmission power: 0.25 - 10 mW (Class 1)
Maximum communication range: Approx. 10 m in line of sight∗
Frequency band: 2.4 GHz
Modulation scheme: FHSS (Frequency-Hopping Spread Spectrum)
Supported profiles:
- A2DP (Advanced Audio Distribution Profile) 1.3
- AVRCP (Audio Video Remote Control Profile) 1.6
Corresponding codec: SBC, AAC
Transmission range (A2DP): 20 Hz - 20,000 Hz

General
Operating temperature: 5 °C - 35 °C
Power supply: AC 230 V, 50/60 Hz
Power consumption: 310 W
Power consumption in standby modes:
- Normal standby - 0.1 W
- Bluetooth standby - 1.0 W
- Bluetooth standby (Bluetooth, CEC) - 1.3 W
- CEC standby - 0.5 W

Dimensions (W x D x H)    434 x 330 x 152 mm
Weight    7.6 kg
