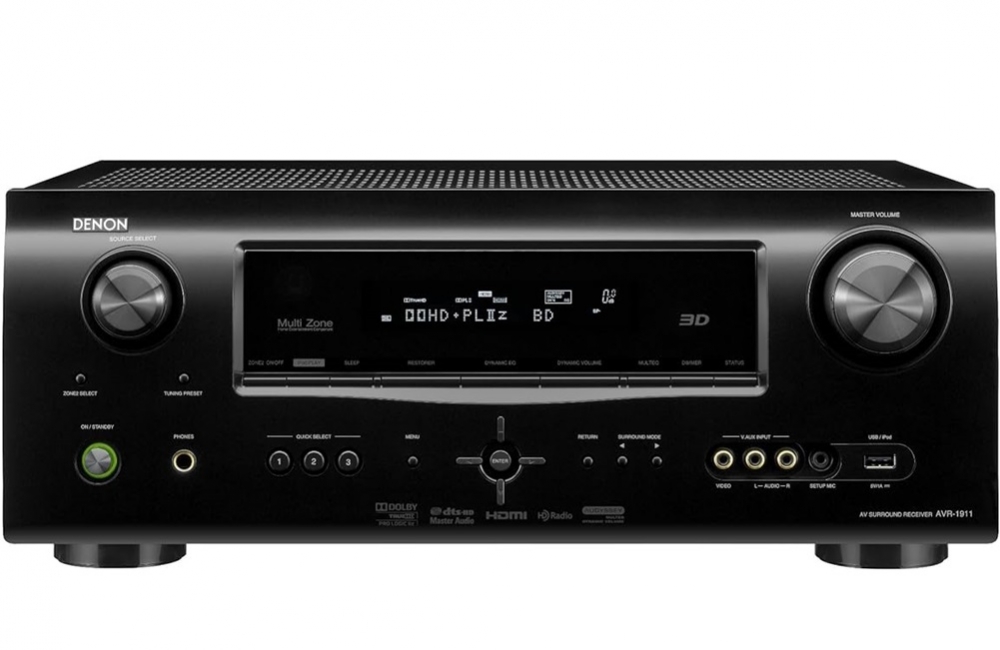

AVR-1911

7.1-channel HD-Audio Receiver with 3D Video Connectivity and 3D Surround​

FEATURES - AVR-1911

The AVR-1911 is an A/V receiver with HDMI version 1.4a that can be connected to TVs and other devices that support 3D video such as Blu-ray disc players, game consoles, and set-top boxes. This receiver supports not only Dolby TrueHD, DTS-HD Master Audio and other HD Audio formats but also Dolby Pro Logic IIz for enhanced vertical and horizontal spatial performance at the front, the essence of 3D acoustics complementing the excitement of 3D video. The AVR-1911 comes with numerous other features such as 1080p up-conversion to give you a sharp, high-definition picture from DVD and other standard video sources, and a Glow key remote control unit that is easy to use in the dark, to maximise your home theatre experience.

New Features

• Featuring 3D pass-through technology
• Supports HDMI 1.4a with 3D, Audio Return Channel, Deep Color, “x.v.Color”, Auto Lipsync and HDMI control function
• High quality (digital audio transfer) direct play for iPod and iPhone via USB
• Newly developed pre memory remote control handset with Glo-Key
• Remote Setup Guidance

State-of-the-art Denon Solutions

• Fully discrete, identical quality and power for all 7 channels (125 W x 7ch)
• Stable power supply for high-quality sound and picture playback
• High definition audio support, Dolby TrueHD and DTS-HD Master Audio
• Supports Dolby Pro Logic IIz processing
• All sources are up-scaled to 1080P
• Pure Direct Mode

Connectivity Future-ready Expandability

• Dock connectivity for iPod and network streaming

Ease-of-Use

• On-Screen Display
• Audyssey Dynamic Volume, for real-time volume adjustment
• Audyssey MultEQ and Auto Setup: Tower type microphone for more accurate measuring / Up to six measurement points / High level resolution filters for satellite speakers and also subwoofer

Others

• Low power consumption at stand-by 0.1 W (Standby)

One-cable HD solution

• Low power consumption at stand-by 0.1 W (Standby)
• Supports HDMI 1.4a with Audio Return Channel
• All sources are up-scaled to 1080P

Denon AVR-1911 Specs
Output
Front L/R:
90W + 90W
(8 ohms, 20 Hz - 20 kHz, THD 0.08%)
125W + 125W
(6 ohms, 1 kHz, THD 0.7%)
Center:
90W
(8 ohms, 20 Hz - 20 kHz, THD 0.08%)
125W
(6 ohms, 1 kHz, THD 0.7%)
Surround L/R:
90W + 90W
(8 ohms, 20 Hz - 20 kHz, THD 0.08%)
125W + 125W
(6 ohms, 1 kHz, THD 0.7%)
Surround Back L/R:
90W + 90W
(8 ohms, 20 Hz - 20 kHz, THD 0.08%)
125W + 125W
(6 ohms, 1 kHz, THD 0.7%)
Input Sensitivity
200 mV / 47 kΩ/kohms
Freq. Response (Rec/Repro)
10 Hz ~ 100 kHz - +1, -3 dB (DIRECT mode)
Signal to Noise Ratio
100 dB (IHF-A weighted, DIRECT mode)
DAC
24-bit/192-kHz
Conversion
24-bit/96-kHz
Dolby Digital
Yes
Processor
21367 x 1 32-bit Floating Point
FM
Tuning frequency range: 87.5 - 107.9 MHz
Usable sensitivity: 1.0 μV (11.2 dBf)
AM Frequency Range
Tuning frequency range: 520 - 1710 kHz
Usable sensitivity: 18 μV
Ports
In:
HDMI x 4
Component x 1
S-Video x 1
Composite (Video) x 3
Analog Audio (Tuner included) x 7
Digital Optical x 1
Digital Coaxial x 1
Out:
HDMI Monitor x 1
Composite Monitor x 1
Audio Preout (SW) x 1
Audio Preout (Zone2 L/R) x 1
Phones x 1
Other:
USB port x 1
Microphone Port x 1
Dock Control Port x 1
FM Tuner Antenna x 1
AM Tuner Antenna x 1
Remote Control In/Out (In x 1/Out x 1)
Remote Control
Batteries: R6/AA Type (two batteries)
Dimensions: 2 x 8.7 x 1.1" (53 x 224 x 28mm)
Weight: 5.6 oz (160 g)
Power Requirements
AC 240 V,50/ 60 Hz
Power Consumption
460W (Standby 0.1 W)
Dimensions
17 x 6.7 x 15" (434 x 171 x 381mm)
Weight
22.5 lb (10.2kg)
