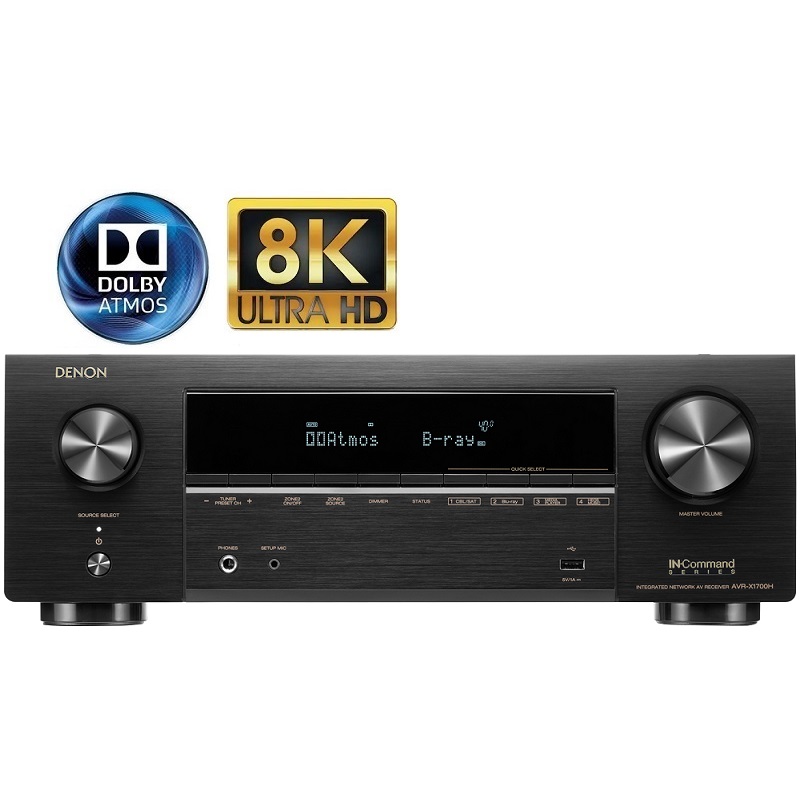

Denon AVR-X1700H vs Denon AVR-S960H
Denon AVR-X1700H vs Denon AVR-S960H
Denon AVR-X1700H vs Denon AVR-S960H
Denon AVR-X1700H vs Denon AVR-S960H
Features

Denon AVR-X1700H vs Denon AVR-S960H

SKU: Denon AVR-X1700H vs Denon AVR-S960H
RM 0.00
Sold out!
Product comparison
Denon AVR-X1700H ( 80w ) vs Denon AVR-S960H ( 90w )
Share:
  Denon AVR-X1700H vs Denon AVR-S960H
More HDMI Outputs 1 vs 2 x 8K (simultaneous)
More Analog Audio Line Inputs 2 vs 5
More Component Video Inputs   vs 2
More Component Video Outputs   vs 1
On-Screen Display  Hybrid Graphic User Interface vs  Advanced Graphic User Interface
Bigger Power Supply 430 W vs 460 W
Higher Power Output (8 Ω, 20 Hz - 20 kHz, 2 channel driven, FTC) 80 W (0.08% THD) vs 90 W (0.08% THD)
Higher Power Output (6 Ω, 1 kHz, 2 channel driven, FTC) 120 W (0.7% THD) vs 125 W (0.7% THD)
Higher Power Output (6 Ω, 1 kHz, 1 channel driven, JEITA) 175 W (10% THD) vs 185 W (10% THD)
Higher S/N Ratio (Line, IHF-A) 98 dB vs 100 dB



SPECS Denon AVR-X1700H vs Denon AVR-S960H
Power Output (8 Ω, 20 Hz - 20 kHz, 2 80 W (0.08% THD) vs 90 W (0.08% THD)
Power Output (6 Ω, 1 kHz, 2 120 W (0.7% THD) vs 125 W (0.7% THD)
Maximum Effective Power Output (6 Ω, 1 kHz, 1 channel driven, JEITA) 175 W (10% THD) vs 185 W (10% THD)
Rated Power Output (6 Ω, 1 kHz, 1 channel driven, IEC) 145 W (1% THD) vs 145 W (1% THD)
Phono Distortion 0.03% (1 kHz, 3 V) vs 0.03% (1 kHz, 3 V)
Input Sensitivity and Impedance (Line) 200 mV/47 kΩ vs 200 mV/47 kΩ
Input Sensitivity and Impedance (Phono MM) 2.5 mV vs 2.5 mV
S/N Ratio (Line, IHF-A) 98 dB vs 100 dB
S/N Ratio (Phono MM, IHF-A) 74 dB vs 74 dB
Phono RIAA Deviation ±1 dB (20-20 kHz) vs ±1 dB (20-20 kHz)
Frequency Response (Analog In) +1/-3 dB (10 Hz to 100 kHz, Direct mode) vs +1/-3 dB (10 Hz to 100 kHz, Direct mode)
DSD Sampling Rates via USB 5.6 MHz, 2.8 MHz vs 5.6 MHz, 2.8 MHz
Video Input Sensitivity/Output Level and Impedance 1 Vp-p/75 Ω (Composite) vs 1 Vp-p/75 Ω (Component Y)
0.7 Vp-p/75 Ω (Component PB/CB, PR/CR)
1 Vp-p/75 Ω (Composite)
Video Frequency Response 5 Hz to 10 MHz, 0 dB/-3 dB (Composite) vs 5 Hz to 10 MHz, 0 dB/-3 dB (Composite)
5 Hz to 60 MHz, 0 dB/-3 dB (Component)
Ethernet Standard 100BASE-TX vs 100BASE-TX
Wi-Fi Standard IEEE 802.11 a/b/g/n/ac vs IEEE 802.11 a/b/g/n/ac
Wi-Fi Terminal Frequency 5 GHz, 2.4 GHz vs 5 GHz, 2.4 GHz
Bluetooth Version 4.2 vs 4.2
Bluetooth Frequency 2.4 GHz vs 2.4 GHz
USB Terminal USB2.0 5V, 1 A vs USB2.0 5V, 1 A
FM Frequency 87.5 MHz - 107.9 MHz vs 87.5 MHz - 107.9 MHz
FM 50 dB Quiet Sensitivity (IHF, 1 kHz, 100% MOD.) Mono: 2.8 µV (20.2 dBf) vs Mono: 2.8 µV (20.2 dBf)
FM Effective Sensitivity 1.2 µV (12.8 dBf) vs 1.2 µV (12.8 dBf)
FM S/N Ratio Mono/Stereo: 70 dB/67 dB vs Mono/Stereo: 70 dB/67 dB
FM Harmonic Distortion (IHF, 1 kHz) Mono/Stereo: 0.7%/1.0% vs Mono/Stereo: 0.7%/1.0%
AM Frequency 520 kHz - 1710 kHz vs 520 kHz - 1710 kHz
AM Effective Sensitivity 18 µV vs 18 µV





GENERAL Denon AVR-X1700H vs Denon AVR-S960H
ECO Mode / Hybrid Standby Function   vs
Auto Power off   vs
Dimensions (W x H x D) 434 mm x 151 mm x 339 mm (with antenna: 434 mm x 215 mm x 339 mm)
17 1/8" x 6" x 13 3/8" (with antenna: 17 1/8" x 8 1/2" x 13 3/8")
vs 434 mm x 167 mm x 341 mm (with antenna: 434 mm x 237 mm x 341 mm)
17 1/8" x 6 5/8" x 13 1/2" (with antenna: 17 1/8" x 9 3/8" x 13 1/2")
Dimensions of Package (W x H x D) 523 mm x 232 mm x 435 mm
20.6" x 9.1" x 17.1"
vs 520 mm x 243 mm x 429 mm
20.5" x 9.6" x 16.9"
Weight 8.6 kg (19 lbs) vs 9.5 kg (20 lbs 15 oz)
Weight of Package 23.4 lbs vs 11.5 kg (25.4 lbs)
