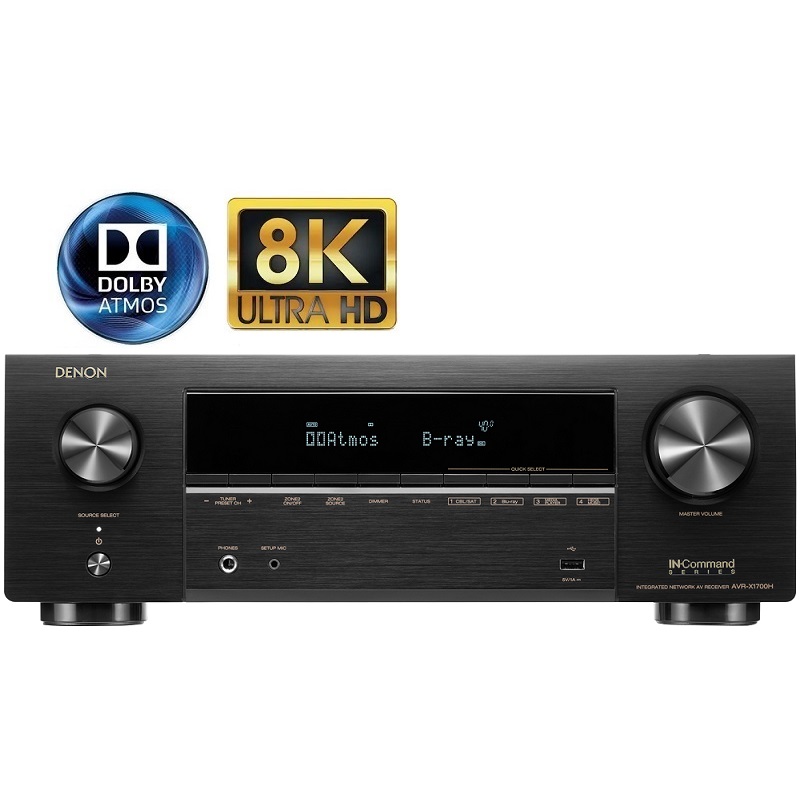

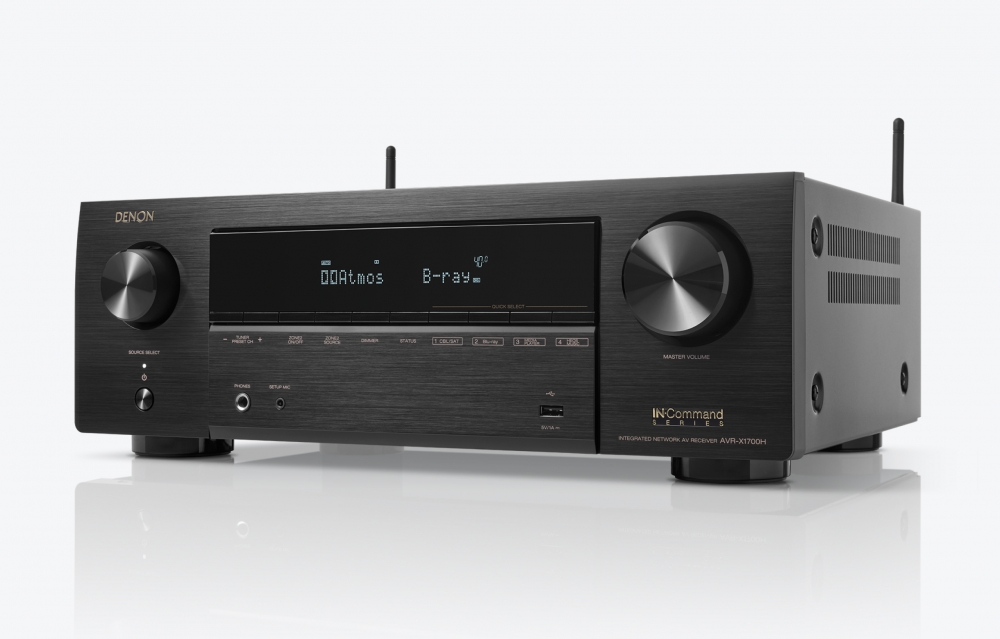

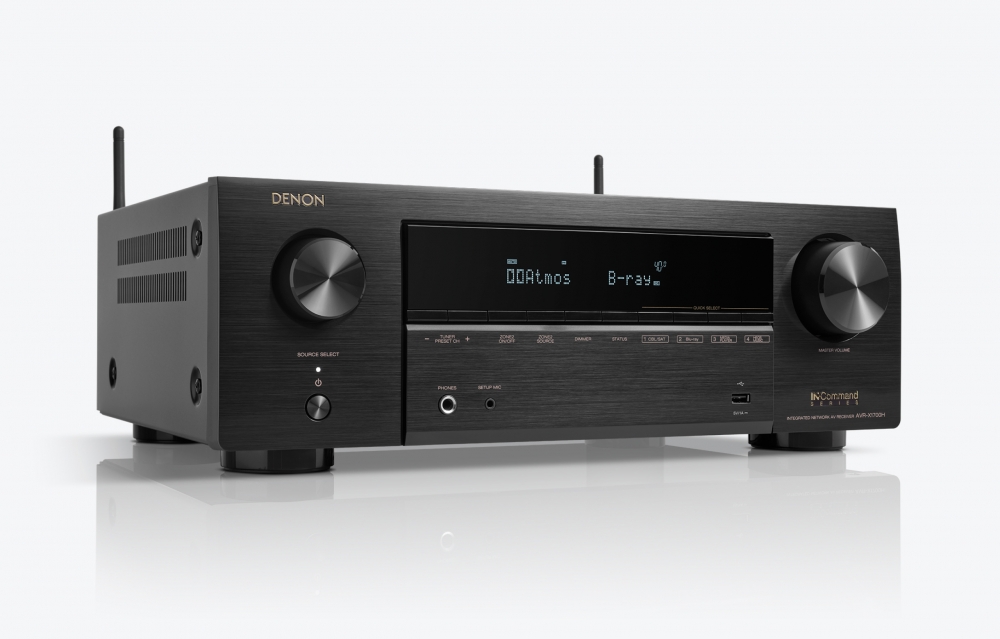

Denon AVR-X1700H 7.2Ch 8K Atmos Network AV ReceiverSKU: Denon AVR-X1700H
7.2 channel full 8K Ultra HD 80W AV Receiver
Dolby Atmos, Dolby Atmos Height Virtualization Technology, DTS:X, DTS Virtual:X
6 HDMI inputs, 1 HDMI output
Audyssey MultEQ XT, Dynamic Volume/EQ
Voice control with Amazon Alexa, Siri (via AirPlay 2) and Google Assistant
AirPlay 2 / Bluetooth / Network Streaming, HEOS Built-in
Please choose your preferred New Speaker (bookshelf/floorstanding) and New subwoofer using FREE Voucher
We accept trade in your old system
* Free Rm300 Voucher For New Speaker (Valid For 6 Months)
* Free Rm200 Voucher For New Subwoofer (Valid For 6 Months)
* Free Meki 4K HDMI Cable 3Meter
* One voucher redeemable for each product *
* Free gift will be packed nicely in the product’s box for shipping option
Denon AVR-X1700H 7.2ch 8K AV receiver with 80W per channel fully supports 3D audio formats Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X® and DTS Virtual:X™. It features as the latest HDMI specifications such as 8K/60Hz, select 4K/120Hz pass-through VRR, ALLM, HDR10+ and eARC support.
Upgrade your home theater with the Denon AVR-X1700H. With 80W per channel (8 ohms, 20Hz-20kHz, THD: 0.08%, 2 ch. driven), this performance-tuned Denon AV receiver provides a truly immersive 3D audio experience. Supports Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X® and DTS Virtual:X™. The AVR-X1700H also supports the latest video technologies such as 8K/60Hz and select 4K/120Hz pass-through on three dedicated inputs, Dolby Vision™, HDR10, HDR10+, Dynamic HDR, HLG, as well as 8K upscaling and HDCP 2.3 support on all HDMI inputs (6 in/1 out).
The front-panel USB offers convenient audio playback of MP3 and Hi-Res audio formats (WAV, FLAC, ALAC and DSD 2.8/5.6 MHz files). Stream popular music services like Spotify®, Amazon Music HD, TIDAL, Deezer, TuneIn, Soundcloud and more wirelessly via Bluetooth, Apple AirPlay 2 and Wi-Fi with HEOS® Built-in. The Denon AVR-X1700H works with Amazon Alexa, Google Assistant and Apple Siri for effortless voice control.*
By visually guiding you through each step in the setup process, the award-winning Denon Setup Assistant ensures you get setup right the first time. Every home theater is different — that’s why Denon uses premium room calibration technology from Audyssey that automatically measures and optimizes your AV receiver to provide a truly immersive 3D audio experience custom-tailored to your unique listening environment.
POWERFUL 7-CHANNEL AMPLIFIER WITH THE LATEST HOME CINEMA SPECS
Featuring discrete amplifiers on all channels, the AVR-X1700H delivers high-power performance at 80W per channel (8 ohms, 20Hz-20kHz, .08%, 2 ch driven). Low impedance drivers provide operational stability for a wide range of speakers for balanced, tonal sound. The AVR-X1700H supports three-dimensional sound formats Dolby Atmos, Dolby Atmos Height Virtualization Technology, DTS:X and DTS Virtual:X, plus an HDMI section with HDCP 2.3 support and advanced video processing with up to 8K upscaling for HDMI sources.
Immerse yourself in multi-dimensional audio with Dolby Atmos, DTS:X, Dolby Atmos Height Virtualization and DTS Virtual:X.
DRIVE IMMERSIVE SURROUND SOUND
Immerse yourself in multi-dimensional audio with Dolby Atmos. Set up Dolby Atmos with a 5.2.2 surround sound speaker system using Dolby Atmos elevation speakers, or dedicated overhead speakers, for the ultimate home theater experience. Dolby Atmos Height Virtualization provides immersive audio without height channels, creating virtual height effects in a 7.2, 5.2 or 2.2 speaker arrangement.
GET CLOSER TO THE ACTION
DTS:X™ immersive audio places sound where it would occur naturally in space, creating a lifelike, multi-dimensional audio experience in the home. The improved immersion and heightened realism draw you into the world of your favorite movies. The included DTS Neural:X™ gives your movies, games and music a realism unmatched by traditional 5.1 surround sound. DTS Virtual:X provides immersive audio without height channels, creating virtual height effects in a 7.2, 5.2 or 2.2 speaker arrangement.
GEARED UP FOR 8K ULTRA HD
Enjoy your favorite movies, shows and games with the best picture quality available.
ADVANCED HDMI VIDEO SECTION WITH EARC
The AVR-X1700H delivers the ultimate home theater experience with 8K/60Hz pass-through, 4K/120Hz pass-through, as well as support for the latest HDMI specifications. The new AVR-X1700H lets you build the best 4K home theater today and gives you the comfort of knowing that your AV receiver is 8K ready when you are. Enjoy the highest quality 3D audio and video for even the most demanding entertainment needs.
THE NEXT GENERATION IN GAMING
Showcased in the new AVR-X1700H, enjoy gaming to its full potential. Game with 4K/120Hz pass-through, as well as Variable Refresh Rate (VRR), Quick Frame Transport (QFT), and Auto Low Latency Mode (ALLM), which reduced or eliminates lag and frame tearing to offer a smoother, lag-free gaming experience.
BRILLIANT COLOR – UNIVERSAL COMPATIBILITY, HDR10+ AND DYNAMIC HDR
The AVR-X1700H supports High Dynamic Range video format, HDR10, Dolby Vision and HLG (Hybrid Log Gamma). Dolby Vision transforms the viewing experiences with astonishing brightness, contrast, and color. HLG offers HDR technology over broadcast content for a crisper, cleaner image. The AVR-X1700H also supports HDR10+, which sends dynamic meta data to TV for more realistic images, as well as Dynamic HDR. (Some technologies are not available on all televisions.)
EASY SETUP EXPERIENCE
The included AVR-X1700H Quick Start Guide provides simple, clear instructions for how to get started. Once you connect your TV to the AVR-X1700H via HDMI, the exclusive Denon Setup Assistant appears on your TV screen to walk you through setup, step by step. A row of color-coded speaker connections is laid out horizontally, making organizing and connecting speaker wires simple.
AUDYSSEY ROOM CORRECTION
The AVR-X1700H features the Audyssey MultEQ XT room acoustic measurement system. With the supplied microphone, it precisely analyses the output of each speaker to optimize every channel. Plus, the additional Audyssey MultEQ Editor app (available for purchase) allows advanced users to go “under the hood” for further adjustment and customization of your audio environment.
BUILT-IN BLUETOOTH AND WI-FI CONNECTIVITY
The heart of your wireless network. For Bluetooth, Wi-Fi and AirPlay 2 wireless streaming connectivity, the Denon AVR-X1700H is equipped with an advanced dual antenna transceiver system for robust streaming even in congested urban environments. Enjoy listening to your favorite audio content wirelessly from your smart devices.
With HEOS Built-in technology play the same song in every room or select a different song for each connected room — the choice is yours. HEOS works with Amazon Alexa and Google Assistant, providing effortless voice control.
HEOS supports free and premium Spotify, Amazon Music HD, TuneIn, iHeart Radio, Sound Cloud, Tidal and more.
YOU’RE IN CONTROL
Better control in your back pocket. The free Denon AVR Remote app for iOS and Android makes using the AVR-X1700H even easier — adjust volume, turn it on or off, mute the music, select a source or switch to the HEOS app for wireless music streaming. Download the Denon AVR Remote app and the HEOS app to your smartphone today. Available for both iOS and Android.
Use Amazon Alexa, Siri, or Google Assistant to control your music.
ALL ZONE TV AUDIO
Play the audio from your TV to all zones. Supports both analog and digital audio connections.
QUICK SELECTS FOR USER-FRIENDLY AUDIO TUNING

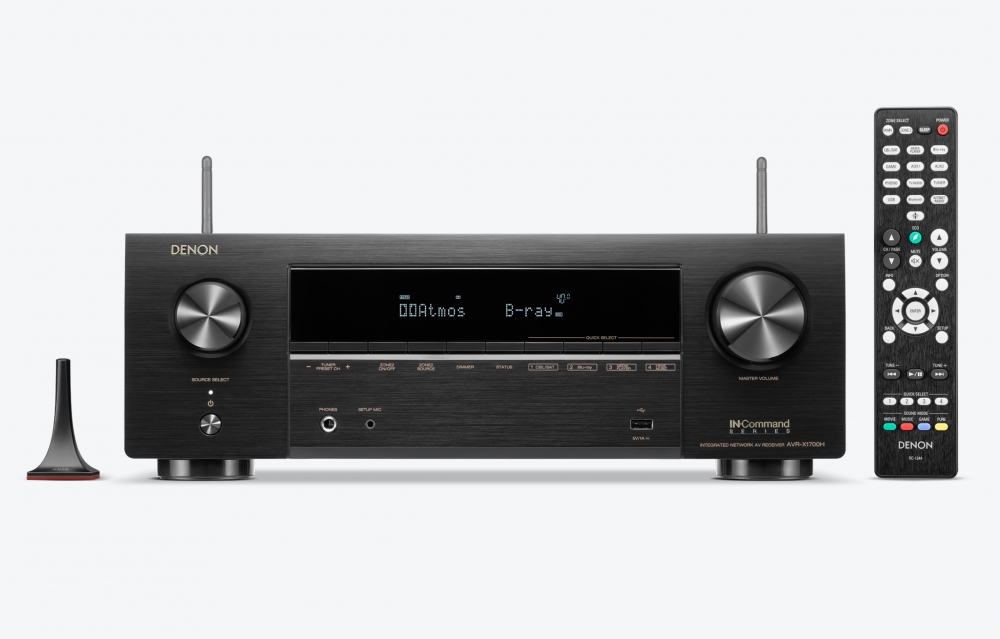

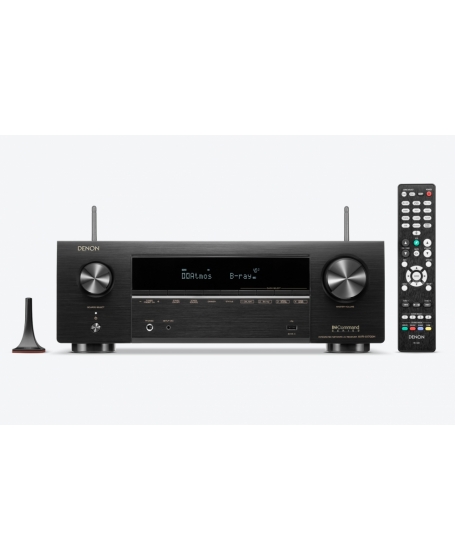

The Denon AVR-X1700H front panel features four Quick Select buttons that store your preferred audio settings for each source. Switch between TV audio, Blu-ray, media players and more, and the AVR-X1700H adjusts the EQ settings to your preferences for that media source. Use the buttons on the front panel or opt for the same Quick Selects on the AV receiver remote for faster control. Now allows for one-push all zone stereo mode via Quick Select.
ADVANCED SOUND PROCESSING
Experience extraordinary sound quality from both music and movies.
DSP POWER PROCESSING
Incredible power for your music and movie needs. The AVR-X1700H includes an advanced DSP (Digital Sound Processor) chip for tremendous power processing. The quadcore DSP is capable of processing over one billion computations per second, the AVR-X1700H supports the latest video, sound and processing needs.
With the Denon AVR-X1700H, it’s possible to enjoy 7.2 channel surround sound in one room and a separate source or music stream in another. Watch a movie in one room while another family member listens to music in a different zone without interruption. Make use of the internal amps to power the speaker or use the zone pre-outs.
FRONT USB PORT FOR HIGH-RESOLUTION AUDIO
Enjoy superb audio fidelity with your favorite high-resolution audio tracks. The AVR-X1700H with 32-bit D/A converters features high-resolution audio decoding with multiple lossless file types, including ALAC, FLAC and WAV at up to 24-bit/196-kHz. It is also compatible with 2.8/5.6-MHz DSD files (DSD is the audio coding format of SACD). Play them from memory devices via the front panel USB, or over network sources. The AVR-X1700H also supports other file types such as MP3 and WMA.
PHONO INPUT FOR TURNTABLE/VINYL SUPPORT
For nearly 50 years, Denon has been developing turntables and phono pre-amps. With the included phono input, the AVR-X1700H lets you connect your turntable and play vinyl records. Enjoy your collection with exceptional quality and sound.
DUAL SUBWOOFER OUTPUTS
Immerse yourself in evenly distributed, accurate bass. The AVR-X1700H features two subwoofer outputs to smooth out low frequencies and provide better dispersion. No audible peaks or dips — just powerful, room-filling bass.
WORKS WITH LATEST VOICE ASSISTANTS
Enjoy effortless voice control and total flexibility from the leading voice services. Using a smart speaker or your phone, speak commands with Amazon Alexa, Google Assistant and Apple Siri. Ask to play your favorite music, turn the volume up, skip to the next track, switch inputs and more. Switch between voice services or pick a favorite to use — the choice is yours. Functionality varies by voice agent.
WORKS WITH AMAZON ALEXA
Control the AVR-X1700H hands-free with Amazon Alexa and your voice. Adjust the volume, skip to the next track, switch inputs for your different media players and more — “Just Ask.” Download the free HEOS Home Entertainment Skill to enable Amazon Alexa voice commands for your AVR-X1700H, HEOS devices and other select Denon products. Requires Alexa app and Amazon Echo, Dot or equivalent.
WORKS WITH GOOGLE ASSISTANT
Start music in the HEOS app, then ask your Google Assistant to control volume, play, pause, skip tracks and more.
AIRPLAY 2 + APPLE SIRI VOICE CONTROL
Use AirPlay 2 to stream music wirelessly to the AV receiver, or group with other AirPlay compatible speakers to fill your home with music.
Stream audio from your favorite music services like Apple Music and Spotify or watch videos from services like YouTube and Netflix from any iPhone, iPad, Mac or Apple TV and hear the audio perfectly synced to your speakers AirPlay 2 sources.
AirPlay 2 also supports multi-room audio – wirelessly stream content to multiple AirPlay 2 compatible devices simultaneously with improved audio buffering to ensure smooth audio playback. AirPlay 2 provides control and grouping of compatible audio devices within the Apple Music or Home app. Use AirPlay 2 in-app or with your voice via Siri.
HEOS BUILT-IN: WIRELESS MUSIC STREAMING
Stream your favorite music from anywhere and everywhere around your home with HEOS Built-in technology. Enjoy high quality music from a wide range of streaming services including Spotify®, TuneIn, Amazon Music HD, iHeartRadio, Soundcloud®, Tidal, Napster, Deezer or local music sources. Control it all seamlessly with the free HEOS app.
PLAY YOUR MUSIC ANYWHERE WITH DENON HOME SPEAKERS
With the HEOS multi-room function, the Denon AVR-X1700H can connect with any other product with HEOS Built-in, like Denon Home speakers, to play music throughout your entire home. Play the same song in every room or select a different song for each connected room — the choice is yours.
110+ Years of Firsts in Audio Technology
Founded in 1910, Denon has a deep heritage of “firsts” in audio technology — from Japan’s first audio electronics manufacturer, to producing the world’s first commercial CD player and Dolby Atmos-enabled AV receiver. This focused investment in audio R&D ensures you get the latest technology and highest quality with every listening experience.
DTS HD Master / DTS:X Yes / Yes
DTS Neo:X / DTS Neural:X No / Yes
DTS Virtual:X Yes
Dolby TrueHD / Dolby Atmos Yes / Yes
Dolby ProLogic II / Dolby Surround No / Yes
Dolby Height Virtualization Yes
Multichannel Stereo Yes
Dialog Enhancer Yes
Max Number of Processing (Preamp) Channels 7.1
Discrete Power Amplifier 7
Audyssey MultEQ XT
Audyssey Dynamic EQ / Dynamic Volume Yes / Yes
Audyssey APP Support Yes
Compressed Audio Restorer Yes
HEOS Multiroom and Streaming Yes
Lossy Formats: MP3 / WMA / AAC Yes / Yes / Yes
Lossless Formats: FLAC / ALAC / WAV Yes / Yes / Yes
DSD Audio Streaming up to DSD5.6
FLAC HD 192/24 Yes
WAV 192/24 Yes
ALAC 192/24 Yes
Gapless playback Yes (FLAC, WAV, ALAC, DSD)
AirPlay 2 Yes
Roon Tested Yes
Internet Radio TuneIn
Spotify Connect* / Tidal* / Deezer* / others * Yes / Yes / Yes / Yes
Amazon Prime Music* / Pandora* Yes / Yes
Compatible with Remote APP for Smart Phones Android / iOS
Compatible with Remote APP for Tablets Android / iOS / Amazon Kindle
Ethernet Ports Yes
HDMI Inputs: Back / Front 6 (3x 8K) / 0
HDCP2.3 support Yes
HDMI Outputs: Main / Zone 1 / No
HDMI max Resolution (8k / 4k) 8k/60 - 4k/120
HDMI to HDMI Scaling up to 8K 60/50
HDMI: 8K / 4K / CEC / eARC Yes / Yes / Yes / Yes
HDMI: Dolby Vision / HDR 10+ / Dynamic HDR / HLG Yes / Yes / Yes / Yes
HDMI: ALLM / QMS / QFT / VRR Yes / Yes / Yes / Yes
HDMI pass-though in standby mode Yes
HEOS Multiroom integrated Yes
TV Sound grouping Yes
Multiroom zones 2
Main room multichanel audio - Zone stereo downmix Yes
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog Yes (2ch) / Yes (2ch) / Yes / Yes
Zone Audio Output: Speaker / Preout Yes / Yes
Webbrowser Setup Yes
IP Control / RS232 Control / Web Control / App Control Yes / No / Yes / Yes
Remote In / Out 1 / No
Voice Control - Works with Amazon Alexa Yes
Voice Control - Google Assist / Apple Siri Yes / Yes
Auto Speaker Setup by Microphone Audyssey MultEQ XT
FL Display 1 line
Graphic User Interface - GUI Hybrid GUI
GUI Languages 3
Setup Assistant Yes
Quick Select Plus / Quick Select Yes / No
Firmware Update by: Network / USB Yes / Yes
Variable Cross Over Yes
Optimized Bass Redirection Yes
ECO Mode Yes
Auto Power Off Yes
Sleep Timer Yes

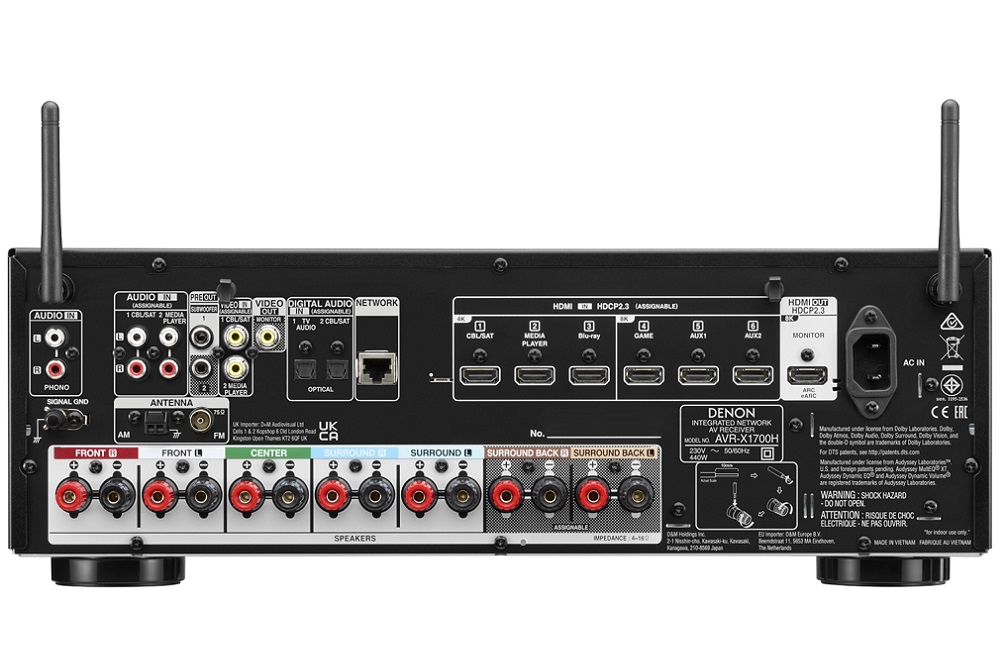

Composite In / Out 2 / 1
Component In / Out No / No
HDMI In / Out 6 / 1
Multi-room Video Out: Video / HDMI No / No
Analogue In/out 2 / No
Phono (MM) In Yes
Digital In: Optical / Coaxial 2 / 1
Multi-room Out: Analog / Digital Yes / No
Multichannel Preout Yes (0.2)
Subwoofer Out 2
Speaker Terminal: Gold Plated Screw / Regular Screw No / Yes
Number of Speaker Terminals 7
Speaker A / B assignable
Bi-amp Drive assignable
Multi-Room Speaker Terminal assignable
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB No / No / No / No / Yes
USB Audio / Made for iPod / Made for iPhone Yes / AirPlay / AirPlay
Tuner: FM / AM Yes / Yes
Number of Power Amps 7
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) 80 W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 120 W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 175 W
Available colors: Black / Premium Silver Yes / No
System Remote Control RC-1244
Pre-programmed / Learnable / LCD Display No / No / No
Power Consumption in W 430
Power Consumption No-Sound (ECO On / Off) in W 29 W / 39 W
Dimensions (W x D x H) 434 x 339 x 151 mm
Standby Consumption in W 0.1
CEC Standby Consumption in W 0.5
Network Control On Consumption in W 2.0
Maximum Dimensions w/ Antenna (W x D x H) 434 x 339 x 151 mm
Weight in kg 8.6
Carton Maximum Dimensions (W x D x H) in mm 523 x 435 x 232
Carton Weight (inc. product) in kg 10.6
Antenna: Horizontal: (W x D x H) in Inches
Antenna: Vertical: (W x D x H) in Inches
W/O Antenna: (W x D x H) in Inches 17.1× 13.3 × 6
( 17.1 x 13.3 x 8.5)
Weight in LBS 18.96
Carton Maximum Dimensions (W x H x D) in Inches 20.6 x 17.1 x 9.1
Carton Weight (inc. product) in LBS 23.37
