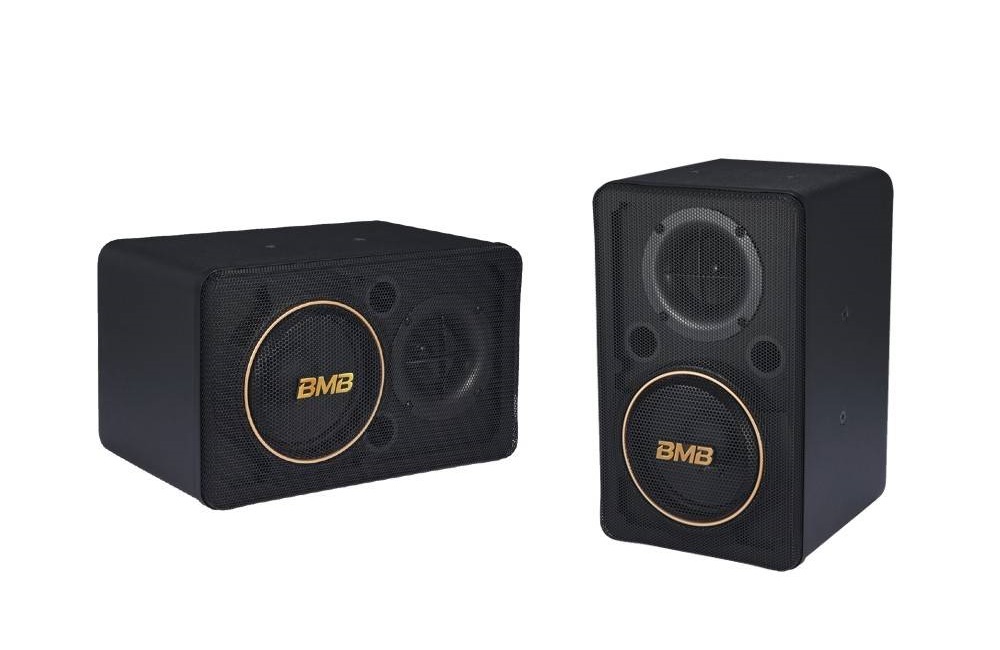

BMB CSJ-08

CSJ Series

Compact Karaoke speakers with the title "J" for Japanese sound

Compact speakers are ideal not only for small rooms but also for back/center speakers.

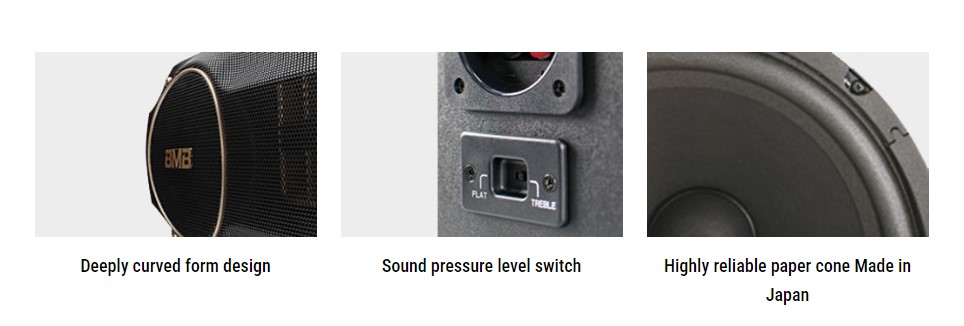

High quality punched-in net speaker panels are designed with a deeply curved form.
"Tweeter SPL* switch is used to prevent howling.
*SPL- Sound Pressure Level"
Woofer use highly reliable paper cones made in Japan to achieve high quality sound.

Selling point

• Lovely 6 inch for various facility.
• Luxury metal punched-in net.
• Japan market standard model.

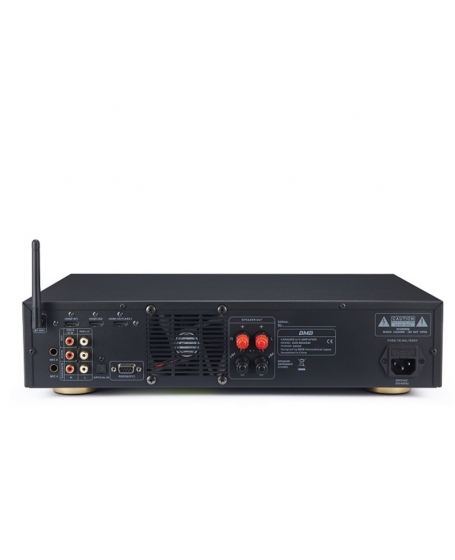

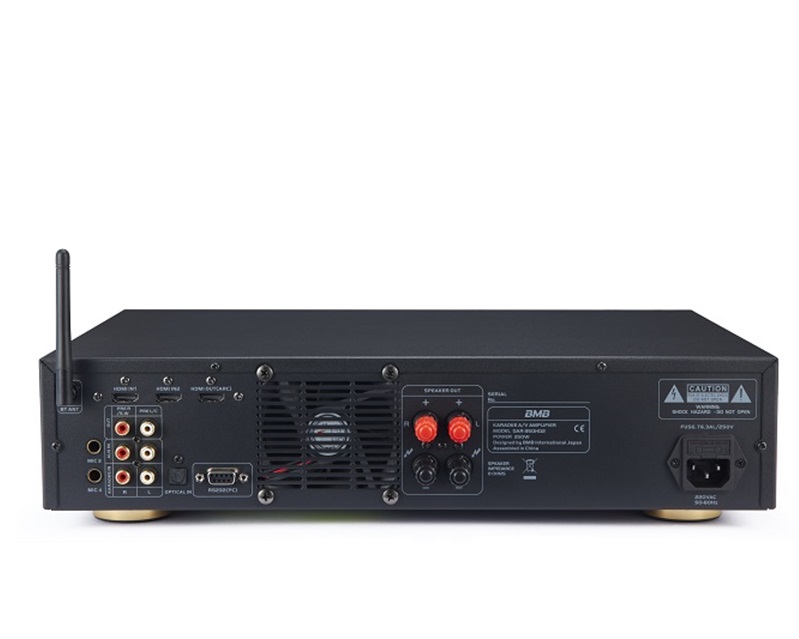

BMB DAR-350HD2

DAR Series

High power Karaoke amplifier with useful new functions.

350W x 2ch outputs, enough high power to meet commercial use.
Double Bluetooth function: You can connect two smartphones and play song while switching smoothly.
HDMI port 2in 1out(ARC): You can connect HDMI device such as Karaoke song machine, DVD Player, etc. If your TV has HDMI ARC function, TV sound can come into DAR-350H.
USB Play: Can conect USB memory, play song.
Mobile/PC app: Set up the parameter of DAR-350H by Mobile or PC app.

Selling point

• 4 useful New functions (Double Bluetooth, HDMI, USB Play, Mobile app)
• Powerful 350W x 2ch, suitable for both of Commercial / Home use.

WH-210

The WH-210 dual wireless microphone is the new value series but does not compromise the quality you would expect from BMB. The all-metal aluminum microphone handhelds make it ergonomically fit for a comfortable grip. Last but not least is the large LED display on the handhelds.

• UHF type wireless microphone system (640-690MHz, certified by MCMC).
• Compact receiver
• Automatic pairing function
• Ideal for classroom, meeting room, outdoor events, PA, and of course karaoke
• Excellent signal stability
• Powerful sound effects

CSJ-08 [8"]
System Type    Two-way two unit speaker system
Frequency Range(-10dB) *1    46Hz-20kHz
Frequency Response(±3dB) *1    90Hz-20kHz
Sound Pressure Level *2    88dB
Impedance    8Ω
Max Sound Pressure Level *3    112dB
Power Capacity    Continuous 120W,Program 240W
Dimensions (HxWxD)    451mm x 251mm x 258mm(17.8" x 9.9" x 10.2")
Shipping Dimensions (HxWxD)    525mm x 325mm x 600mm(20.7" x 12.8" x 23.6")
Net Weight    7.15kg (15.7lbs) for one
Shipping Weight    16.5kg (36.3lbs) / Pair
Input Connectors    19mm (spacing distance) terminal
LF Unit    200mm（7.9"） Cone, 35.5mm（1.4"）Voice Coil x 1
HF Unit    70mm（2.8"） Cone, 13.5mm（0.5"）Voice Coil x 1
Enclosure Construction    12mm（0.5"）MDF
*1 Full space (4π) conditions
*2 1w1m on-axis, swept-sine in anechoic environment
*3 Calculated

DAR-350HD2
Stereo mode    @8Ω 1kHz 2x350W
Sensitivity    @8Ω 1kHz 800mV
Frequency Response    20Hz-20kHz ±0.5dB
Total Harmonic Distortion    @8Ω 1kHz, MIC input 0.05%
@8Ω 1kHz,AUX/KARAOKE input 0.05%
Signal to Noise Ratio    A-weighted,MIC input ≥85dB
A-weiqhted, MIC mute AUX/KARAOKE input ≥96dB
Intermodulation distortion    @8Ω 60Hz-7kHz < 0.1%
Voltage gain    @8Ω 1kHz 36±1dB
Channel separation     @8Ω 1kHz ≥78dB
Input Impedance    @1kHz balance 20kΩ
AC power specifications    AC100V-130V(50/60Hz) 100V Model
AC220V-240V(50/60Hz) 200V Model
Product dimensions(W*D*H)    420mm x 290mm x 89mm
Packaging dimensions(W*D*H)    561mm x 470mm x 175mm
Net weight    10.2kg
Gross weight    12.7kg

WH-210
System
Type    UHF
Frequency Response    50Hz-15KHz
Working Distance    50m(LOS)
THD+N    <1%
Normal Frequency Range    640-690MHz
THA/TWN Frequency Range    748-758MHz
US Frequency Range    902-928MHz
RECEIVER
Oscillation Frequency    PLL Digital Frequency
Channel Selection    Automatic
Frequency Stability    30ppm
Display    Indicator Lamp
Power Supply    DC 5V≥A
Audio Output Interface    6.35mm
Weight    100g
Size    150 x 32 x 26mm
TRANSMITTER
Oscillation Frequency    PLL Digital Frequency
Channel Selection    Automatic
Frequency Stability    30ppm
Core    Dynamic
Sensitivity    -54dB
Display    LED
Power Supply    2 x AA Batteries
Weight    255g
Size    245 x 36 x 54mm
