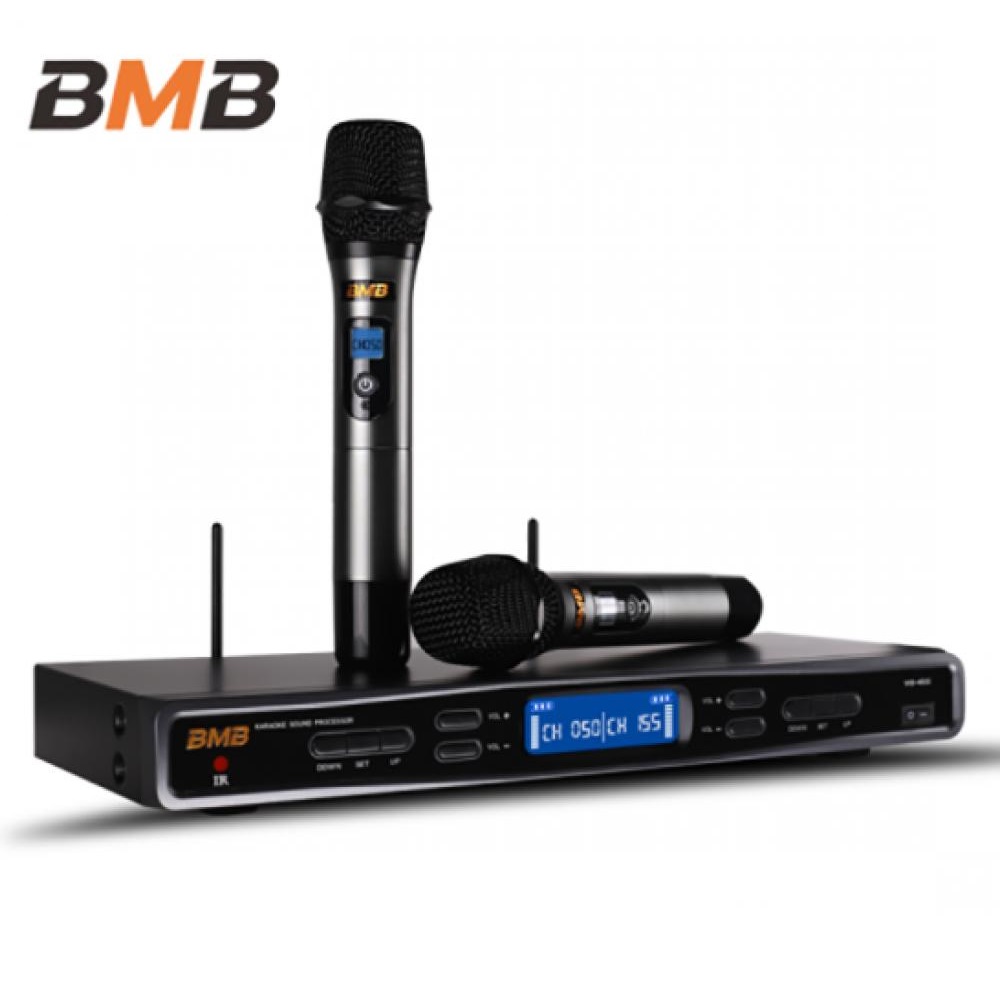

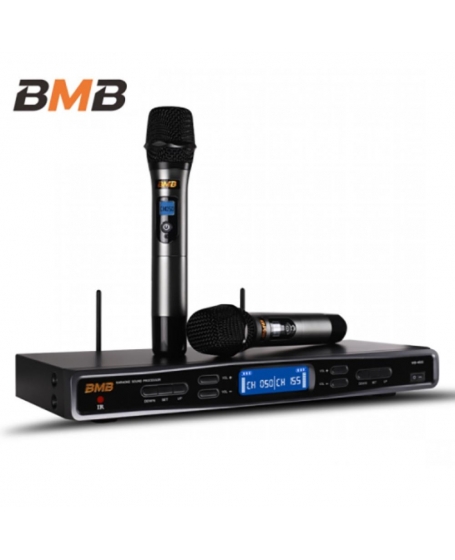

BMB WB-5000S

UHF Wireless Microphone System

• By adopting a high-performance microchip and suppressing distortion, we realized a unique wireless quality microphone unique to BMB.
• It uses high-quality liquid crystal, it is easy to see in any installation situation.
• When the microphone dropped, The microphone will become mute.
  It will not occur the Large volume Noise, when falling more than 20 cm.
• New function that microphone automatically connect to receiver by shaking microphone. (WB-5000 / WM-500)

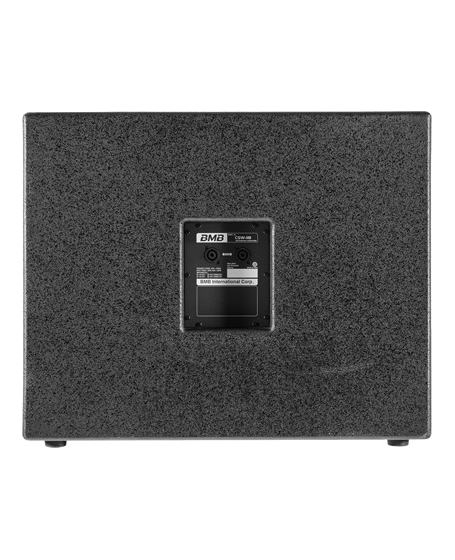

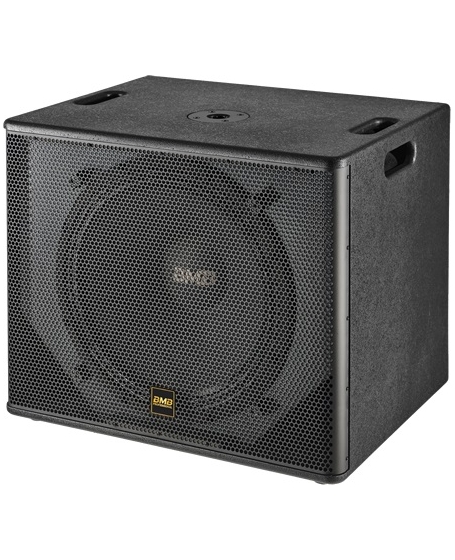

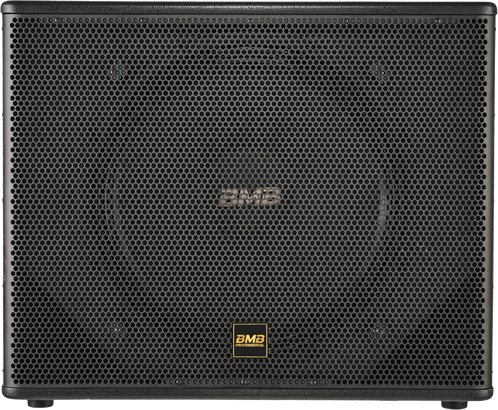

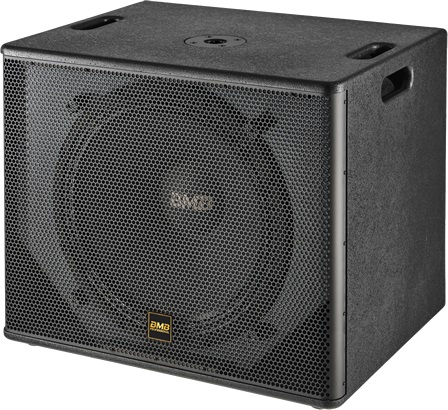

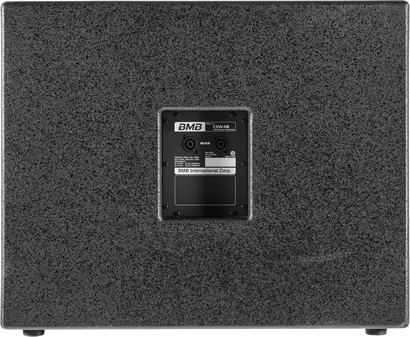

BMB CSW-118

CSW Series

Make your singing more comfortable and enjoy your beat.

A subwoofer for karaoke developed by karaoke maker BMB that pursues comfortable singing.
By adopting a triangular bass reflex hole, you can make a speedy beat even though it is a bass reflex type.
In addition, the height of the main body can be lowered, resulting in a compact housing.

Selling point

• Triangle Bass Reflex
  Will provide comfortable and speedy beat.
• Pole Mount
  Add speaker on the top of subwoofer via pole.

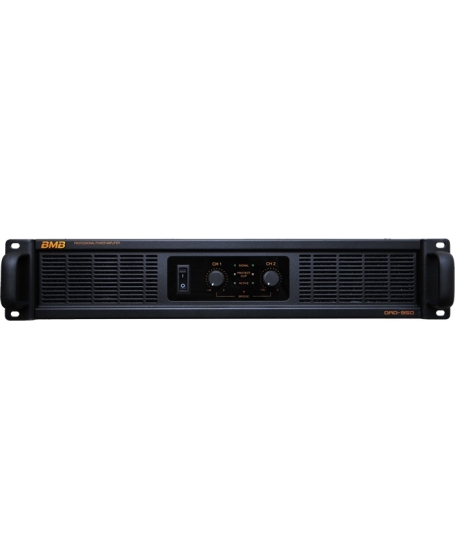

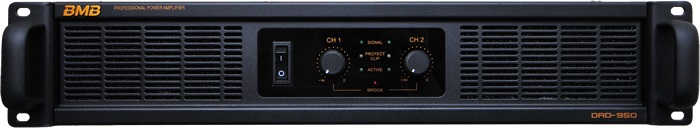

BMB DAD-950

DAD Series

Standard power amplifier for PA speaker.

• Circuit safety protection will prevent damage in case of accident.
• Case size is standard 2U.
• Switch 2 type of output system. (Stereo / Bridge)

Selling point

• Designed for PA speaker.
• High power, 1800W x 1ch. (DAD-950)

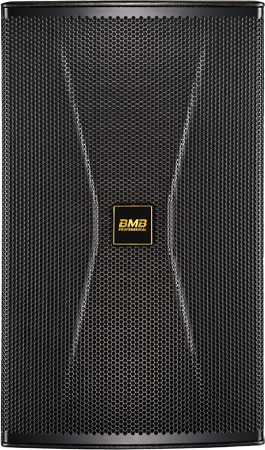

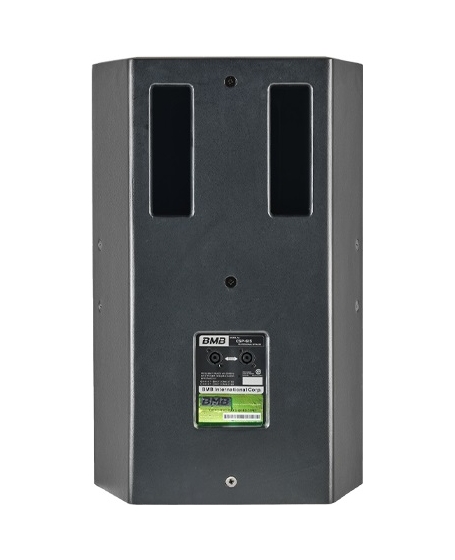

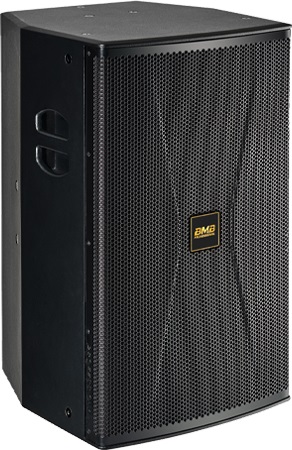

BMB CSP-615

CSP Series

BMB Sound everywhere, PA type speaker Tuned for valious scene use.

Cabinet made of high quality birch plywood assembled by box joint.
The tough structure keeps outputting powerful sound stably.
Clear high frequency sound by fine-tuned diaphragm

Selling point

• A new type of vocal and music mixing style. Not only for KTV, but also for Bar, Club, Restaurant, various scene.

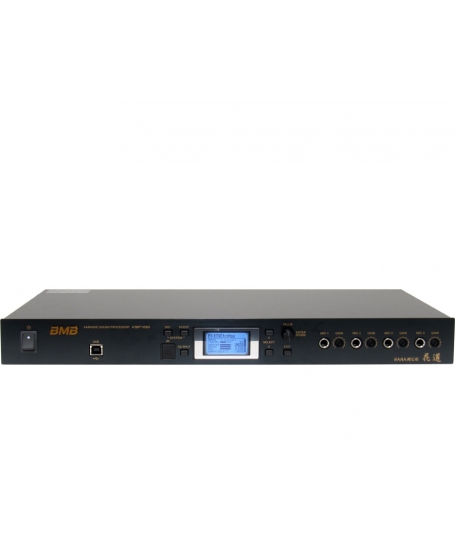

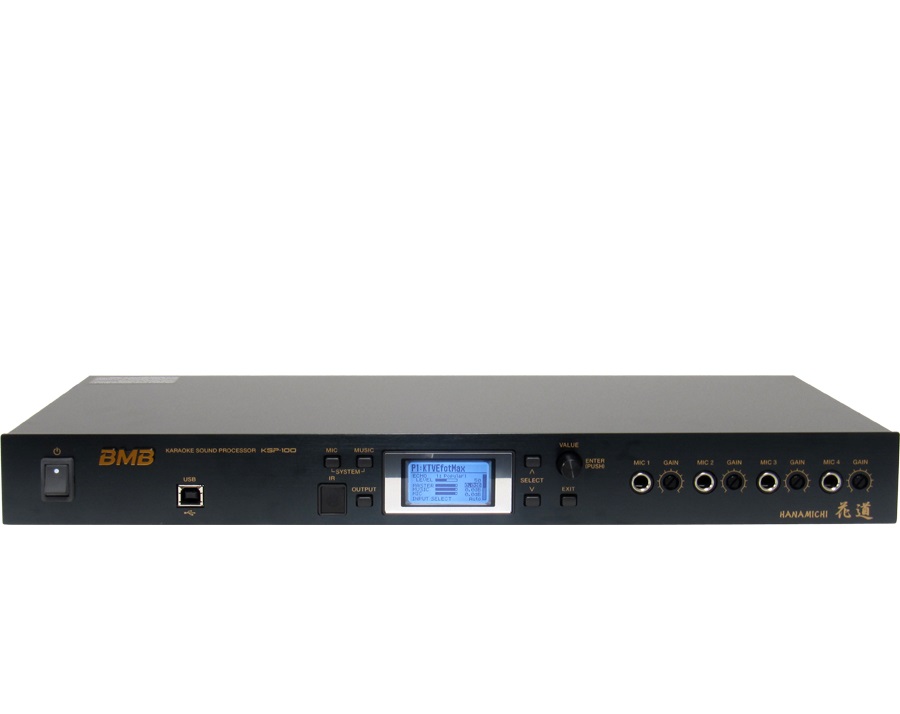

BMB KSP-100

Highlight

• PC Editor is provided to setup each sound parameter. (EQ, Comp, etc.)
• This model can create the best Karaoke sound for any room or hall utilizing sound editing software via computer.
• The voice effect feature - HANAMICHI - is pre-installed so the orchestra sound shifts from side to side while the singer stays in the center. (KSP-100)
• The Room Acoustic feature is installed to automatically adjust the sound field to all environments depending on the shape of the room and material of the walls, the floor and the ceiling. (KSP-100)
• An Anti-Feedback feature is used to ensure the best indoor feedback control.
• KSP-100 is made in Japan.

BMB WB-5000S
SYSTEM
Type    Unidirectional dynamics UHF Wireless microphone system
Frequency Range    640Hz - 690Hz
Channel    200CH
Frequency Response    100Hz - 10Hz
Effective Distance    50m
Frequency Interval    250KHz
Frequency Width    50MHz
Frequency Oscillation Mode    PLL Module locked loop design
Radio Frequency Sensitivity    -90dBm
Total Harmonic Distortion    < 5%
Dynamic Range    >70dB

RECEIVER
SNR    ≥50db
Frequency Stability    ±5KHz
Signal Pick Up    CPU controlled selection & pilot identification
Mute    Mute & Lock Loop Circuit
Disply    LCD
DC Input    12V DC ≥1000mA
Output Impedance    600Ω
Output    2 XLR Balance Socket + Unbalance TRS 6.3mm Socket
Dimensions (mm)    420(W) x 44(H) x 160(D)

MICROPHONE
Frequency Oscillation Mode    PLL module locked loop design
Transmission Method    CPU controlled carried wave & pilot identification
RF Stability    ±5KHz
Display    LCD+color backlit
Capsule    Dynamic
Power Level    Hight & Low
Power Supply    2 Pcs AA Battery
Weight    0.55KG
Dimensions (mm)    50(Φ) x 247(L)

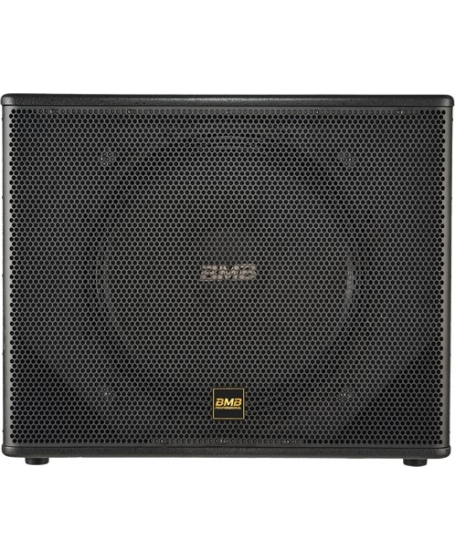

BMB CSW-118 [18"]
System Type    1 Way 1 Speaker Bass Reflex
Frequency Range(-10dB) *1    40Hz～2.5kHz
Frequency Response(±3dB) *1    50Hz～1.8kHz
Sound Pressure Level *2    95dB
Impedance    8Ω
Max Sound Pressure Level *3    123dB(Peak 129dB)
Power Capacity    Continuous 600W, Program 1200W, Peak 2400W
Dimensions(H×W×D)    550mm×661mm×519mm (21.6"×26.0"×20.4")
Shipping Dimensions(H×W×D)    692mm×809mm×666mm (27.2"×31.9"×26.2")
Net Weight    31.1kg(68.6lbs)
Shipping Weight    39.6kg(87.3lbs)
Input Connectors    Speaker Connector(4P)×2
Pole Mount Cap    Φ36mm(1.4"), Depth 96mm(3.8")
LF Driver    460mm(18.1") Cone, 75mm(3.0") Voice Coil×1
Enclosure Construction    18mm(0.7") Plywood
*1 Full space (4π) conditions
*2 1w1m on-axis, swept-sine in anechoic environment
*3 Calculated

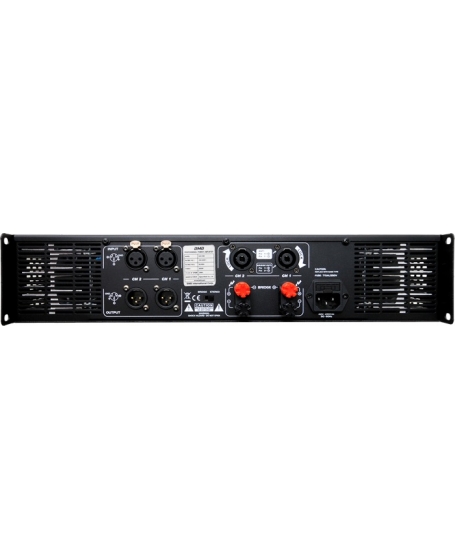

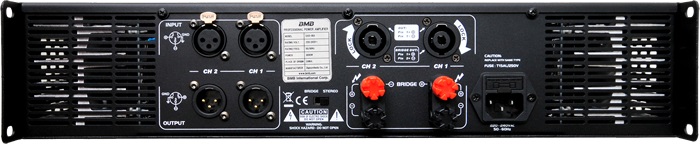

BMB DAD-950 (SE)
Rating Output Power
1kHz THD=@1%    1200W×2CH(4Ω):stereo mode
950W×2CH(8Ω):stereo mode
1800W×1CH(8Ω);bridge mode
Frequency Characteristic(20Hz～20kHz、8Ω)    ±0.3dB
THD(8Ω,1kHz)    0.02%
SN Ratio    105dB over
Damping factor(100Hz 8Ω)    250 over
Voltage Gain    40±2dB
Channel Separation(20Hz～1000Hz 8Ω)    85dB over
Input Impedance    20kΩ(balance)
Audio Input Connectors    XLR type×2CH
Output Connectors    Neutrik SpeakON® NL4MP(1+/1-)
Screw type(+/-)
HPF Switch    50Hz/PASS
Ground Switch    GND/FLOAT
AC Input    220V～240V(50/60Hz)
Power Consumption(1/8 Output Pink noise 8Ω)    3000W
Cooling Fans    Automatic air volume control fans
Dimensions(mm)    482(W)×89(H)×423(D)
Weight    24.0kg

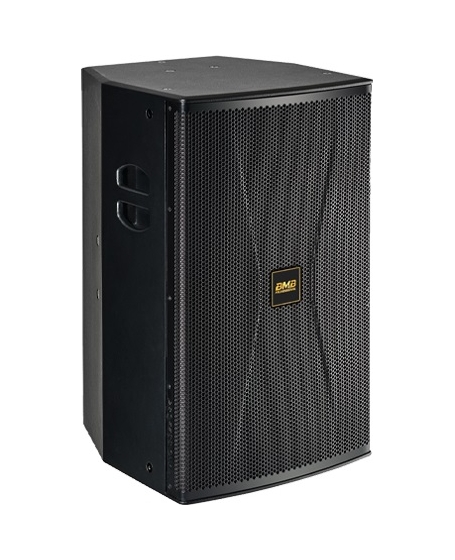

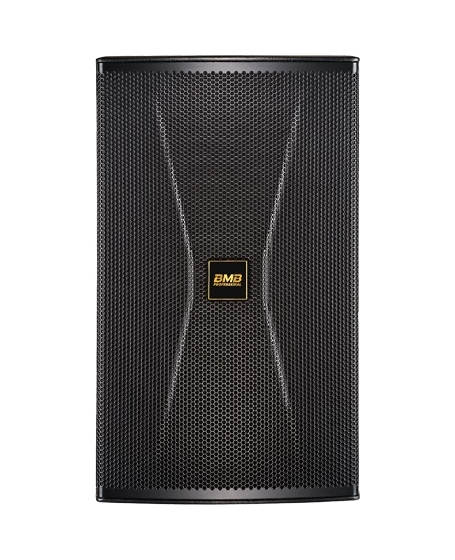

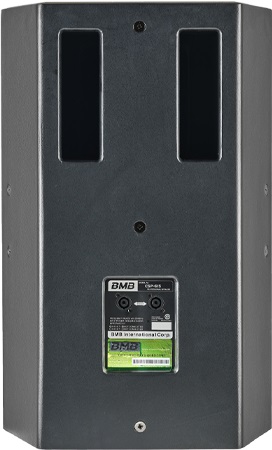

BMB CSP-615 [15"]
System Type    Two-Way loudspeaker, bass reflex
Frequency Range(-10dB) *1    56Hz～20kHz
Frequency Response(±3dB) *1    95Hz～20kHz
Sound Pressure Level *2    97dB
Impedance    8Ω
Max Sound Pressure Level *3    124dB(Peak 130dB)
Power Capacity    Continuous 600W, Program 1200W, Peak 2400W
Dimensions    (W)443mm×(H)700mm×(D)463mm (17.4"×27.6"×18.2")
Shipping Dimensions    (W)550mm×(H)825mm×(D)570mm (21.7"×32.5"×22.4")
Net Weight    33.5kg(73.7lbs)
Shipping Weight    39.3kg(86.6lbs)
Input Connectors    Speaker Connector(4P)×2
Pole Mount Cap    Φ36mm(1.4"), Depth 75mm(3.0")
Speaker unit    LF Unit:390mm(15.4") Cone, 100mm(3.9") Voice Coil×1
HF Unit:37mm(1.5") Throat,　75mm(3.0")Voice Coil×1
Enclosure Construction    15mm(0.6") Plywood
Accessories    Owners manual
Registration card
*1 Full space (4π) conditions
*2 1w1m on-axis, swept-sine in anechoic environment
*3 Calculated

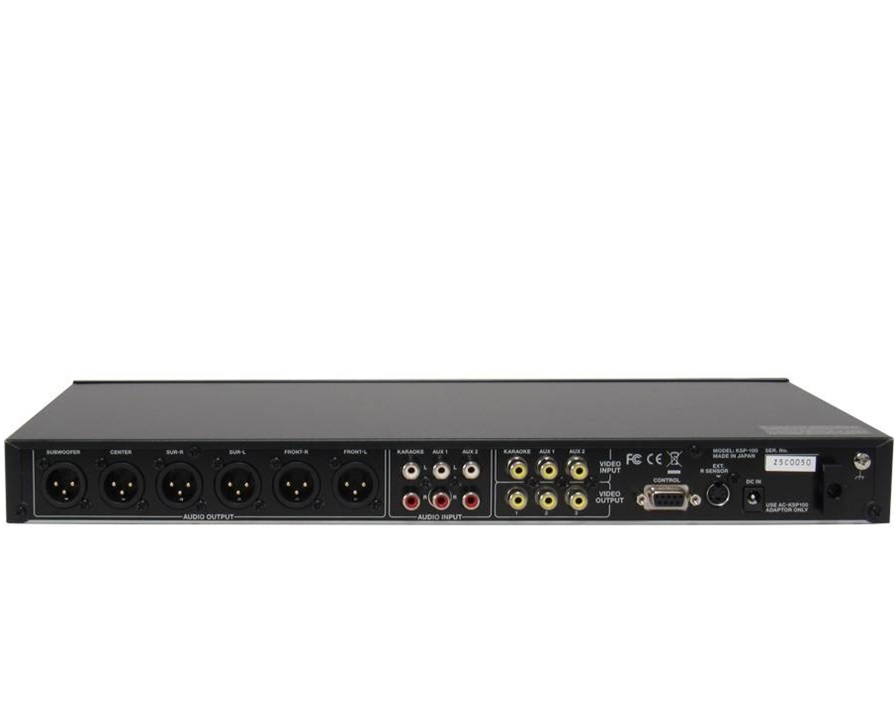

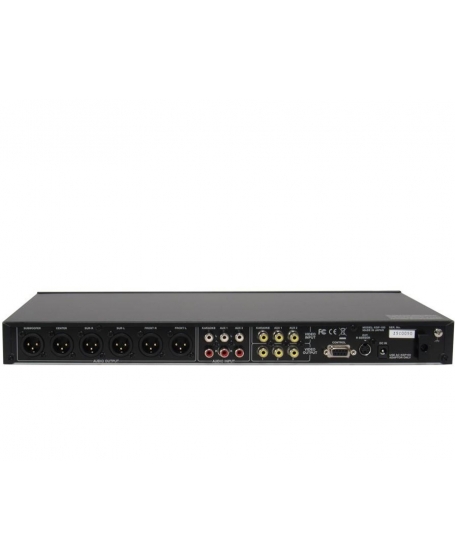

BMB KSP-100
Mic Input: 4 systems
Audio Input: 3 systems (KARAOKE, AUX1, AUX2)
Video Input: 3 systems (KARAOKE, AUX1, AUX2)
Video Output: 3 systems
Output Connectors: 5.1 Channel systems (XLR type)
Sampling Rate/Bits: 44.1kHz / 24bits
Frequency Response: 20Hz ~ 20kHz
Control Connecters: USB (B type) RS-232C (DB-9 type)
LCD Display: 128x64 dots Black and White
DC Input: DC9V
AC Input: Adaptor (AC100V ~ 240V)
Dimensions (mm): 420(W) x 44(H) x 167(D)
Weight: 2.0kg
