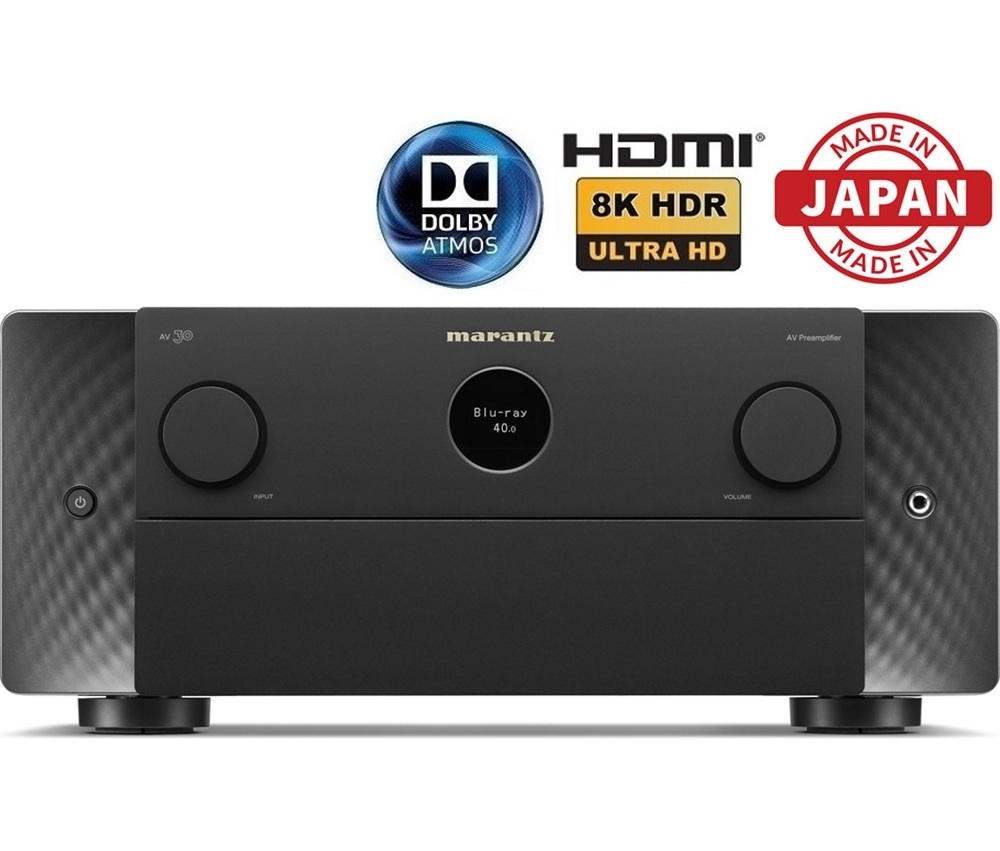

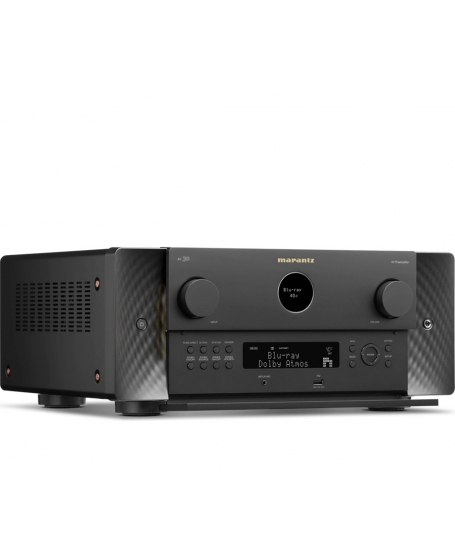

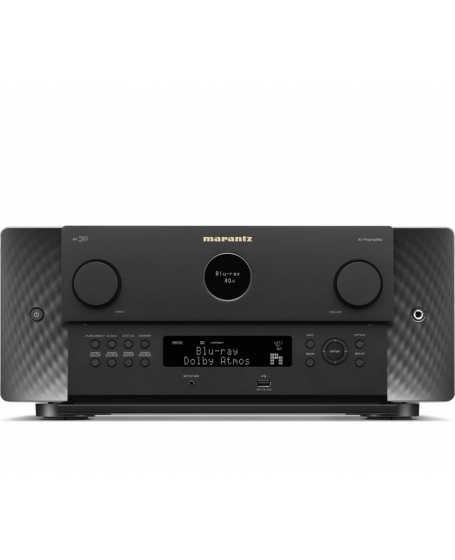

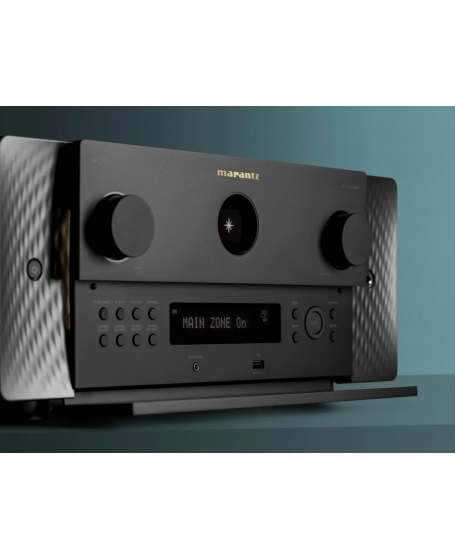

AV 30

11.4-Channel Balanced AV Preamplifier Powered by HEOS™

AV 30 delivers exceptional performance and capability for large media rooms and dedicated home theater systems. This 11.4-channel balanced AV preamplifier features Marantz HDAM discrete circuitry and boasts seven HDMI inputs, each of which is 8K Ultra HD compatible. Powered by HEOS™ for high-resolution music streaming, AV 30 includes room correction with Audyssey MultEQ XT32 and optional Dirac Live. It delivers Dolby Atmos, DTS:X Pro, AURO-3D, and features multiple inputs and balanced pre-amp outputs for all channels, including four independent subwoofers.

• Crafted in Shirakawa, Japan
• 11.4 Channels
• 7 HDMI Inputs plus eARC
• 8K and Dolby Atmos
• 3D Audio
• Powered by HEOS™

Elevated Listening Begins Here

AV 30 is engineered to bring exceptional cinema sound into your home. Advanced Marantz technology and expert craftsmanship ensure your entertainment is always delivered with powerful precision—from an elegant, timeless design.

Exceptional Perfoemance

Enjoy every movie moment with immersive realism and lifelike detail. AV 30 delivers an outstanding theater experience—in your home.

Ultimate Flexbility

The 11.4-channel onboard processing supports a wide range of speaker configurations. Perfect for all forms of immersive audio suitable for even large home theater systems.

Tecnology Leader

AV 30 comes packed with support for the latest high-resolution movie formats, plus 8K video compatibility, room optimization, and Powered by HEOS™ technology to simplify and elevate your listening.

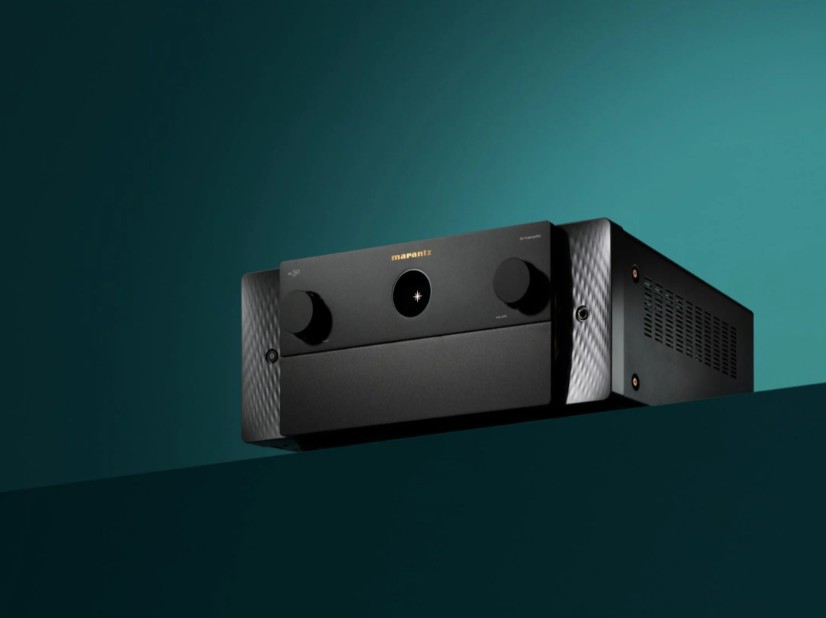

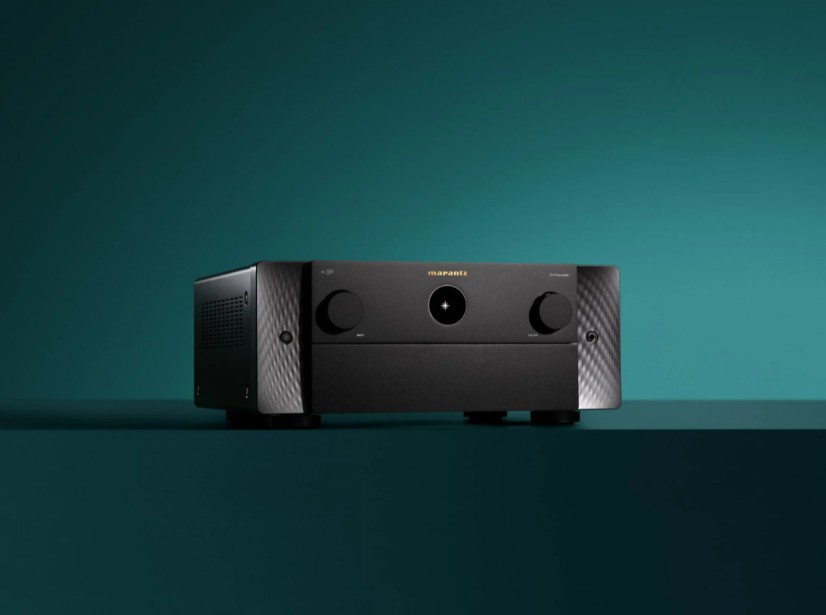

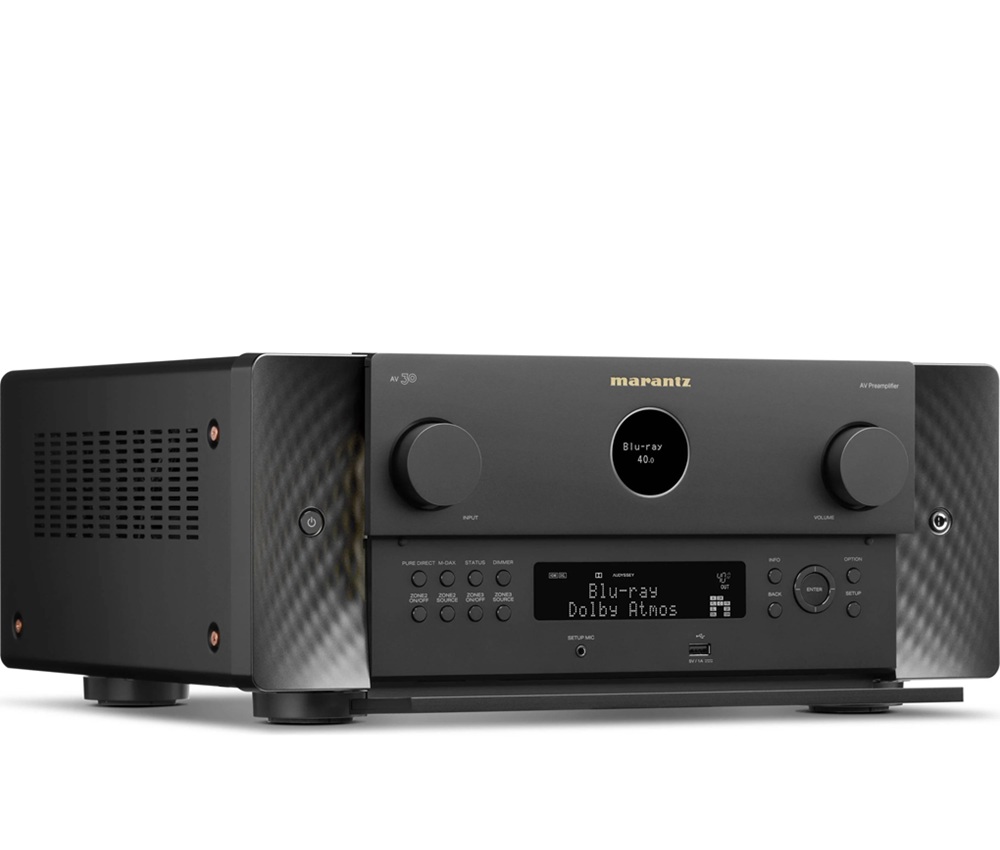

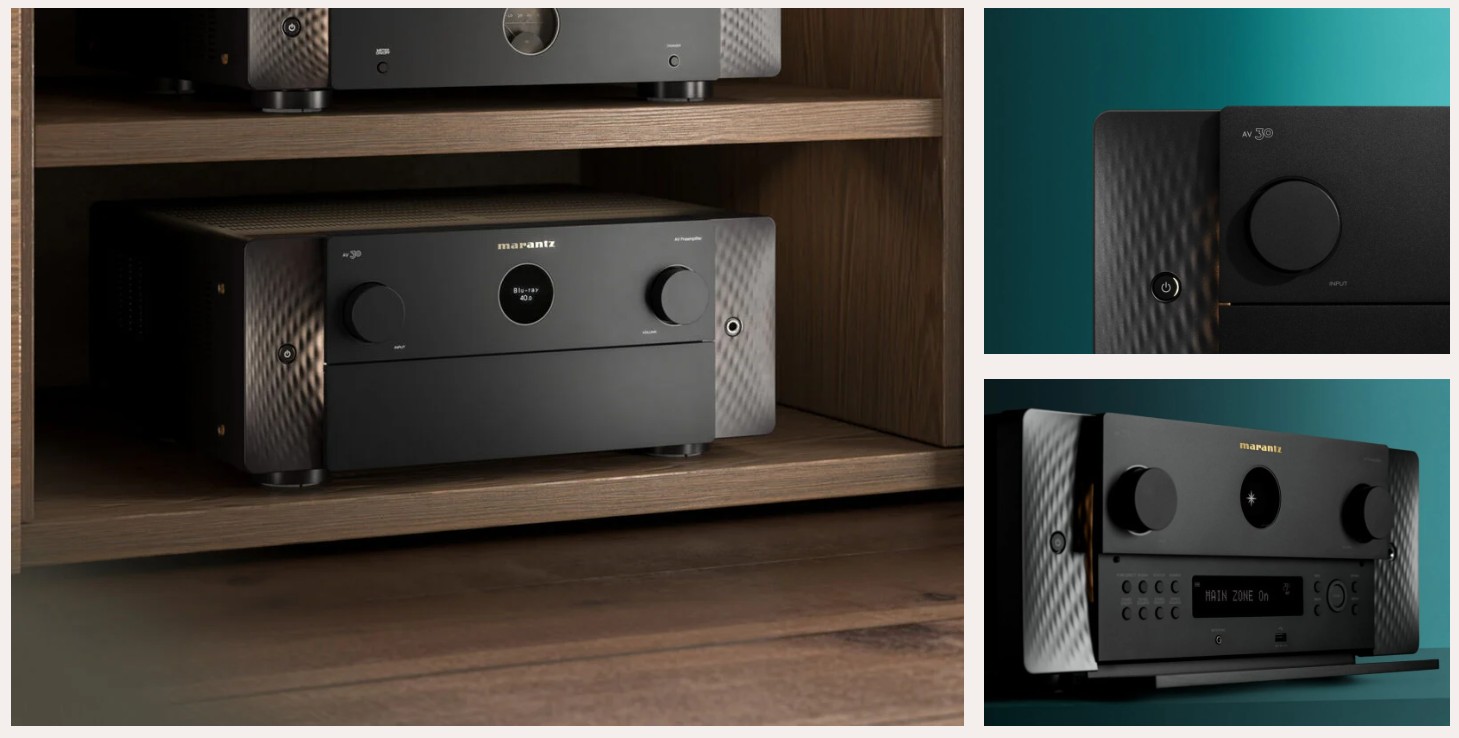

Timeless Design

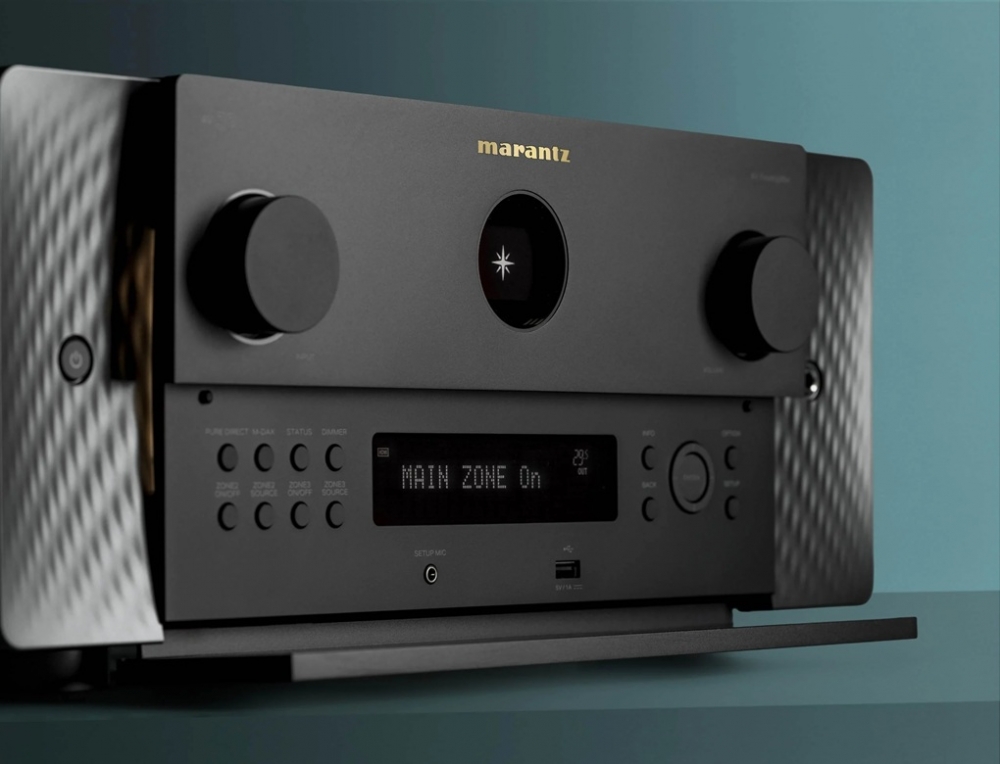

A modern expression of timeless design principles, AV 30 features the iconic Marantz porthole, premium materials, and subtle sidelights that illuminate the front panel.

Multichannel Surround
DTSDTS-HD Master Audio, DTS:X,
DTS Virtual:X, DTS Neural:X
DolbyDolby TrueHD, Dolby Atmos,
Dolby Atmos Height Virtualization,
Dolby Surround
IMAXIMAX Enhanced
Auro 3D / 360 Reality Audio / MPEG HYes / Yes / Yes
Multichannel StereoYes
Max Number of Processing (Pre-amp) Channels11.4
Sound Enhancements
Copper-Plated Chassis / Toroidial Power TransformerYes / Yes
Current Feedback Topology / Hyper Dynamic Amplifier Modules (HDAM)Yes / Yes (HDAM-SA2)
Pure Direct / Gold-Plated RCA TerminalsYes / Yes
Clock Jitter ReducerYes
Dirac Live upgradabilityYes
Compressed Audio Enhancer: MDAX2Yes
Audyssey Dynamic EQ / Dynamic Volume / Audyssey LFCYes / Yes / Yes
AudysseyMultEQ XT32
Network
Wi-Fi / Bluetooth / EthernetYes / Yes / Yes
HEOS Multi-Room and StreamingYes
Bluetooth Retransmit for Bluetooth HeadphonesYes
Apple HomePodYes
Lossy formatsMP3, WMA, AAC
Lossless formatsFLAC, FLAC HD 192/24,
ALAC, ALAC 192/24,
WAV, WAV 192/24
DSD Audio StreamingYes (up to DSD5.6)
Gapless PlaybackFLAC, ALAC, WAV, DSD
TuneIn / AirPlay 2 / SpotifyYes / Yes / Yes
Roon-ReadyYes
Other Streaming Services*Amazon Music / TIDAL /
Deezer / Napster / SoundCloud
Compatible with Remote App for SmartphonesMarantz AVR Remote
Compatible with Remote App for TabletsAndroid / iOS / Amazon Kindle
HDMI
Total HDMI Inputs7
HDCP 2.3 SupportYes
HDMI Outputs: Main / Zone2 / 1
HDMI Scaling1080P/4K to 8K
GUI Overlay on HDMIYes
HDMI 2.1: 8K/60Hz AB / 4K/120Hz ABYes / Yes
8K/60Hz AB / 4K/120Hz AB Pass-Through In/Out7 / 2 (up to 40 Gbps)
HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDRYes / Yes / Yes / Yes / Yes
Enhanced ARCYes
ALLM (Auto Low Latency Mode) Pass-Through for GamingYes
Variable Refresh Rate / Quick Frame TransportYes / Yes
HDMI Pass-Though in Standby ModeYes
DSD Audio CapabilityYes
Auto LipSyncYes

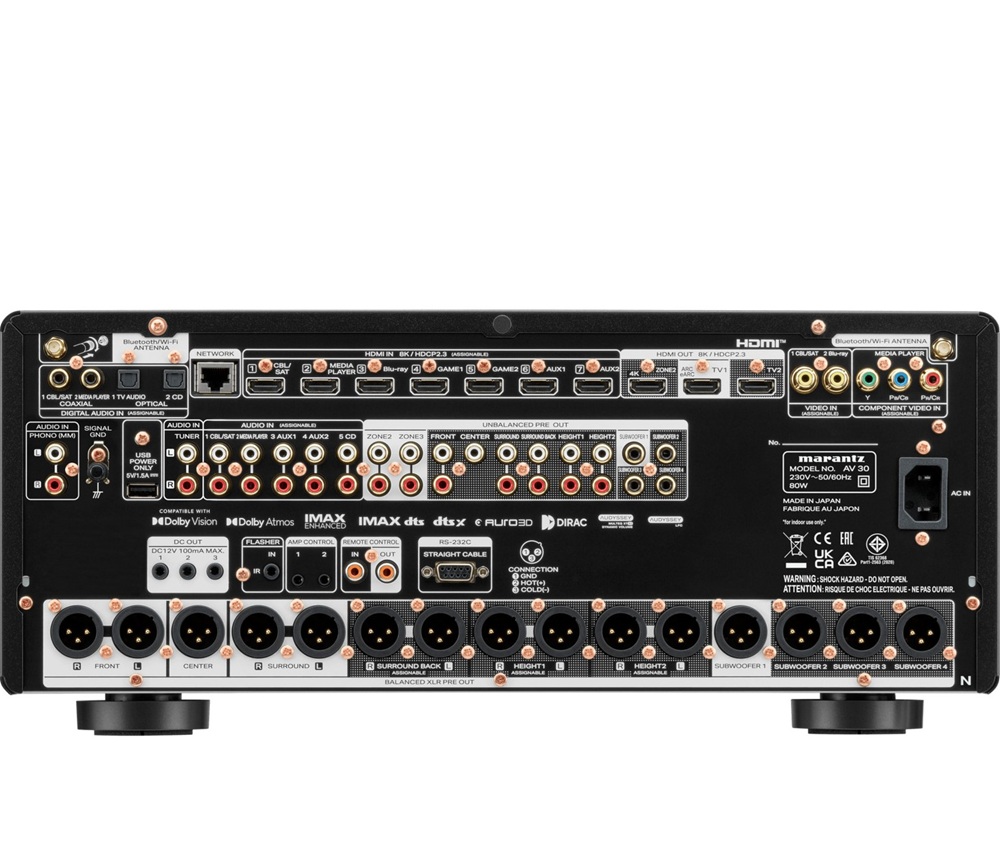

Inputs Outputs
Composite In / Out2 / 0
Component In / Out1 / 0
HDMI In / Out7 / 3
Multi-Room Video Out: Video / HDMINo / Yes
Analogue In6 (1x XLR)
Phono (MM) InYes
Digital In: Optical / Coaxial2 / 2
Multi-Room Out: analog / digital2 / 0
Multichannel Pre-Amp OutYes (11.4 RCA, 11.4 XLR)
Subwoofer Out4 (independent)
Speaker A / BAssignable Pre-Out
Bi-Amp DriveAssignable Pre-Out
Front USB Input / USB AudioYes / Yes
USB Power Supply (Rear)Yes
AM/FM TunerYes
Multi-Room CI
HEOS Multi-Room IntegratedYes
HEOS Link Compatibility: IR/ IPYes / Yes
Multi-Room Zones3
Zone Audio Source: HDMI / Opt, Coax / Network, USB / AnalogueYes (2 ch) / Yes (2 ch) / Yes / Yes
Zone Audio Output: Speaker / Pre-OutNo / Yes
Zone HDMI Output from HDMI SourceYes
IP Control / RS232 Control / Web Control / App ControlYes / Yes / Yes / Yes
IR Flasher In / Marantz Remote BusYes / Yes
DC Trigger Output3
HDMI DiagnosticsYes
Others
Auto Speaker Setup by MicrophoneAudyssey MultEQ XT32
Dirac Live (Upgrade)

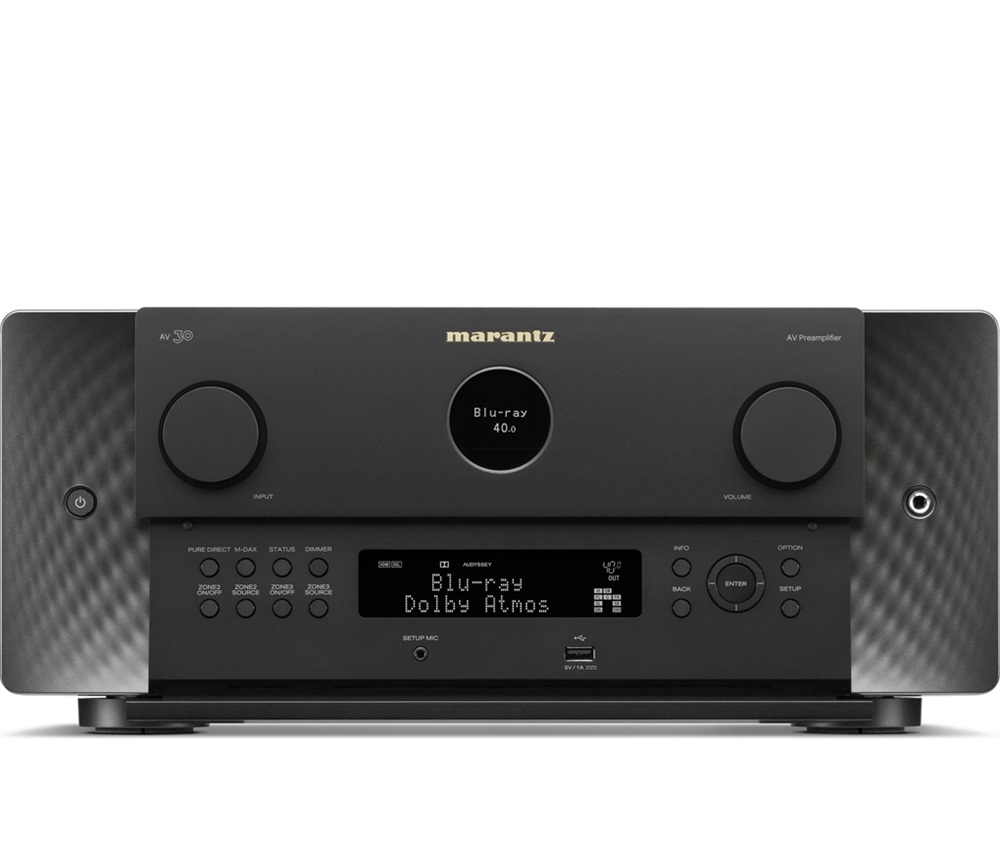

Front Display2-Line FLD, Port Hole OLED
Graphic User InterfaceModern HD GUI
GUI Languages9
Setup Assistant / Smart SelectYes / Yes
Firmware Update by Network / USBYes / Yes
Variable Cross Over / Optimized Bass Redirection / Bass SyncYes / Yes / Yes
Auto Power Off / Sleep TimerYes / Yes
General
Metal Front PanelYes
System Remote ControlRC053SR
BacklitYes
Power Consumption80 W
Standby Consumption0.2 W
CEC Standby Consumption in W0.5 W
Network Standby Consumption2.0 W
Maximum Dimensions
Antenna: Horizontal:(W x D x H)
Antenna: Vertical :(W x D x H)
w/o Antenna: (W x D x H)
17.4 × 16.3 × 7.5 in.
17.4 × 16.3 × 10.0 in.
17.4 × 15.6 × 7.5 in.
Weight24.5 lbs.
What's in the boxMain unit, remote control,
batteries, AM/FM antennas,
wire labels, quick start guide,
Audyssey microphone, card
board microphone stand,
2 External Detachable Antenna,
AC cord
