Courtyard 4.1

Landscape Speaker System

The Klipsch Courtyard 4.1 landscape speaker system delivers powerful, precision-tuned outdoor sound in a weather-resistant, all-in-one package—featuring four aimable Tractrix® horn-loaded satellites, a deep-bass subwoofer, and easy expandability for year-round performance.

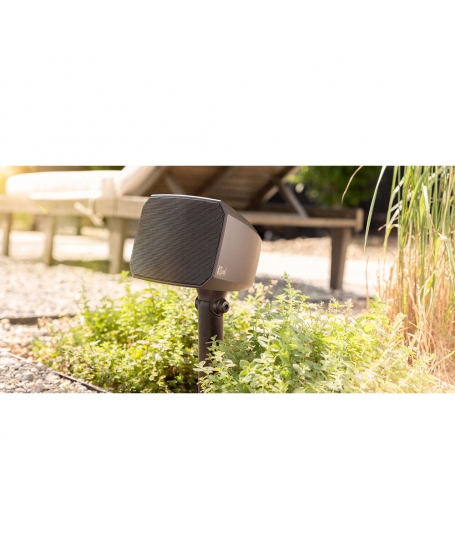

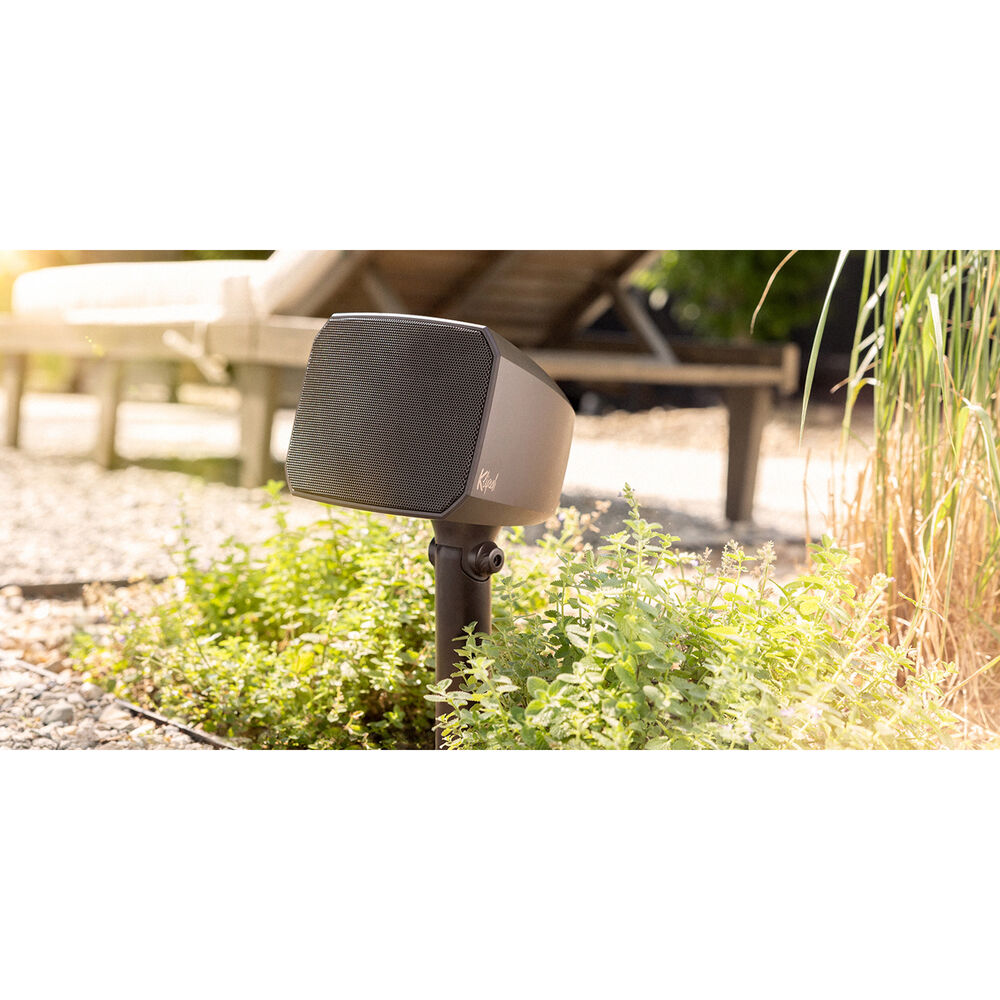

TAKE IT OUTSIDE
Klipsch Legendary American sound goes outdoors. With 80 Years of audio mastery under our belt, the Klipsch Courtyard landscape speaker system is engineered for precision and tuned for real power. Tell the neighbors we’re not sorry.

EVERYTHING YOU NEED

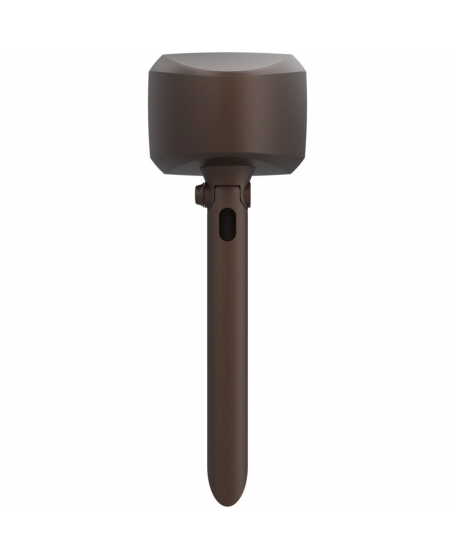

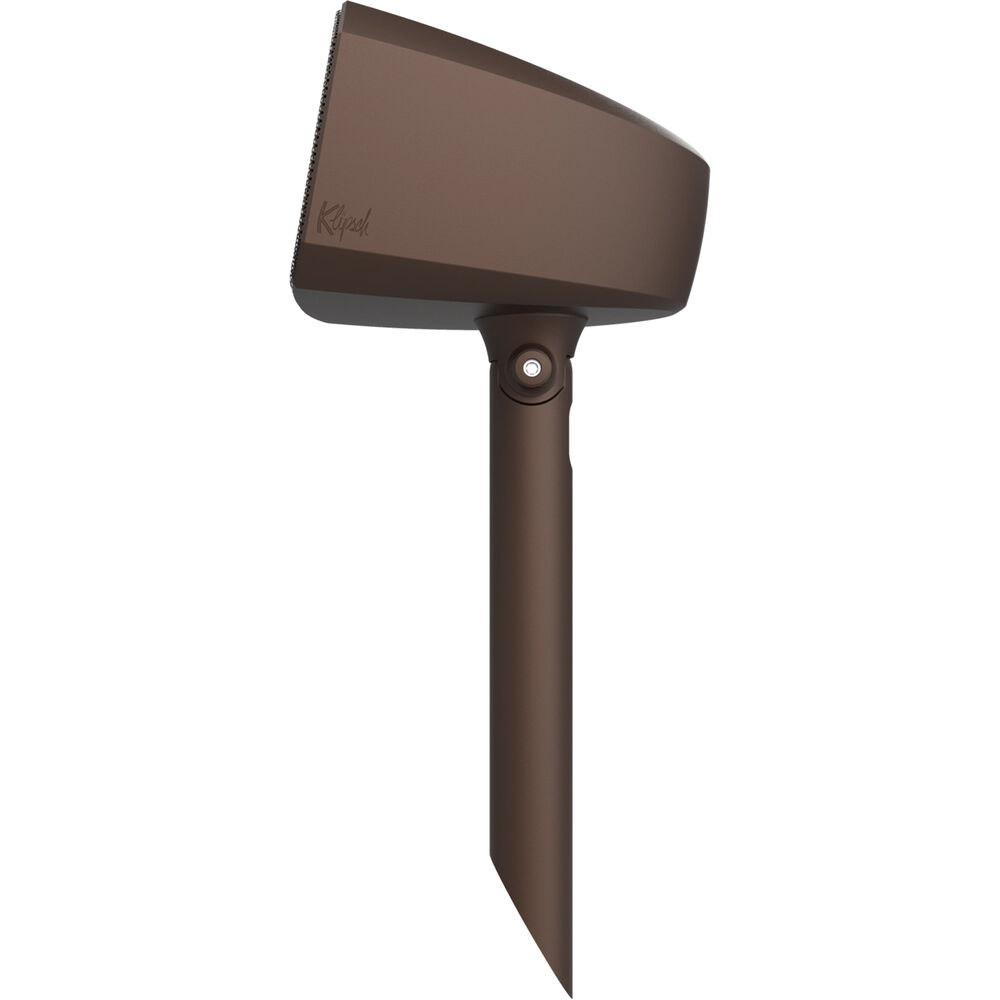

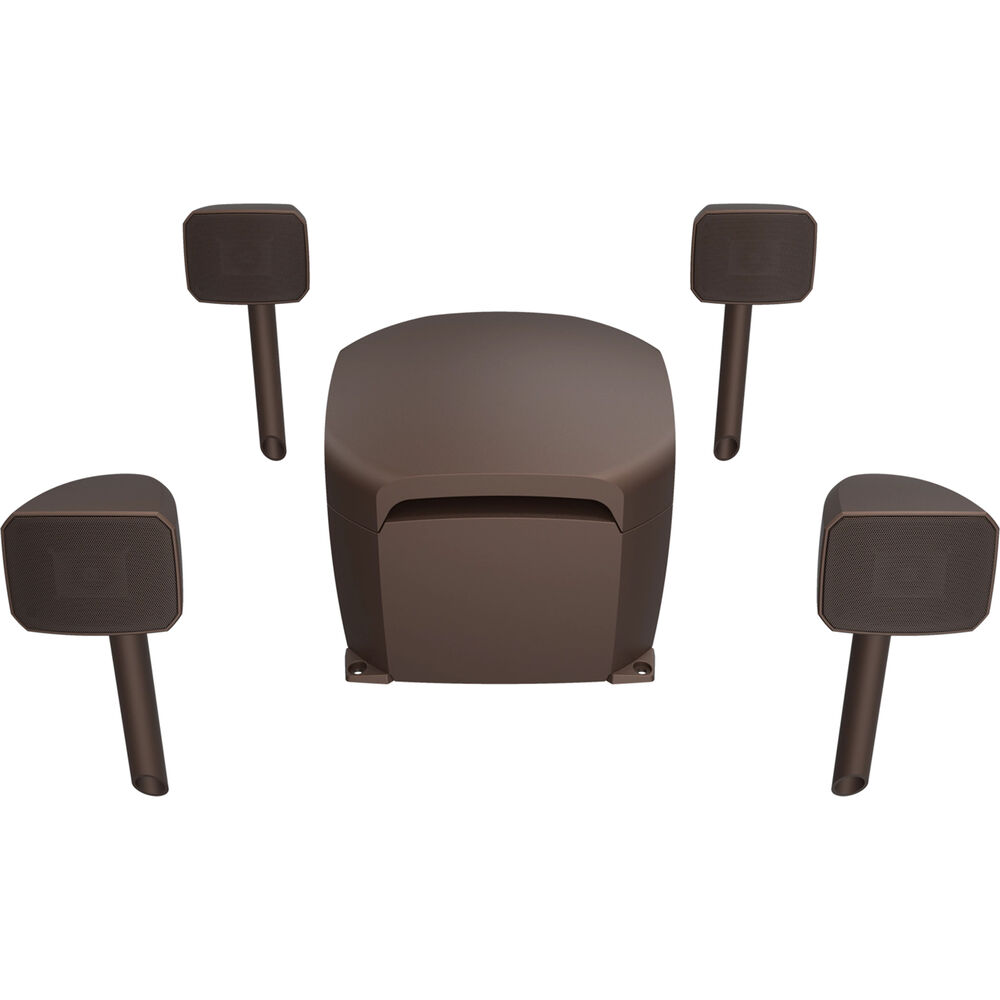

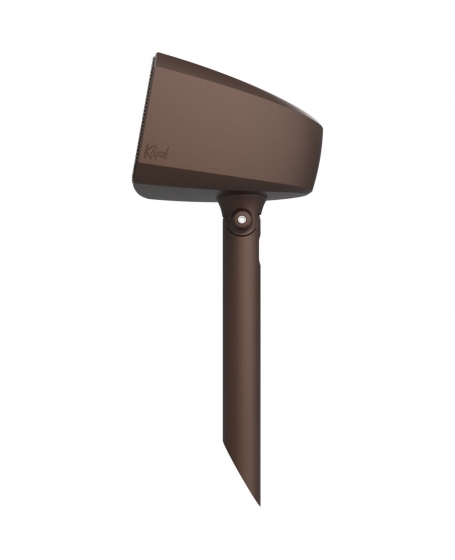

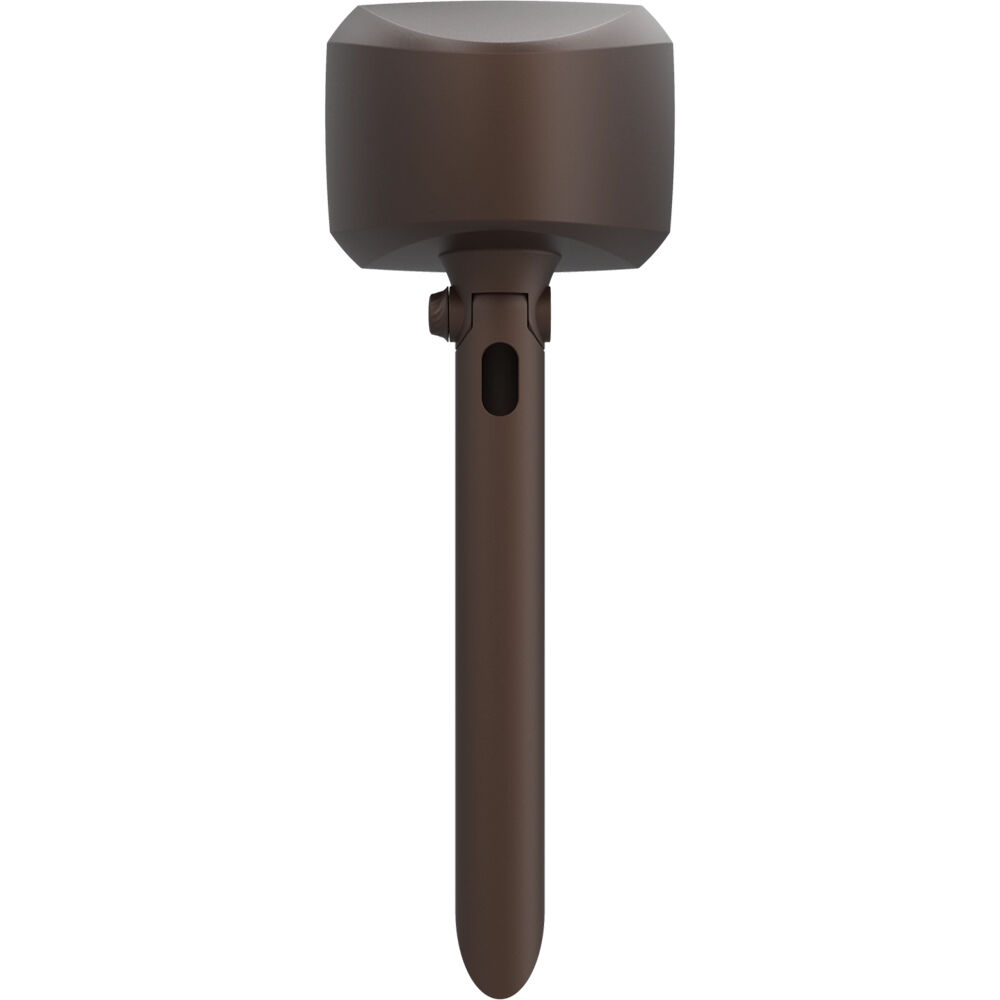

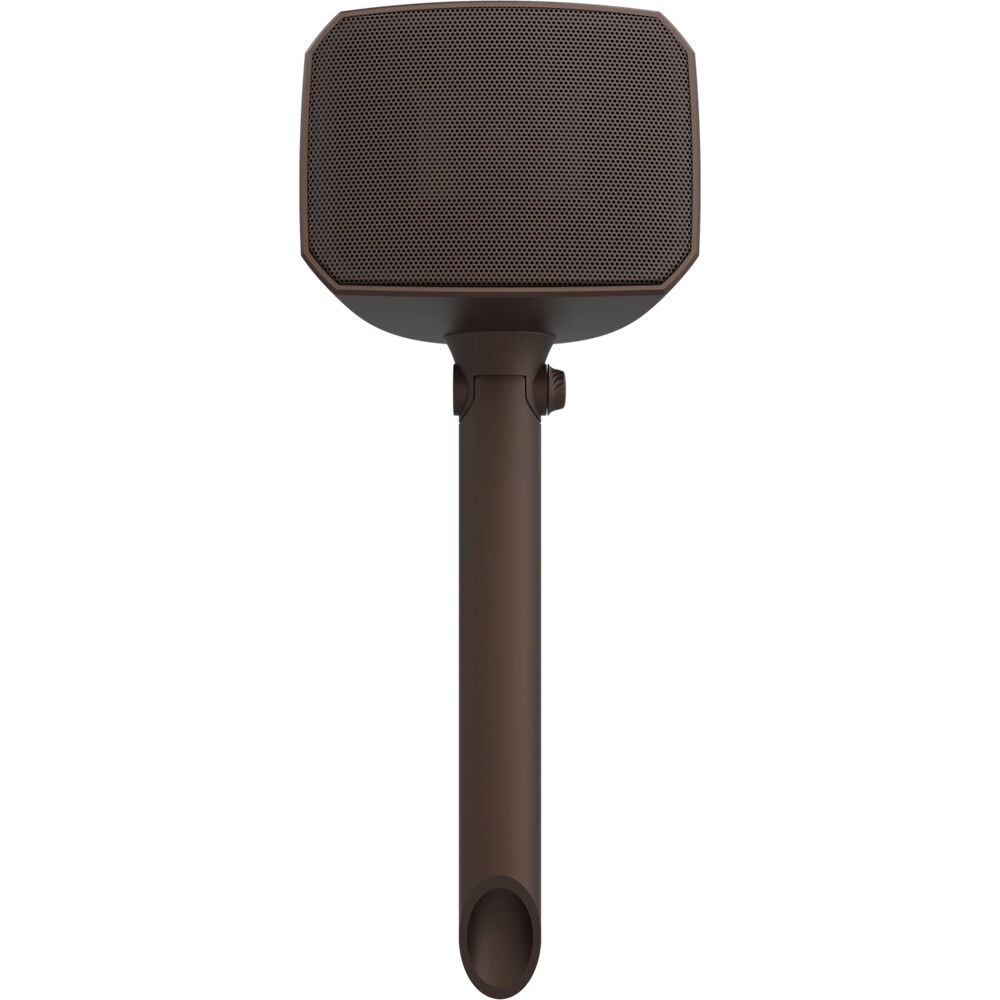

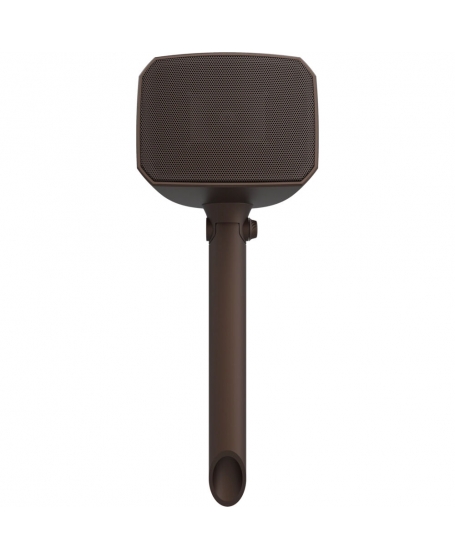

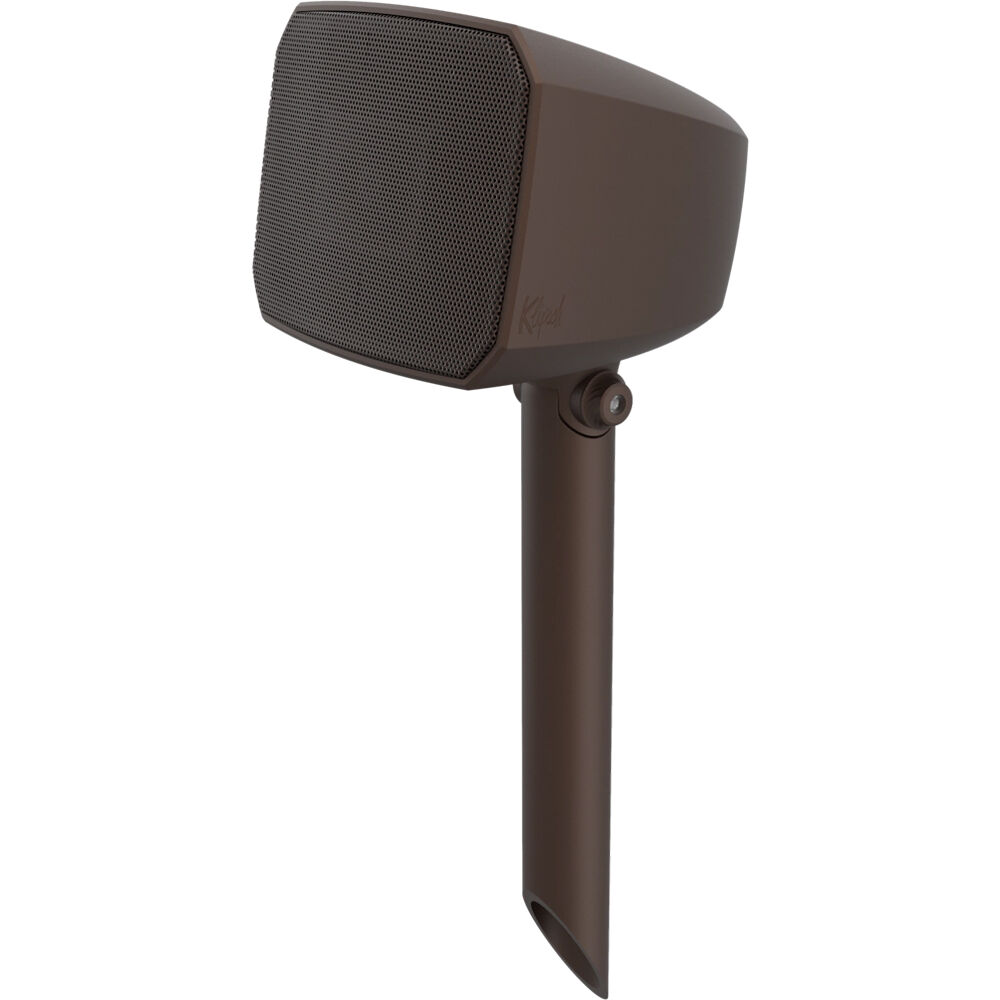

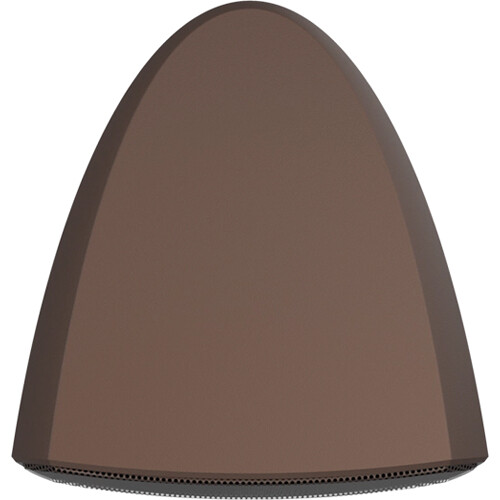

A one box solution, Klipsch Courtyard comes complete with everything you need to power your patio party. The main kit includes four aimable Tractrix horn-loaded satellite speakers, a subwoofer, mounting posts with stakes, and more - to deliver amazing outdoor sound from your AVR’s zone 2. For a larger area, the Courtyard system is expandable up to eight satellite speakers and two subwoofers.

BIG BASS, SMALL SPACE

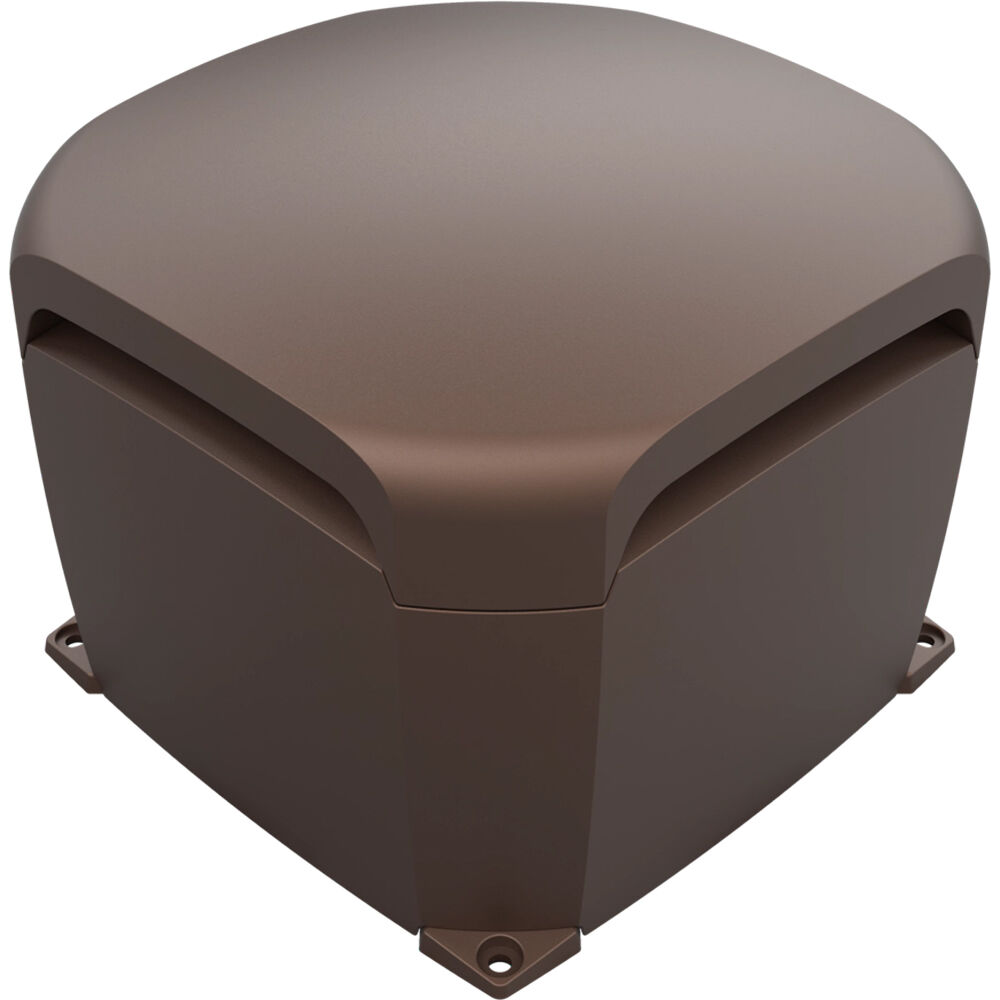

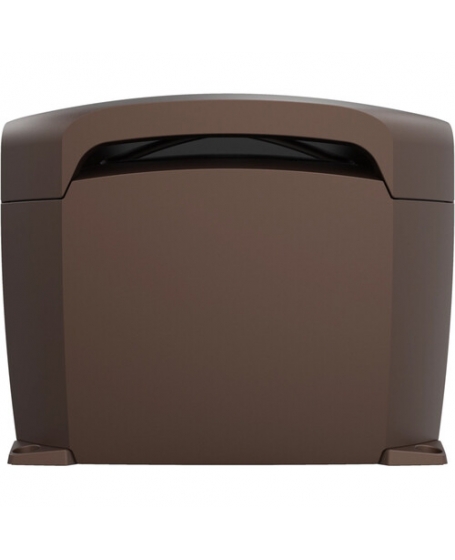

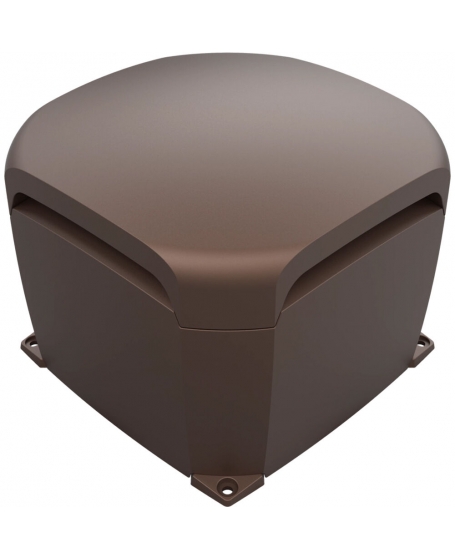

The new Klipsch Courtyard landscape speaker system includes a low-profile subwoofer with all the punch needed to deliver deep bass to your outdoor space. The sub can be buried or installed above ground to fit your backyard aesthetic. Features include an alcove to hide wires and mounting holes for ground stakes.

BRING ON THE ELEMENTS
The tough, colorfast Courtyard satellite speakers and subwoofer are IPX7- rated to withstand rain, snow, high-pressure water, and direct sun—delivering incredible audio in any climate for years to come.

SIMPLE SETUP
Fast to set up and get rocking, the Klipsch Courtyard landscape speaker system installs quickly and easily. Wire concealment, ground stakes, rotatable and locking speaker posts, silicone wire nuts, a hammer cap, and an Allen key are all included.

SPECIFICATIONS
FREQUENCY RESPONSE 35 – 20kHz (+/- 3dB)
POWER HANDLING
(CONT/PEAK)
120 Watts / 240 Watts
MAX CONT. OUTPUT 107dB
SENSITIVITY 86dB @ 2.83V / 1m
COVERAGE V120o / H60o (Sat, Aimable)
Omni-Directional (Sub)
NOMINAL IMPEDANCE 8 Ω Compatible
(6.0 Ω Min)
CROSSOVER FREQUENCY 120Hz (Sub-Sat)
3.0kHz (Sat Wfr/Twtr)
HIGH FREQUENCY DRIVER 1” Tractrix horn-loaded Aluminum Tweeter
LOW FREQUENCY DRIVER 4” Polypropylene (Sats)
10” Polypropylene (Sub)
ENCLOSURE MATERIAL UV Treated All Weather ABS
Rotomolded Linear Low-Density Polyethylene (LLDP)
ENCLOSURE TYPE Sealed
Hardscape/Partial Burial (Sub)
IP RATING IPX7
INPUTS 65cm Pigtail (30”) Bare Wire
with Silicon Filled Wire Nuts
DIMENSIONS Satellite: 5.75” H (no stake) x 7.38” W x 7” D
Subwoofer: 12” H x 15” W x 15” D
Stake: 12.5” length x 1.55” diameter, stake fits 1.5”
schedule 40 PVC
WEIGHT Satellite: 3.5lbs (1.6kg)
Subwoofer: 24lbs (10.9kg)
Stake: 0.37lbs (0.17kg)
FINISH Brown Matte
