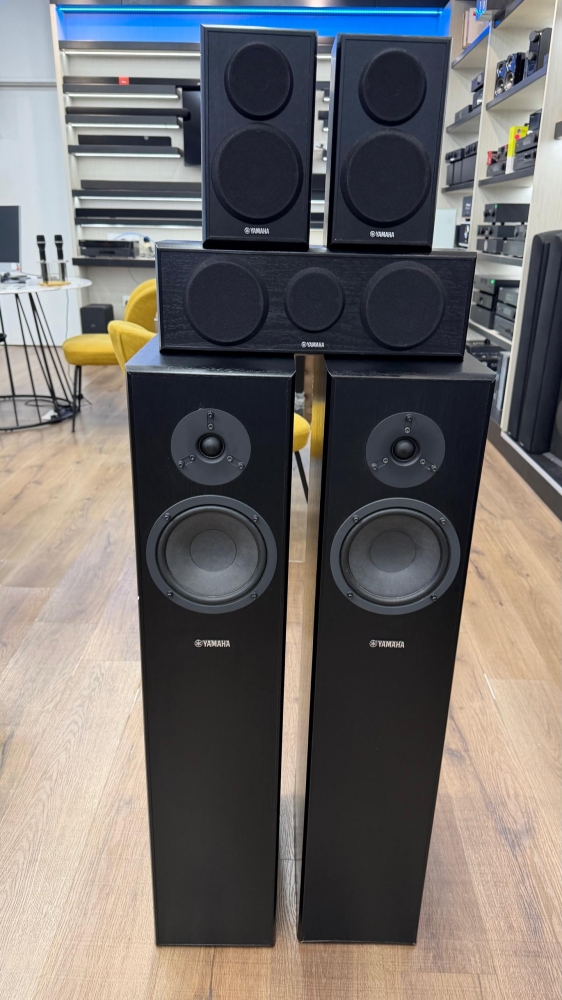

NS-F140

High performance speaker with large-size cabinet for rich sound quality and an impressively elegant presence. Available in a choice of two colors to match the room interior.

• 16cm (6-1/2”) cone woofer and 3cm (1”) soft dome tweeter for powerful bass and clear sound output
• Dynamic reproduction of HD sources
• Large-size, gold-plated screw terminals
• Accepts optional support spikes
• High-class design with elegant speaker grilles inspired by Yamaha top-line models

Features

2-Way, 2-Speaker System

The large NS-F140 cabinet houses a 2-way, 2-speaker design consisting of a 16cm (6-1/2”) cone woofer and a 3cm (1”) soft dome tweeter. Made with high quality materials, these speakers deliver rich sound with none of the harshness that causes listener fatigue.

Excellent Reproduction of HD Sources

The NS-F140 is designed to provide outstanding reproduction of HD movie and music sources. Using it together with the NS-P150 ensures that you will enjoy accurate, well-balanced sound, for an affordable yet high quality home theater system.

Large-size, gold-plated screw terminals

The extra-large, screw-type terminals are gold-plated to ensure maximum signal transmission efficiency. They are capable of handling HD audio signals with no loss of sound quality.

Accepts optional support spikes

Optionally available support spikes screw into the base of the speaker, providing additional vibration damping to ensure optimum sound quality.

Luxurious Presence

In the tradition of fine quality Yamaha speakers, the floorstanding NS-F140 has a graceful and elegant appearance. If desired, the speaker grilles can be removed.

NS-C150, NS-B150

• Two 8cm (3-1/4”) cone woofers and 1.4cm (1/2”) balanced dome tweeter for distinct dialogue and clear vocals (Centre speaker)
• 8cm (3-1/4”) cone woofer and 1.4cm (1/2”) balanced dome tweeter for clean full-range sound (Surround speakers)
• Dynamic reproduction of HD sources
• Large-size, gold-plated screw terminals
• Wall Mountable

NS-F140
Type    2-way bass-reflex floorstanding speaker
Woofers    16cm (6-1/2”) cone
Tweeter    3cm (1”) soft dome
Frequency Response    37 Hz–30 kHz
Nominal Input Power    40 W
Maximum Input Power    150 W
Sensitivity    86 dB/2.83 V/1 m
Impedance    6 ohms
Dimensions (W x H x D)    200 x 950 x 362 mm; 7-7/8” x 37-3/8” x 14-1/4”
Weight    9.5 kg; 20.9 lbs./unit

NS-C150, NS-B150
Type    2-way acoustic suspension
Center Speaker    Woofers    Dual 8cm (3-1/4”) cone
Tweeter    1.4cm (1/2”) balanced dome
Frequency Response    65 Hz–38 kHz
Nominal Input Power    30 W
Maximum Input Power    80 W
Sensitivity    86 dB/2.83 V/1 m
Impedance    6 ohms
Dimensions (W x H x D)    395 x 130 x 127 mm; 15-1/2” x 5-1/8” x 5”
Weight    2.1 kg; 4.6 lbs./unit

Surround Speaker    Woofers    8cm (3-1/4”) cone
Tweeter    1.4cm (1/2”) balanced dome
Frequency Response    60 Hz–38 kHz
Nominal Input Power    20 W
Maximum Input Power    60 W
Sensitivity    82 dB/2.83 V/1 m
Impedance    6 ohms
Dimensions (W x H x D)    130 x 225 x 127 mm; 5-1/8” x 8-7/8” x 5”
Weight    1.2 kg; 2.6 lbs./unit
