Yamaha A-S1200 + Monitor Audio Silver 300 7G Hi-Fi System Package

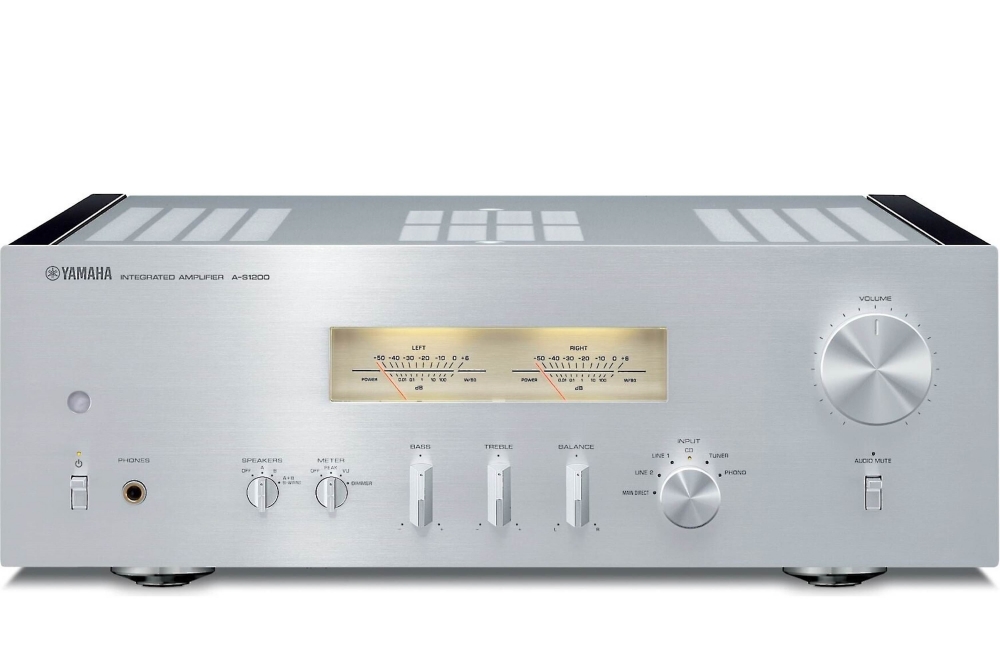

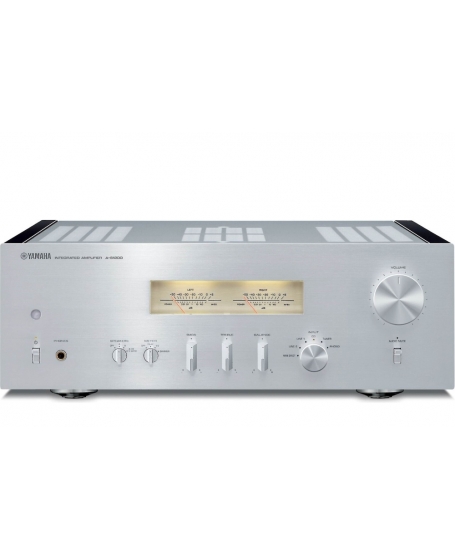

A-S1200

Acknowledging the golden era of Hi-Fi with the level meters and beautiful design, the A-S1200 boasts an impressive array of the latest technology to accurately deliver an emotional, purely musical sound.

• High Quality Components delivering exceptional musical expression
• Toroidal power transformer with enormous energy for a pure musical sound
• Gorgeous level meters convey dynamics and music pulse with a nod to the nostalgic Hi-Fi era
• Floating Balanced Power Amplifier
• Mechanical ground concept maximises rigidity for expressive and rhythmic bass

EMOTION

Understanding music is to understand the emotion upon which music is created. The passion and story behind the music that drives artists to create. With unmatched experience in every facet of music creation, embedded deep in Yamaha’s DNA is an intimate understanding of the emotional essence of music and music creation. Conveying the artists’ emotion through our Hi-Fi equipment is a fundamental component of Yamaha’s design philosophy.

Toroidal Transformer

Usually reserved for flagship Hi-Fi components, the A-S1200 benefits from the technical proficiency and absolute musicality of a toroidal transformer. Combined with an array of high-end Hi-Fi features and components, the toroidal transformer assists in ensuring the musical emotion is conveyed to the listener.

Gorgeous Level Meters

The level meters are both a nod to the nostalgic era of Hi-Fi, while simultaneously demonstrating the return of pure Hi-Fi for today’s discerning enthusiast. Visually presenting the dynamics and pulse of the music, the level meters imbue a warm feeling through their softly illuminated LED’s.

OPENNESS

An open sound stage presents the listener with a musical experience that is similar to being at the live performance. True Hi-Fi delivers this openness in the sound, transforming the listeners’ musical experience, bringing them closer to the artist.

Thick Wires for Ground Connection by Low Impedance Concept

Low Impedance concept, aided by the thick wires for ground connection, is critical for componentry adopting the badge of premium Hi-Fi. This design concept begins in Yamaha’s premium Hi-Fi components with the A-S1200, helping to present an open, natural sound stage, bringing the artist and listener closer together.

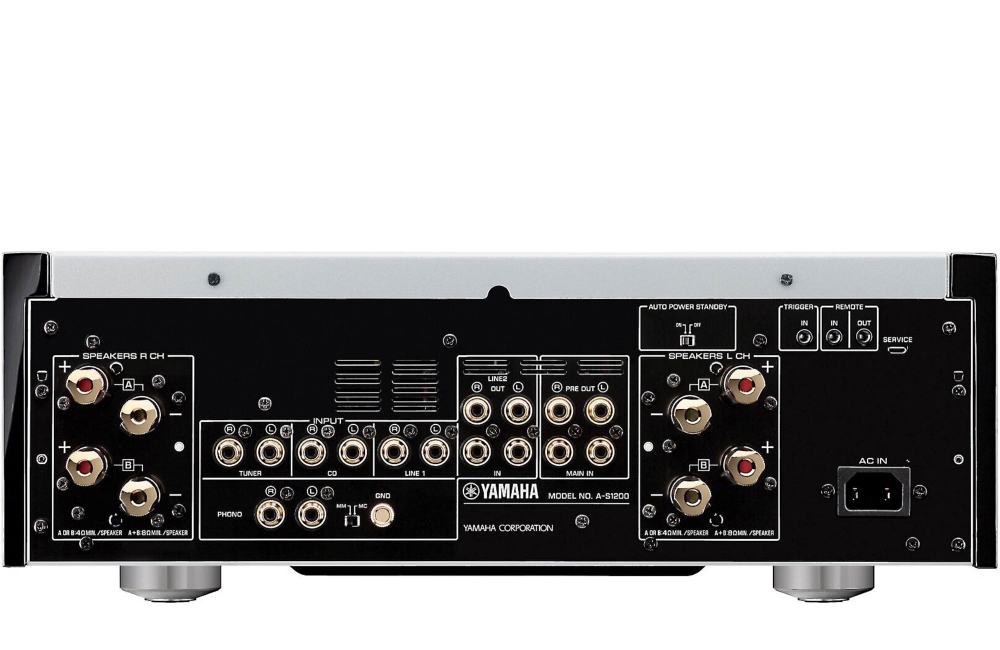

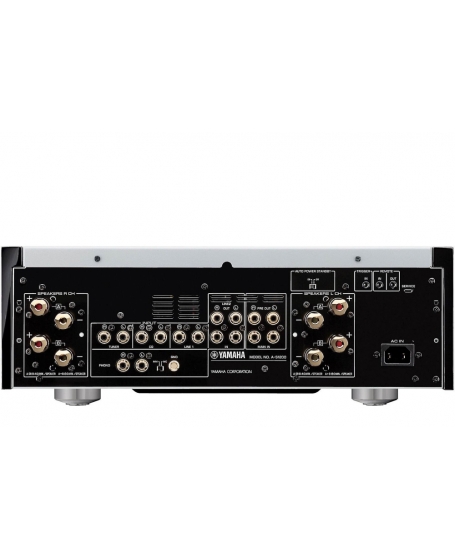

Original Speaker Terminals

Cut directly from pure brass, the luxurious speaker terminals comfortably fit the human hand for effortless tightening, achieving a highly secure connection.

GROOVE

Connection with the music is achieved with the underlying groove and rhythm. A true representation of the music lets the listener feel the groove, and therefore not just hear the music but feel the story behind the music.

Mechanical Ground Concept

Warranting the ‘Premium Hi-Fi’ badge, the A-S1200 adopts a Mechanical Ground Concept, inherited from both the A-S2200 and A-S3200. The concept begins with the bolts of the feet welded directly to the main chassis, followed with the large heat sink, power transformer and block capacitors also directly bolted to the chassis. Through this design, unwanted vibration is avoided, achieving expressive and rhythmic bass, presenting the ‘Groove’ of the music to the listener.

Silver Plating Feet

Completing the rigidity of the amplifier are the heavy-duty silver-plated metal feet.

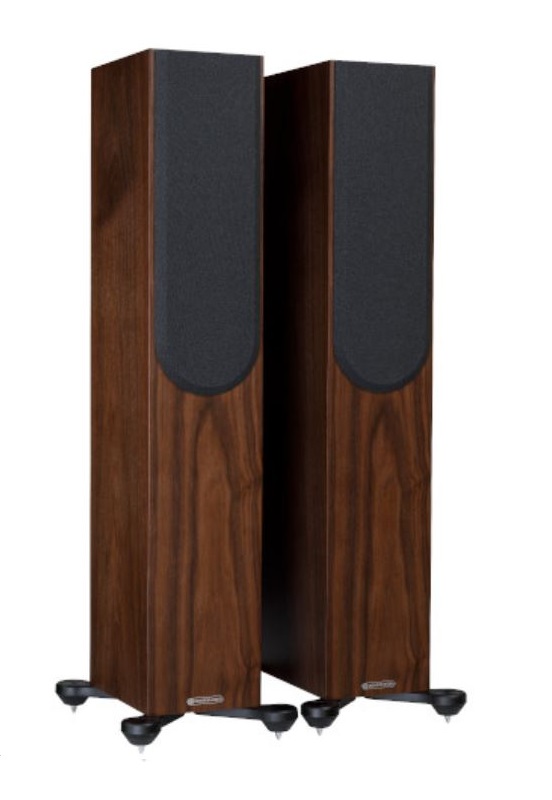

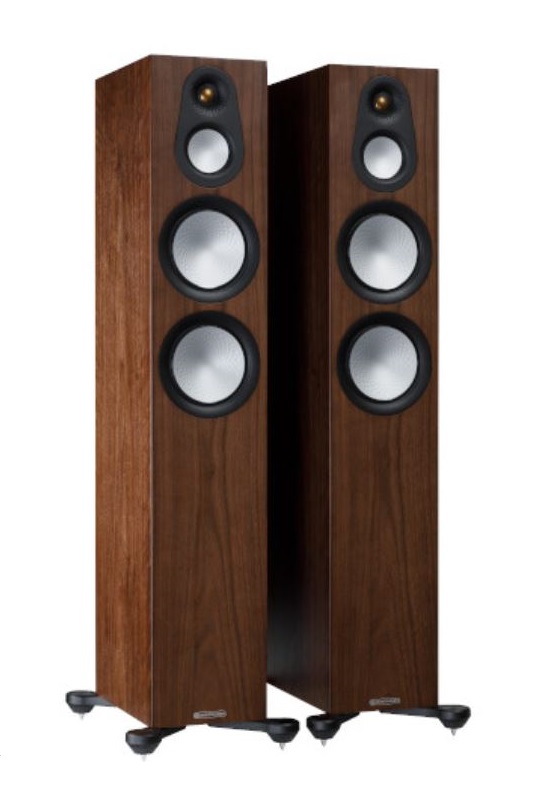

Silver 300 7G

The Silver 300 7G features real-wood veneers for a natural look, along with a newly developed Rigid Surface Technology (RST) II driver design for the most natural possible sound. It’s designed to reduce distortion, so when your music’s loud, it remains very, very clear.

The Silver 300 7G speakers incorporate some of our most advanced engineering yet, for sound that will leave you speechless. Much of the technology at play is hidden, but there’s still plenty to feast your eyes on. New grilles, driver trims and feet give an even more refined look.

Key Features

• 1 x 1" (25 mm) C-CAM Gold Dome tweeter with Uniform Dispersion (UD) Waveguide II for more lifelike sound
• 1 x 3" (76 mm) C-CAM mid-range driver with Rigid Surface Technology (RST) II for extra clarity
• 2 x 6" (152 mm) C-CAM bass driver with RST II for extra clarity
• 3-way design with dedicated mid-range and bass drivers to deliver the ultimate refinement
• Perfect for mid to large-sized room set-ups, either stereo or home cinema
• Rear-ported and tuned for ease of positioning without affecting sound performance
• Sturdy outrigger feet with a choice of spikes for carpets or rubber feet for hard floors
• Add Silver AMS 7G Dolby Atmos® enabled speakers for your home cinema system

Yamaha A-S1200
Receiver / Integrated Amplifier
Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe)    160 W + 160 W
High Dynamic Power/Channel (8/6/4/2 ohms)    105/135/190/220 W
Rated Output Power    [20 Hz-20 kHz, 0.07% THD] 90 W ＋ 90 W (8 ohms), 150 W ＋ 150 W (4 ohms)
Damping Factor    ≧ 250 (1 kHz, 8 ohms)
Frequency Response    +0 / -3 dB (5Hz-100kHz) , ＋0 / -0.3 dB(20 Hz-20 kHz)
RIAA Equalization Deviation    ＋/-0.5 dB (PHONO (MM/MC))
Total Harmonic Distortion (20Hz to 20kHz)    [Input 0.5 V] PHONO MC→LINE2 OUT: 0.02% (1.2 mVrms), PHONO→LINE2 OUT: 0.005% (1.2 Vrms), CD, etc.→SP OUT: 0.035% (50 W/8 ohms）
Signal-to-Noise Ratio    PHONO MC: 90 db, PHONO MM: 96 dB, CD, etc.: 110 dB
Input Sensitivity    [1 kHz, 100 W/8 ohms] PHONO MC: 150 uVrms/50 ohms, PHONO MM: 3.5 mVrms/47 kohms, CD, etc.: 200 mVrms/47 kohms, MAIN IN: 1 Vrms/47 kohms
Transformer    625VA (Toroidal)
Dimensions (W x H x D)    435×157×463 mm; 17-1/8" x 6-1/8" x 18-1/4"
Weight    22.0 kg; 48.5 lbs

Monitor Audio Silver 300 7G
System Format
3 - way

Frequency Response, In-room (-6dB)
31 Hz - 35 kHz

Sensitivity (2.83v @ 1m)
87.5 dB

Nominal Impedance
8 Ohms

Minimum Impedance
4.0 Ohms @ 160 Hz

Maximum SPL (single, free-field)
110 dB

Power Handling (RMS)
200 W

Recommended Amplifier Requirements
80 - 200 W

Crossover Frequency
L.F: 750 Hz
M.F/ H.F: 2.8 kHz

Port Tuning Frequency
40 Hz

Bass Alignment
Bass reflex
Dual HiVe II port system

Drive Unit Complement
2 x 6" C-CAM RST II bass driver
1 x 3" C-CAM RST II mid-range driver
1 x 1" (25 mm) C-CAM Gold Dome tweeter with UD Waveguide II

External Dimensions (Including Grille and Terminals (H x W x D))
1000 x 185 x 332 mm (393/8 x 75/16 x 135/64")

External Dimensions (including Outrigger Feet and Spikes (H x W x D))
1045 x 274 x 389 mm (419/64 x 1025/32 x 155/16")

Weight (each)
19.3 kg (42 lb 9 oz)

Sold As
Pair
