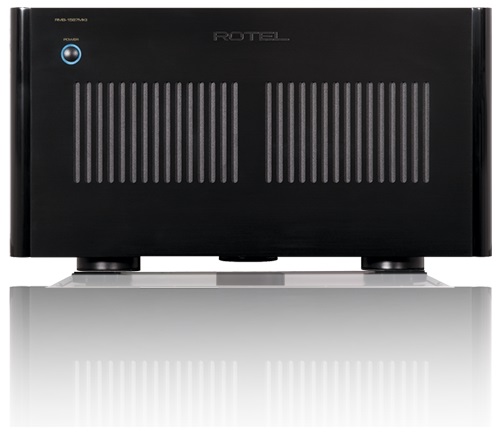

Rotel RMB-1587MKII

MULTICHANNEL AMPLIFIER

Rotel’s new RMB-1587MKII 7-channel amplifier furthers our heritage of producing high powered, high current, exceptionally manufactured Class AB amplifiers for multi-channel systems. The RMB-1587MKII delivers 7 channels of Class AB amplification at 155 Watts per channel into 8 ohms and drives 4 ohm speakers with over 250 Watts per channel, all channels driven.

Rotel’s new RMB-1587MKII 7-channel amplifier continues our heritage of producing high powered, perfectionist amplifiers for multi-channel systems.

Following Rotel's MKII design architecture, the RMB1587MKII incorporates both circuit and component upgrades in the power supply and amplifier stages to achieving ultra-low distortion, signal isolation, and high-gain output power efficiently packaged in a single, multi-channel amplifier chassis.

The Class AB RMB-1587MKII is engineered around two massive in-house manufactured high-current, low emission toroidal transformers designed to supply stable current to an array of 8 high-efficiency bulk storage capacitors. This power supply architecture renders deep bass energy even when driving the most demanding loudspeakers with ultimate authority and control.

Differing from multi-channel amplifiers whose output drops when driving multiple channels simultaneously, the RMB-1587MKII delivers all 7 channels of Class AB amplification at 155 Watts per channel into 8 ohms.

This massively engineered amplifier achieves 250 Watts per channel into 4 ohms with all channels driven and is capable of a staggering 335 Watts RMS per channel when used in Stereo into 4 ohm loudspeakers.

To optimize cooling, the RMB-1587MKII is equipped with 4 thermostat-controlled, variable-speed ultralow-noise fans.

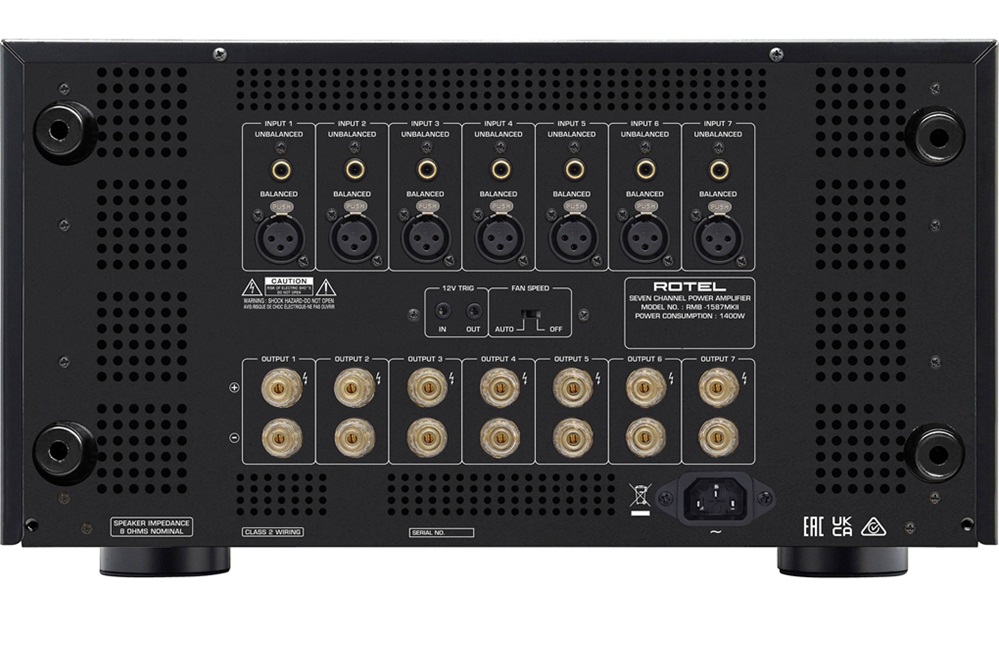

The RMB-1587MKII is built for custom installation. Convenient auto-switching XLR Balanced and RCA inputs ensuring compatibility with any AV Processor or Home Theater receiver preamp output, and a 12 V trigger input and output allows simplified power control. Custom rack mount installation hardware is available for simplified mounting in standard 19” equipment racks. (1)

The RMB-1587MKII is available in both elegant black and stylish silver colors.

Continuous Power Output
155W/Ch (7 channels driven, 8Ω)
250W/Ch (7 channels driven, 4Ω)
335W/Ch (2 channels driven, 4Ω)

Total Harmonic Distortion (THD)
(20Hz–20kHz) <0.03%

Frequency Response
10Hz - 100kHz +0, -3dB

S/N Ratio (IHF "A" Weighted)
111dB

Gain
26.6dB

Crosstalk/Separation
>55dB

Dimensions (W × H × D)
431 × 237 × 456mm
17" × 9.4" × 18"

Front Panel Height
5U / 221mm (8.75")

Power Requirements
230V, 50Hz

Power Consumption
1400W

Net Weight
37.6kg (82.9lbs.)

BTU Rating (4Ω, 1/8th power)
4016 BTU/h

INTERMODULATION DISTORTION (60Hz:7kHz, 4:1)
<0.03%

DAMPING FACTOR
330

INPUT SENSITIVITY
Line Level Inputs (RCA): 1.61V
Line Level Inputs (XLR): 3.4V

INPUT IMPEDANCE
Line Level Inputs (RCA): 12kΩ
Line Level Inputs (XLR): 50kΩ
