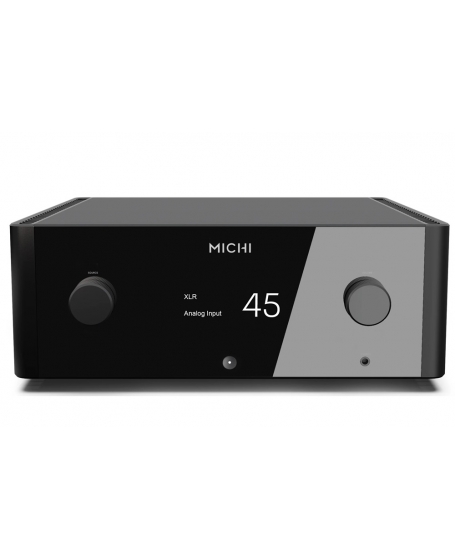

Michi X5 Series 2

INTEGRATED AMPLIFIER

The Michi X5 Series 2 Integrated Amplifier combines 600 Watts of unwavering Class AB output power and an ESS SABRE 8-Channel Digital to Analog converter to deliver breathtaking precision and unparalleled control. Analog, Digital, XLR, aptX™ HD Bluetooth, PC-USB, Moving Magnet and Moving Coil Phono Stage sources are all supported.

The Michi X5 Series 2 Integrated Amplifier is music reproduction reimagined. Thanks to a meticulous balance of innovation and critical audio engineering applied to every circuit, signal path, and electronic component, the Michi X5 Series 2 is capable of delivering a breathtaking 600 Watts of Class AB output power into 4 ohms under even the most demanding conditions.

Connect all your favorite music sources including Analog RCA and XLR Balanced, Moving Magnet or Moving Coil Phono, aptXTM HD Wireless Bluetooth, Coaxial and Optical. The PC-input supports PCM (32-bit 384kHz) and Quad DSD (11.2MHz) with full MQA hardware decoding up to 24-bit 384kHz.

An ESS SABRE ES9028PRO 8-Channel Digital to Analog converter is configured for stereo decoding, dedicating 4 channels each to the left and right audio signals rendering music with exceptionally accurate timing and an immersive soundstage which reveals the finest of details.

The Michi X5 Series 2 is powered by dual oversized in-house manufactured, shielded, low noise toroidal transformers feeding a bank of 4 parallel-aligned 22,000uF high-efficiency storage MQA and the Sound Wave Device are registered trade marks of MQA Limited.© 2016 Being Roon Tested means that Rotel and Roon have collaborated to ensure you have the best experience using Roon software and the Rotel equipment together, so you can just enjoy the music. Supports MQA and MQA Studio Certified Roon Tested ESS premium 32-bit 8-Channel Digital to Analog Converter Bluetooth with aptXTM HD and AAC reservoir capacitors. Custom power supplies isolate drive current to critical analog and digital circuits delivering an ultraquiet noise floor with exceptional control of deep bass energy while maintaining finesse and clarity of the midrange and high frequencies.

The high-resolution graphic display is configurable to show a Graphic EQ or Peak Power Meter and ensures easy setup and configuration. Custom front panel controls and the elegant Michi-series IR remote assures seamless operation from the comfort of your listening chair.

Dual Platinum-plated custom Michi speaker binding posts support traditional and bi-wire installations. A full size ¼” (6.35mm) front panel headphone connection is available for private listening sessions.

RS232 and Ethernet ports provide compatibility with all popular control systems.

Michi, expectations amplified.

Specifications
CONTINUOUS POWER OUTPUT
600W/Ch (4Ω)
350W/Ch (8Ω)

TOTAL HARMONIC DISTORTION (THD)
<0.009%

FREQUENCY RESPONSE
Line Level Inputs: 10Hz - 100kHz (+0 dB, -0.6 dB)
Digital Inputs: 20Hz - 20kHz (0 ± 0.4 dB)
Phono Input: 20Hz - 20kHz (+0 dB, -0.2 dB)

S/N RATIO (IHF "A" Weighted)
Line Level Inputs: 102dB
Digital Inputs: 102dB
Phono Input: 80dB

DIMENSIONS (W × H × D)
485 x 195 x 452mm
19" ×  7 5/8" × 17 3/4"

FRONT PANEL HEIGHT
177 mm (7")

POWER REQUIREMENTS
230V, 50Hz

POWER CONSUMPTION
850W

STANDBY POWER CONSUMPTION
<0.5W

NET WEIGHT
43.8kg (96.56 lbs.)

BTU RATING
2194 BTU/h

INTERMODULATION DISTORTION (60Hz:7kHz, 4:1)
<0.03%

DAMPING FACTOR (20 Hz - 20kHz, 8 ohms)
350

CHANNEL SEPARATION
>65dB

INPUT SENSITIVITY
Line Level Inputs (RCA): 380mV
Line Level Inputs (XLR): 580mV
Phono Input (MM): 5.7mV
Phono Input (MC): 570 uV

INPUT IMPEDANCE
Line Level Inputs (RCA): 100kΩ
Line Level Inputs (XLR): 100kΩ
Digital Inputs: 75Ω
Phono Input (MM): 47kΩ
Phono Input (MC): 100Ω

INPUT OVERLOAD
Line Level Inputs (RCA): 12.5V
Line Level Inputs (XLR): 12.5V
Phono Input (MM): 197mV
Phono Input (MC): 19mV

PREOUT LEVEL
1V
OUTPUT IMPEDANCE
470Ω

TONE CONTROLS
±10dB at 100Hz / 10kHz

COAX/OPTICAL DIGITAL INPUT SIGNALS
SPDIF LPCM (Up to 24-bit/192kHz)

PC-USB
USB Audio Class 1 (up to 24/96)
USB Audio Class 2 (up to 32/384)
MQA, DSD and DoP support
