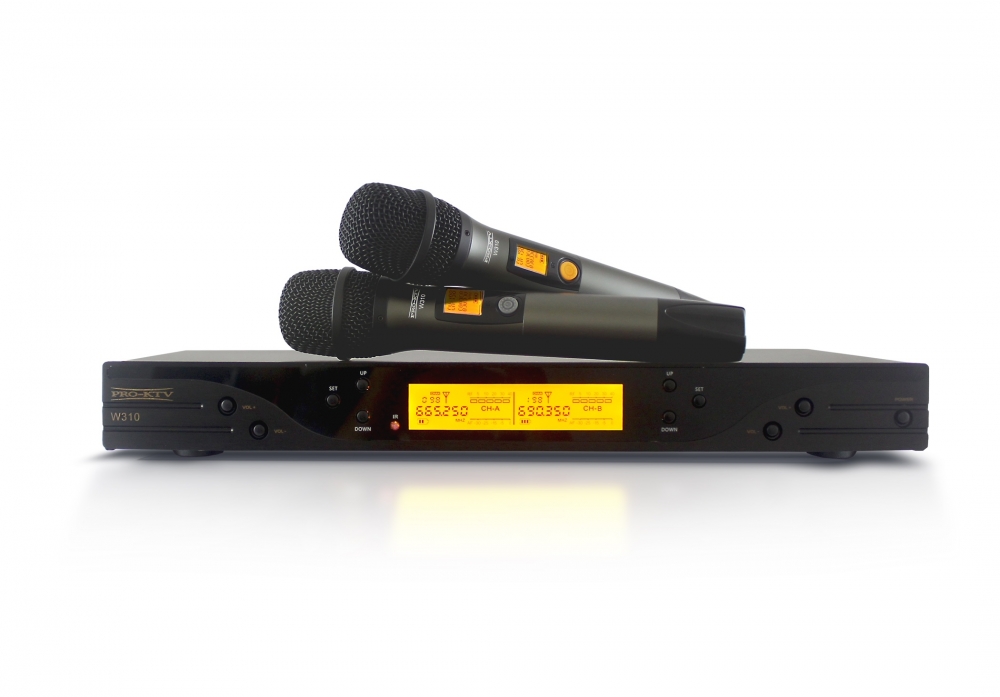

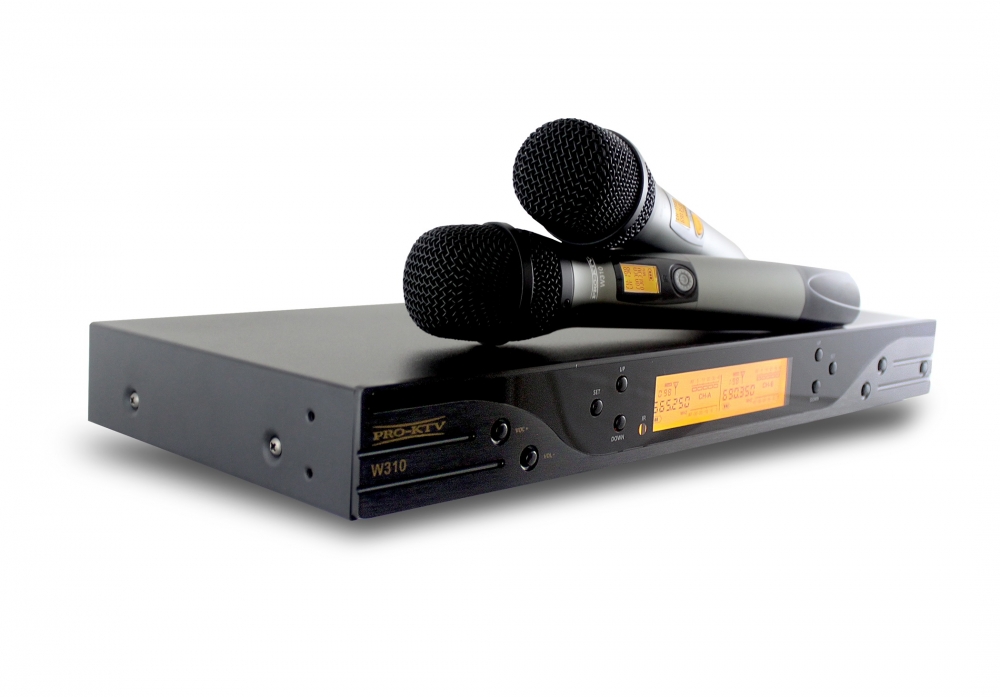

Pro Ktv W310 Wireless Microphone

Pipe body material aluminum alloy
Oscillation mode PLL phase locked frequency synthesis
Receive channel 2 channels
Reception mode: dual tuning automatic selection
Oscillation mode PLL phase locked frequency synthesis
Open use distance >100 meters

Pro Ktv W310
Comprehensive parameters of the whole machine:
S/N ＞105dB(A)
THD ＜0.5% at 1KHz
Frequency response 50Hz-18KHz±3dB
Open use distance >100 meters

Launcher
Pipe body material aluminum alloy
Oscillation mode PLL phase locked frequency synthesis
Carrier frequency band UHF640~690MHz
Frequency stability ±0.005% (-10~50℃)
Frequency bandwidth 5MHz
Frequency adjustment Automatically locks the receiver working channel
Output power >10dBm
Harmonic radiation <55dBc
Peak modulation degree ±48KHz

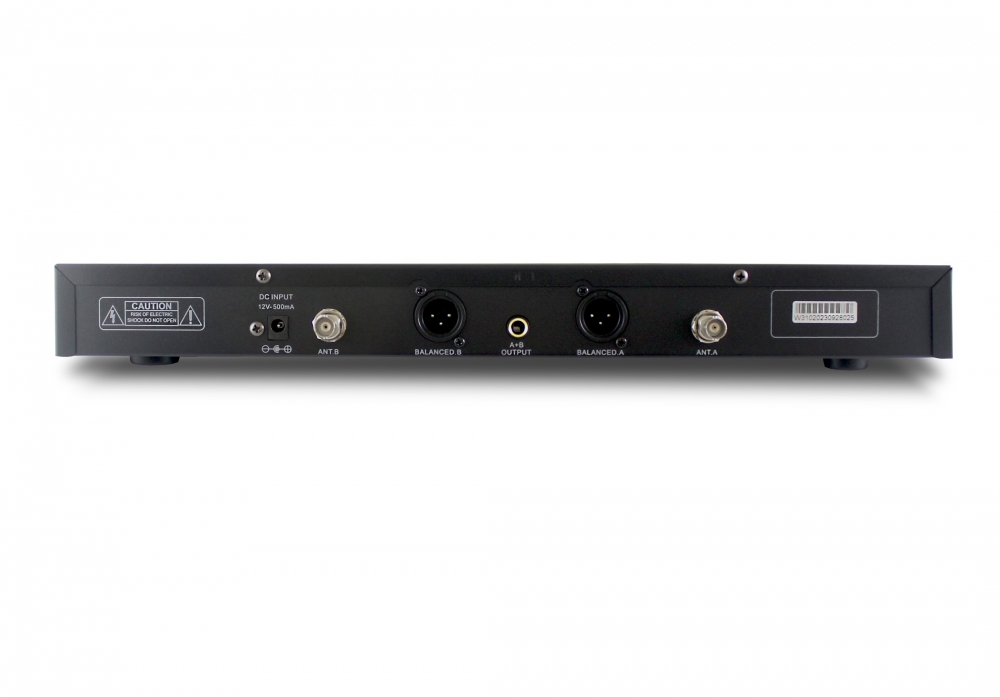

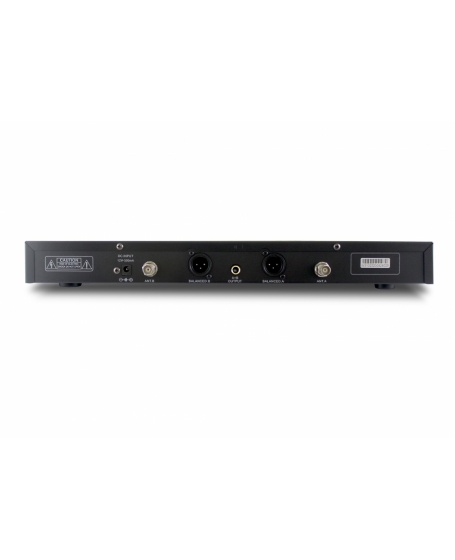

Receiver
Receive channel 2 channels
Reception mode: dual tuning automatic selection
Oscillation mode PLL phase locked frequency synthesis
Carrier frequency band UHF640~690MHz
Frequency stability ±0.005% (-10~50℃)
Frequency bandwidth 5MHz
Receiving sensitivity 2uV (modulation degree 25KHz, S/N12dB)
Frequency band spacing 0.5MHz
Number of switchable frequencies: 200 points
Power supply DC 12V-500mA~1A
Weight 3.3kg
