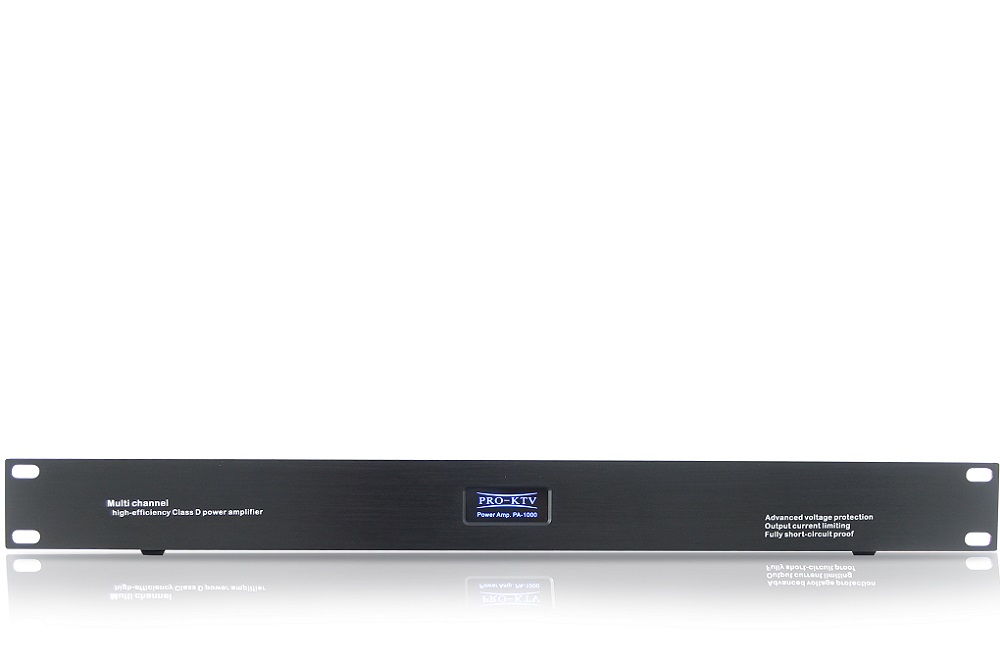

Pro Ktv PA-1000

Pro Ktv PA-1000 Power Amplifier represents a new era in affordable, quality power amplification.
With powerful, rugged and reliable quality.
Suitable for Karaoke and Music.

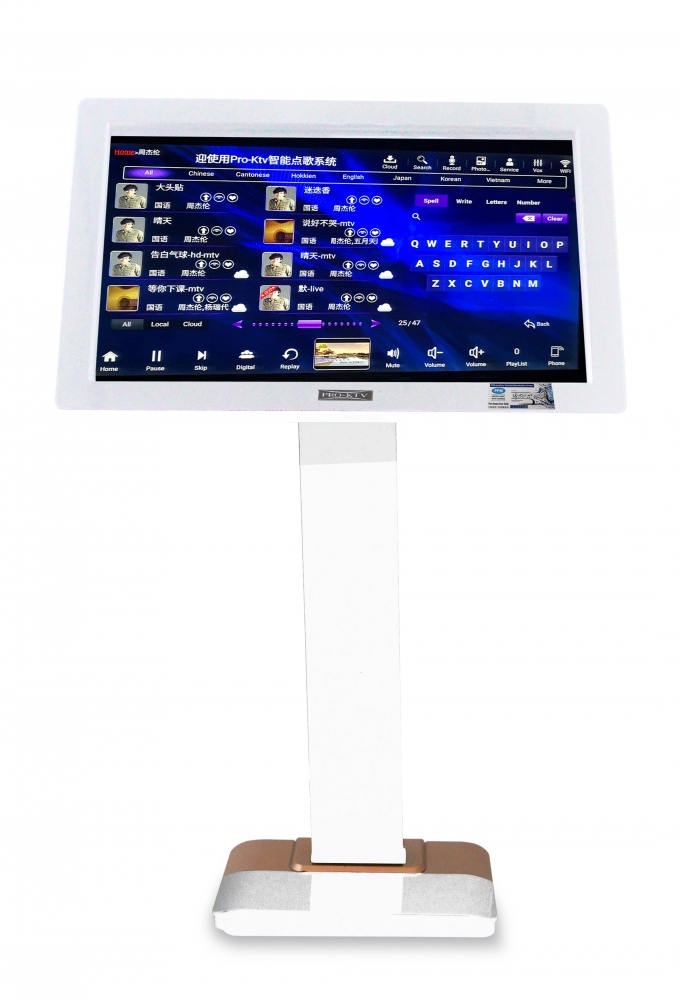

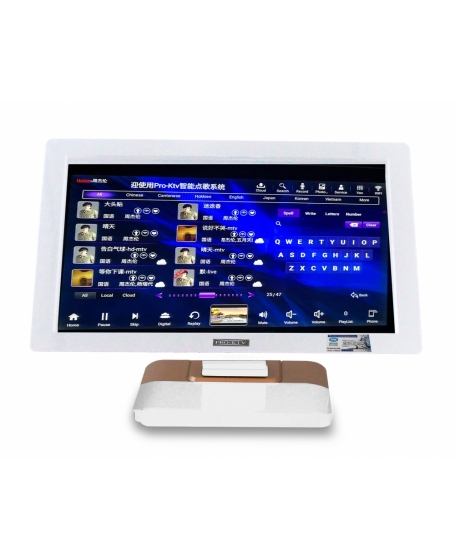

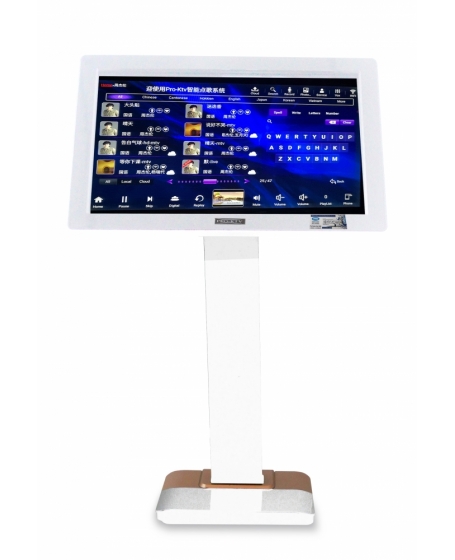

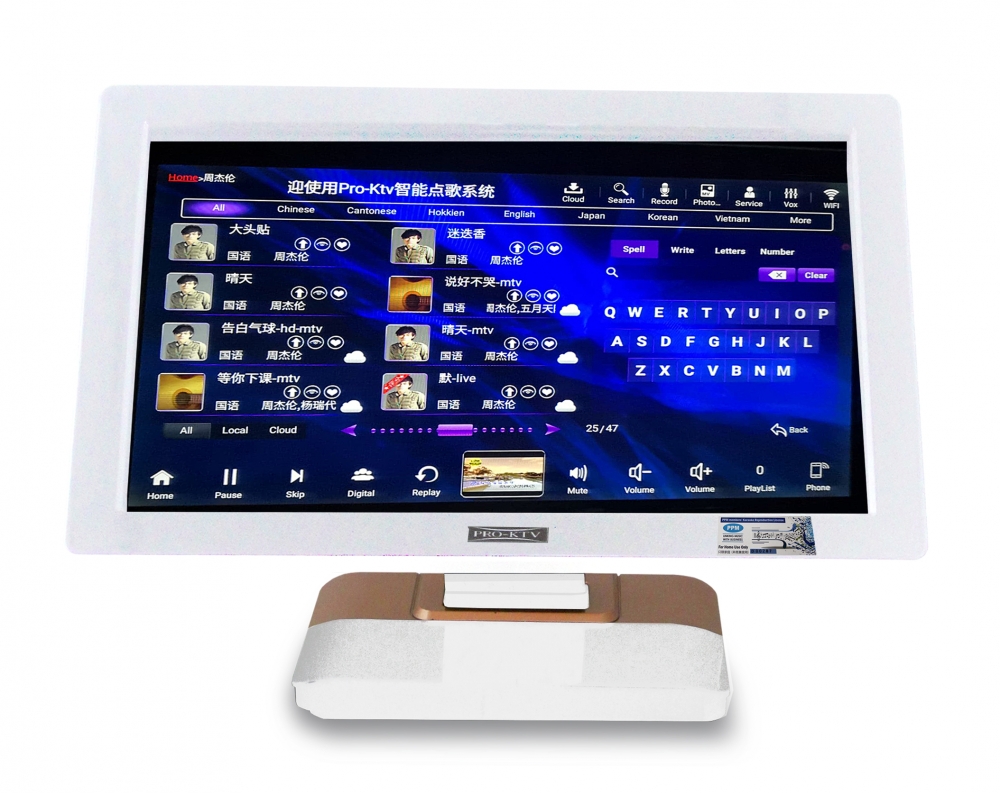

Pro Ktv KV2150 Copyrighted All In One KOD Player 4000GB

Ultimate Karaoke-On-Demand System

New Advance features:

With 21.5” Built In LED Touch Screen
Unlimited cloud songs library​
Song Reverse & Forward
Connect HP by QR code
Singer scoring
Huge Volume Song Storage (4000GB)
Select song Via Touch Screen Monitor Or Smart Devices
Convinient And Quicker
Song Order Function Up to 200 Songs On Queue
New Songs Update Via Free Cloud Download System
Voice Command
Key Control
Internet Browser
Youtube
Floor Standing Or Desk Top Version
Preloaded 57000 Songs
400000++ Songs Using Wifi
One year Warranty

Pro Ktv KV2150正版一体机 4000GB 智能点歌机功能：
带21.5”电容触摸屏
云端歌库更加齐全
免费新歌下载
歌曲倒带，快进
云端加歌即唱
手机扫码点歌
歌曲评分
触摸屏或手机点歌
云端下载速度更快
语音点歌
音调升降功能
容易安装方便携带
Youtube
刷屏上网
可选择站立式或桌面式
4000GB硬盘 (57000 歌曲)
400000++ 歌曲，需有Wifi
一年保用

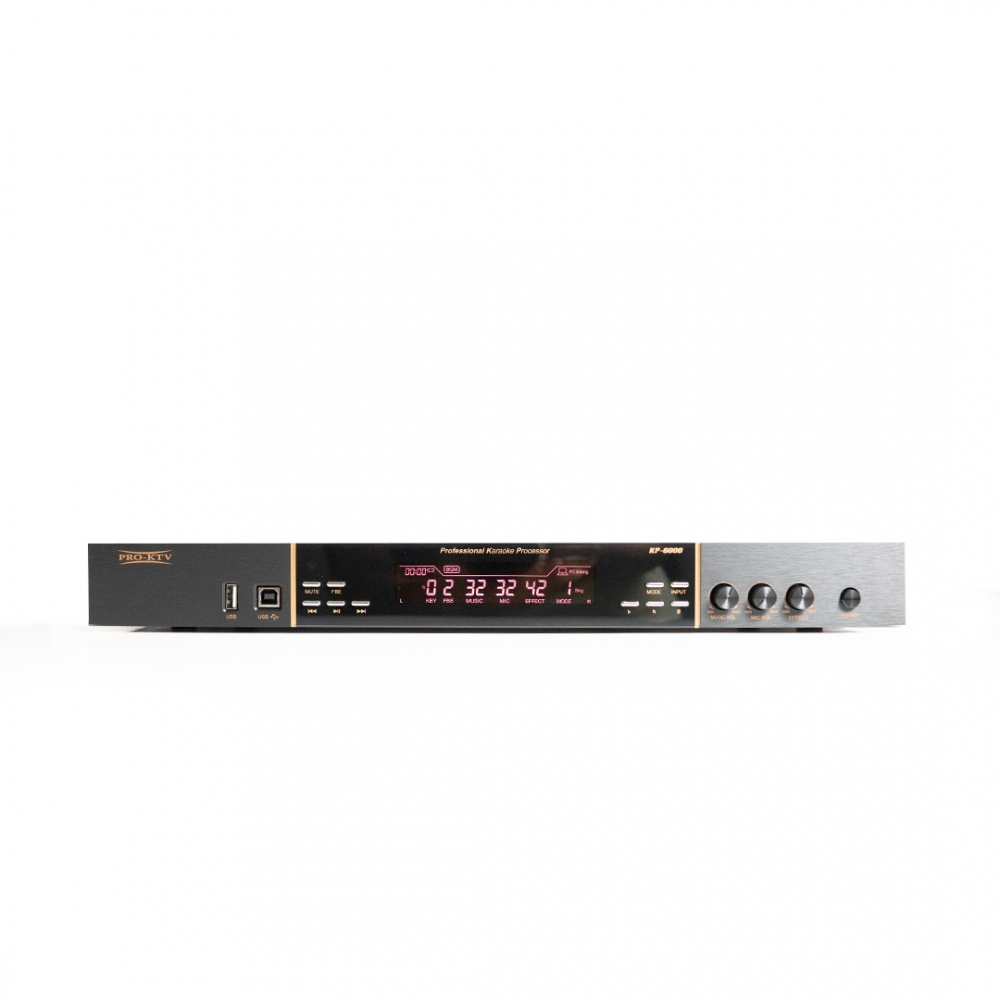

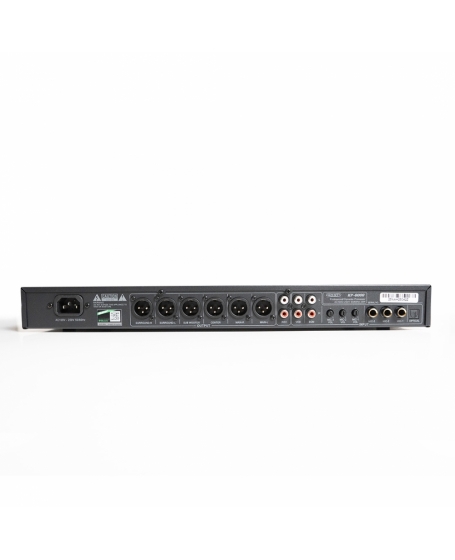

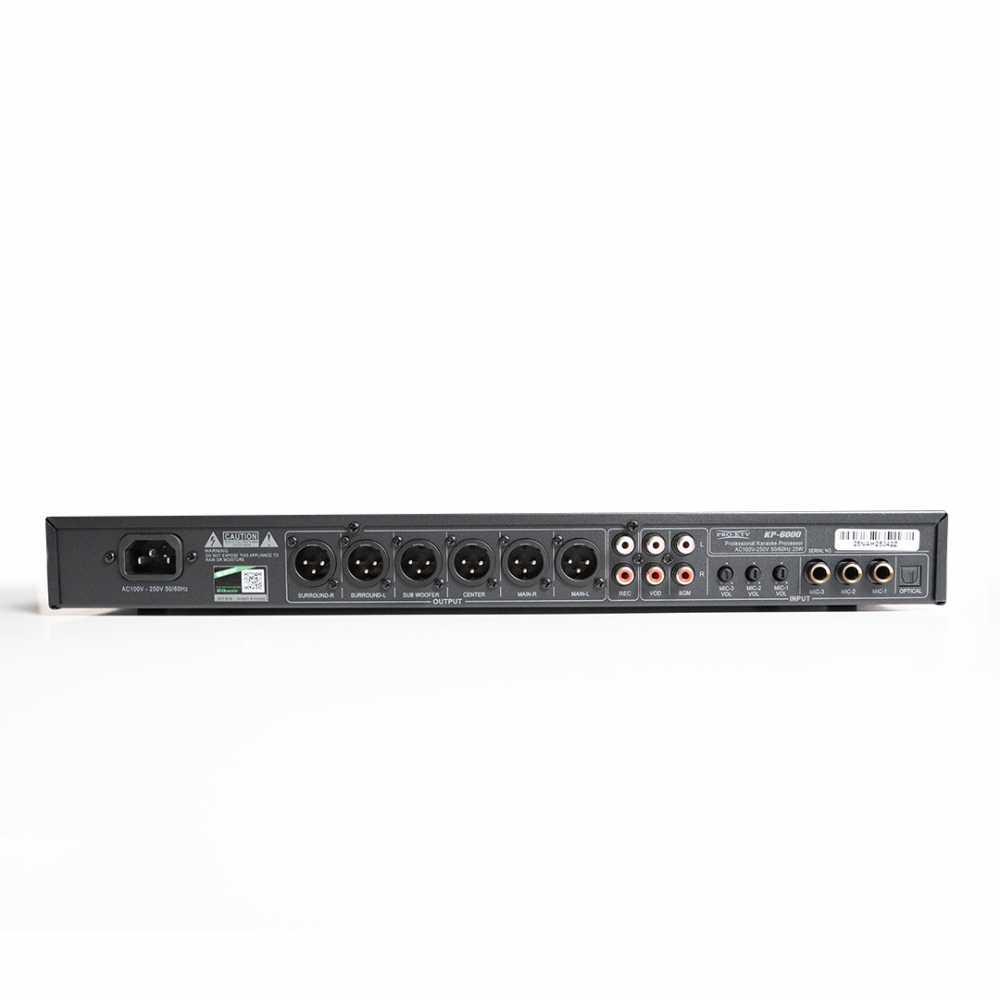

Pro Ktv KP-6000

Pro Ktv KP-6000 Karaoke Processor is a professional 5.1-channel karaoke digital processor with computer-based system tuning capability.

It features a built-in DSP digital audio engine that delivers clear vocals, smooth echo and reverb effects, and accurate multi-channel output performance.

Equipped with USB digital connectivity, the BPR-5600 can be connected to a computer or USB flash drive, allowing more precise system setup and parameter adjustment via computer control.

With added Bluetooth wireless audio input, it offers high system integration and ease of use, making it ideal for high-end home karaoke, commercial KTV rooms, and multi-channel entertainment systems.

② Key Features

• • 5.1-channel professional karaoke digital processor
• • Built-in DSP digital audio processing
• Computer connection for system tuning and parameter adjustment
• USB digital interface
• Supports USB flash drive
• Supports computer connection
• Bluetooth wireless audio input
• Multiple analog audio inputs (RCA / microphone)
• Independent control for microphone, music, and effects
• True 5.1-channel pre-out
• Main L / R
• Center
• Surround L / R
• Subwoofer
• Pre-amplifier design for flexible system expansion
• Suitable for home and commercial karaoke systems

Pro Ktv KP-6000 Karaoke Processor 是一款支持电脑系统调校的 5.1 声道专业卡拉 OK 数码处理器。

内建 DSP 数码音频处理核心，提供清晰稳定的人声表现、自然回音效果与精准的多声道输出。

本机支持 USB 数码接口，可连接 U 盘或电脑，并可通过电脑进行系统参数调校，让人声、效果与整体音场设定更加精准专业。

同时具备 Bluetooth 无线音源输入，系统整合度高，适合家庭高端卡拉 OK、商用 KTV 与多声道娱乐系统使用。

② Key Features（核心功能）

• 5.1 声道卡拉 OK 数码处理器
• 内建 DSP 数码音频处理
• 支持电脑连接进行系统调校
• USB 数码接口
• 支持连接 U 盘
• 支持连接电脑
• Bluetooth 无线音源输入
• 多组模拟音频输入（RCA / MIC）
• 独立麦克风、人声效果、音乐调节
• 真实 5.1 声道前级输出
• Main / Center / Surround / Subwoofer
• 前后级分离设计，系统升级更灵活
• 适合家庭与商用卡拉 OK 系统

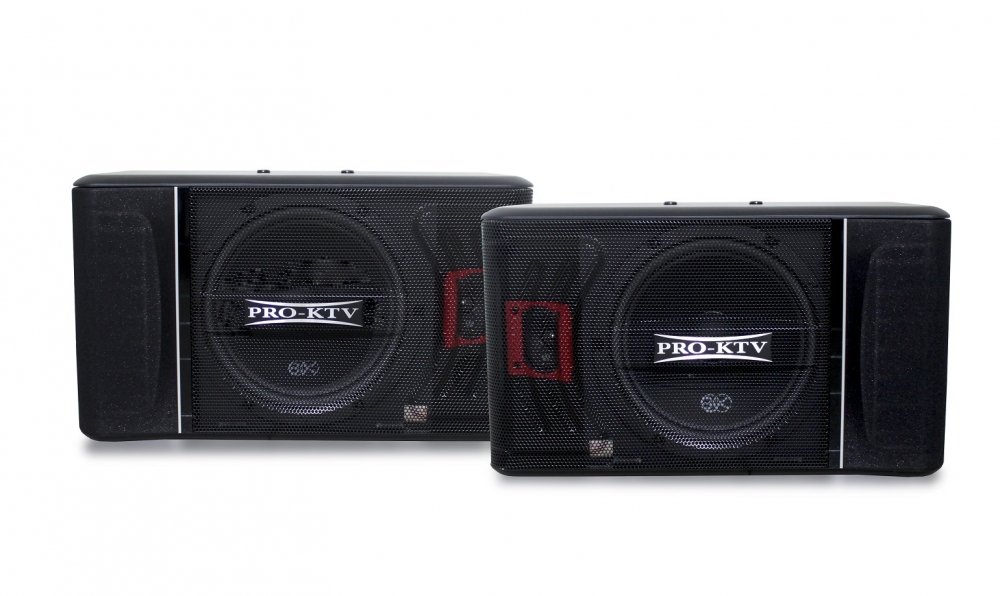

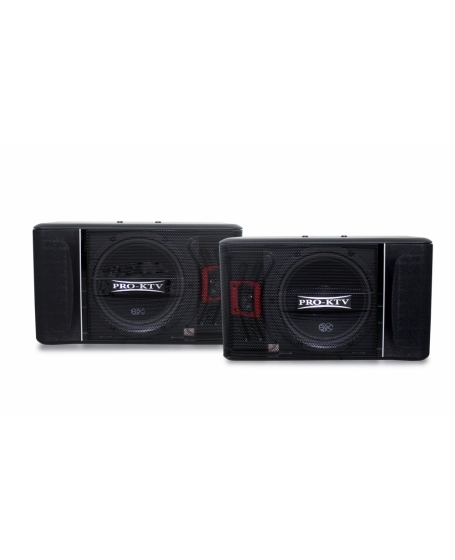

Pro Ktv MKS3300

10 Inch 2 Way 3 Speakers Loudspeaker System

Through the hands of BIK's experienced engineering & design team,  one of the loudspeakers with modern styling is created.
With 2-way and 3 drivers design, produce powerful music and clear vocal.
Manufactured by BIK Japan with materials from Japan.

Pro Ktv PA-1000
Type : Professional Power Amplifier
Maximum Rated Output Power : 2 Channel(Stereo) 400W + 400W / 8Ω
Power Consumption : 1800W
Dimension W×H×D : 483×96×388 (mm)
Weight : 12kg

Pro Ktv KV2150
Size  ~  515mm(W) - 311mm(H)
Weight  ~  7.5 kg
Measure  ~  Dv 12v
Video Output  ~ NTSC,75Ω,1VP-P
Sound Output  ~  Setreo R/L,1KΩ, 20Hz - 20KHz
Static Noise  ~  -105dB
IR Reception  ~  INFR , 38KHz
PS/2 Device Input  ~  Mouse
VGA Output  ~  RGB ,75Ω, Monitor
Externally Connected IR Receiver  ~  INFR , 38KHz

Pro Ktv KP-6000 Specifications
Model: Pro Ktv KP-6000 Karaoke Processor
Type: 5.1-Channel Karaoke Digital Processor
DSP Processing: Supported
Computer System Tuning: Supported
USB Interface: Supported (USB flash drive / computer)
Bluetooth: Supported
Maximum Input Level (RCA): 2.5 V
Maximum Output Level (Main / Center / Surround / Sub): 3.5 V
Microphone Gain: 12 dB
Sensitivity: 64 mV
Signal-to-Noise Ratio: ≥ 80 dB
Power Consumption: 25 W
Power Supply: AC 100–240 V / 50 Hz
Dimensions (W × H × D): 482 × 44 × 196 mm
Weight: Approx. 2.1 kg

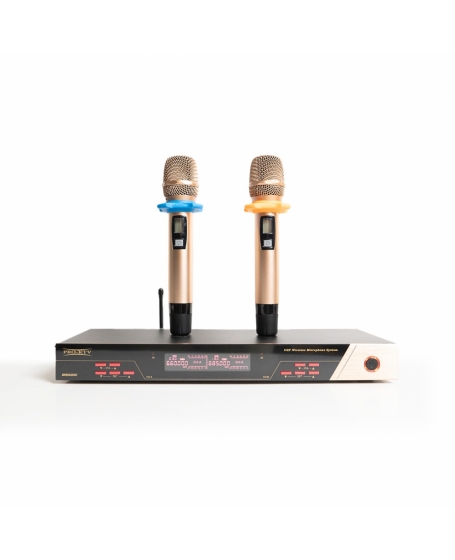

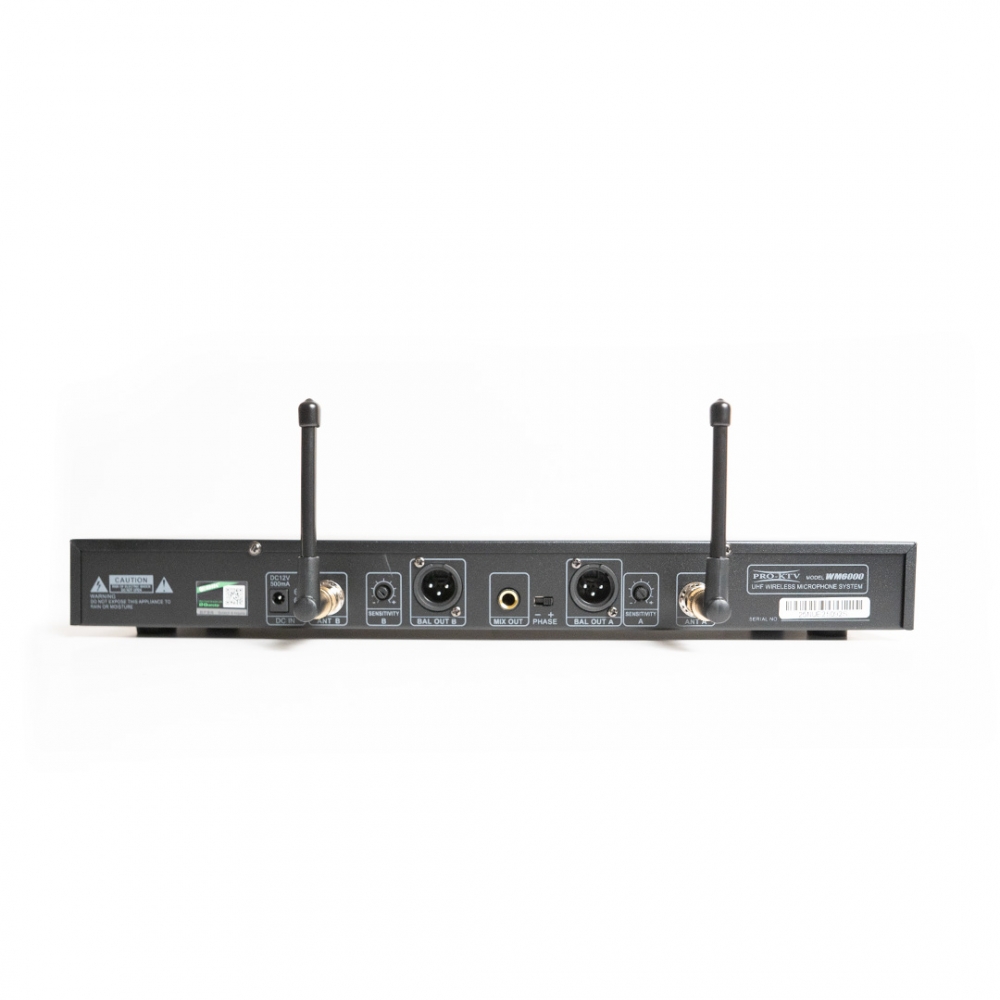

Pro Ktv WM-6000
Receiver Specifications
Frequency Range (UHF)
Band A: 640.00 – 664.75 MHz (CH 0–99)
Band B: 665.00 – 689.75 MHz (CH 100–199)
Total Channels: 200 Channels (A: 0–99 / B: 100–199)
Sensitivity: 12 dBµV (80 dB S/N)
Sensitivity Adjustment Range: 12 dBµV – 32 dBµV
Total Harmonic Distortion (THD): ≤ 0.5%
Audio Output Level
Balanced Output: 300 mV – 2.5 V
Output A + B: 10 mV – 80 mV
Antenna Input: BNC Type (50 Ω)
Power Supply: DC 12 V / 500 mA
Operating Temperature: –10 °C to +40 °C
Dimensions (W × H × D): 420 × 45 × 165 mm
Weight: 1.62 kg

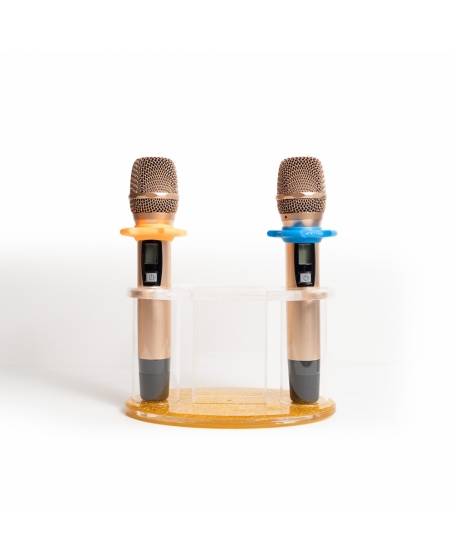

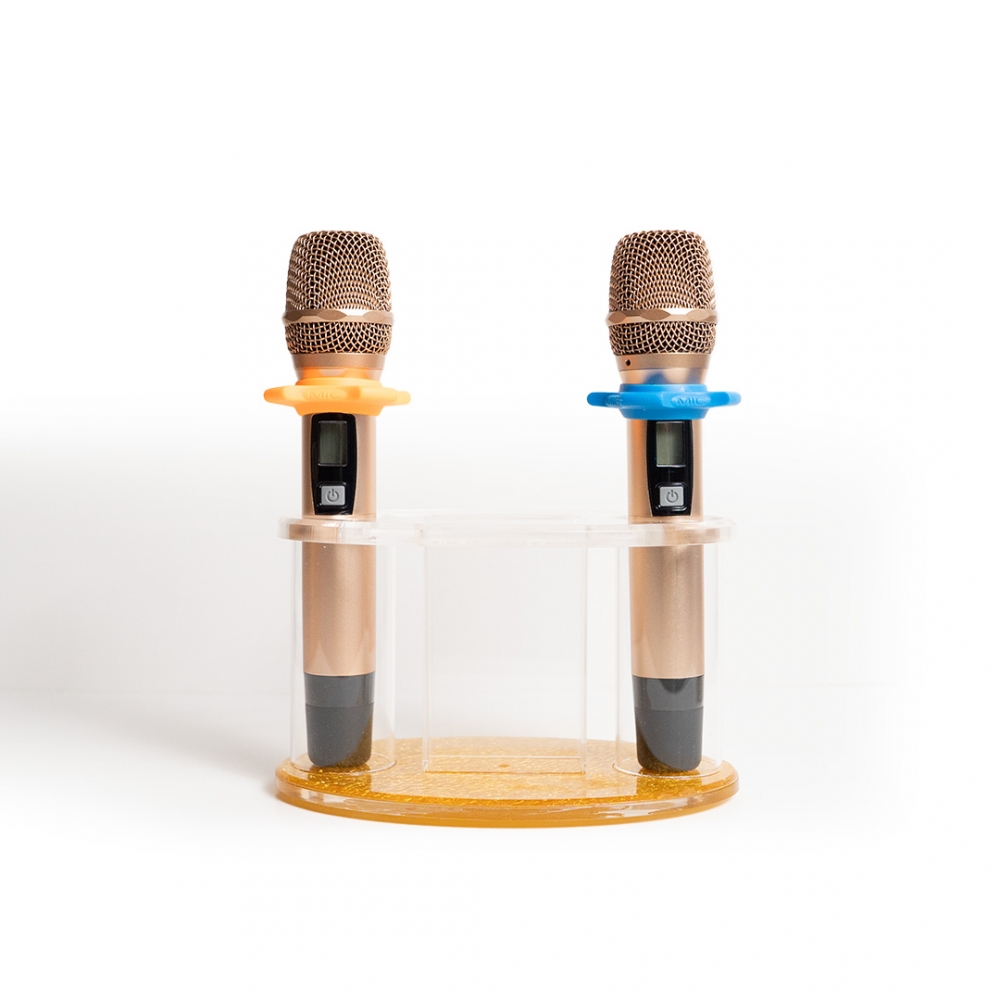

Wireless Microphone Specifications (Handheld)
Frequency Range (UHF): 640.00 – 689.75 MHz (CH 0–199)
Wave Type: F3
Total Channels: 200 Channels (A: 0–99 / B: 100–199)
Channel Spacing: 300 kHz
RF Output Power: 3 mW – 10 mW (Max.)
Frequency Stability: ≤ 0.005%
Modulation: 45 kHz
Frequency Response: 80 Hz – 18 kHz
Dynamic Range: 100 dB
Microphone Type: Handheld Wireless Microphone
Dimensions: Ø 52 mm × 250 mm
Weight: 640 g

AC Adapter Specifications
Input Voltage: AC 100 – 240 V, 50 / 60 Hz
Output Voltage: DC 12 V / 500 mA
Design: Compact / Ultra-small adapter

Accessories Included
User Manual × 1
Power Adapter × 1
UHF Antennas (1/4λ) × 2
Audio Connection Cable × 1

Pro Ktv MKS3300
Type : 2 way 3 speakers
Enclosures : Bass-reflex Type
Bass Woofer : 250mm cone type
Tweeter : 77mm cone type x 2pcs
Impedance : 8Ω
Frequency Response :35Hz ~ 20kHz
Sound Pressure Level : 90db/1W/1m
Maximum Input Power : 880W
Rating Input Power : 220W
Crossover Frequency : 2kHz
Dimension W×H×D : 501×292×287 (mm)
Weight : 11.0kg (1Piece)
