Reserve R500

Premium Compact Floor-Standing Tower Speaker

Offering a balance of size and power, the R500 loudspeaker is perfect for both listening in a stereo pair or within a surround system. It delivers standout sound from a narrow, elegant cabinet that seamlessly fits into any room.

• Dual 5.25" Turbine Cone woofers
• 1" Pinnacle Ring Radiator tweeter
• Polk Patented X-Port
• Exceptional & sleek cabinetry
• Hi-Res Audio certified
• Dolby Atmos & DTS:X compatible

Purity of Sound

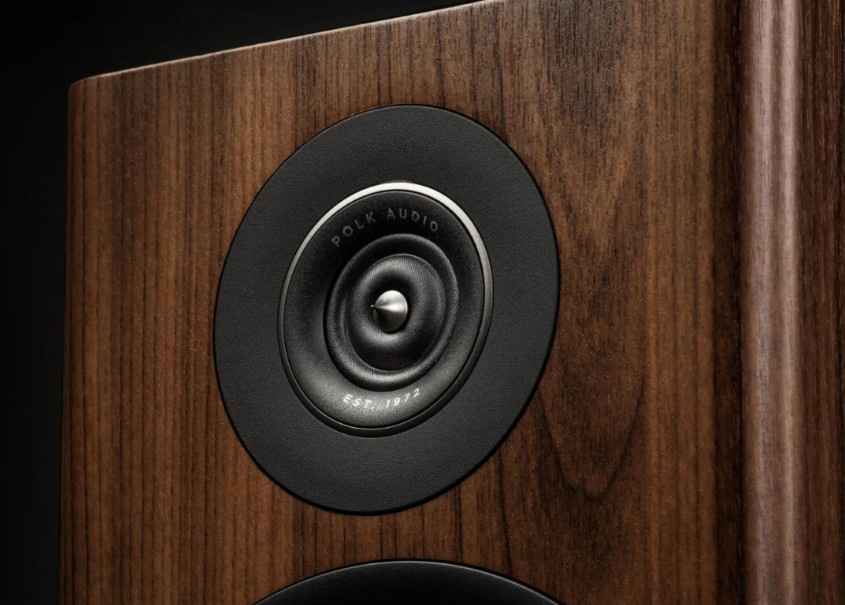

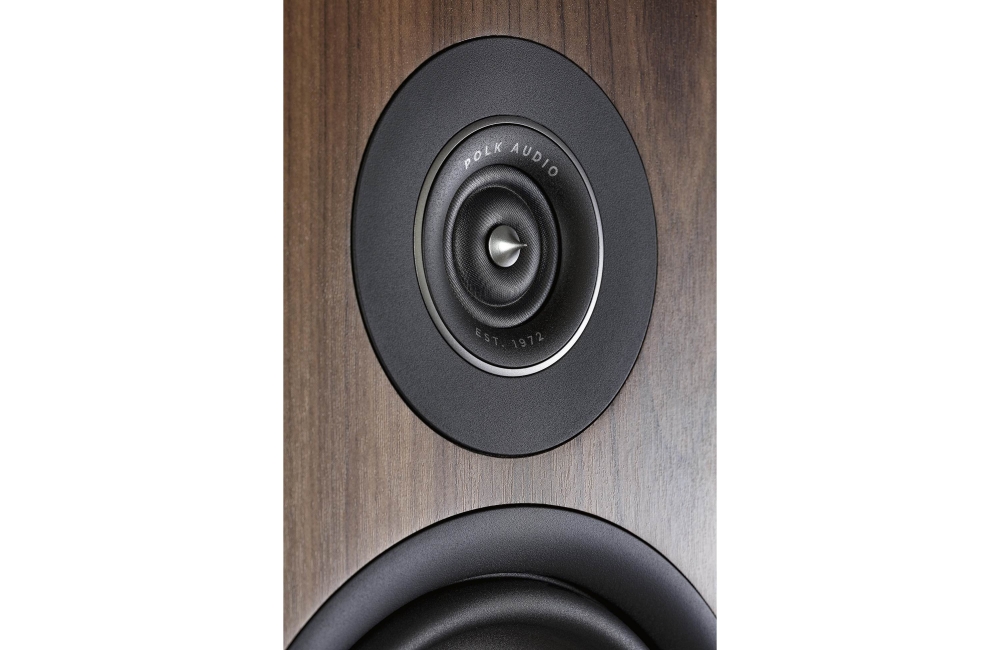

Pinnacle Ring Radiator Tweeter

The Pinnacle Ring Radiator Tweeter’s distinctive pointed shape guides the dispersion of high frequency sounds around a room. This innovation widens the sweet spot and allows you freedom to enjoy your music and movies wherever you choose to sit.

Turbine Cone Woofer

Our pioneering turbine design delivers a significant increase in cone rigidity without increasing mass. This innovation means the woofer can move with increased accuracy and speed to deliver enhanced sound resolution, enabling you to experience a breathtaking level of detail in your music and movies.

X-Port

Reserve R500 integrates X-Port, featuring a set of closed-pipe resonators, called Eigentone filters that are tuned to absorb unwanted port and cabinet resonances, providing you pure, unadulterated, crystal clear sound and more bass output.

Form and function

Exceptional Cabinetry

Reserve’s sleek cabinetry hides a world of audio innovation. Cabinets are carefully cross-braced to best eliminate unwanted interior resonances. Rounded exterior corners help disperse sound broadly around the room with minimal diffraction, creating an open sound stage.

Take it to the next level

Optional Height Module

For immersive vertical sound, add compatible Reserve R900 height modules (sold separately). These optional height modules perform beautifully with the latest home theater technologies, including: Dolby Atmos, DTS, DTS:X, DTS:X Virtual, IMAX Enhanced, and Auro-3D.

Every detail

Hi-Res Audio Certified

Delivers clear and detailed high-end response up to 40Khz for improved high frequency signals for today’s high-quality audio.

Dolby Atmos Enabled

Listening to Atmos and DTS:X-enabled content on Reserve Series speakers brings you deeper into the story or music every time.

IMAX Enhanced Certified

IMAX Enhanced certification guarantees an unforgettably huge and dynamic home theater experience when enjoying IMAX Enhanced movies, television shows and music.

TRANSDUCER
Tweeter    1" Pinnacle Ring Radiator
Mid-range/Mid-bass    -
Woofers    Two 5 ¼” Turbine Cone
Overall Frequency Response    32Hz - 50kHz
Frequency Response (-3dB limits)    49Hz - 36kHz
Recommended Amplifier Power    25 - 200W
Amplifier Output Compatibility    8Ω / 6Ω / 4Ω
Minimum Impedance (ohms)    3.9Ω
Sensitivity (2.83V/1m)    87dB
CROSSOVER
Tweeter/Mid-range Crossover Frequency    2500
Mid-range/Mid-bass Crossover Frequency    -
MEASUREMENTS
Product Dims W x H x D (Includes width of feet)    255.4 x 1044.5 x 348.8mm
10.1 x 41.1 x 13.7 in
Product Weights (each)    39 lbs/17.7 kg
Shipping Weight    49.6 lbs/22.5 kg
CABINETRY
New CRC (Mid-Range Enclosure Type)    -
Mid-Bass / Woofer Enclosure Type    Rear X-Port
Available Finishes    Black / Walnut / White
Feet    Spike and Pad
Wall-Mountable (keyhole slots)    No
Binding Posts: Nickel-plated 5-Way    Single
Certifications (Non-Safety and Regulatory)
Hi-Res Certified    Yes
IMAX Certified    Yes
Shipping Dims (WxHxD)    456 x 350 x 1135mm
(17.9x 13.8 x 44.7) in
