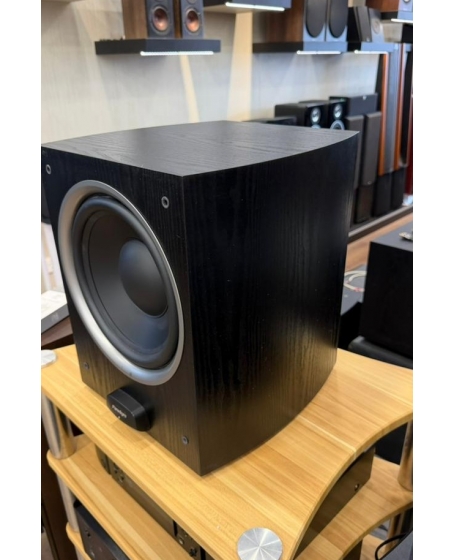

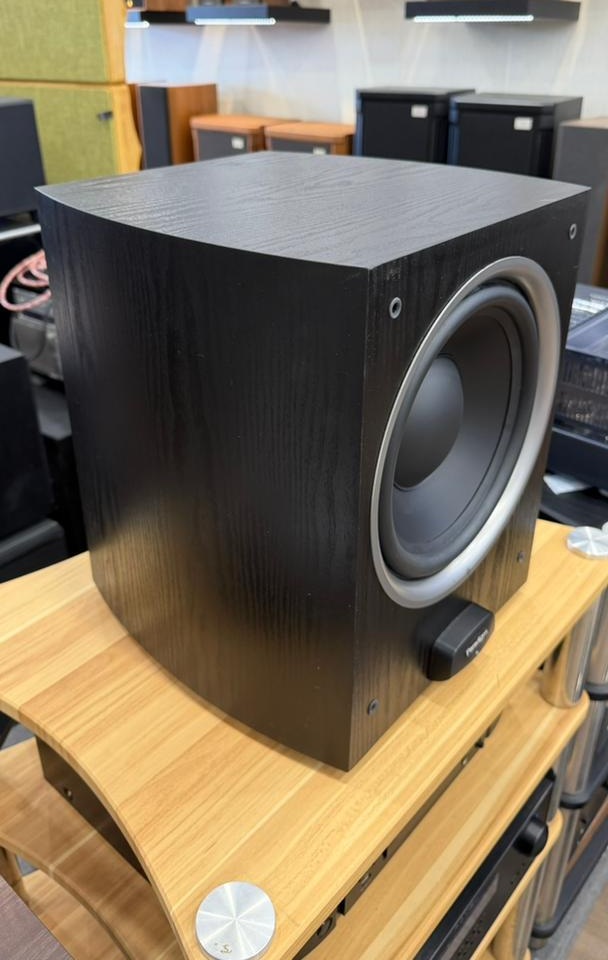

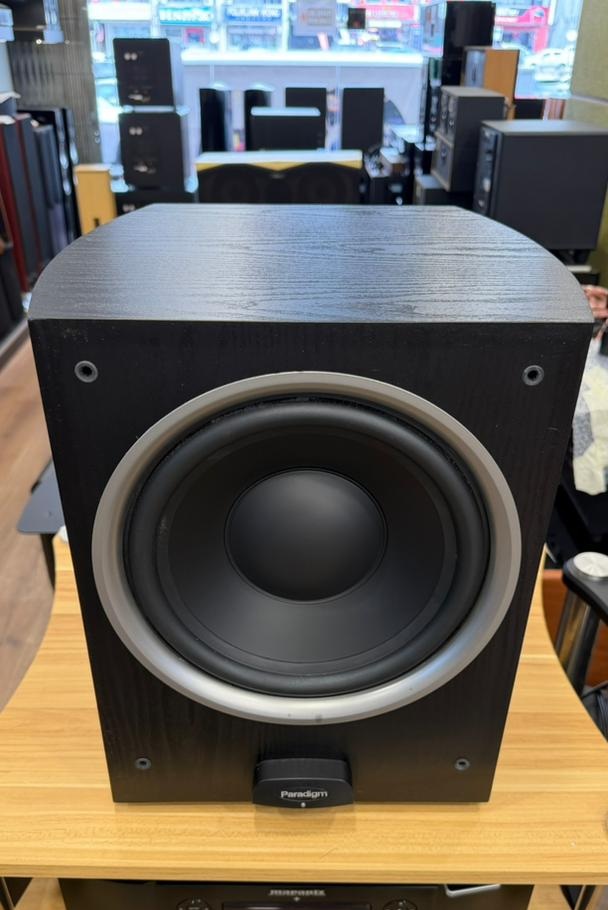

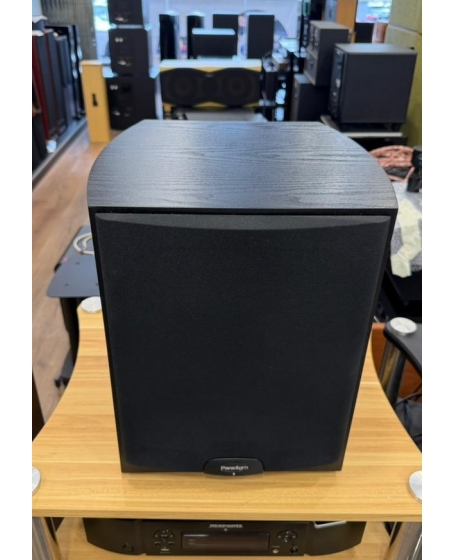

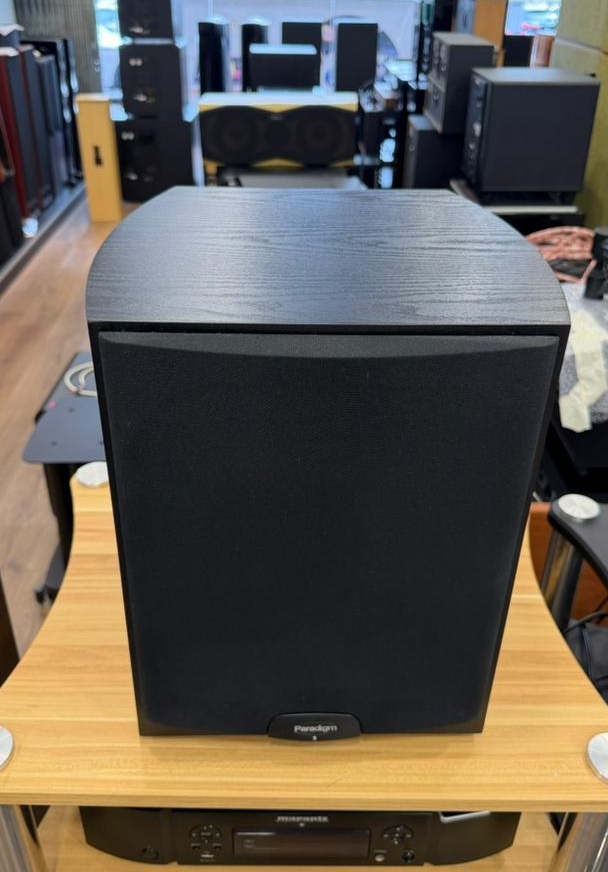

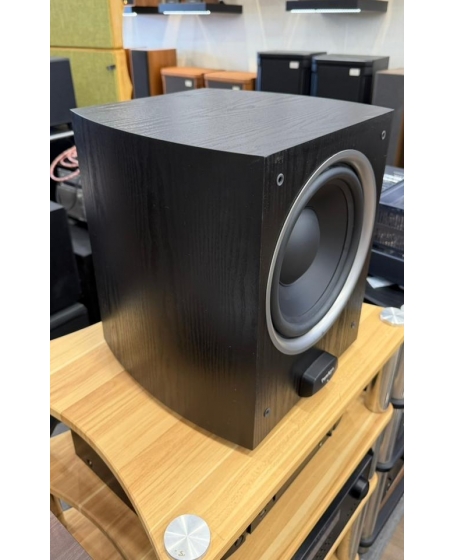

PDR 100

10-inch single driver, bass-reflex, high-velocity low-turbulence resistive port. Built-in amplifier boasts improved soft-clipping circuitry for lower amplifier distortion and even cleaner maximum output levels.

DESIGN Single driver, bass reflex, high-velocity low-turbulence resistive port, built-in amplifier
AMPLIFIER 360 watts Dynamic Peak / 120 watts RMS
AMPLIFIER FEATURES Auto-On / Standby, soft clipping
LOW FREQUENCY DRIVER 254-mm (10 in) reinforced polymer-composite cone, 38-mm (1-1/2 in) voice-coil
LOW FREQUENCY EXTENSION 29 Hz (DIN)
LOW PASS FILTER FREQUENCY Variable 35 Hz - 150 Hz; Bypass Option
SUB / SAT PHASE ALIGNMENT Variable 0° - 180°

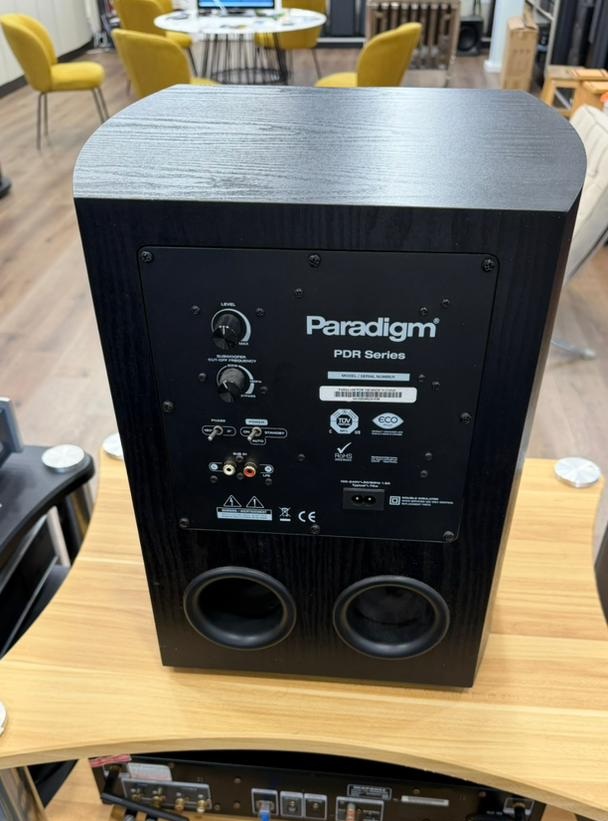

INPUTS Two RCA (L/R-Mono) for L/R Line-Out or Sub-Out / LFE-Out of receiver, processor or other line-level source
DIMENSIONS HXWXD (INCLUDES GRILLES AND FEET) 15.5" × 13.125" × 15.25" (39.4cm × 33.3cm × 38.7cm)
WEIGHT 29 lbs. (13.2 kg)
