MA12000 2-Channel Integrated Amplifier

Ideal for 2-Channel Audio Systems

• Type: Hybrid Drive
• Vacuum Tube Preamplifier and Solid State Power Amplifier
• 350 Watts x 2-Channels
• Autoformers™, Power Guard®, Sentry Monitor™, Monogrammed Heatsinks™, Solid Cinch™ speaker binding posts
• 17 analog and digital inputs
• Includes DA2 Digital Audio Module
• Supports 24-bit/192kHz and DSD512 files
• 8-band analog equalizer
• A certified Roon Tested device

1949 – 2024: MCINTOSH CELEBRATES 75 YEARS OF AUDIO EXCELLENCE

Since our inception in 1949 under the visionary guidance of Frank McIntosh, we have been unwavering in our commitment to the art of sound reproduction. The year 2024 marks a historic milestone for McIntosh as we proudly celebrate our 75th Anniversary – a testament to our enduring passion for crafting audio experiences that transcend expectations.

THE MA12000 75TH ANNIVERSARY EDITION

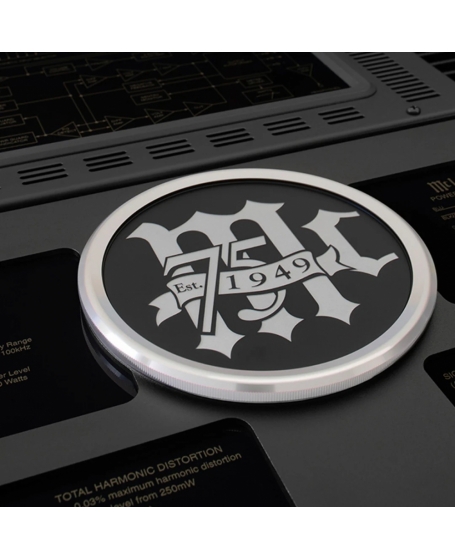

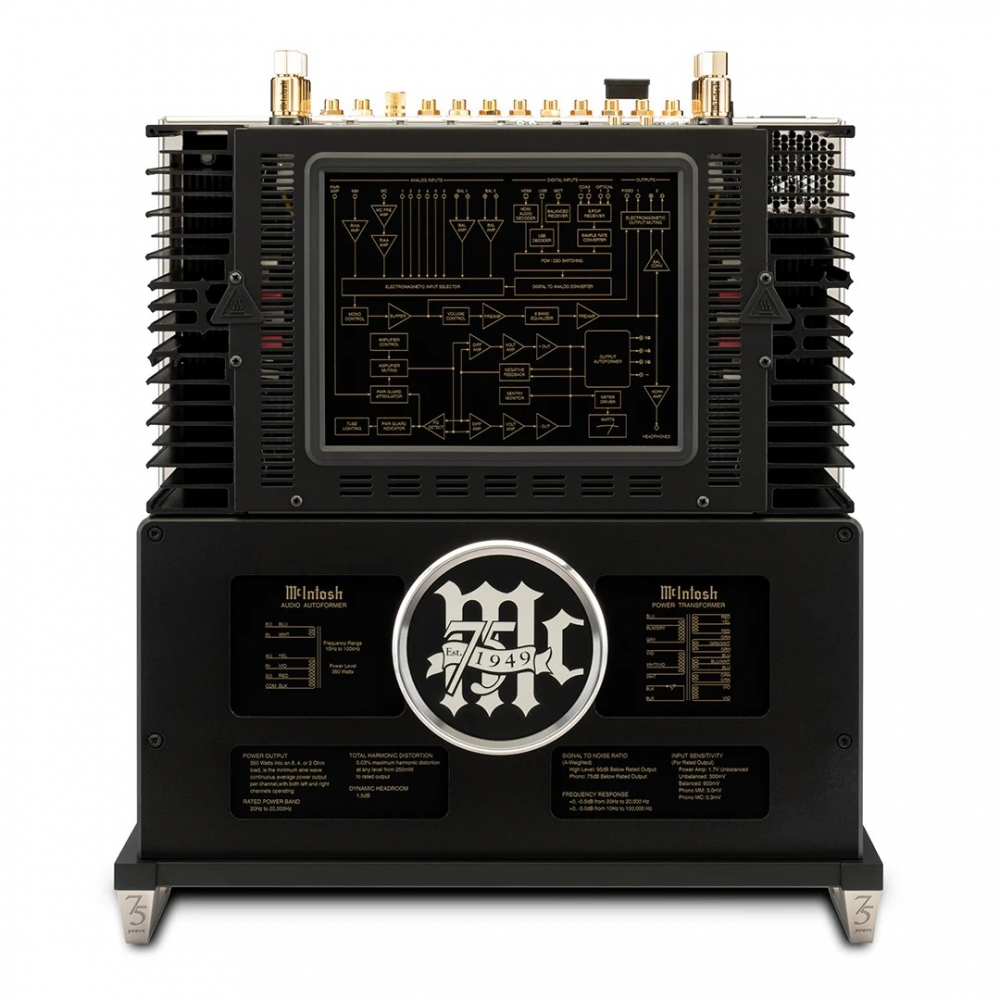

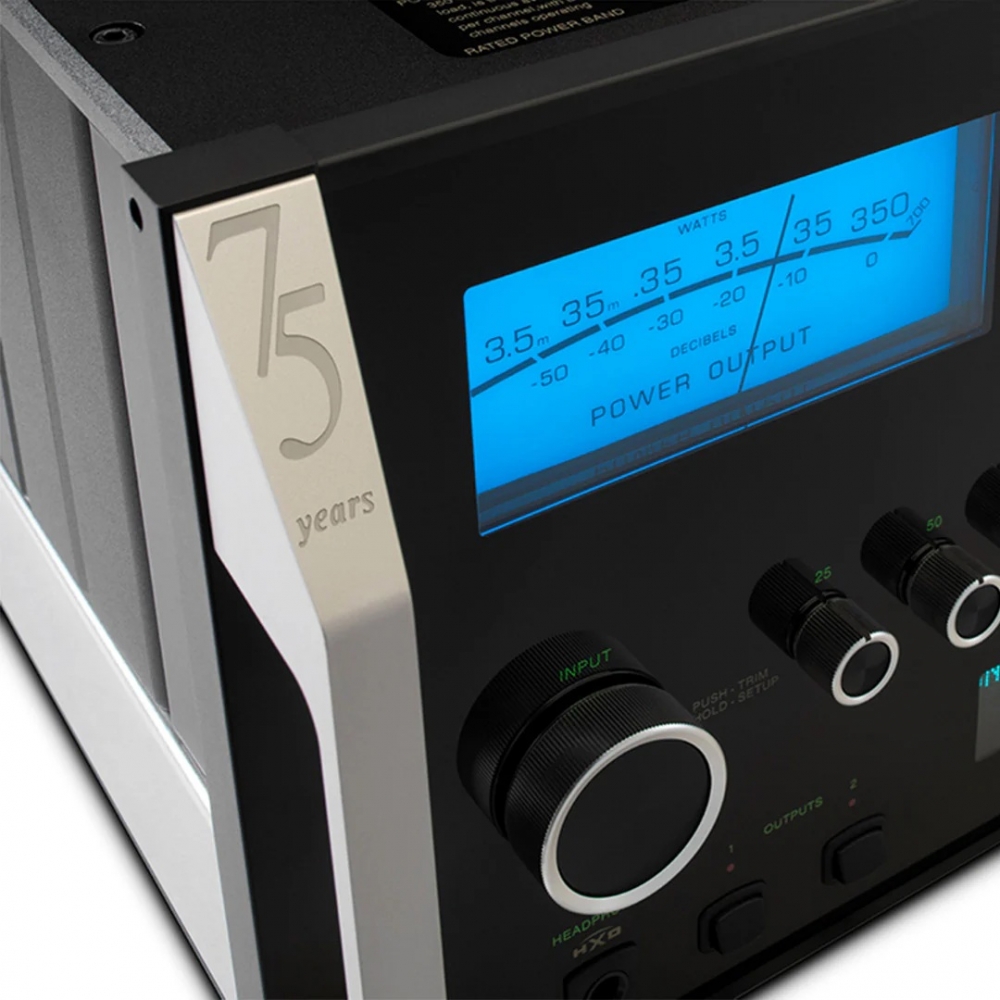

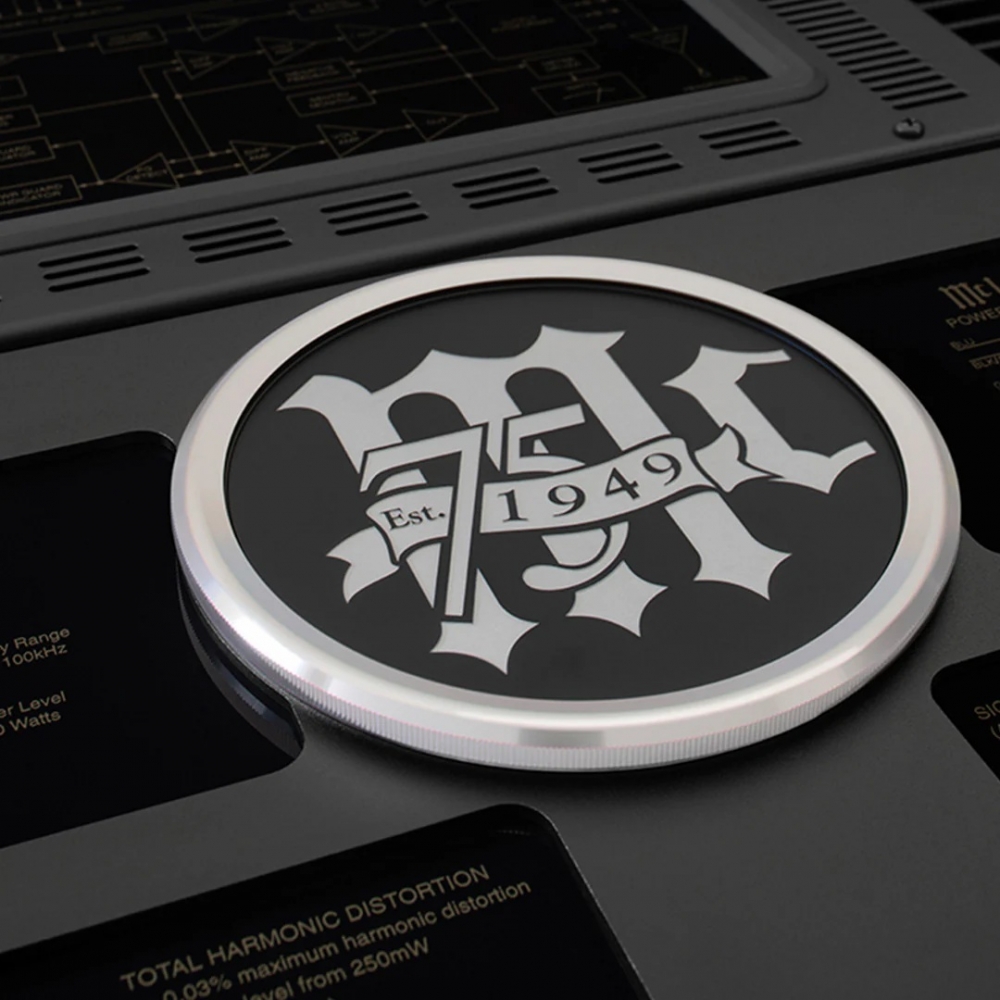

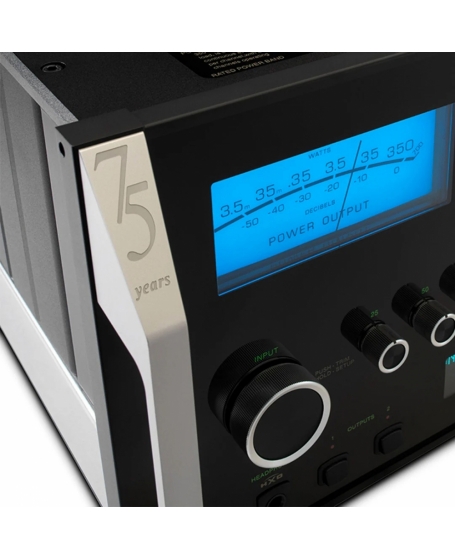

In honor of this momentous occasion, we present the special MA12000 75th Anniversary Edition. The Anniversary Edition boasts a distinctive dual anodized laser-engraved badge proudly displaying our 75th Anniversary logo on the top, while each handle is engraved with a graceful “75 years” inscription. This exclusive edition is a celebration of our relentless pursuit of excellence. All performance specifications, functionality, and dimensions of the anniversary edition are the same as the non-anniversary version.

Previous slide

Next slide

HOW TO SECURE YOUR PIECE OF THIS SONIC LEGACY

When placing your order with your dealer in 2024, you must specify you want the MA12000 75th Anniversary Edition. Otherwise you will receive the stock version that does not include the commemorative anniversary markings.

COMPLETE 75TH ANNIVERSARY PRODUCT FAMILY

Our 75th Anniversary product lineup extends beyond the MA12000 encompassing the MC2.1KW Monoblock Amplifier, MC1.25KW Monoblock Amplifier, C12000 Solid State and Vacuum Tube Preamplifier, and MCD12000 SACD/CD Player. These anniversary editions of these audio marvels stand as beacons of artistry and precision, embodying the very essence of McIntosh’s 75-year sonic odyssey.

With each, we invite you to join our passion for the profound impact of music, craftsmanship, and the transformative experience of listening. Let the MA12000 and its companions elevate your auditory senses, inspiring you to explore new realms of sonic bliss.

Power Output per Channel: 350 Watts
Number of Channels: 2
Speaker Impedance: 2, 4, or 8 Ohms
Rated Power Band: 20Hz to 20kHz
Total Harmonic Distortion: Preamplifier: 0.03% / Amplifier: 0.005%
Dynamic Headroom: 1.5dB
Frequency Response +0,-0.5dB: 20Hz to 20kHz
Frequency Response, +0, -3dB: 10Hz to 100kHz
Sensitivity Phono (Moving Coil): 0.30mV
Sensitivity Phono (Moving Magnet): 3.0mV
Sensitivity High Level (Balanced / Unbalanced): 600mV/300mV
Sensitivity (Power Amp input): 1.7V
Signal To Noise Ratio (Moving Coil): 75dB
Signal To Noise Ratio (Moving Magnet): 77dB
Signal To Noise Ratio (High Level): 95dB
Signal To Noise Ratio (Power Amp input): 114dB
Input Impedance (Balanced / Unbalanced): 44K/22K
Damping Factor: >40
Maximum Output (Balanced / Unbalanced): 8V Unbalanced / 16V Balanced
Balanced Input: 2
Unbalanced Input: 6
Phono Input Moving Coil: 1 (adjustable loading)
Phono Input Moving Magnet: 1 (adjustable loading)
Upgradeable Digital Audio Module: Yes: DA2
Digital Coaxial Input: 2
Digital Optical Input: 2
Digital MCT (DIN) Input: 1
Digital USB Input: 1
HDMI (ARC) Input: 1
Balanced Variable Output: 1
Unbalanced Fixed Output: 1
Unbalanced Variable Output: 1
Headphone Output: 1/4" High Drive with Headphone Crossfeed Director (HXD®)
Subwoofer Output: 0
AM/FM Tuner option: No
Home Theater PassThru: Yes
Unbalanced Analog Connector Type: Premium gold-plated solid brass
Speaker Binding Post Type: Patented Solid Cinch™ Speaker Binding Posts
Service Port: 1
Digital-to-Analog Converter (DAC) Type: 8-channel, 32-bit/384kHz PCM/DSD, Quad Balanced
Digital Coaxial Input Sample Rate: 24-bit/44.1kHz to 192kHz
Digital Optical Input Sample Rate: 24-bit/44.1kHz to 192kHz
Digital MCT (DIN) Input Sample Rate: 16-bit/44.1kHz (CD) / DSD64 (SACD)
Digital USB Input Sample Rate: 32-bit/44.1kHz to 384kHz (PCM) DSD64, DSD128, DSD256, DSD512, DXD352.8kHz, DXD384kHz
Tone Controls: 8-Band
Tone Bypass and Input Assign: Yes
RS232 Control Input: Yes
Power Control Output: 1 Main, 2 Trigger
Rear Panel Data Port: 4
Rear Panel IR Sensor Input: Yes
Input Level Match: Yes
Vacuum Tube or Solid State
Preamplifier: Vacuum Tube
Amplifier: Solid State
Output Type: Autoformer™
Output Meters: Yes
Dual Layer Chassis: Yes
Chassis Finish: Polished stainless steel & black painted steel
McIntosh Monogrammed Heatsinks™: Yes
Power Requirement: 120V, 50/60Hz, 6.6A
Standby Power Requirement: <0.25 Watts
Dimensions (W x H x D): 17-1/2” (44.5cm) x 9-7/16” (24 cm) x 22” (55.88cm) including knobs, connectors and cables
Weight: 108 lbs (48.9kg)
Shipping Weight: 141 lbs (63.9kg)
