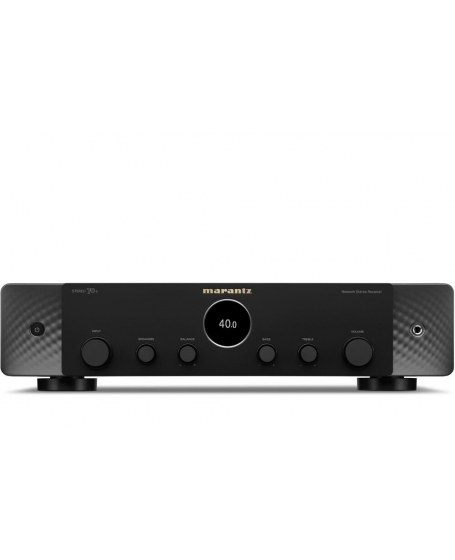

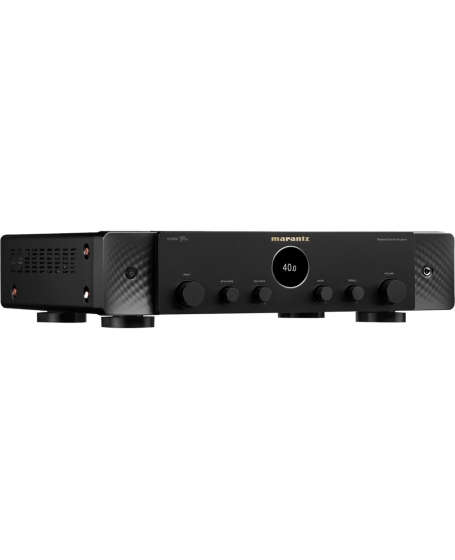

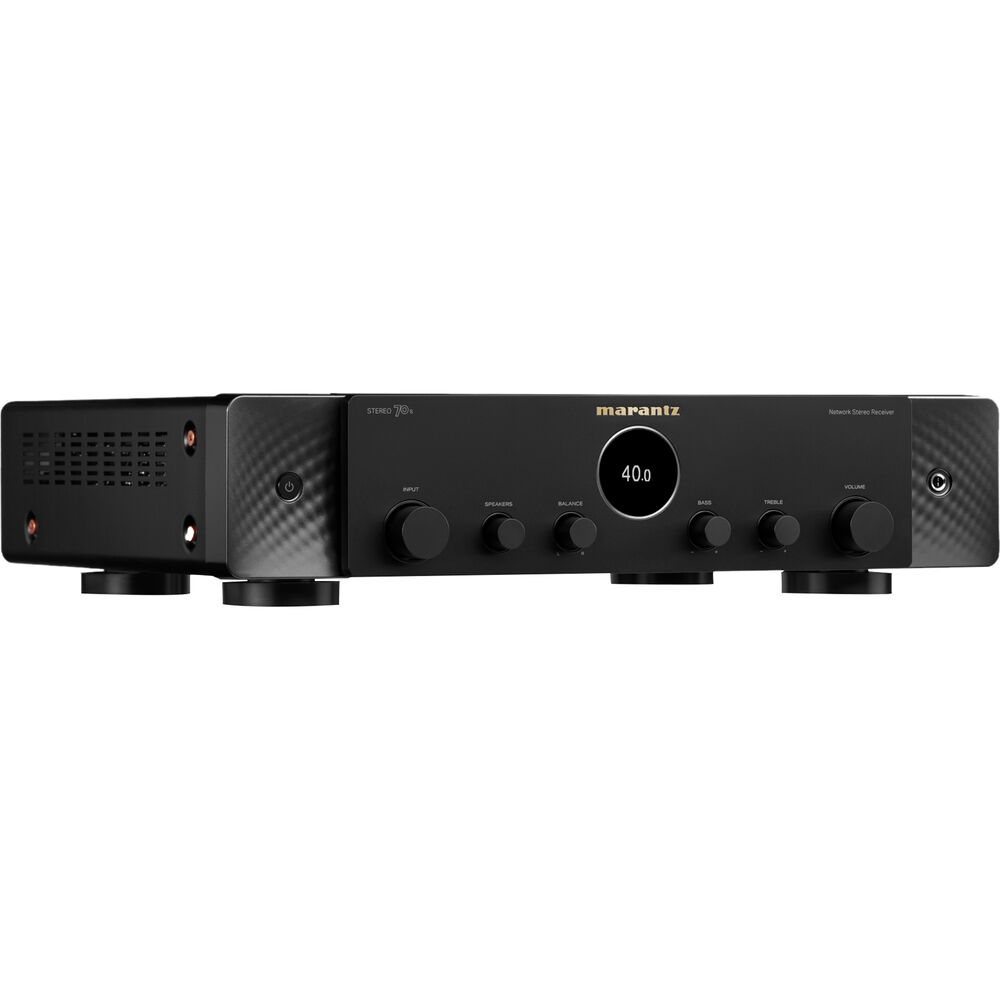

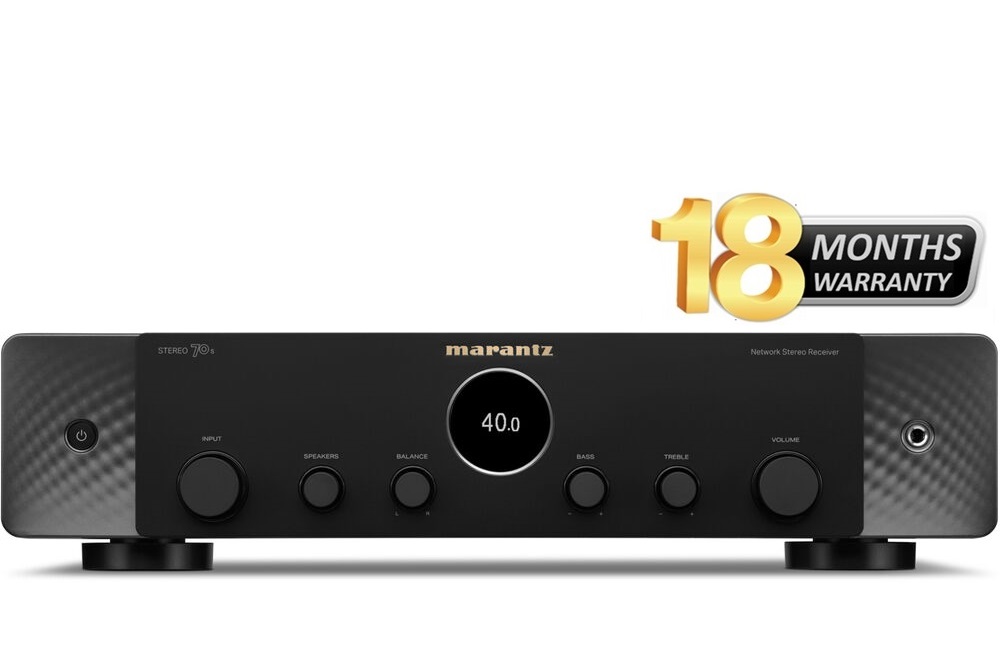

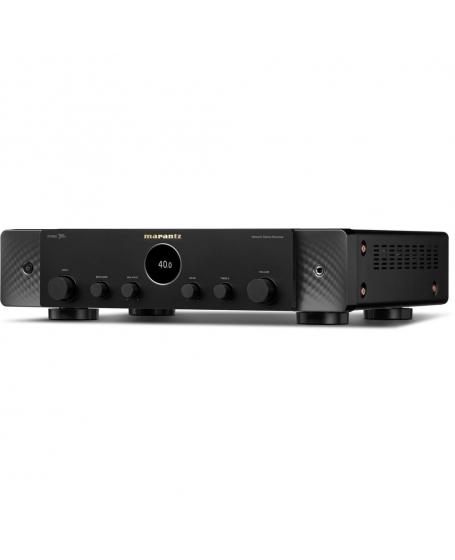

STEREO 70s

SLIMLINE STEREO RECEIVER WITH 75W, 8K AND 6 HDMI INPUTS

Get serious home entertainment with only two speakers. All the tech found in full-size AV receivers in a slimline, stereo receiver with HDMI switching, HEOS streaming built-in, Phono and FM/DAB+ radio.

Musical and Cinematic

Enter a new world of high performance, storied heritage, and legendary artisanship.

Believe in Quality

Home Cinema from Only Two Channels

HDMI inputs and ARC make connection to smart TVs, game systems, and streaming devices simple. Setup menu is easy to navigate via on-screen display, Extensive subwoofer management are all more commonly found in multi-channel surround sound receivers. STEREO 70s gives you these features but streamlined in a device supporting 2 loudspeakers rather than more complicated multi-channel receivers.

High Resolution Audio

Carefully engineered with specially chosen components, STEREO 70s unveils the natural immersiveness and power of sound. Crystal clear digital decoding of up to 192 kHz 24-bit audio and DSD opens a new world of high-resolution music with depth, breadth, and clarity not available with lossy files.

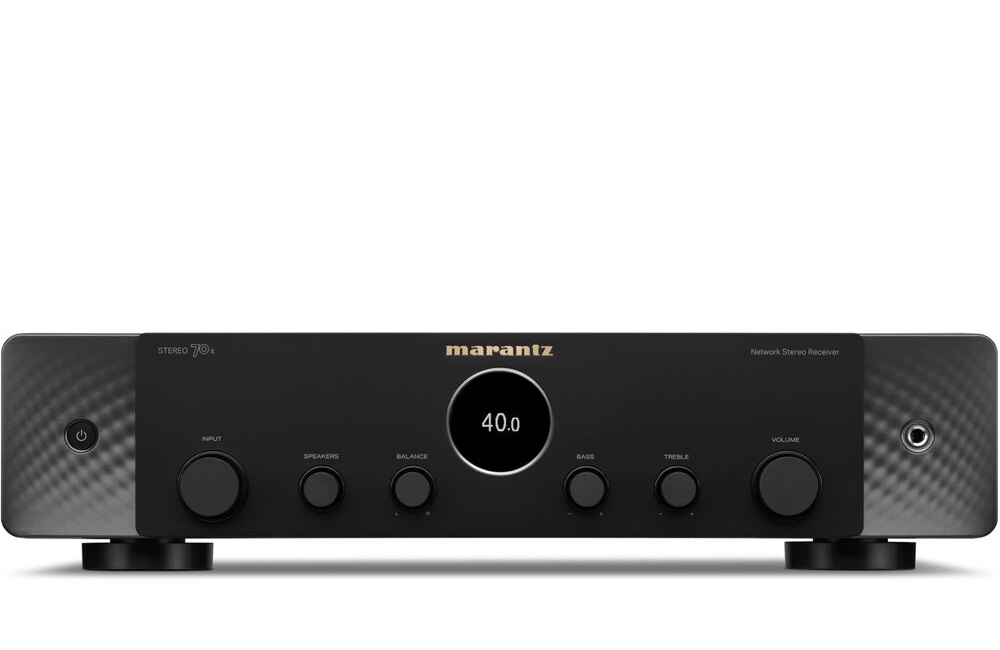

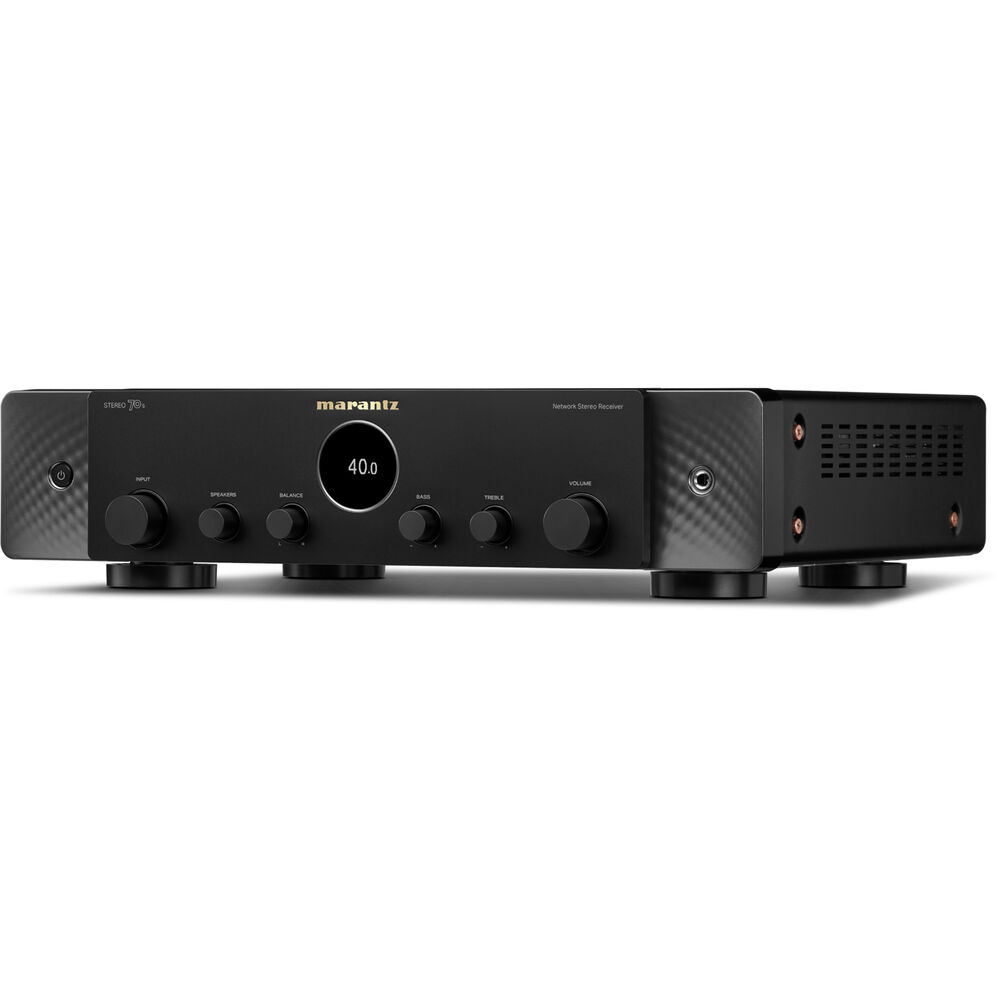

Slim and Elegant

Marantz design is timelessly elegant—an expression of the musical soundscapes the products create. Our philosophy of balance and symmetry is evident in our sound and our designs. Meticulously engineered in a compact chassis, STEREO 70s fits where standard equipment cannot.

HEOS® Built-in Multi-Room Streaming

HEOS® Built-in technology lets you enjoy your favourite music in any room of your home for a wireless, whole-home audio experience. Play the same song in every room or select a different song for each connected room—the choice is yours.

STEREO 70s
Power Amplifi er
Number of Powered Channels 2
Power Output (8 ohm, 20 Hz–20 kHz, 0.08% 2ch Drive) 75 W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 100 W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 150 W
Discrete Power Amplifi er Yes

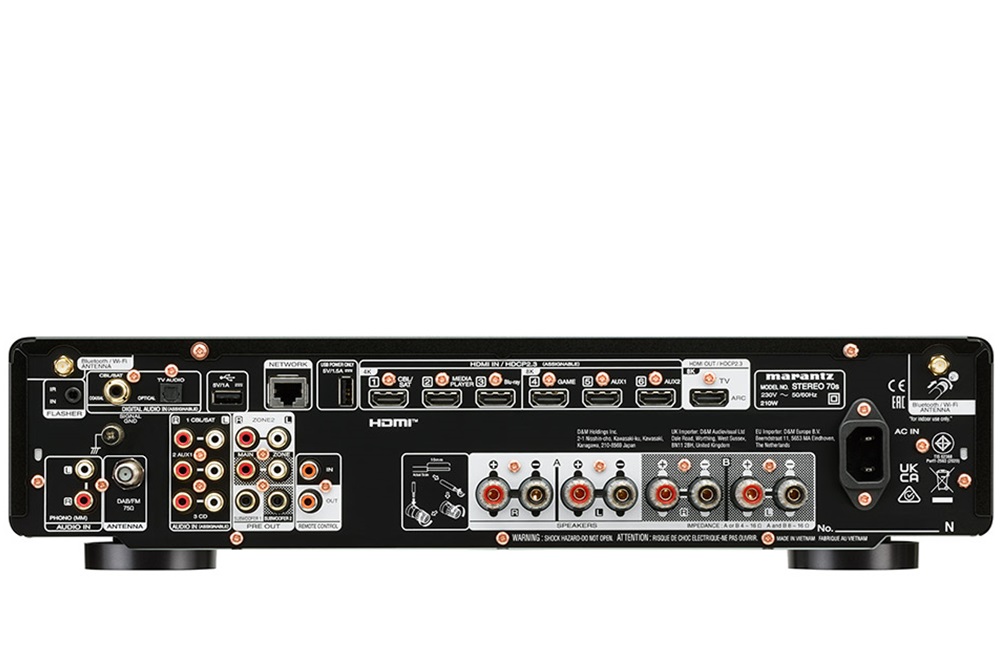

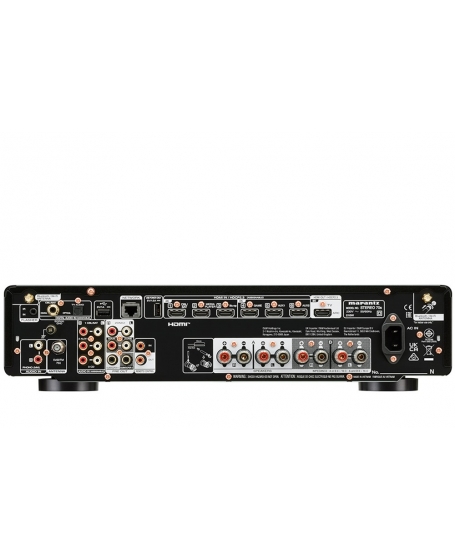

Inputs/Outputs
Video HDMI In / Out 6/1
Audio Analog In / Fixed Level Out 3 in / 0 out
Phono (MM) In Yes
Digital In: Optical / Coaxial 1 / 1
Multi-Room Out: Analog / Digital 1 / 0
Multichannel Pre-Amp Out 2.2
Subwoofer Out 2
Other Number of Speaker Terminals 4
Speaker A / B Yes
USB Audio USB A (Host)
AM/FM Tuner Yes

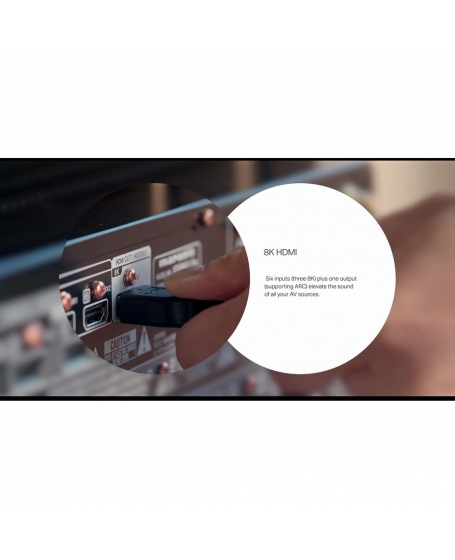

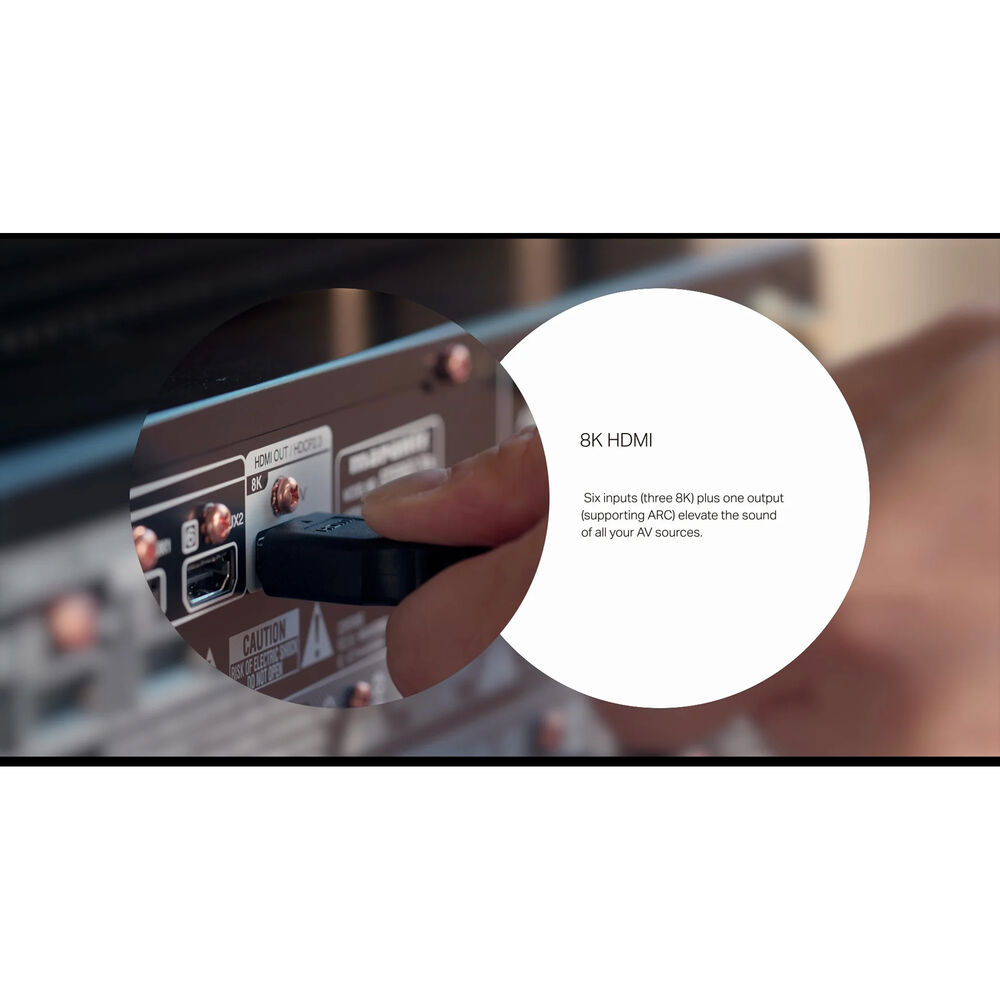

HDMI
Total HDMI Inputs / No. Support 8K 6 / 3
HDCP 2.3 Support Yes
HDMI Outputs: Main / Zone 1 / 0
HDMI Upscaling 1080p/4K to 8K
Max. Resolution / Frame Rate 1080p/4K to 8K
Audio Return Channel ARC
Video Dynamic Range HDR / HLG / Dolby Vision /
HDR10+ / Dynamic HDR
ALLM (Auto Low Latency Mode) Pass-Through for Gaming Yes
Variable Refresh Rate / Quick Frame Transport Yes / Yes
HDMI Pass-Through in Standby Mode Yes
CEC Yes
Auto LipSync Yes

Performance Technologies
Hyper Dynamic Amplifi er Modules (HDAM) Yes
Pure Direct Mode Yes
Gold-Plated RCA Terminals Yes

Music File Support
Lossy Formats MP3 / WMA / AAC
Lossless formats FLAC HD 192/24 / WAV 192/24 /
ALAC 192/31
DSD Audio 2.8 MHz / 5.6MHz
Gapless Playback FLAC, WAV ,ALAC ,DSD
Compressed Audio Enhancer: MDAX2 Yes
Network Audio Sharing Yes

Streaming Services
HEOS® Multi-Room and Streaming Yes
AirPlay Audio Streaming AirPlay 2
Internet Radio TuneIn
Spotify Spotify Connect
Pandora Yes
SiriusXM Yes
Other Streaming Services Amazon Music HD/
Amazon Music / TIDAL / Deezer /
iHeart Radio / Napster /
Soundcloud / Mood Mix
Roon-Tested Yes

Network Connectivity
Ethernet Ports Yes
Wi-Fi Yes
Bluetooth Yes
Bluetooth Re-Transmit for Bluetooth Headphones Yes (with volume control)
Smart Home Integration and Control
Voice Assistant Compatibility Alexa / Google Voice Assistant /
Apple HomePod / JoshAi
App for Smart Phones & Tablets (iOS/Android) Marantz AVR App
HEOS Multi-Room Integrated Yes
HEOS Link Compatibility: IR / IP Yes / Yes
Multi-Room Zones 1
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog 2 Ch / 2 Ch / Yes / Yes
Zone Audio Output: Speaker / Pre-Out No / Yes
Zone HDMI Output from HDMI Source Yes
Control Connectivity IP Control / Web Control / App
Control
IR Flasher In Yes
Marantz Remote Bus Yes
DC Trigger Output 1

Control Connectivity
HDMI Diagnostics Yes

Other
Front Display Port Hole OLED
GUI Languages English, Spanish, French
Setup Assistant Yes
Smart Select on Remote Yes
Firmware Update by Network / USB Yes / Yes
ECO Mode Yes
Auto Power Off Yes
Sleep Timer Yes

General

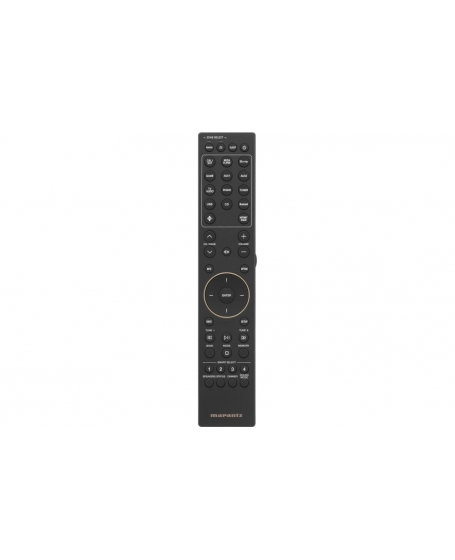

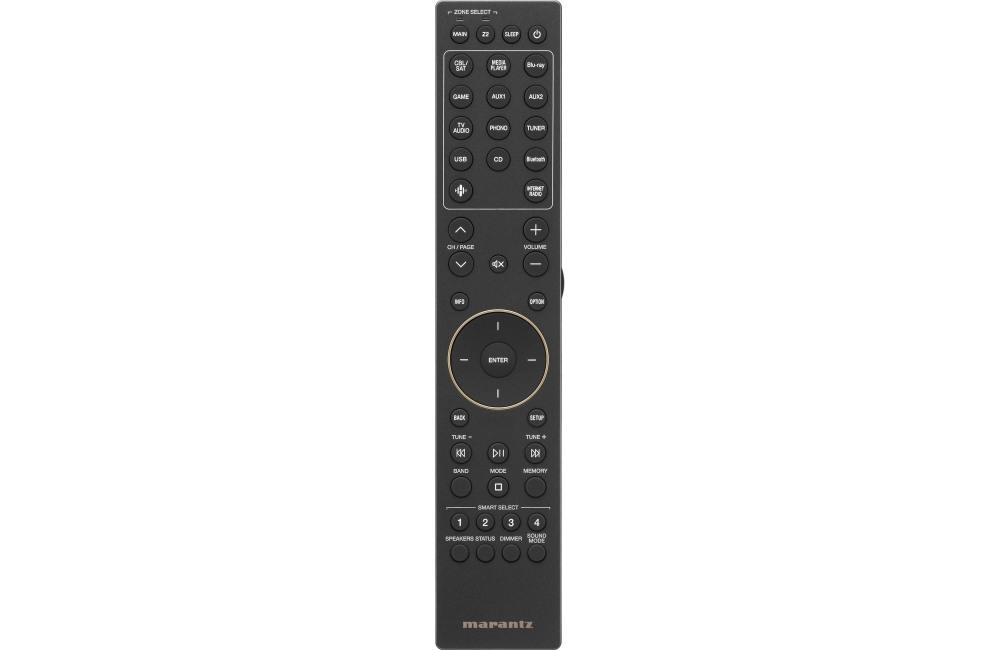

System Remote Control RC-052SR
Power Consumption in W 210 W
Standby Consumption in W 0.2 W
CEC Standby Consumption in W 0.5 W
Network Standby Consumption in W Less than 2.0
Network Control On Consumption in W
Maximum Dimensions Antenna, Horizontal: (W × D × H) in
Antenna, Vertical: (W × D × H) in
w/o Antenna: (W × D × H) in
17.4 x 15.2 x 4.3 in.
17.4 x 15.2 x 7.0 in.
17.4 x 14.7 x 4.3 in.
What's in the box Main unit, remote control,
batteries, AM/FM antennas,
wire labels, quick start guide, 2
External Detachable Antenna,
AC cord
Weight in lbs. 18.5lbs.
UPC 747192140267
