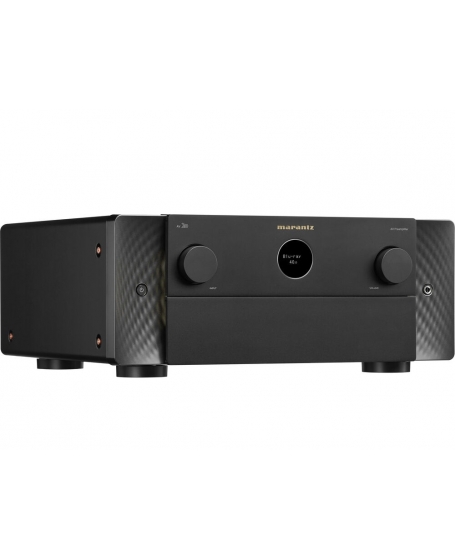

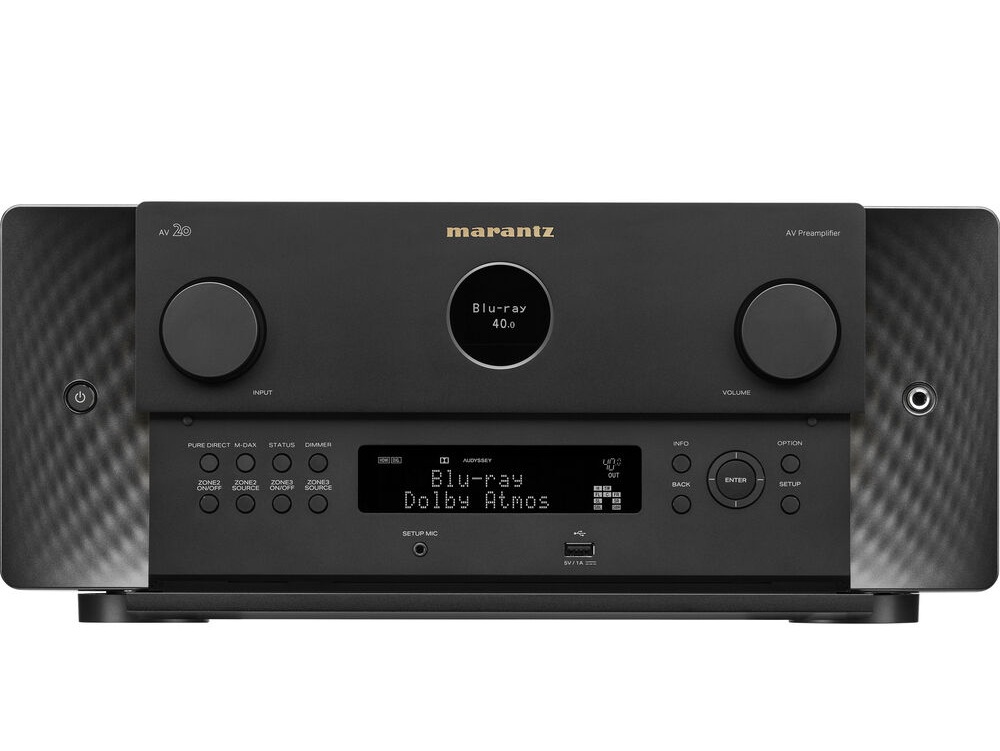

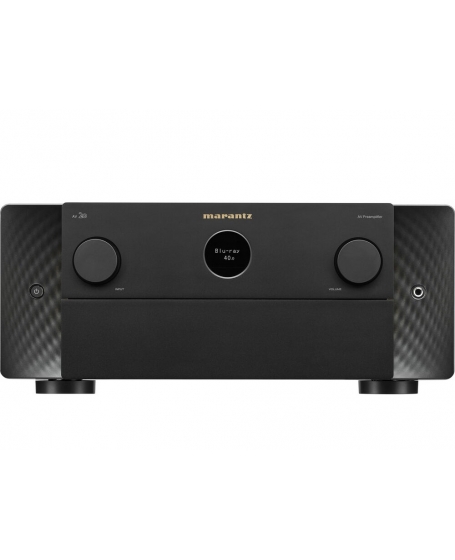

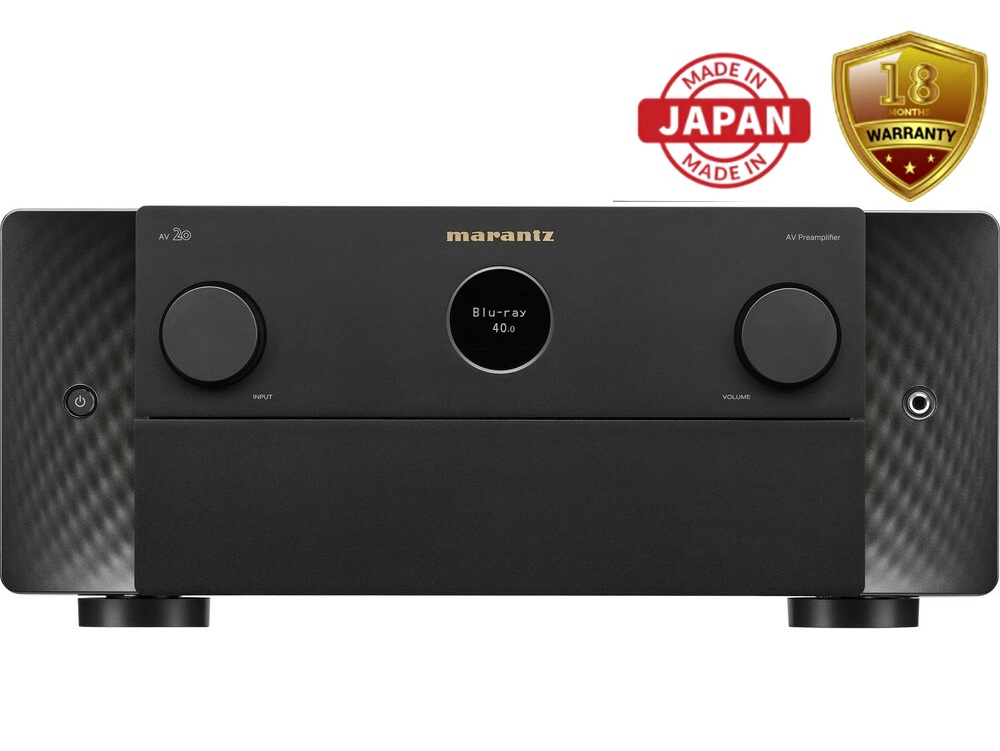

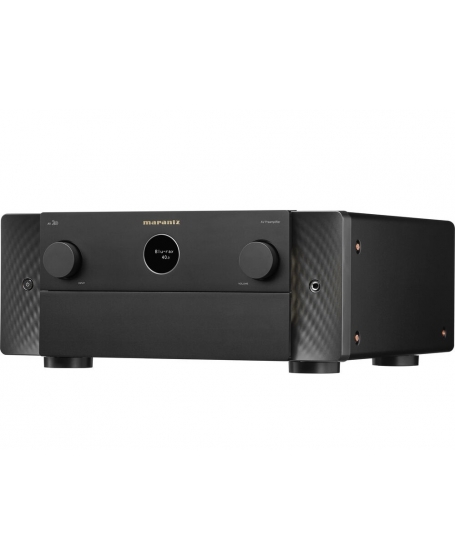

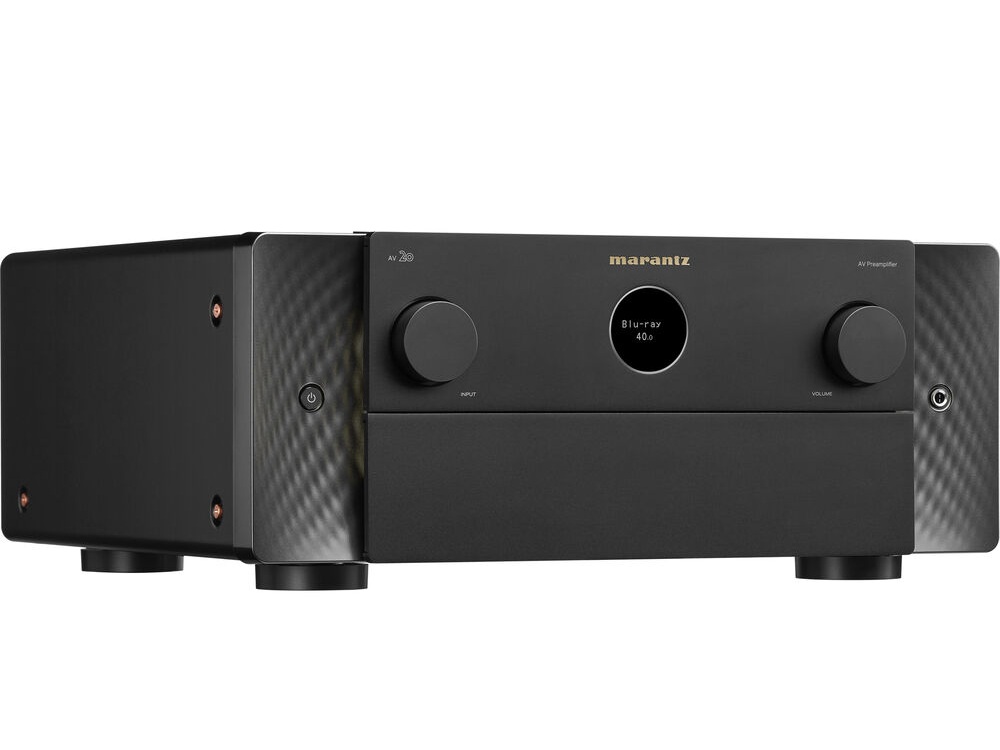

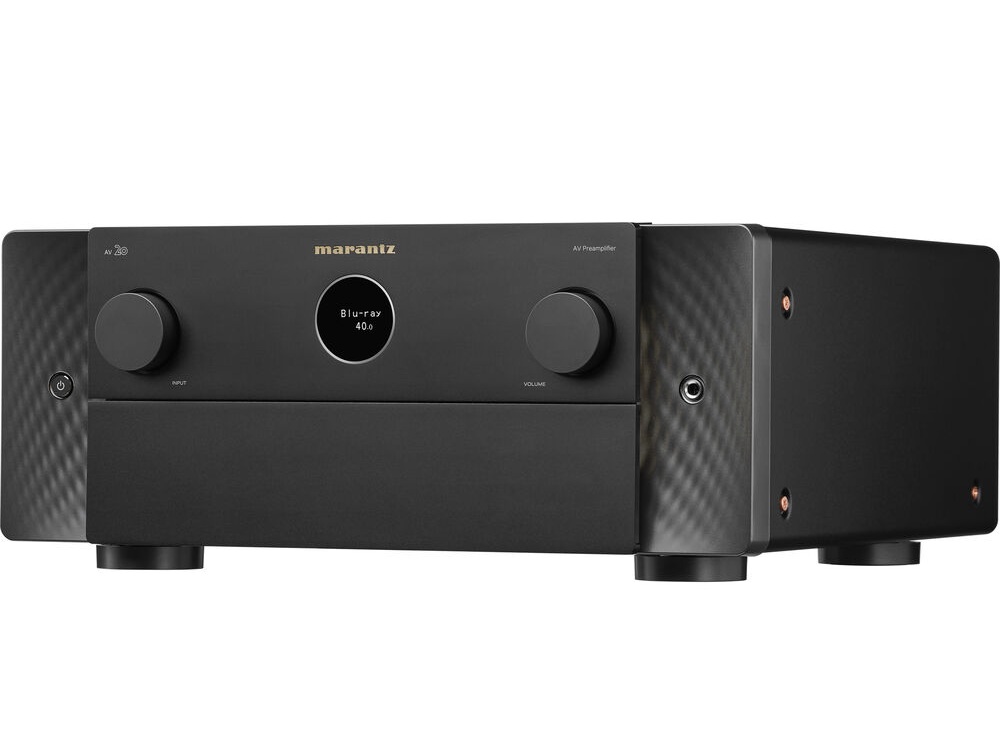

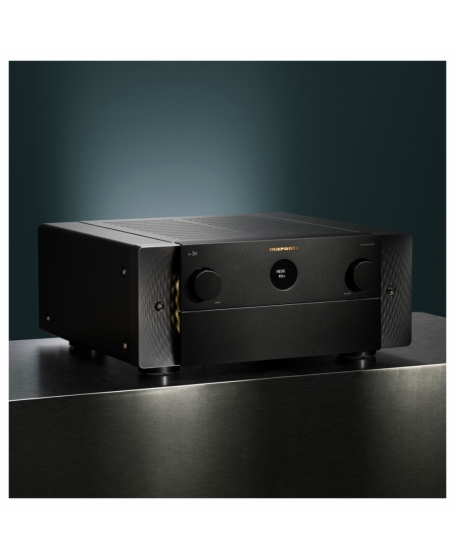

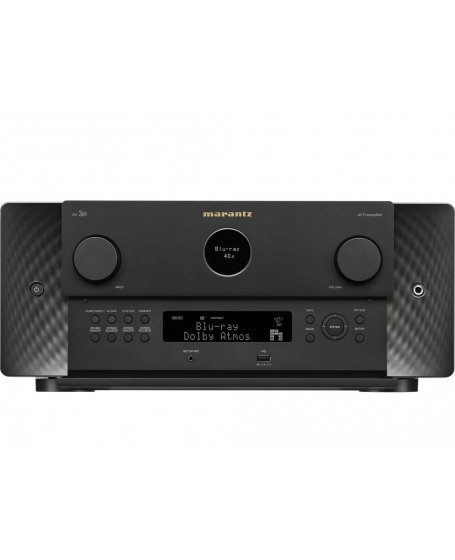

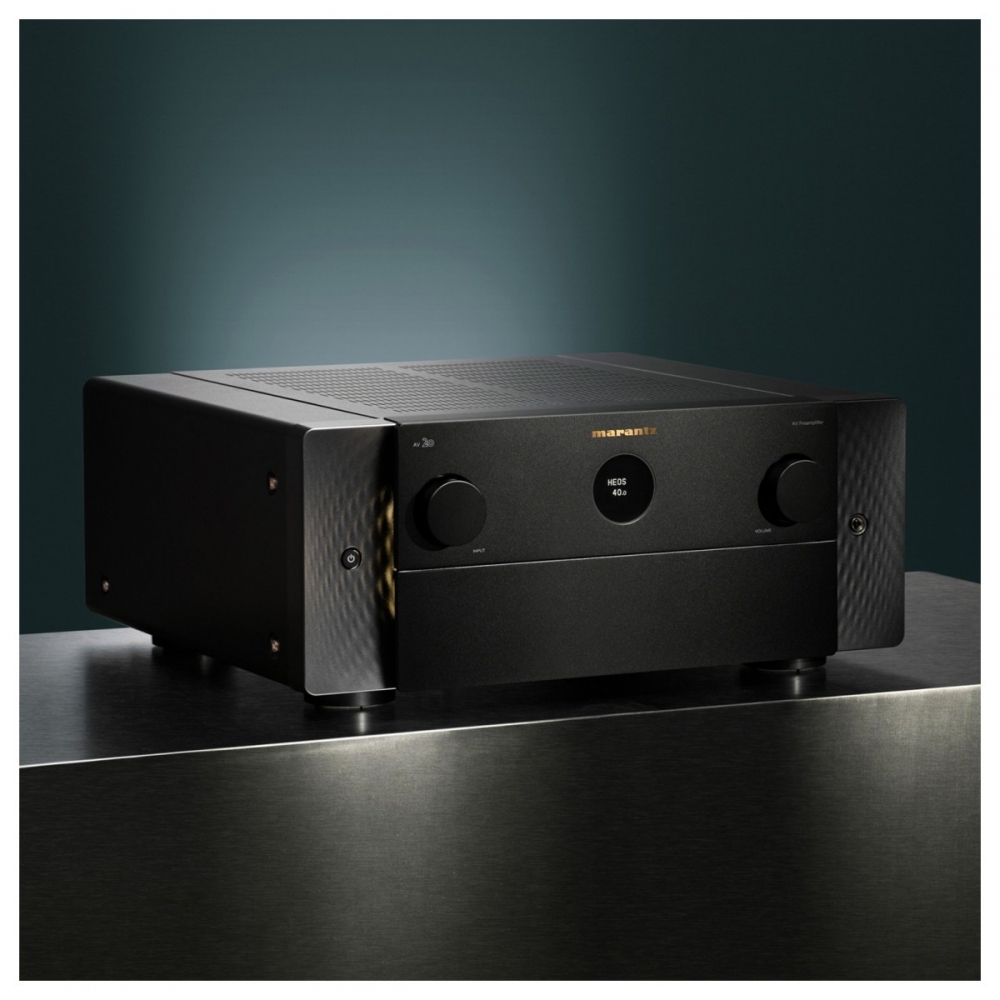

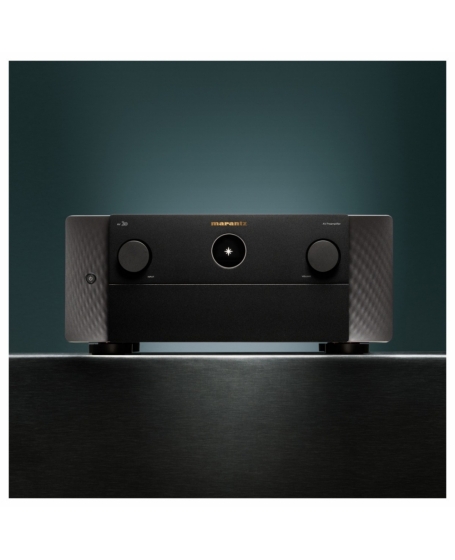

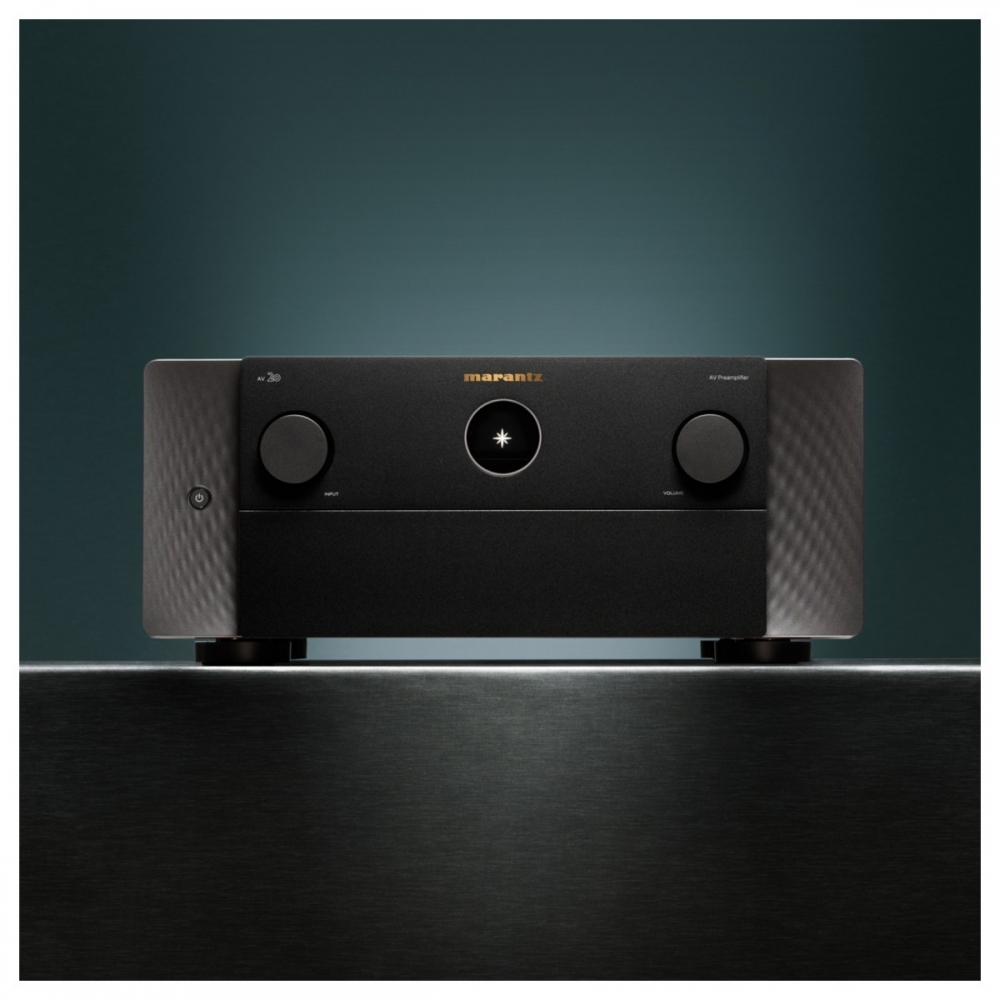

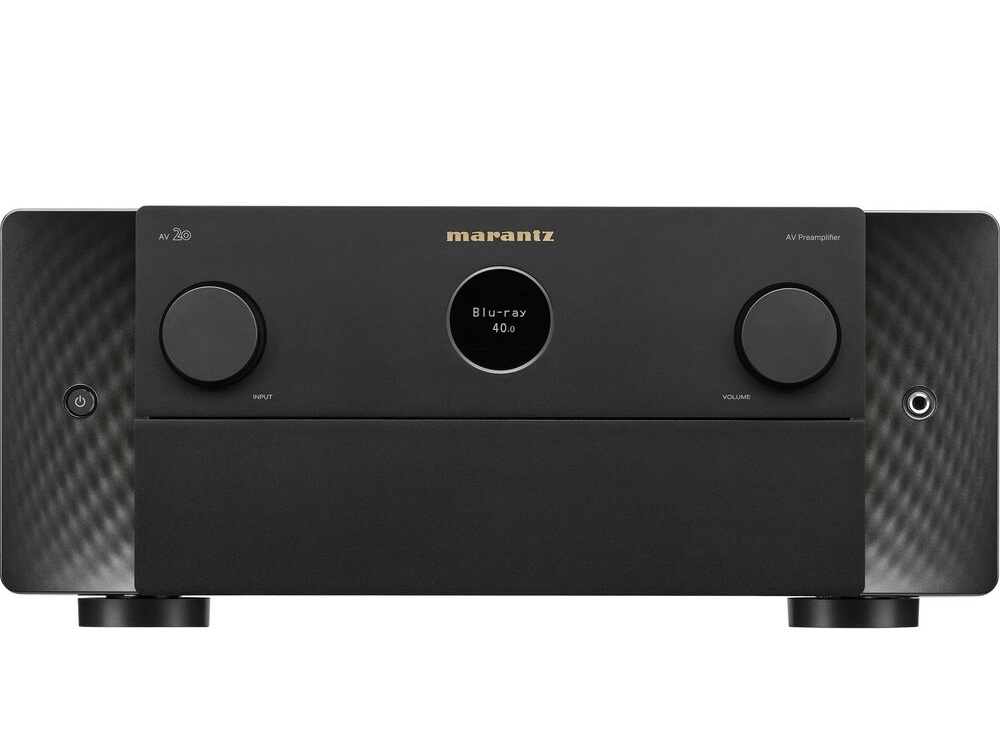

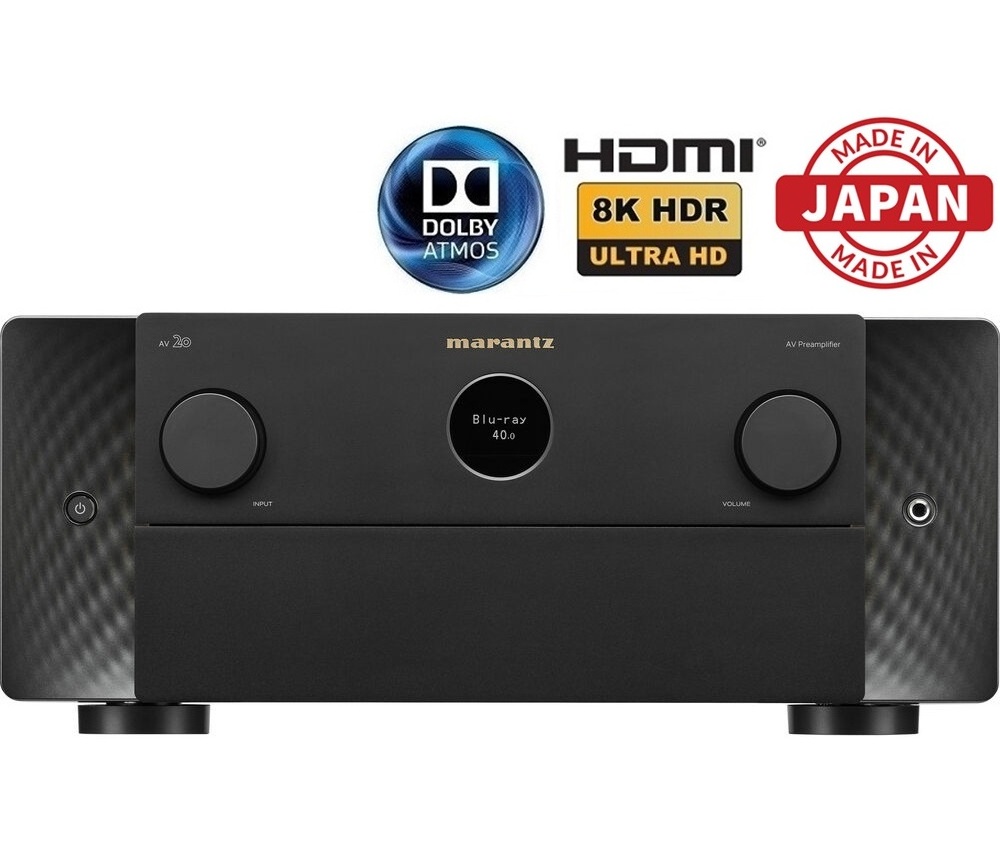

AV 20

Reference 13.4 Channel Balanced AV Preamplifier and Powered by HEOS™

AV 20 represents the highest measure of performance and capability for reference-level home theater systems. This reference 13.4 Channel Balanced AV Preamplifier features Marantz HDAM discrete circuitry, and boasts seven HDMI inputs, each of which is 8K UHD compatible.

• Meticulously crafted with authentic materials
• 13.4 Channels
• 7 HDMI Inputs plus eARC
• 8K and Dolby Atmos
• 3D Audio
• HEOS Built-In

Full Description

Reference-Quality Sound

At the heart of the AV 20 is a 13.4-channel configuration, giving you the tools to craft an immersive surround sound setup. Whether you're using overhead speakers for Dolby Atmos or expanding your layout with height channels, this preamp ensures accurate placement of every sound. The result is a surround experience where you can feel every detail, from subtle footsteps to thundering explosions, delivered with cinematic clarity and scale.

HDAM Discrete Circuitry

Marantz's proprietary HDAM (Hyper Dynamic Amplifier Module) circuitry replaces standard op-amps with precision-tuned discrete components. This design reduces noise and distortion, so you get a more dynamic and detailed soundstage. The AV 20 benefits from this by maintaining clarity across all frequencies, giving vocals natural presence and instruments more lifelike texture – even at high volumes or during complex scenes.

Future-Proof 8K HDMI Connectivity

All seven HDMI inputs on the AV 20 support 8K UHD, ensuring you’re ready for the latest video standards and content. This means crystal-clear visuals, sharper detail, and smoother motion on compatible displays. Enhanced features like eARC (enhanced Audio Return Channel) and support for HDR formats such as Dolby Vision ensure seamless integration with next-generation gaming consoles, Blu-ray players, and streaming devices.

HEOS Built-in for Whole-Home Audio

With HEOS Built-in, the AV 20 connects to a wider ecosystem of wireless Marantz and Denon speakers. You can stream music from services like TIDAL and Amazon Music HD in high resolution and enjoy it in any room of your house. The HEOS app gives you full control, letting you group rooms, manage sources, and search for songs—all from your phone.

Sound Master Tuning for Detail and Depth

The AV 20 has been tuned by Marantz Sound Masters, experts in shaping how every unit sounds. Their goal is to balance clarity, warmth, and emotional impact so that music and movies feel engaging without fatigue. The attention to tuning ensures that dialogue remains crisp, low-end stays tight, and the overall mix maintains its intended dynamic range. .

Customisable System Integration

Whether you’re working with legacy equipment or the latest components, the AV 20 is designed to slot into your setup with ease. Balanced XLR outputs, advanced system calibration options, and multi-room compatibility make it ideal for bespoke installations. Whether you're integrating it with high-end amplifiers or building a full home theatre network, this preamplifier provides the flexibility and control needed to get the best from your system.

DTS DTS-HD, DTS:X, DTS:X Pro,
DTS Virtual:X, DTS Neural:X (13ch)
Dolby Dolby TrueHD, Dolby Atmos,
Dolby Atmos Height Virtualization,
Dolby Atmos Music, Dolby Surround
IMAX IMAX Enhanced
Auro 3D / 360 Reality Audio / MPEG H Yes / Yes / Yes
Multichannel Stereo Yes
Max. Number of Processing (Pre-Amp) Channels 13.4
Sound Enhancements

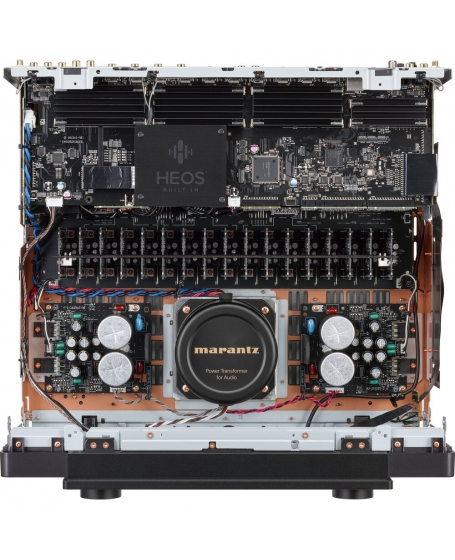

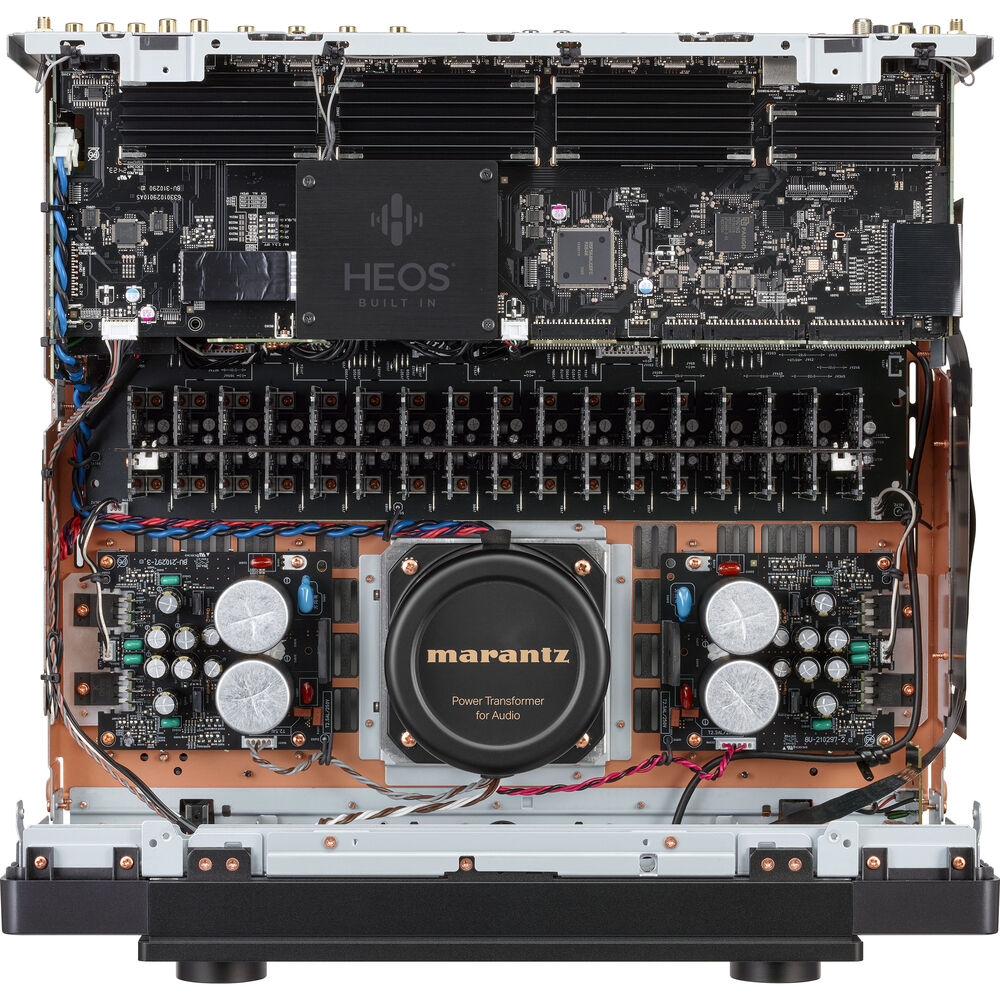

Copper-Plated Chassis / Toroidial Power Transformer Yes / Yes
Current Feedback Topology / Hyper Dynamic Amplifi er Modules (HDAM) Yes / Yes (SA3, monolithic)
Pure Direct / Gold-Plated RCA Terminals Yes / Yes
Clock Jitter Reducer Yes
Dirac Live Upgradability Yes
Compressed Audio Enhancer: MDAX2 Yes
Audyssey Dynamic EQ / Dynamic Volume / Audyssey LFC Yes / Yes / Yes
Audyssey MultEQ XT32
Network
Wi-Fi / Bluetooth / Ethernet Yes / Yes / Yes
HEOS Multi-Room and Streaming Yes
Bluetooth Retransmit for Bluetooth Headphones Yes
Apple HomePod Yes
Lossy Formats MP3, WMA, AAC
Lossless Formats FLAC, FLAC HD 192/24,
ALAC, ALAC 192/24,
WAV, WAV 192/24
DSD Audio Streaming Yes (2.8/5.6 MHz)
Gapless Playback FLAC, ALAC, WAV, DSD
TuneIn / AirPlay 2 / Spotify Yes / Yes / Yes
Roon-Ready Yes
Other Streaming Services Amazon Music / TIDAL /
Deezer / Napster / Soundcloud
Compatible with Remote App for Smartphones Marantz AVR Remote
Compatible with Remote App for Tablets Android / iOS / Amazon Kindle
HDMI
Total HDMI Inputs 7 (rear)
HDCP 2.3 Support Yes
HDMI Outputs: Main / Zone 2 / 1
HDMI Upscaling 1080p/4K to 8K
GUI Overlay on HDMI Yes
HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB Yes / Yes
8K/60Hz AB / 4K/120Hz AB Pass-Through In/Out 7 / 2 (up to 40 Gbps)
HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR Yes / Yes / Yes / Yes / Yes
Enhanced ARC Yes
ALLM (Auto Low Latency Mode) Pass-Through for Gaming Yes
Variable Refresh Rate / Quick Frame Transport Yes / Yes
HDMI Pass-Though in Standby Mode Yes
DSD Audio Capability Yes
Auto LipSync Yes

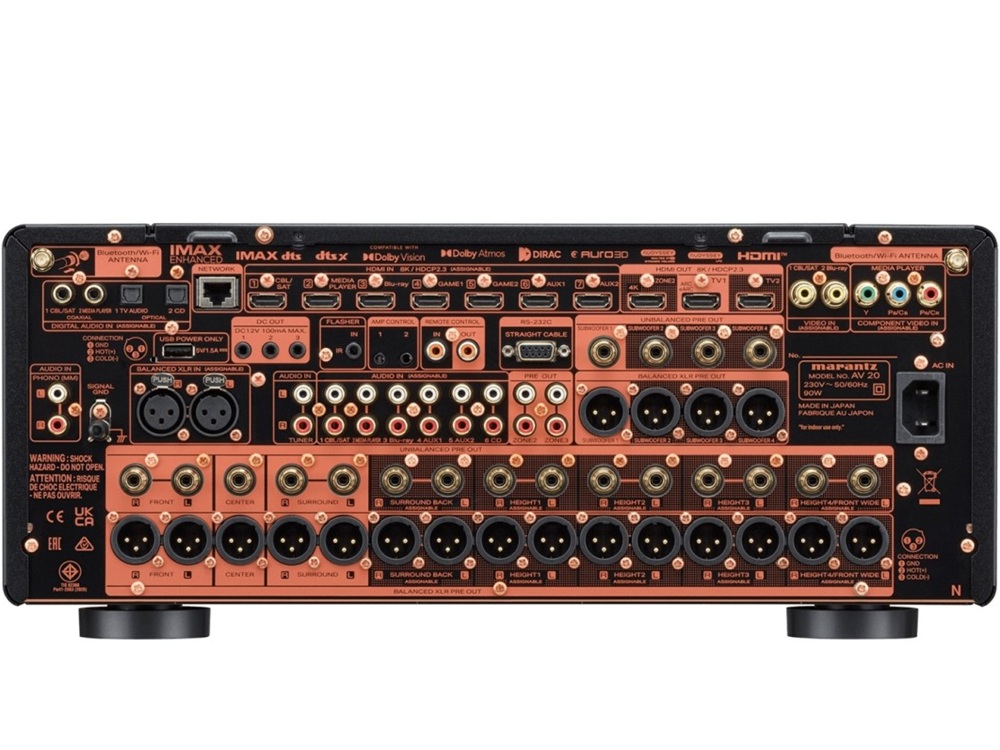

Inputs/Outputs
Video Composite In / Out 2 / 0
Component In / Out 1 / 0
HDMI In / Out 7 / 3
Multi-Room Video Out: Video / HDMI No / Yes
Audio Analogue In 6 (1× XLR)
Phono (MM) In Yes
Digital In: Optical / Coaxial 2 / 2
Multi-Room Out: Analog / Digital 2 / 0
Multichannel Pre-Amp Out Yes (15.4 RCA, 15.4 XLR)
Subwoofer Out 4 (independent) RCA, XLR
Other Speaker A / B Assignable Pre-Out
Bi-Amp Drive Assignable Pre-Out
Front USB Input / USB Audio Yes / Yes
USB Power Supply (Rear) Yes
AM/FM Tuner Yes
Multi-Room
HEOS Multi-Room Integrated Yes
HEOS Link Compatibility: IR/ IP Yes / Yes
Multi-Room Zones 3
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analogue Yes (2 ch) / Yes (2 ch) / Yes / Yes
Zone Audio Output: Speaker / Pre-Out No / Yes
Zone HDMI Output from HDMI Source Yes
IP Control / RS232 Control / Web Control / App Control Yes / Yes / Yes / Yes
IR Flasher In / Marantz Remote Bus Yes / Yes
DC Trigger Output 3
HDMI Diagnostics Yes
Others
Auto Speaker Setup by Microphone Audyssey MultEQ XT32
Dirac Live (Upgrade)
Front Display 2-Line FLD, Port Hole OLED
Graphic User Interface Modern HD GUI
GUI Languages 3
Setup Assistant / Smart Select Yes / Yes
Firmware Update by Network / USB Yes / Yes
Variable Cross Over / Optimized Bass Redirection / Bass Sync Yes / Yes / Yes
Auto Power Off / Sleep Timer Yes / Yes
General
Metal Front Panel Yes
System Remote Control RC051SR
Backlit Yes
Power Consumption 90 W
Standby Consumption 0.2 W
CEC Standby Consumption 0.5 W
Network Standby Consumption <2.0 W
Maximum Dimensions Antenna, Horizontal: (W × D × H)
Antenna, Vertical: (W × D × H)
w/o Antenna: (W × D × H)
17.4 × 18.0 × 7.5 in.
17.4 × 18.0 × 10.0 in.
17.4 × 17.2 × 7.5 in.
Weight 33.1 lb
