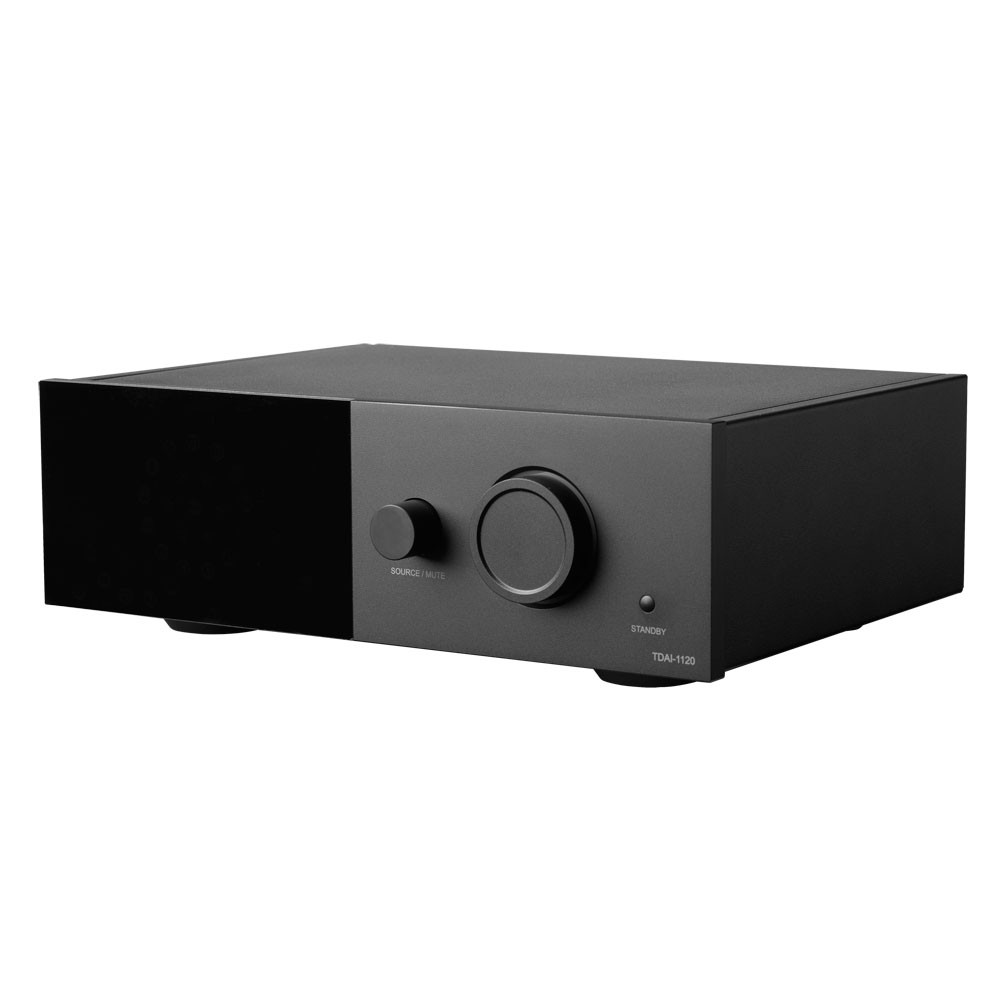

Lyngdorf TDAI-1120 Compact Streaming Integrated Amplifier Made In Denmark

Lyngdorf TDAI-1120

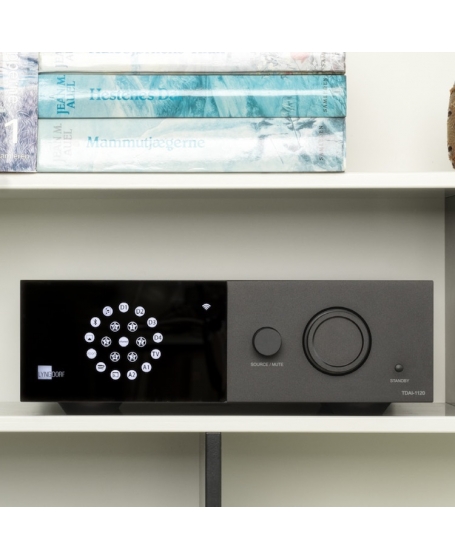

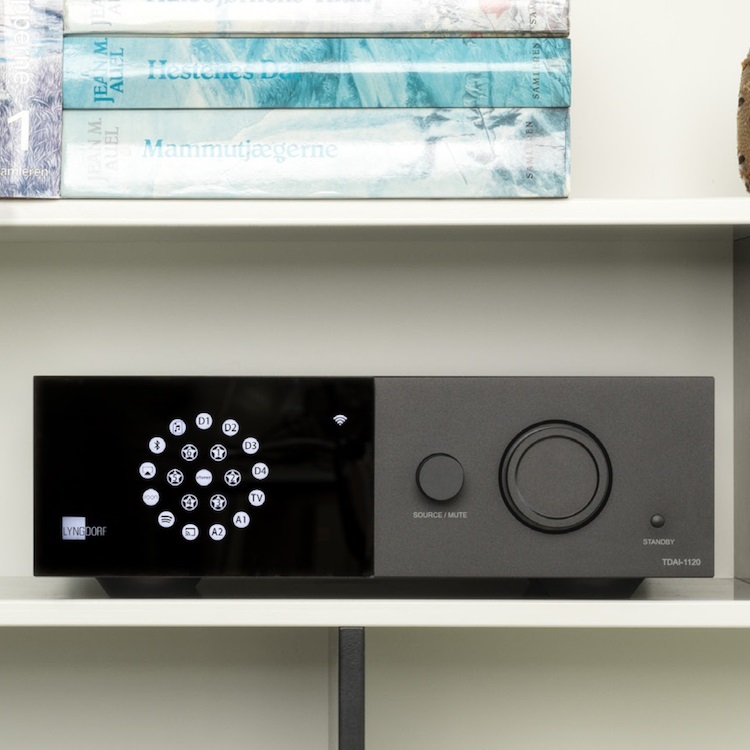

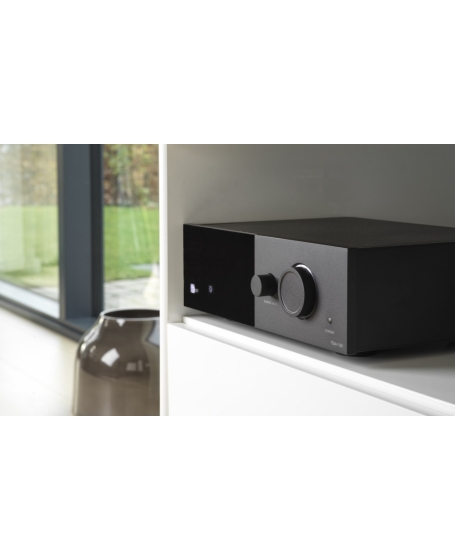

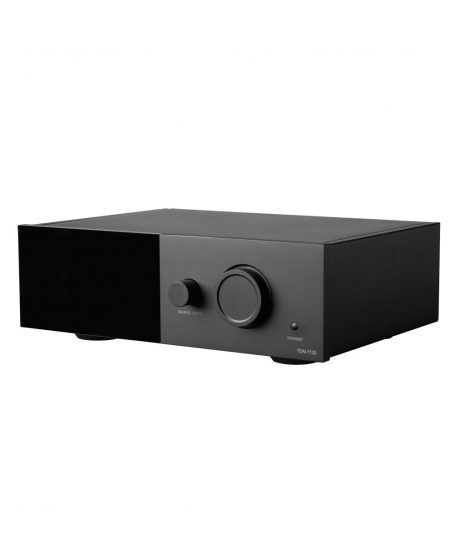

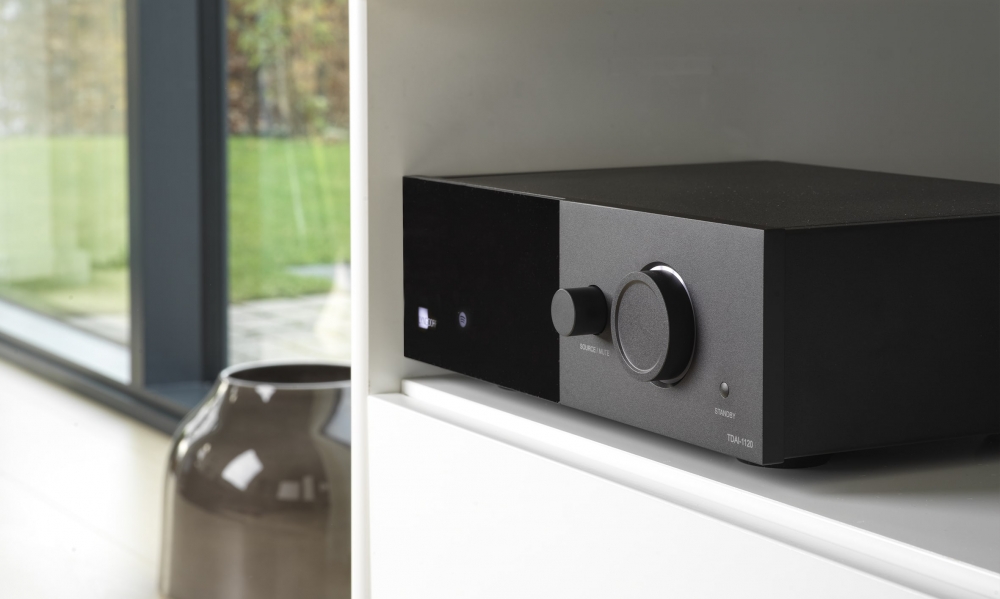

Lyngdorf TDAI-1120 provides the ultimate in flexibility. Its small design footprint allows it to be easily placed anywhere in the home, and the vast feature set offers a great variety of streaming options. All the user-friendly features you could ask for and paired with Lyngdorf Audio’s world-famous digital amplification technology and patented RoomPerfect™ room correction for the ultimate listening experience.

Connecting the TDAI-1120 to the HDMI (ARC) output of a television, will turn the TDAI-1120 into the best sound system possible for your movies. With CEC and eARC lip-sync functionality the TDAI-1120 can connect perfectly with tomorrows televisions and receive the on-off and volume commands from your television remote.

New world of streaming

Connect the TDAI-1120 to your WiFi and enjoy all the integrated streaming services.

• Chromecast built-in
• Spotify® Connect
• Roon Ready
• AirPlay2
• Bluetooth connectivity
• Internet Radio (vTuner)
• Network/local file playback

The TDAI-1120 accepts all your media interfaces and holds itself an advanced media player of the highest quality. Through the network or via the USB connectors, you can access your library of music through the DLNA/ UPnP enabled player. All can intuitively be controlled with your smart phone, tablet, or computer.

The ultimate experience

The TDAI-1120 ships complete with RoomPerfect™, providing the ultimate listening experience. With RoomPerfect™, the TDAI-1120 delivers a perfect musical experience in all living rooms. Without the need for extensive acoustic treatment, you get a sound system with optimal frequency response, seamless level alignment, and bass management that perfectly integrates the speakers and subwoofers.

Lyngdorf TDAI-1120 具有最高的灵活性，外形小巧，可以轻松放置在家里任何地方，全面的功能组合提供了大量流式传输选项。所有您需要的人性化功能，结合 Lyngdorf Audio 全球知名的数字放大技术和专利 RoomPerfect™ 房间修正技术，可带来极致聆听体验。

将 TDAI-1120 连接到电视的 HDMI (ARC) 输出接口，可为您的电影打造最好的音响系统。TDAI-1120 具有 CEC 和 eARC 唇形同步功能，能够完美连接到未来的电视，并接收电视遥控器的开关和音量命令。

流式传输新天地

将 TDAI-1120 连接到 WiFi，享受所有集成流式传输服务。

• 内置 Chromecast
• Spotify® Connect
• Roon Ready
• AirPlay2
• 蓝牙连接
• 网络电台 (vTuner)
• 播放网络/本地文件

TDAI-1120 支持所有媒体接口，并且拥有最优质的高级媒体播放器。您可以通过网络或 USB 接口，使用支持 DLNA/UPnP 的播放器访问您的音乐库。所有这些都能通过智能手机、平板电脑或计算机直观地控制。

极致体验

TDAI-1120 配备 RoomPerfect™，能够带来极致的聆听体验。凭借 RoomPerfect™，TDAI-1120 可为所有客厅打造完美的音乐体验。无需大量的声学处理，您的音响系统就能完美集成音箱和重低音音箱，提供最佳频率响应、无缝音量校准和低音管理。

Specifications

Description: 2-channel streaming amplifier
Power rating: 2 x 120 W RMS @ 4Ohm / 2 x 60 W RMS @ 8Ohm
Max output current: 30A
Audio specifications: Frequency Response: ±0,5dB from 20 to 20,000 Hz, Total Harmonic Distortion: 0.05% max from 20 to 20,000 Hz THD-N 1w/8ohm 0,04%, THD-N 1w/4ohm 0,04%

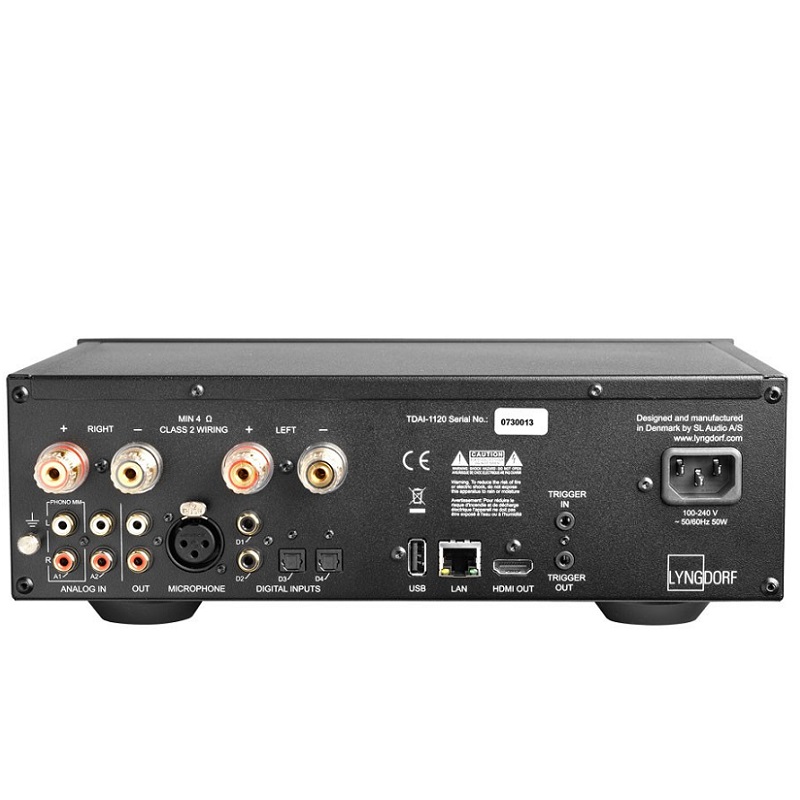

Digital inputs (Asynchronous): 2 x Coaxial (≤192kHz/24bit) 2 x Optical (≤96 kHz/24bit) 1 x HDMI eARC (≤24 bit/192 kHz)
Analog inputs: 1 x Phono Single Ended RCA (RIAA / 47kOhm 100pF), 1 x Analog Single Ended RCA (Max level: 4.0V = 0dBFS) 1 x Microphone input (XLR) for RoomPerfect™ calibration
Analog output: 1 x Stereo Analog RCA (75ohm-Max output level 4 Vrms)
EQ: RoomPerfect™, Pre-Equalizer, ICC, 32 x adjustable voicings holding ≤8 filters with adjustable gain and Q
Media player: Internet Radio (vTuner), Spotify Connect, Roon Ready, Chromecast built-in, DLNA Support (uPnP/see DLNA formats), AirPlay2, Bluetooth, Local file playback (USB)
Wireless connections: Bluetooth connectivity, Wi-Fi (802.11 n)

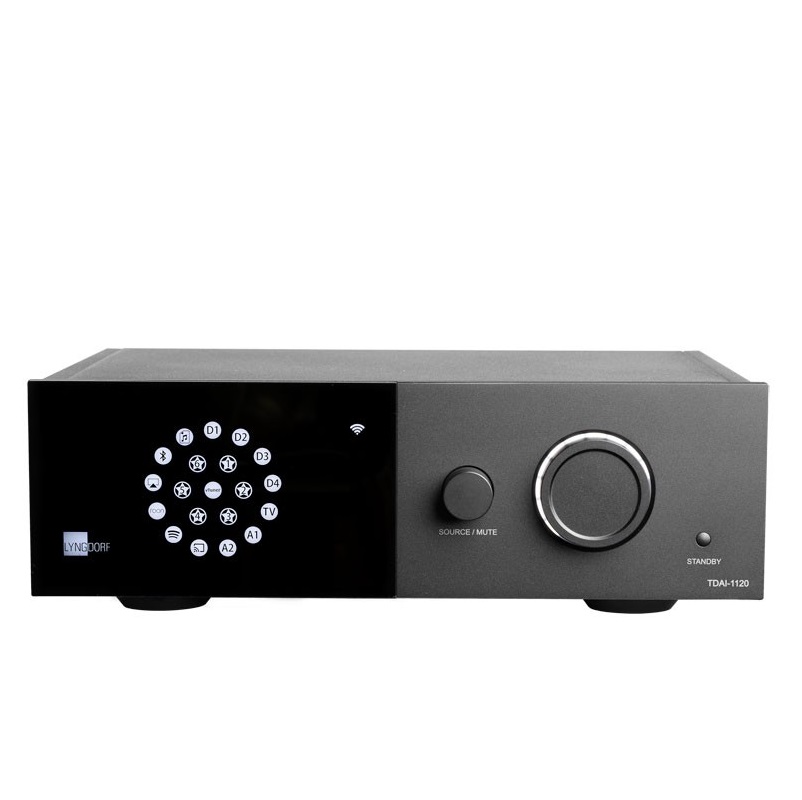

Interfaces: Intuitive input selector, Web-interface for setup and media player, Remote application for IOS and Android, IP control, CEC (HDMI), 1 x trigger input, 1 x trigger output, 1 x RJ45 Ethernet LAN connector, 1 x USB connectors (Type A)
Remote control: Infrared/Bluetooth BLE
Accessories included: RoomPerfect™ microphone, Microphone stand, Microphone cable
Optional accessory: IR remote control, rack mounting kit
Placement options: Freestanding
Dimensions (H x W x D): 10.1 x 30 x 26 cm (including connectors), 3.98 x 11.8 x 10.3 inches (including connectors)
Weight: 3,3 kg / 7.3 lb
