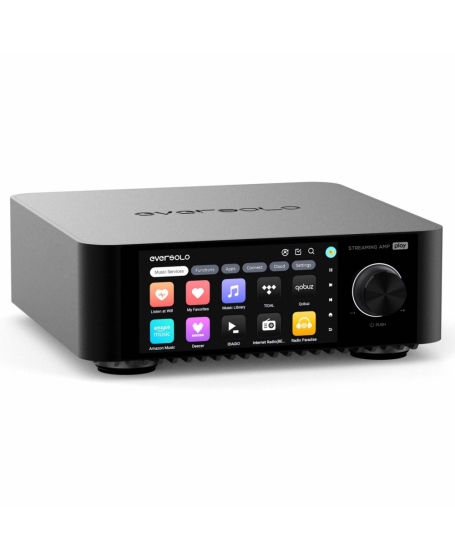

Eversolo Play

• The Eversolo Play is a streaming amplifier combining Eversolo's wireless and streaming audio wizardry with built-in amplification all in one convenient device.
• 5.5-inch vibrant HD touchscreen display
• Class-D Amp with 2 x 60W @ 8 Ohms, 2 x 110W @ 4 Ohms
• 32-bit AKM AK4493SEQ DAC chip
• Room Correction
• Dedicated Phono pre-amp, HDMI ARC and Subwoofer output

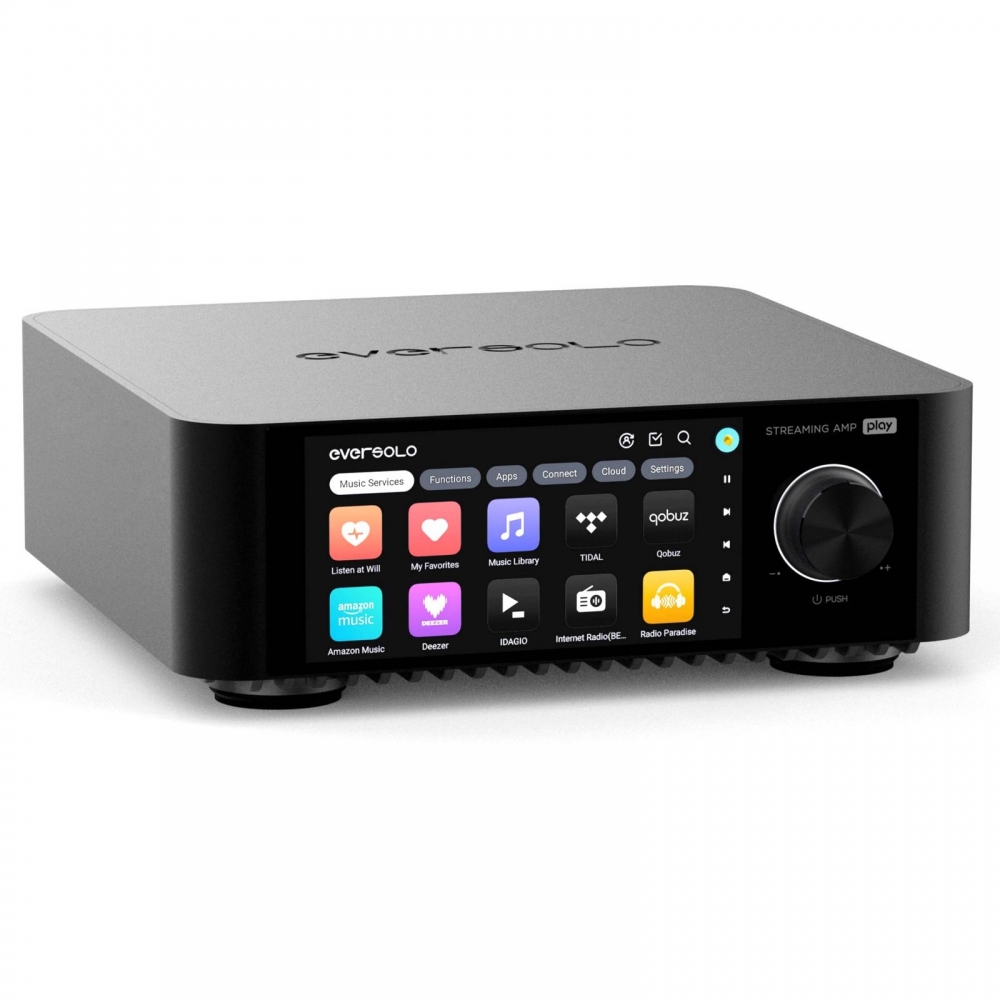

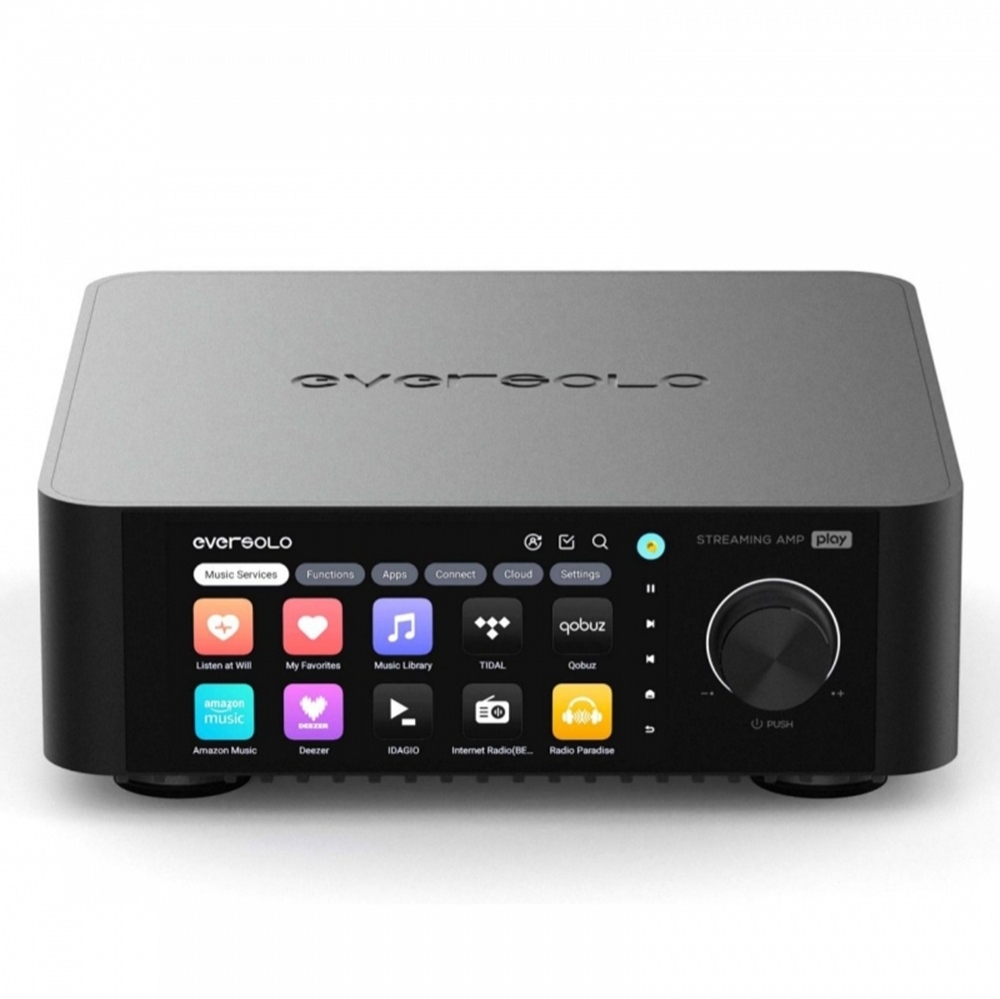

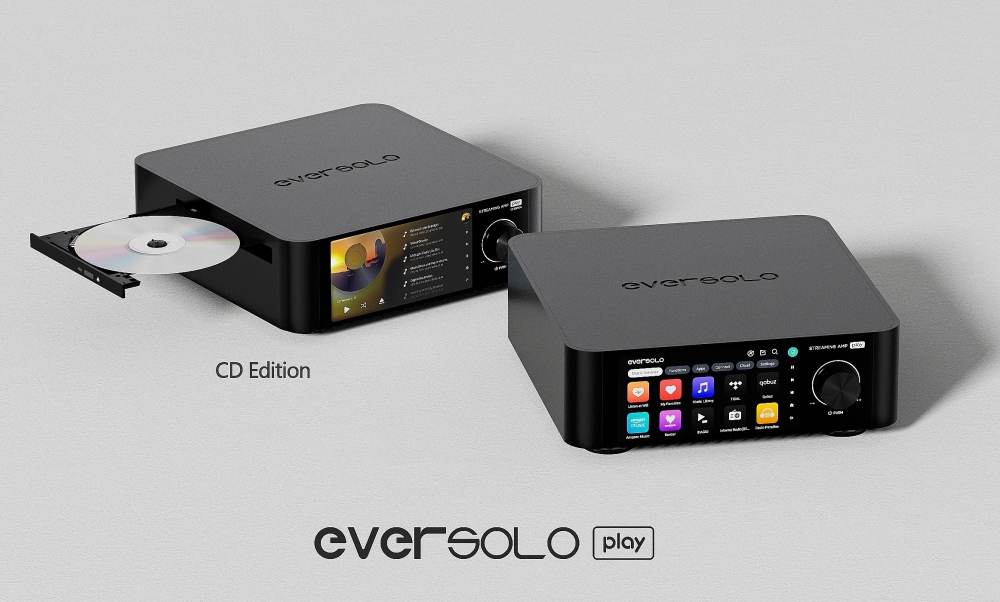

Eversolo Play Streaming Amplifier

Whether you're a passionate music enthusiast or an audiophile, the Eversolo Play Series will elevate your listening journey, becoming an indispensable part of your musical lifestyle.

The Eversolo Play is a streaming amplifier combining Eversolo's wireless and streaming audio wizardry with built-in amplification all in one convenient device. The Play Series seamlessly integrates amplification, DAC, and streaming into a single unit, allowing users to enjoy lossless audio and effortlessly build a home Hi-Fi music system. Equipped with the high-performance 32-bit AKM AK4493SEQ DAC chip with VELVETSOUND™ technology, it achieves an SNR ≥109dB (A-wt) and ultra-low THD of 0.0037%. The Class D amplifier delivers robust power output of 60W at 8Ω and 110W at 4Ω, effortlessly driving bookshelf speakers to recreate every nuanced detail of live performances.

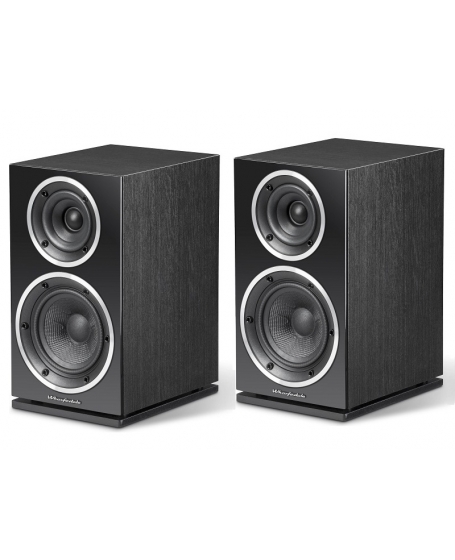

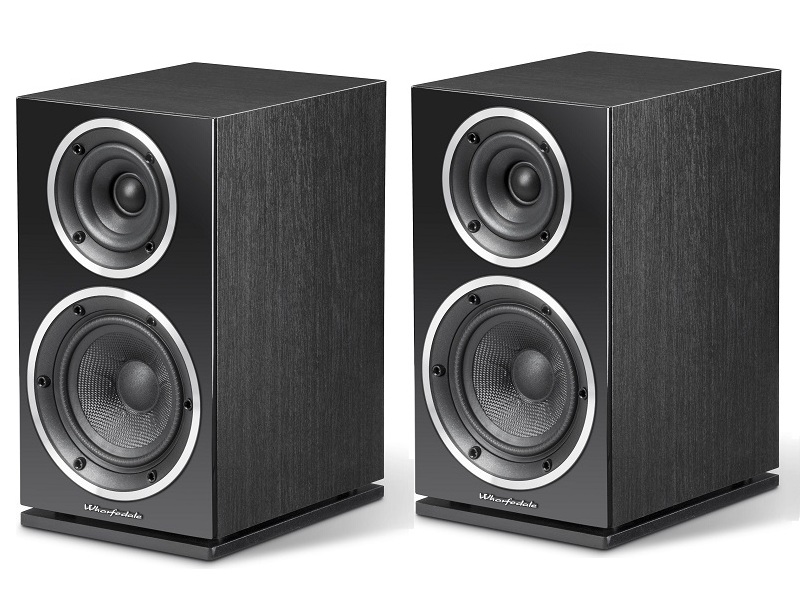

Wharfedale Diamond 220

Quite simply put, the Wharfedale Diamond is one of our most successful speaker series, if not one of the most successful hi-fi speaker series ever. We can justify this as year on year, the Diamond Series has broke the mould for combining award winning sound quality unforeseen at this price.

简而言之，Wharfedale Diamond是我们最成功的扬声器系列之一，即使不是最成功的高保真扬声器系列之一。我们可以证明这一点，因为逐年，钻石系列打破了以这个价格结合无法预料的屡获殊荣的音质的模式。

From 1982 Wharfedale Diamond has meant one thing – impeccable performance at an affordable price. Today we are pleased to bring you the latest series of loudspeakers from Wharfedale that aspires to this tradition – Diamond 200 Series.

从1982年开始，Wharfedale Diamond就意味着一件事-以可承受的价格获得无可挑剔的性能。今天，我们很高兴为您带来Wharfedale渴望发扬这一传统的最新扬声器系列-Diamond 200系列。

Foremost in the design criteria for Diamond 200 is the ongoing research into loudspeaker driver sound quality. The speaker series uses our famous woven Kevlar cone form, drawing influence from the flagship Jade Series.

Diamond 200的设计标准中最重要的是对扬声器驱动器声音质量的持续研究。扬声器系列采用了我们著名的编织凯夫拉尔纤维锥形式，并受到了旗舰翡翠系列的影响。

Model
Play

Body Material
Aluminium alloy

Display
5.5" LCD Touchscreen

CD-ROM

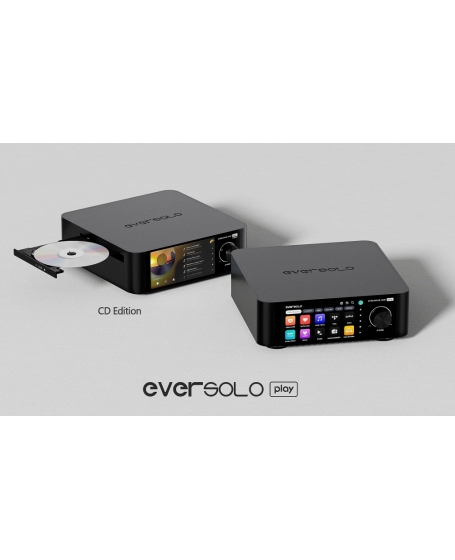

No - Only the CD Edition includes a CD-ROM

DAC
AK4493SEQ

Internal Memory
4G DDR4 + 32G eMMC

USB Ports
2 x USB3.0

Ethernet
RJ-45(10/100/1000Mbps)

WiFi
2.4G+5G

DAC Decoding
Supports up to Stereo DSD512, PCM 768KHz 32Bit

Music File Formats
DSD (DSF, DFF, SACD ISO) Support DST up to DSD512, MP3, APE, WAV, FLAC, AIF, AIFF, AAC, NRG, CUE

Music Services
TIDAL, Qobuz, HIGHRESAUDIO, Amazon Music etc

Music Streaming
Roon Ready, TIDAL Connect, DLNA etc Qobuz Connect

Control Methods
On-screen touch control, Android/iPhone/iPad APP control

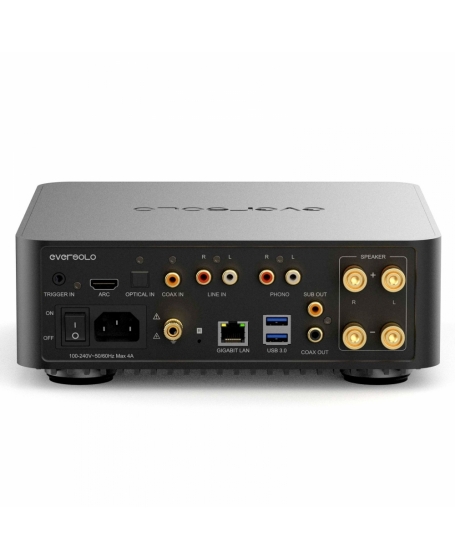

Audio Input and Output

Bluetooth Input
Bluetooth BT5.0, SBC/AAC

HDMI ARC Input
Supports up to Stereo PCM 192KHz 24Bit

Optical/Coaxial Input
Supports up to Stereo PCM 192KHz 24Bit and DOP64

Analog Line In
Maximum input voltage 2VRMS

PHONO Input
Supports MM/MC

USB Audio Output
Supports up to Stereo DSD512 Native and PCM 768KHz 32Bit (Supports DAC audio devices with UAC standard only)

Coaxial Output
Supports up to Stereo PCM 192KHz 24Bit and DOP64

Subwoofer Output
Adjustable crossover frequency from 40 Hz to 500 Hz

Audio Characteristics

Continuous Output Power
60W RMS@8Ω 110W RMS@4Ω

Amplifier Type
Class D Amplifier

Amplifier Gain
20.8dB

Input Sensitivity
2V

THD (20Hz-20KHz)
<0.0037% 5W at 1KHz

Signal-to-Noise Ratio
>109dB, @A-wt 4Ω 110W

Frequency Response
20Hz-20KHz < ±0.25dB, 20Hz-40KHz < -3dB

Damping Factor
>107

Channel Crosstalk
<-108dB

PHONO
• Amplifier gain: MM 60dB MC 74dB
• Input sensitivity: MM 5mV MC 0.5mV
• RIAA: ±0.5dB, 20Hz-20KHz

Other Information

PSU
AC 110~240V 50/60Hz Max 4A

Dimensions (W x D x H)
230 x 230 x 75 mm

Weight
2.6kg

Packing List
• Power Cable
• User Manual

Colour
Black

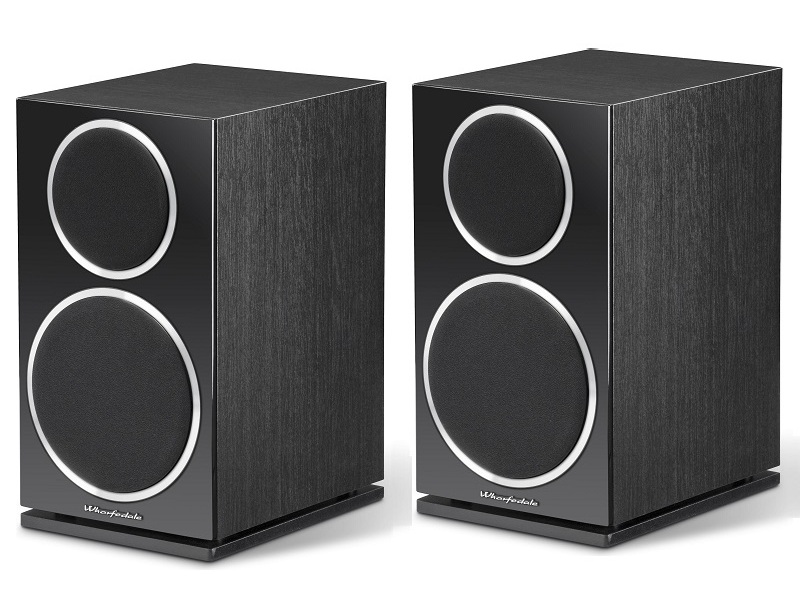

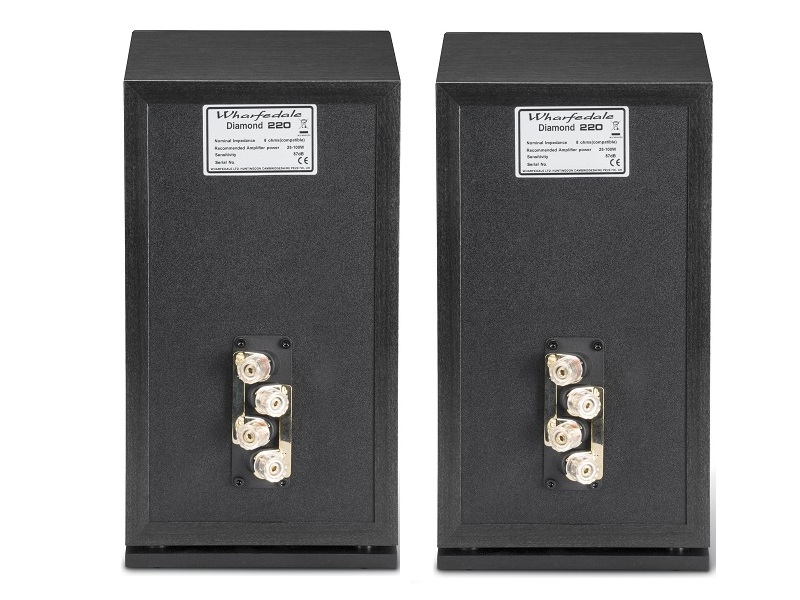

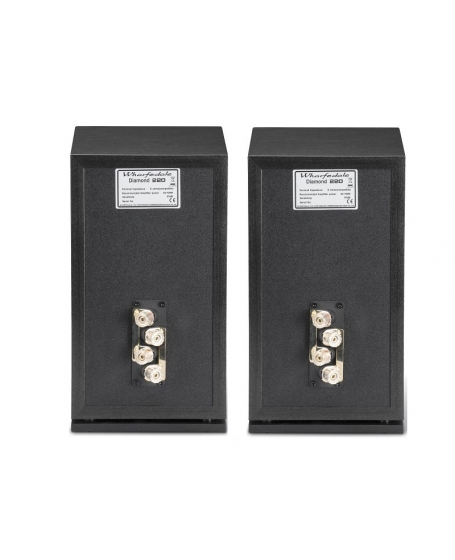

Wharfedale Diamond 220
General description    2-way bookshelf speaker
Enclosure type    bass reflex
Transducer complement    2-way
Bass driver    130mm Woven Kevlar Cone
Treble driver    25mm Soft Dome
AV shield    No
Sensitivity(2.83V @ 1m)    86dB
Recommended amplifier    25-100W
power
Peak SPL    95dB
Nominal impedance    8Ω Compatible
Minimum impedance    4.1Ω
Frequency response (+/-3dB)    56Hz - 20kHz
Bass extension (-6dB    45Hz
Crossover frequency    2.2kHz
Cabinet Volume (in litres)    7L
Height (on plinth &    315mm
spikes)
Width    174mm
Depth (with terminals)    (227+28)mm
Net weight 5.3kg/pcs
Carton size    495x320x410mm
