Eversolo Play

• The Eversolo Play is a streaming amplifier combining Eversolo's wireless and streaming audio wizardry with built-in amplification all in one convenient device.
• 5.5-inch vibrant HD touchscreen display
• Class-D Amp with 2 x 60W @ 8 Ohms, 2 x 110W @ 4 Ohms
• 32-bit AKM AK4493SEQ DAC chip
• Room Correction
• Dedicated Phono pre-amp, HDMI ARC and Subwoofer output

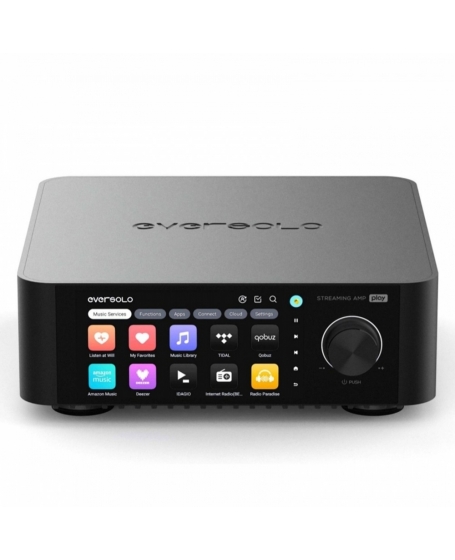

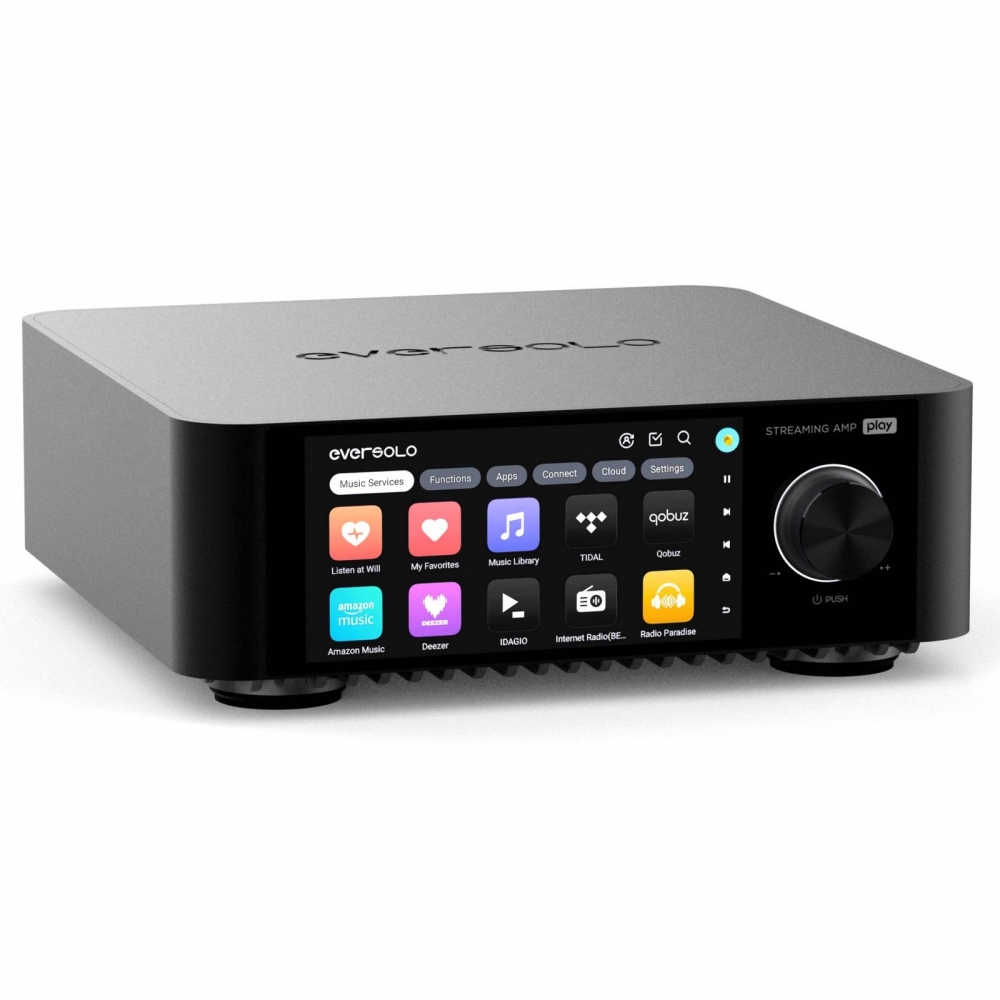

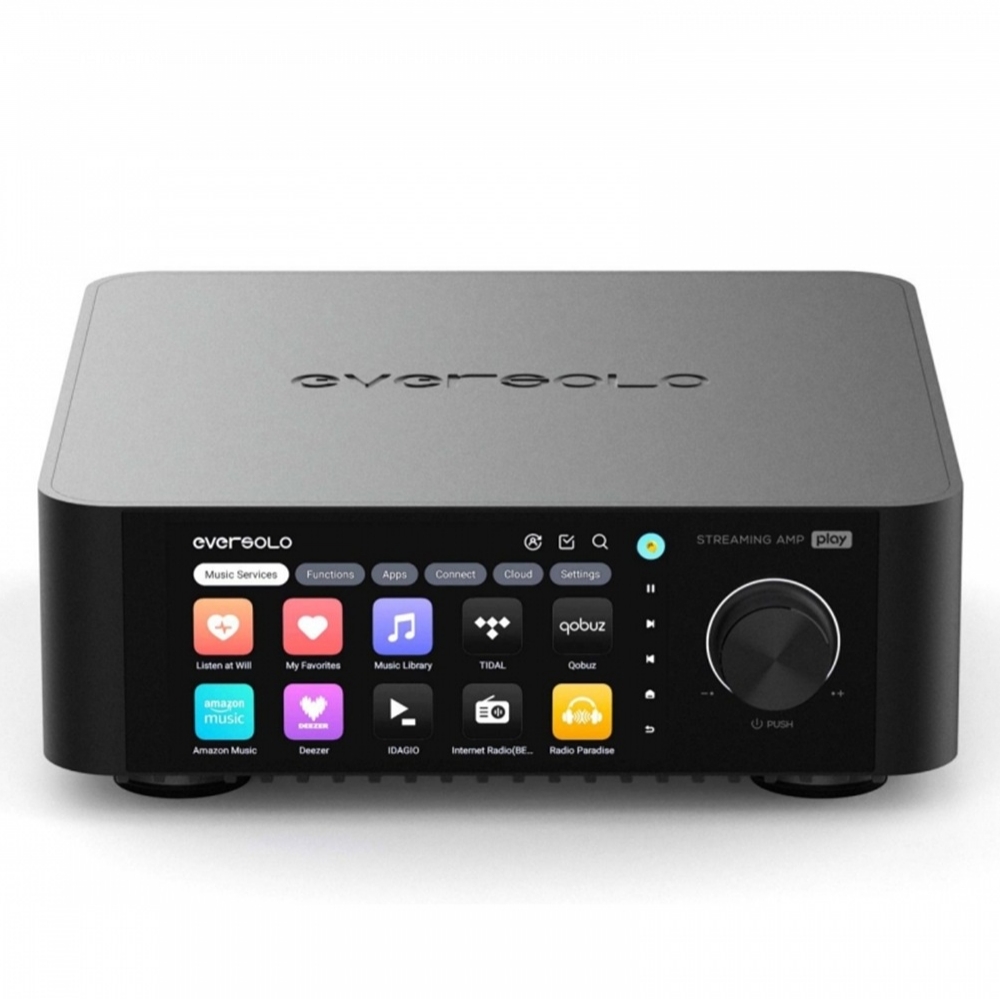

Eversolo Play Streaming Amplifier

Whether you're a passionate music enthusiast or an audiophile, the Eversolo Play Series will elevate your listening journey, becoming an indispensable part of your musical lifestyle.

The Eversolo Play is a streaming amplifier combining Eversolo's wireless and streaming audio wizardry with built-in amplification all in one convenient device. The Play Series seamlessly integrates amplification, DAC, and streaming into a single unit, allowing users to enjoy lossless audio and effortlessly build a home Hi-Fi music system. Equipped with the high-performance 32-bit AKM AK4493SEQ DAC chip with VELVETSOUND™ technology, it achieves an SNR ≥109dB (A-wt) and ultra-low THD of 0.0037%. The Class D amplifier delivers robust power output of 60W at 8Ω and 110W at 4Ω, effortlessly driving bookshelf speakers to recreate every nuanced detail of live performances.

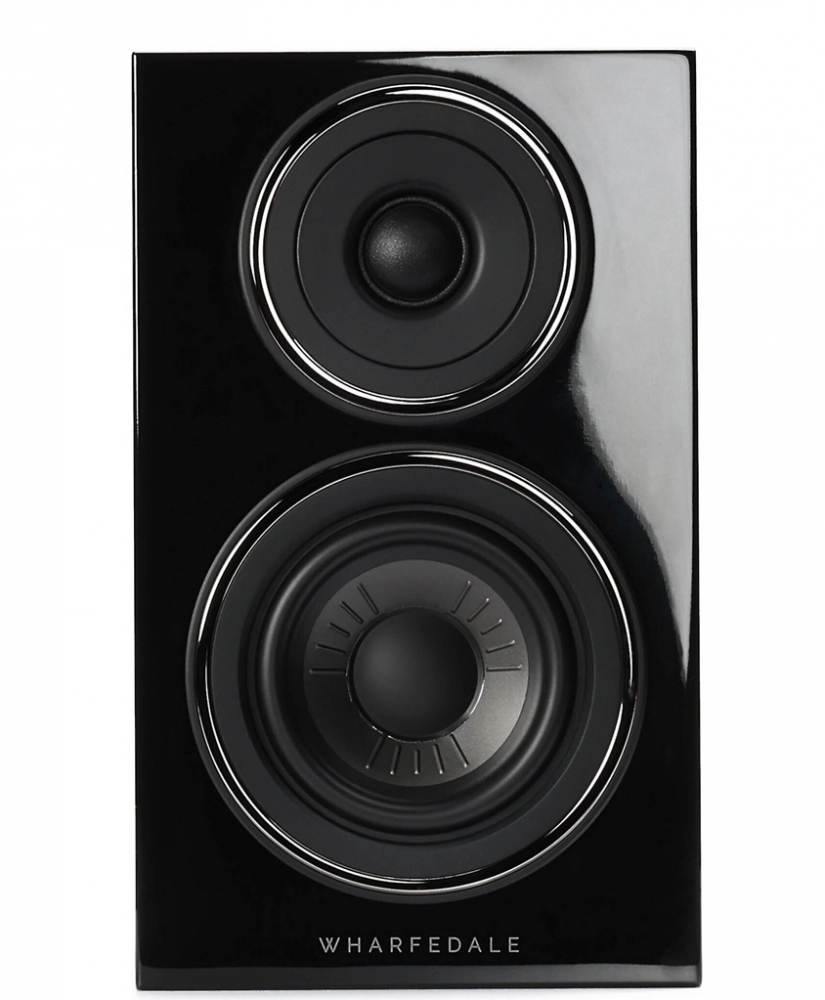

DIAMOND 12.0

The ultra-compact speaker in the DIAMOND 12 series, the DIAMOND 12.0 features all of the same technology as its larger siblings but is designed for small-footprint hi-fi systems, or even as a high-performance, compact satellite speaker in home theatre systems.

The DIAMOND 12.0 features a high-performance 100mm (4”) Klarity^TM driver with a bass performance that exceeds its diminutive footprint, while the superb 25mm (1”) woven polyester dome tweeter brings open and smoothly extended high frequencies.

Model
Play

Body Material
Aluminium alloy

Display
5.5" LCD Touchscreen

CD-ROM

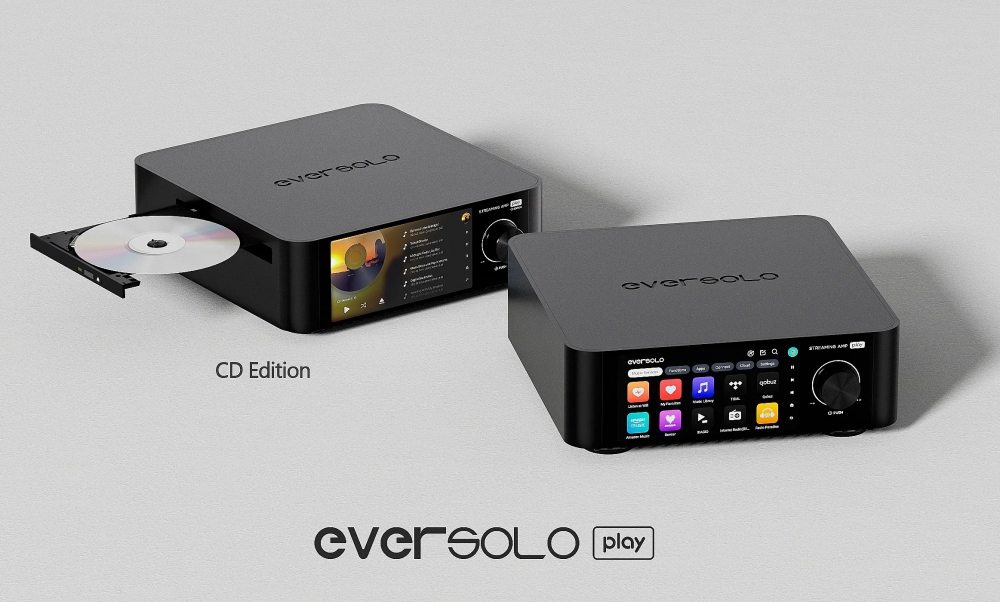

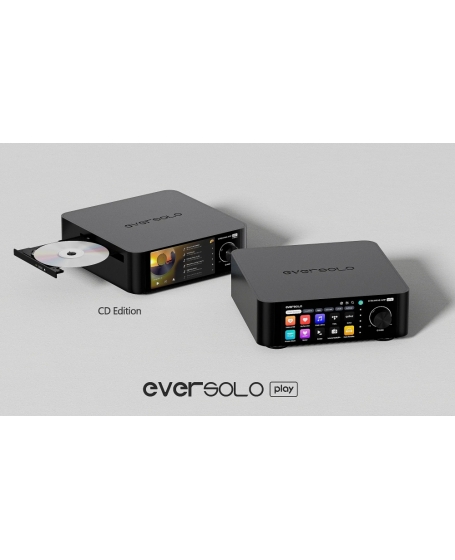

No - Only the CD Edition includes a CD-ROM

DAC
AK4493SEQ

Internal Memory
4G DDR4 + 32G eMMC

USB Ports
2 x USB3.0

Ethernet
RJ-45(10/100/1000Mbps)

WiFi
2.4G+5G

DAC Decoding
Supports up to Stereo DSD512, PCM 768KHz 32Bit

Music File Formats
DSD (DSF, DFF, SACD ISO) Support DST up to DSD512, MP3, APE, WAV, FLAC, AIF, AIFF, AAC, NRG, CUE

Music Services
TIDAL, Qobuz, HIGHRESAUDIO, Amazon Music etc

Music Streaming
Roon Ready, TIDAL Connect, DLNA etc Qobuz Connect

Control Methods
On-screen touch control, Android/iPhone/iPad APP control

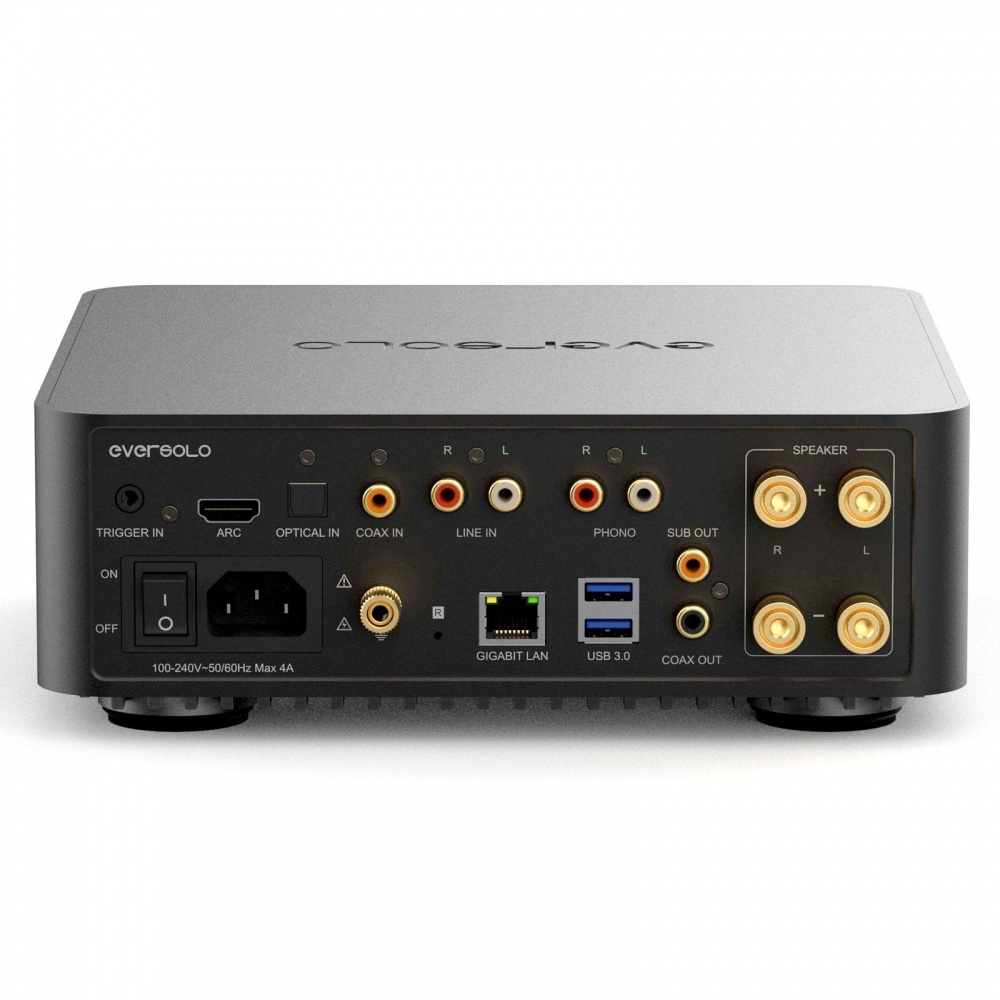

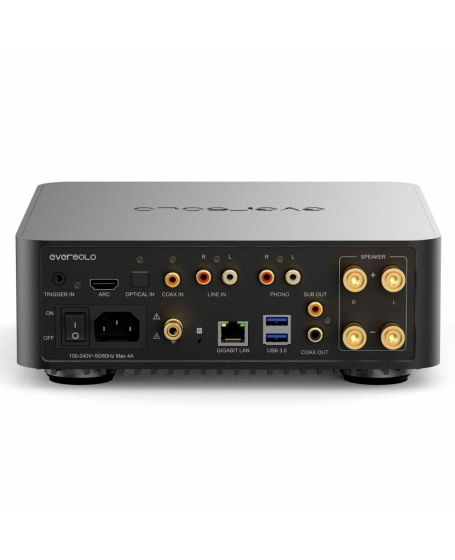

Audio Input and Output

Bluetooth Input
Bluetooth BT5.0, SBC/AAC

HDMI ARC Input
Supports up to Stereo PCM 192KHz 24Bit

Optical/Coaxial Input
Supports up to Stereo PCM 192KHz 24Bit and DOP64

Analog Line In
Maximum input voltage 2VRMS

PHONO Input
Supports MM/MC

USB Audio Output
Supports up to Stereo DSD512 Native and PCM 768KHz 32Bit (Supports DAC audio devices with UAC standard only)

Coaxial Output
Supports up to Stereo PCM 192KHz 24Bit and DOP64

Subwoofer Output
Adjustable crossover frequency from 40 Hz to 500 Hz

Audio Characteristics

Continuous Output Power
60W RMS@8Ω 110W RMS@4Ω

Amplifier Type
Class D Amplifier

Amplifier Gain
20.8dB

Input Sensitivity
2V

THD (20Hz-20KHz)
<0.0037% 5W at 1KHz

Signal-to-Noise Ratio
>109dB, @A-wt 4Ω 110W

Frequency Response
20Hz-20KHz < ±0.25dB, 20Hz-40KHz < -3dB

Damping Factor
>107

Channel Crosstalk
<-108dB

PHONO
• Amplifier gain: MM 60dB MC 74dB
• Input sensitivity: MM 5mV MC 0.5mV
• RIAA: ±0.5dB, 20Hz-20KHz

Other Information

PSU
AC 110~240V 50/60Hz Max 4A

Dimensions (W x D x H)
230 x 230 x 75 mm

Weight
2.6kg

Packing List
• Power Cable
• User Manual

Colour
Black

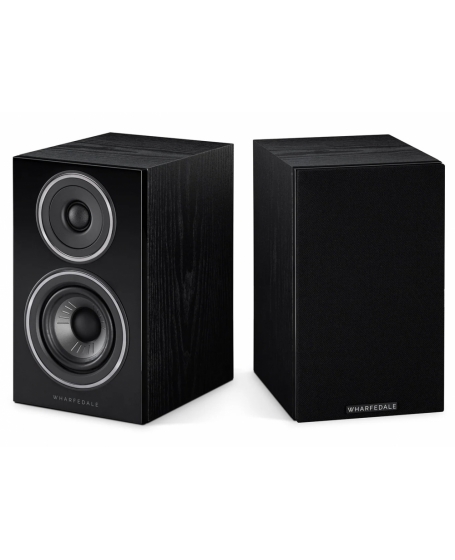

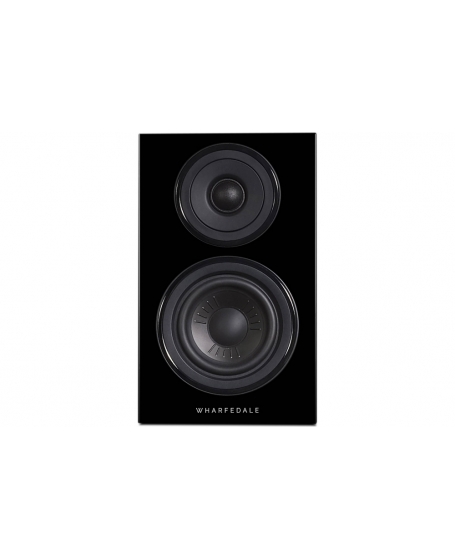

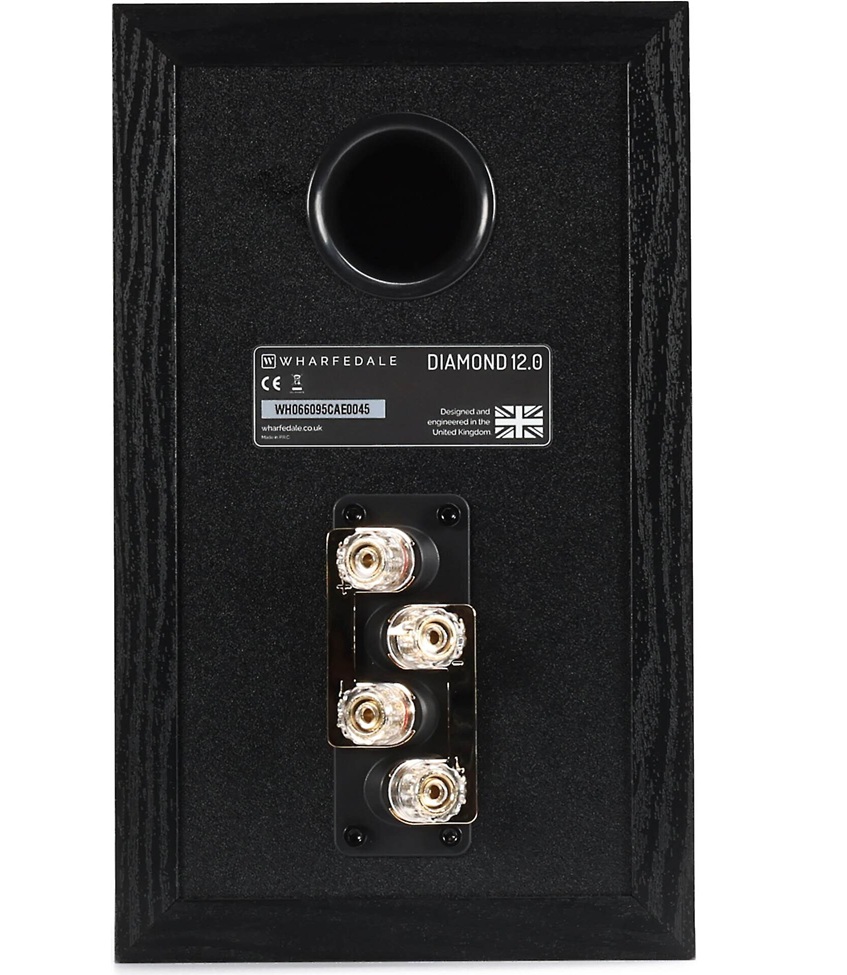

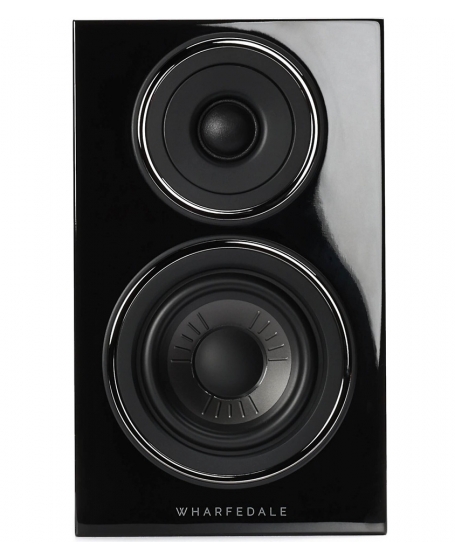

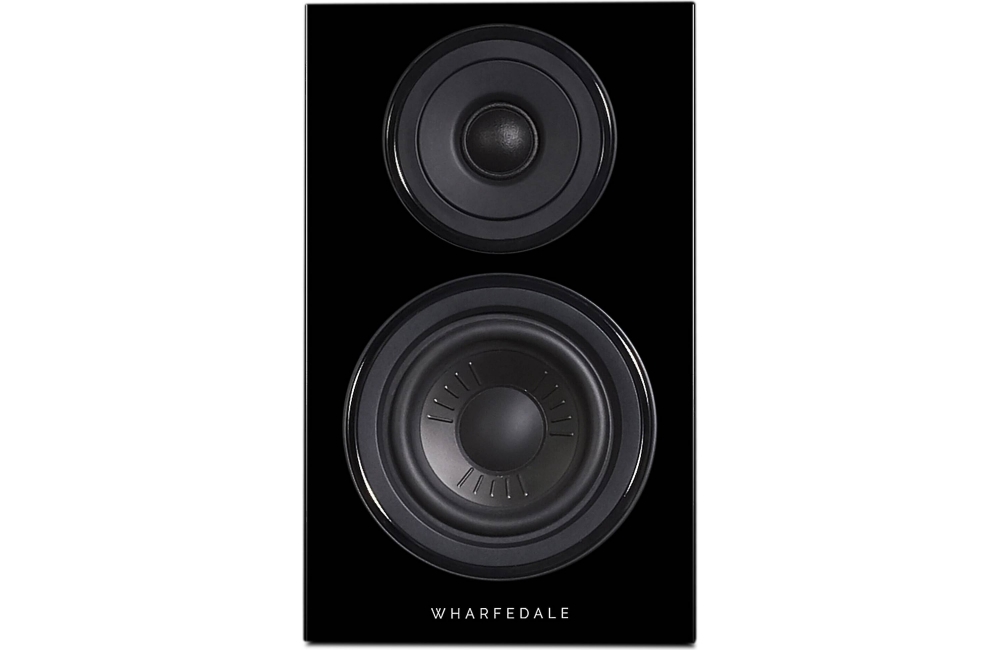

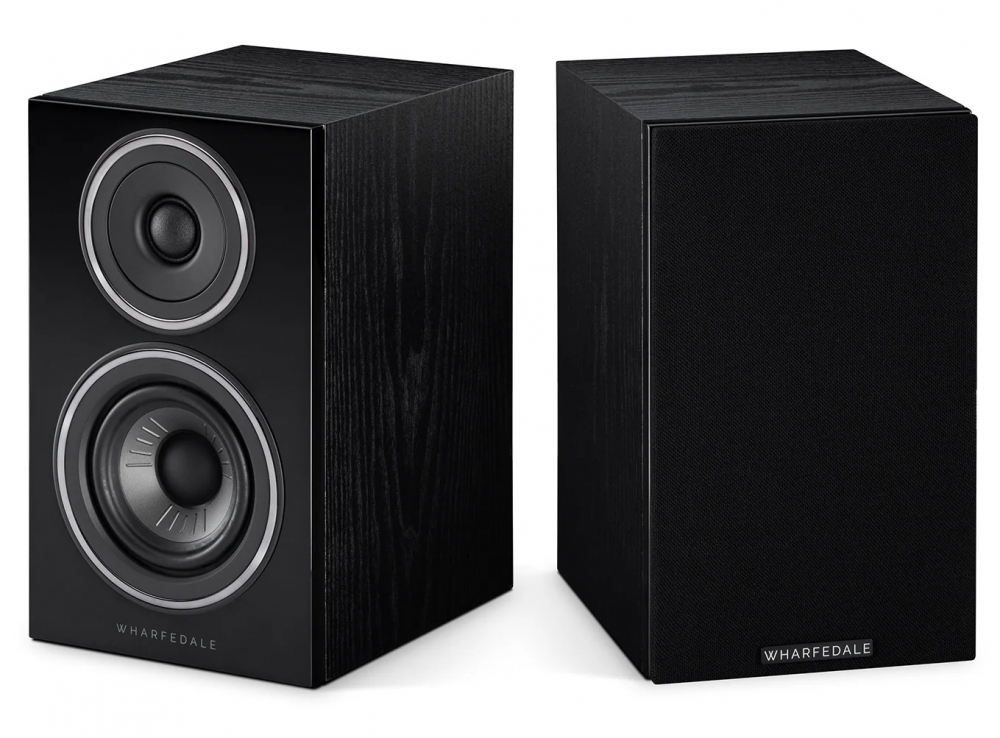

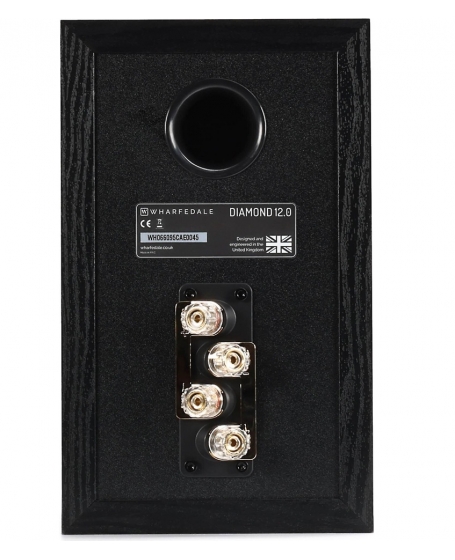

Wharfedale Diamond 12.0
General description    2-way bookshelf speaker
Enclosure type    bass reflex
Transducer complement    2-way
Bass driver    4"(100mm) advanced PP Cone
Treble driver    1"(25mm) Textile Dome
AV shield    No
Sensitivity(2.83V @ 1m)    87dB
Recommended amplifier power    20-60W
Peak SPL    95dB
Nominal impedance    8Ω Compatible
Minimum impedance    4.0Ω
Frequency response(+/-3dB)    70Hz ~ 20kHz
Bass extension(-6dB)    65Hz
Crossover frequency    2.7kHz
Cabinet Volume (in litres)    4.4L
Dimensions ( H x W x D )    265 x 160 x (200+28) mm
Net weight    5.1kg/pcs
