Dali Opticon 6 MK2 Floorstanding Speaker Made in Denmark

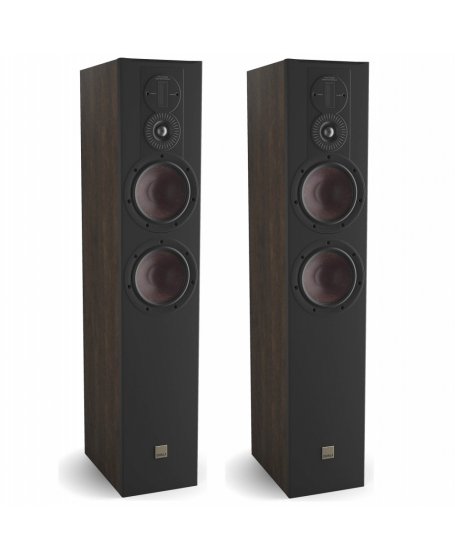

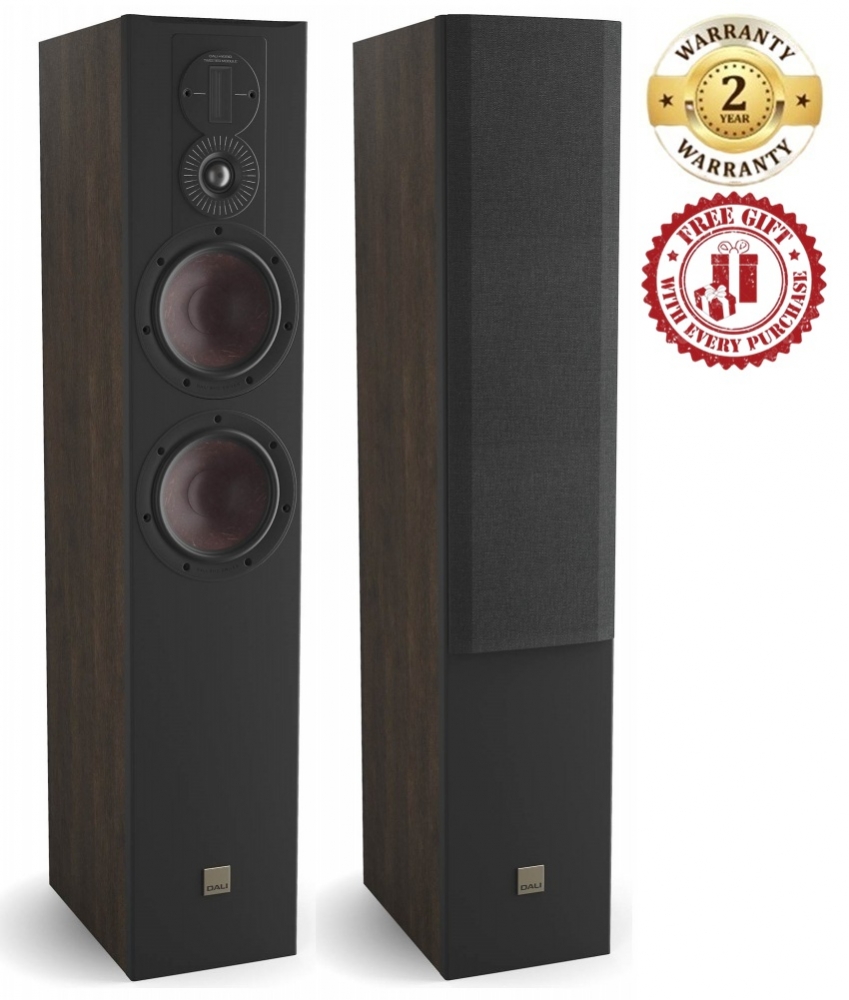

DALI OPTICON 6 MK2

The internal volume of the floorstanding OPTICON 6 MK2 achieves a significant low frequency extension and bass volume level. It combines that bass performance with brilliant, midrange clarity and the sparkling high frequencies that are characteristic of the DALI hybrid tweeter.

HYBRID TWEETER

The new OPTICON MK2 hybrid tweeter marries the CALLISTO-derived 29 mm soft dome with a custom 17 x 45 mm ribbon - mounted on a cast aluminium faceplate that incorporates dispersion control detailing. This combination offers the clarity, speed and dynamics of a dome tweeter, with the very high frequency detail and smooth finesse of a ribbon tweeter.

MADE IN DENMARK

Manufacture of the OPTICON MK2 series has been retained firmly at our Danish factory. Our in-house woodworking facility handles everything from cutting the MDF enclosure panels to applying the surface finishes. Assembly by hand, testing and quality approval on each and every speaker is also handled on our own assembly lines.

REFLEX PORTS

The newly introduced OPTICON MK2 Dual Flare technique brings port design into the realm of aerodynamics - with exit and entry flares carefully designed to minimise turbulence. Dual Flare enables OPTICON MK2 reflex ports to remain laminar and work effectively to reinforce low frequency performance to a significantly higher volume level than would otherwise be possible.

SMC TECHNOLOGY

The SMC used in OPTICON MK2's magnet motor system has very high magnetic permeability and very low electrical conductivity. It works primarily by minimising eddy currents in the magnet system pole piece. This improves flux linearity, reducing the magnetic hysteresis. Resulting in a significant reduction of electro-acoustic distortion.

PRODUCT DETAILS

The slim, floor-standing OPTICON 6 MK2 is the entry point in the OPTICON MK2 series for the renowned DALI hybrid soft dome and ribbon tweeter.

The OPTICON 6 MK2 offers a level of performance unavailable from any other OPTICON model. It combines immense low frequency bandwidth, volume potential and dynamic accuracy with the extraordinary detail and clarity that arises from the use of a dedicated midrange driver. High frequencies from the hybrid tweeter are explicitly detailed and informative yet simultaneously smooth and endlessly listenable.

The OPTICON 6 MK2 offers an extended low frequency profile that suits installation in large listening spaces with more distant room boundaries.

The manufacture of the OPTICON MK2 remains fully Danish - as with the MK1 series. Built at our factory in Denmark; from components produced in-house or sourced from the best specialist manufacturers locally and further afield.

The OPTICON 6 MK2 is available in Tobacco Oak.

DALI OPTICON 6 MK2 SPECS
Product series    OPTICON MK2
Frequency Range (+/-3 dB) [Hz]    49 - 30,000
Sensitivity (2,83 V/1 m) [dB]    88.0
Nominal Impedance [ohms]    4
Maximum SPL [dB]    110
Recommended Amplifier Power [W]    25 - 200
Crossover Frequency [Hz]    800 / 2,200 / 14,000
Crossover Principle    2½ + ½-way
Hybrid tweeter module, Super high freq. driver, Quantity    1 x 17 x 45 mm
Hybrid tweeter module, Super high freq. driver, Diaphragm type    Ribbon
Hybrid tweeter module, High frequency driver, Quantity    1 x 29 mm
Hybrid tweeter module, High frequency driver Diaphragm type    Soft Textile Dome
Midrange driver, Quantity    2 x 6 1/2"
Midrange driver, Diaphragm type    Wood Fibre Cone
Enclosure type    Bass Reflex
Bass Reflex Tuning Frequency [Hz]    43.5
Connection Input    Bi-Wiring
Bi-Amping (INT)
Magnetic Shielding    No
Recommended Placement    Floor
Recommended Distance From Wall [cm]    20 - 100
Dimensions With Base (HxWxD) [mm]    1001 x 195 x 330
Accessories Included    Assembly Tools
Manual
Rubber Bumpers
Spikes M8
Weight [kg]    19.3
