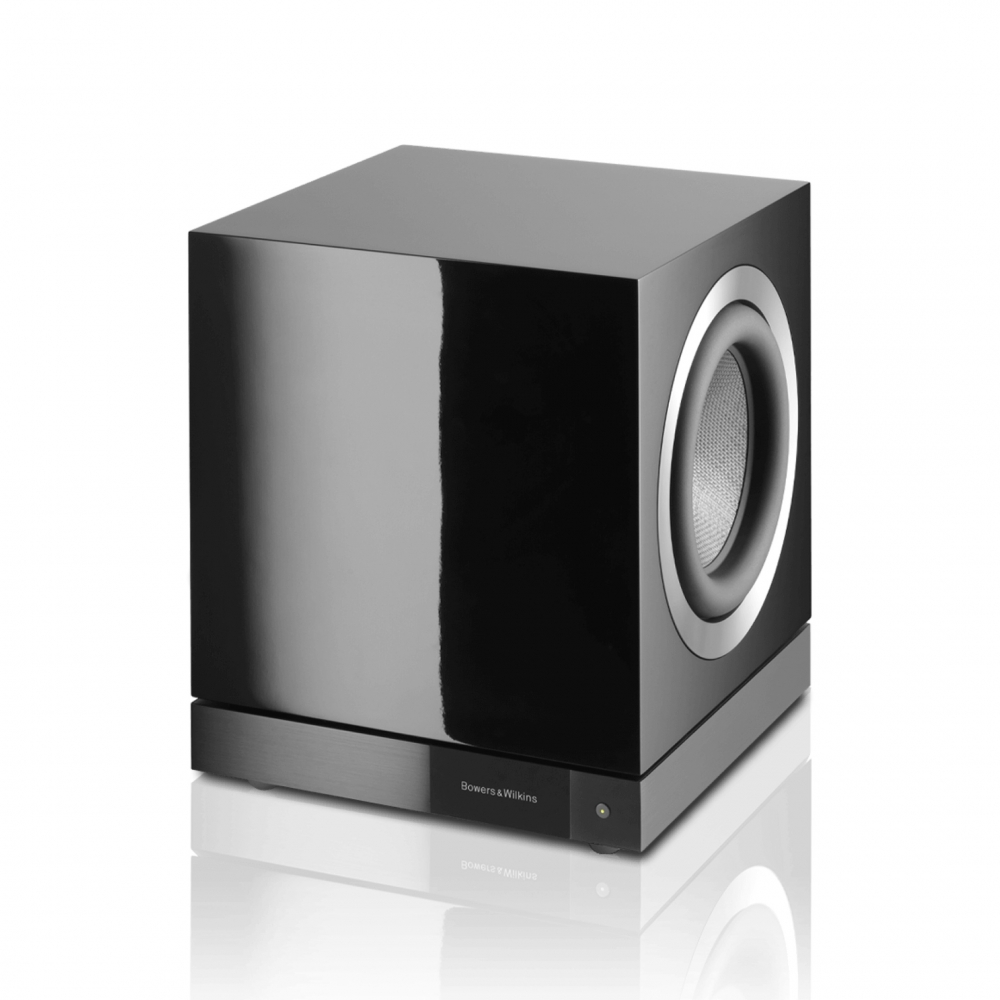

Bowers & Wilkins DB2D 10" Powered Subwoofer

SKU: Bowers & Wilkins DB2D
RM 21,999.00
Loading ...
Lazada
Bowers & Wilkins DB2D 10" Powered Subwoofer
Frequency range (-6dB) 8.5Hz - 500Hz
Frequency Response -3dB (centred on level at 100Hz) 10Hz - 350Hz
Max power output 1000W Class D Hypex amplifier
Rating power consumption 195W

*This product offers multiple color options and requires a reservation.
It is estimated to be delivered within 45 working days.
Share:

DB2D

Using the same 10-in drivers found in the flagship 800 D4 speakers and a high-efficiency 1000 watt amplifier, DB2D uses intelligent DSP to optimise bass in any room.

Save space, not bass

DB2D's fast, solid bass complements the 800 Series Diamond speakers, and advanced room optimisation makes it easy to position.

Power and control

The DB2D's digital signal processing ensures punch and control for scintillating home theater – and to make more of your music.

Nimble and powerful

Solid, dramatic bass is delivered through the rigidity and lightness of the uniquely-shaped, variable thickness Aerofoil™ cone.

A question of balance

The back-to-back (opposed) drivers cancel out cabinet resonances, ensuring all that power is used to create room-shaking bass, not wasted vibrations.

The digital advantage

Digital amplification is cool-running and energy efficient, even when working hard, while Dynamic EQ and Room EQ ensure a precise sound for music and movies.

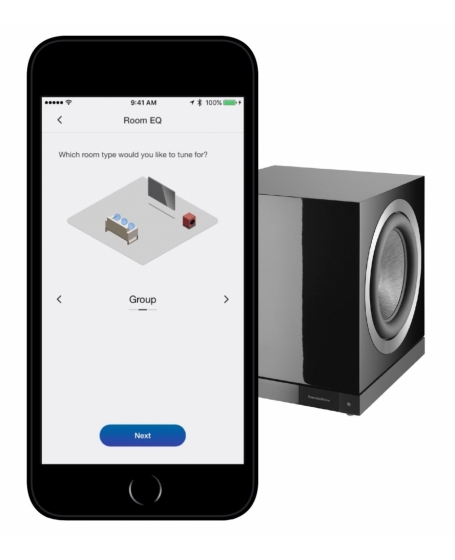

Take control

By placing control in the palm of your hand, our subwoofer app not only makes our DB Series subwoofers a snap to set up, it also helps maximize your sound quality.

Suit your speakers

As well as being beautifully built, DB2D comes in a choice of finishes to match your speakers – and your décor.





Description DB Series Subwoofer
Drive units 2 x 250mm (10in) Aerofoil-cone drive units in a balanced configuration
Frequency range (-6dB) 8.5Hz - 500Hz
Frequency Response -3dB (centred on level at 100Hz) 10Hz - 350Hz
Max power output 1000W Class D Hypex amplifier
Rating power consumption 195W
Standby power consumption <0.5W
Input impedance
XLR 20kOhm
RCA 10kOhm
Signal to noise ratio 82db
Features
1000W Class D Hypex amplifier
2 x 250mm (10in) Aerofoil-cone drive units in a balanced configuration
Digital preamplifier with Dynamic EQ
App-based set-up and BT-LE contro
Inputs
2 x XLR
2 x RCA
2 x 3.5mm 12V trigger
RS-232 – 9-pin D connector
Dimensions
Height 430mm (16.9in)
Width 377mm (14.8in)
Depth 360mm (14.2in)
Net weight 36kg
