CCM684

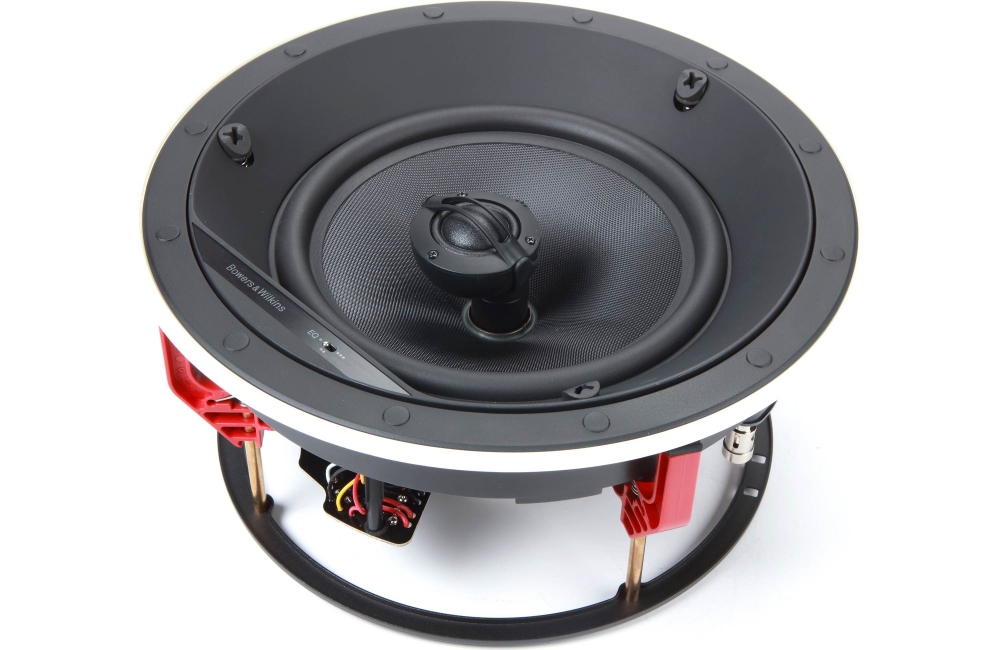

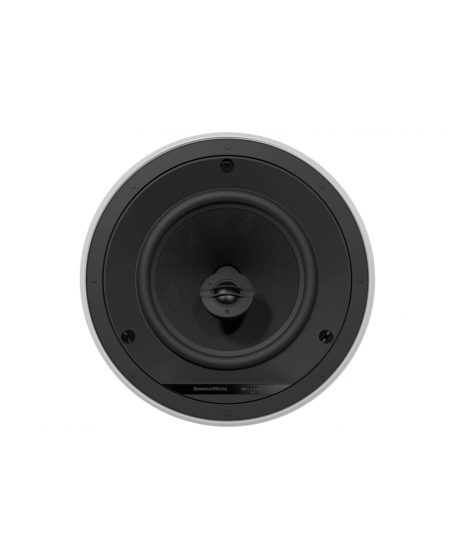

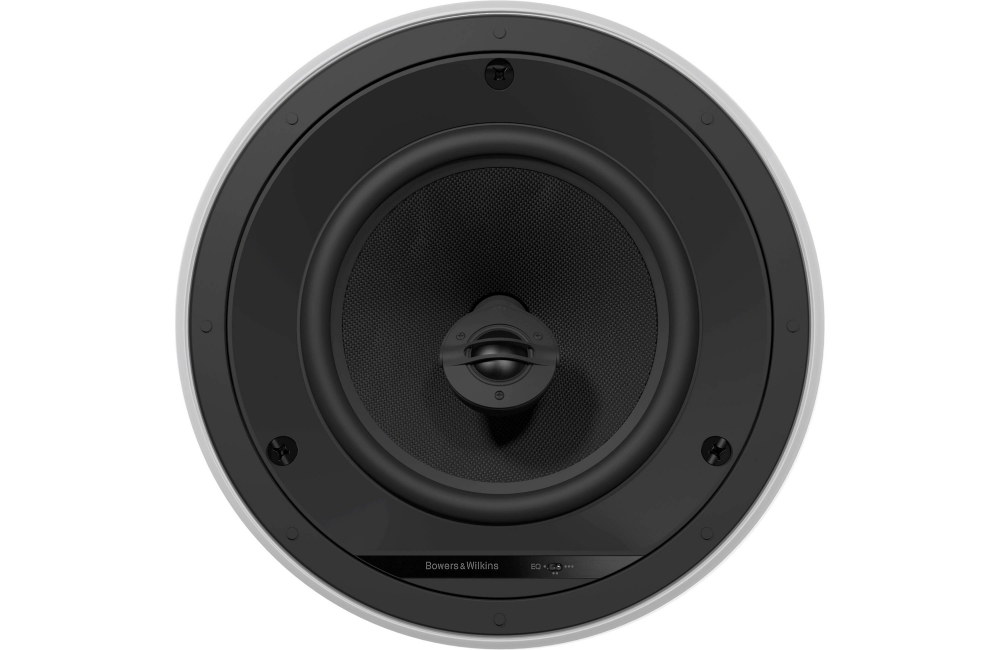

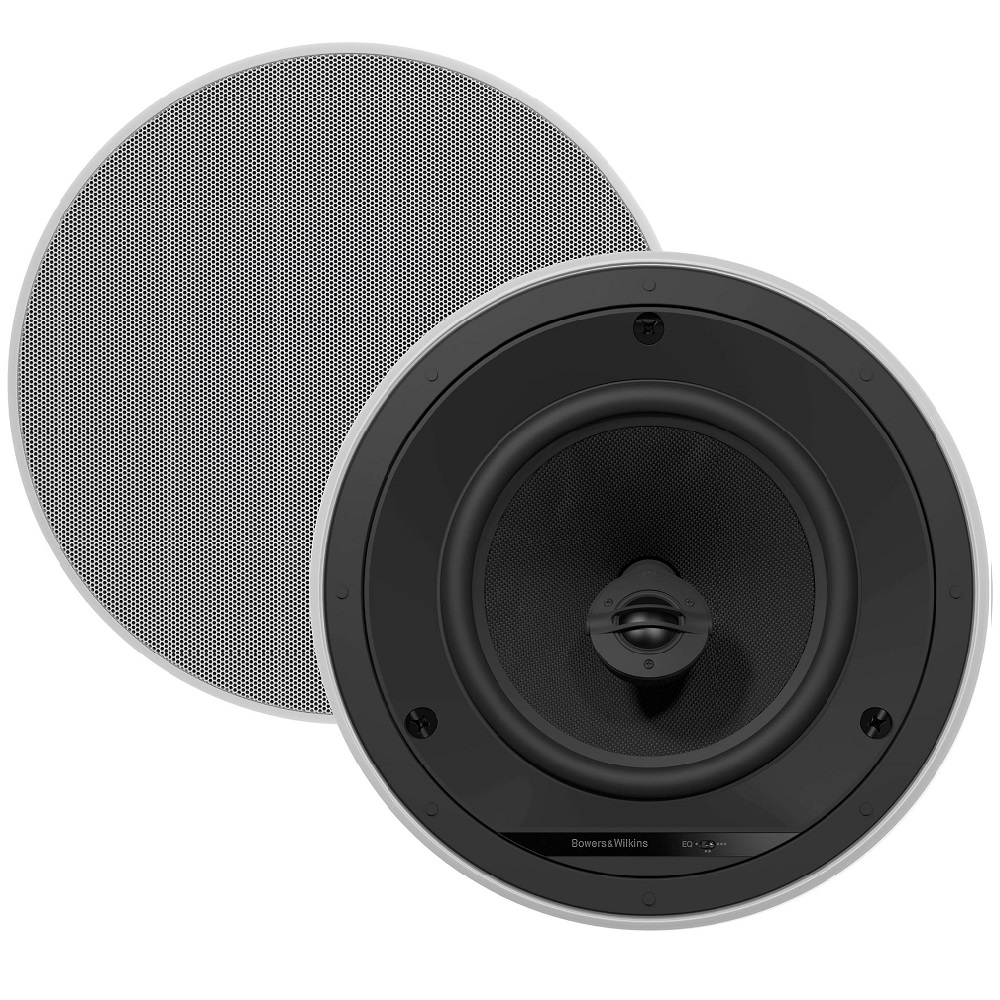

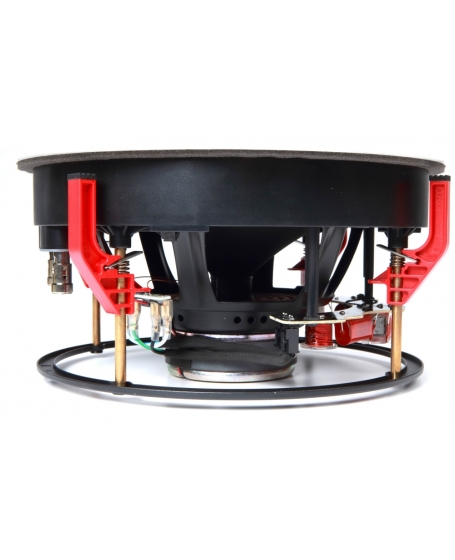

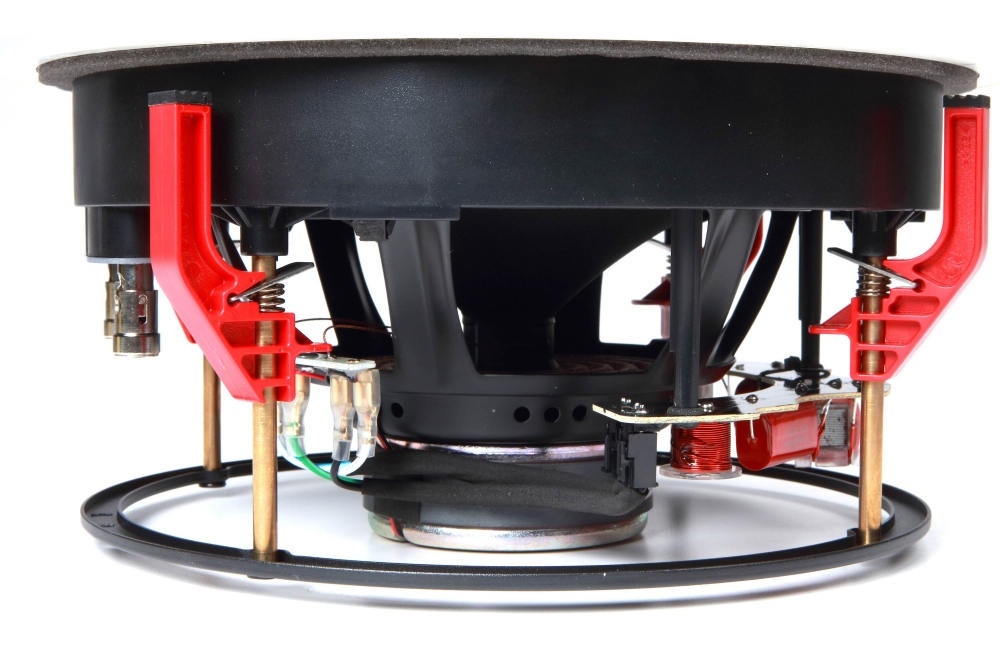

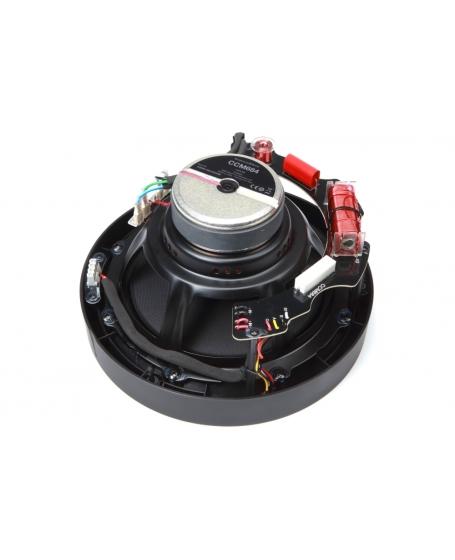

The CCM684 is a high performance ceiling speaker that’s simplicity itself to install and use. A two-way design, featuring a 200mm (8in) woven glass fibre cone bass/midrange driver and a soft dome tweeter in a neat circular ceiling mount chassis. The tweeter housing pivots for adjustable off-axis treble response and the speaker also features a three-position EQ switch for a better off-axis response. Incorporating QuickDogs™ and a plug-and-play functionality it is quick and easy to install.

Description : 2-way in-ceiling system
Drive Units : 1x ø25mm (1in) soft dome tweeter
                     1x ø200mm (8in) black glassfibre cone bass/midrange
Frequency Range (-6dB) : 35Hz – 35kHz
Recommended Amp Power : 25 – 130w
Sensitivity SPL (2.83V, 1m) : 88dB
Impedance Nominal (min) : 8Ω (4.5Ω)
Frame diameter : 290mm (11.4in)
Cut-out diameter : 250mm (9.8in)
Depth behind surface : 133mm (5.2in)
Protrusion : 4mm (0.2in)
Pre-mount Kit : PMK C8
Back Box : BB C8
