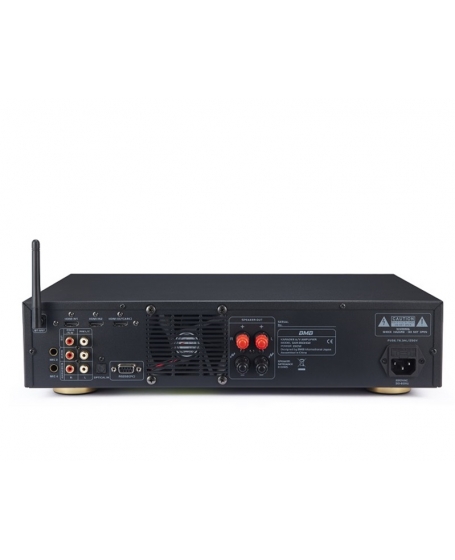

BMB DAR-350HD2 + CSD12 Karaoke Package

BMB DAR-350HD2

DAR Series

High power Karaoke amplifier with useful new functions.

350W x 2ch outputs, enough high power to meet commercial use.
Double Bluetooth function: You can connect two smartphones and play song while switching smoothly.
HDMI port 2in 1out(ARC): You can connect HDMI device such as Karaoke song machine, DVD Player, etc. If your TV has HDMI ARC function, TV sound can come into DAR-350H.
USB Play: Can conect USB memory, play song.
Mobile/PC app: Set up the parameter of DAR-350H by Mobile or PC app.

Selling point

• 4 useful New functions (Double Bluetooth, HDMI, USB Play, Mobile app)
• Powerful 350W x 2ch, suitable for both of Commercial / Home use.

CSD-2000

Karaoke Speaker

It is a breakthrough to the routine cognition of traditional rated input power of 500W with a max input of 1000W Karaoke speaker and the dual-use of the speaker is achieved.

Characteristics
1. The speaker can be used both for Karaoke and dance music.
2. The speaker reproduces the ductility of sound in Karaoke and the powerful rhythm of dance music. The realization of these two seemingly completely reversed sounds results from the following several newly-developed technologies.

BMB WB-5000S

UHF Wireless Microphone System

• By adopting a high-performance microchip and suppressing distortion, we realized a unique wireless quality microphone unique to BMB.
• It uses high-quality liquid crystal, it is easy to see in any installation situation.
• When the microphone dropped, The microphone will become mute.
  It will not occur the Large volume Noise, when falling more than 20 cm.
• New function that microphone automatically connect to receiver by shaking microphone. (WB-5000 / WM-500)

DAR-350HD2
Stereo mode    @8Ω 1kHz 2x350W
Sensitivity    @8Ω 1kHz 800mV
Frequency Response    20Hz-20kHz ±0.5dB
Total Harmonic Distortion    @8Ω 1kHz, MIC input 0.05%
@8Ω 1kHz,AUX/KARAOKE input 0.05%
Signal to Noise Ratio    A-weighted,MIC input ≥85dB
A-weiqhted, MIC mute AUX/KARAOKE input ≥96dB
Intermodulation distortion    @8Ω 60Hz-7kHz < 0.1%
Voltage gain    @8Ω 1kHz 36±1dB
Channel separation     @8Ω 1kHz ≥78dB
Input Impedance    @1kHz balance 20kΩ
AC power specifications    AC100V-130V(50/60Hz) 100V Model
AC220V-240V(50/60Hz) 200V Model
Product dimensions(W*D*H)    420mm x 290mm x 89mm
Packaging dimensions(W*D*H)    561mm x 470mm x 175mm
Net weight    10.2kg
Gross weight    12.7kg

BMB CSD-2000
Type    Bass Refiex Type
System    3 Ways 5 Speakers
Woofer Unit    30cm Paper Cone Type*1unit
Squawker Unit    8cm Paper Cone Type*2unit
Tweeter Unit    8cm Paper Cone Type*2unit
Max Input Power    1200W
Rating Input Power    500W
Dimensions(mm)    568(L)*350(W)*336(H)
Weight    18.5kg per pce
Impedance    8ohms

BMB WB-5000S
SYSTEM
Type    Unidirectional dynamics UHF Wireless microphone system
Frequency Range    640Hz - 690Hz
Channel    200CH
Frequency Response    100Hz - 10Hz
Effective Distance    50m
Frequency Interval    250KHz
Frequency Width    50MHz
Frequency Oscillation Mode    PLL Module locked loop design
Radio Frequency Sensitivity    -90dBm
Total Harmonic Distortion    < 5%
Dynamic Range    >70dB

RECEIVER
SNR    ≥50db
Frequency Stability    ±5KHz
Signal Pick Up    CPU controlled selection & pilot identification
Mute    Mute & Lock Loop Circuit
Disply    LCD
DC Input    12V DC ≥1000mA
Output Impedance    600Ω
Output    2 XLR Balance Socket + Unbalance TRS 6.3mm Socket
Dimensions (mm)    420(W) x 44(H) x 160(D)
