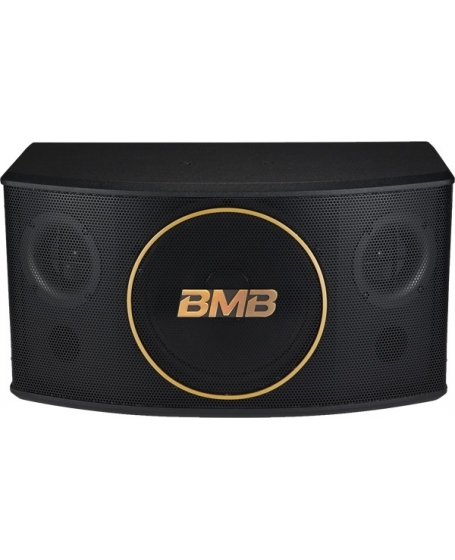

BMB CSJ-10

CSJ Series

Compact Karaoke speakers with the title "J" for Japanese sound

Compact speakers are ideal not only for small rooms but also for back/center speakers.
High quality punched-in net speaker panels are designed with a deeply curved form.
"Tweeter SPL* switch is used to prevent howling.
*SPL- Sound Pressure Level"
Woofer use highly reliable paper cones made in Japan to achieve high quality sound.

Selling point

• Lovely 6 inch for various facility.
• Luxury metal punched-in net.
• Japan market standard model.

CSJ-10 [10"]
System Type    Two-way three unit speaker system
Frequency Range(-10dB) *1    46Hz-20kHz
Frequency Response(±3dB) *1    70Hz-20kHz
Sound Pressure Level *2    89dB
Impedance    8Ω
Max Sound Pressure Level *3    115dB
Power Capacity    Continuous 250W,Program 500W
Dimensions (HxWxD)    296mm x 558mm x 282mm(11.7"x22.0"x11.1")
Shipping Dimensions (HxWxD)    390mm x 720mm x 650m(15.4"x28.3"x25.6")
Net Weight    12.7kg (28.0lbs) / Each
Shipping Weight    28.3kg (63.4lbs) / Pair
Input Connectors    19mm (spacing distance) terminal
LF Unit    250mm（10"） Cone, 49.5mm（1.95"）Voice Coil x 1
HF Unit    70mm（2.8"） Cone, 13.5mm（0.5"）Voice Coil x 2
Enclosure Construction    15mm（0.6"）MDF

*1 Full space (4π) conditions
*2 1w1m on-axis, swept-sine in anechoic environment
*3 Calculated
