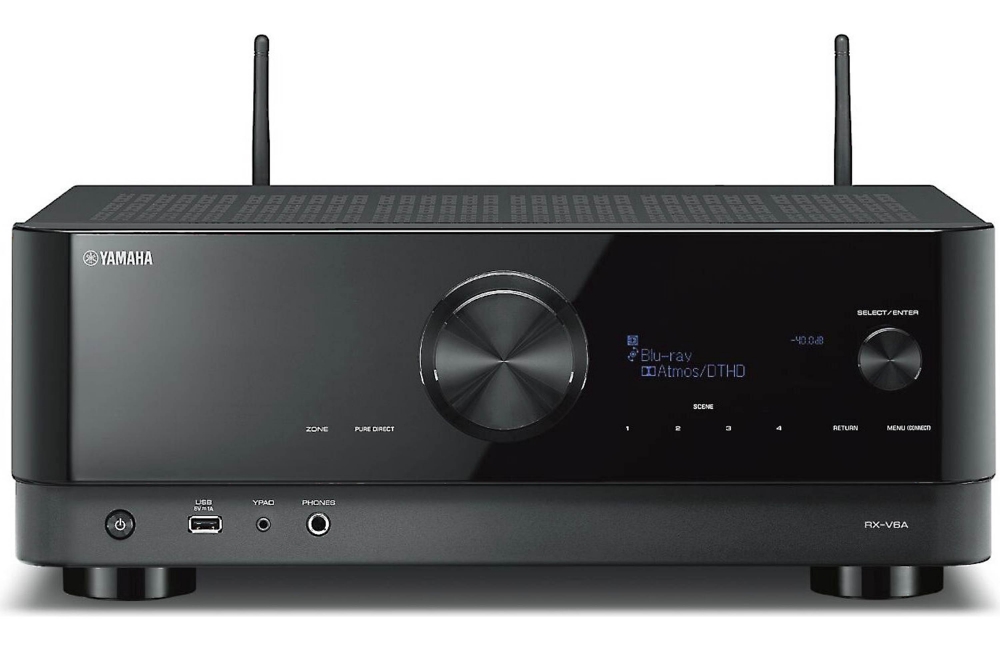

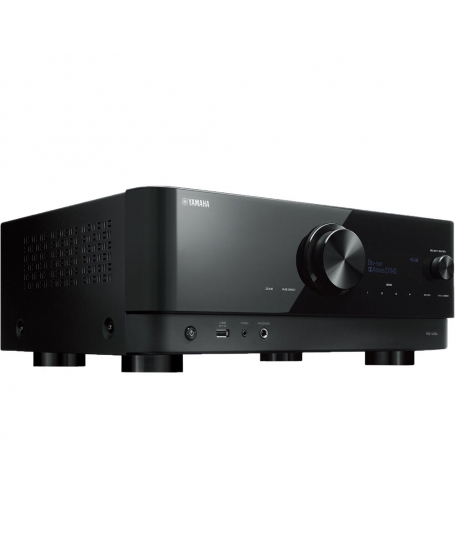

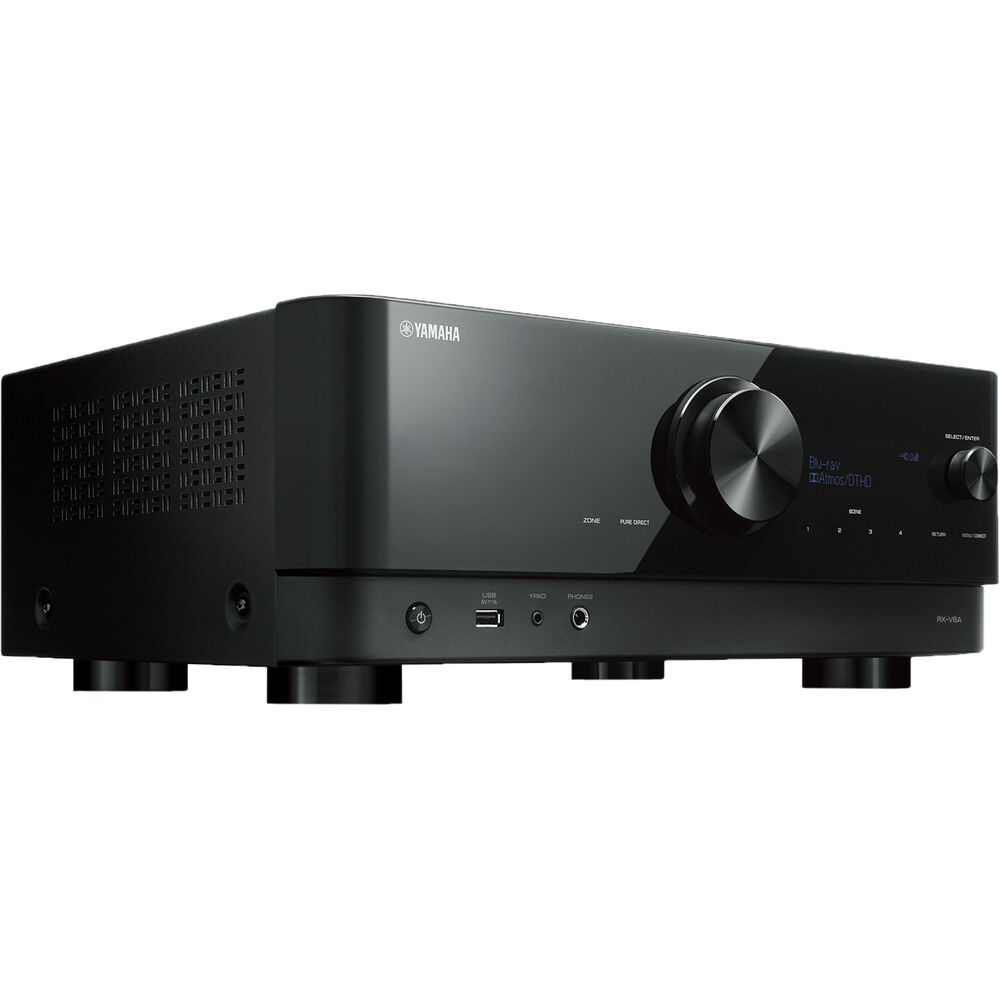

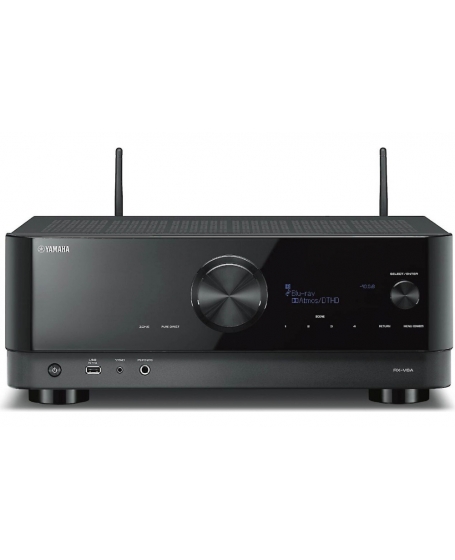

Yamaha RX-V6A 7.2Ch. 8K Atmos Network AV Receiver.

RX-V6A

7.2-Channel AV Receiver with 8K HDMI and MusicCast

This 7.2-channel, 100 Watt AV receiver boldly explores entertainment possibilities for an advanced home theater with the latest in video and audio, including Dolby Atmos Height Virtualization, DTS:X, wireless streaming and more.

• 7.2-channel 100 Watt surround sound with Zone 2
• 4K120_AB and 8K60_B HDMI^™ and HDR10+ (with future update) with HDCP 2.3 and eARC (7 in/1 out)
• Dolby Vision^™, Hybrid Log-Gamma and BT.2020
• Supports enhanced media and gaming - ALLM, VRR, QFT, QMS (with future update)
• Dolby Atmos with Dolby Atmos Height Virtualization (with future update) and DTS:X
• Wi-Fi^®, AirPlay 2^®, Spotify Connect and Voice Control
• MusicCast multi-room audio app control
• Pandora^®, Spotify, Amazon Music, SiriusXM, TIDAL, Deezer, Napster and more
• YPAO automatic room calibration with R.S.C. and multipoint
• Phono input
• MusicCast Surround-capable: add optional MusicCast speakers to provide wireless surrounds for a 5.1-channel setup

POWERFUL SOUND PROCESSING

Dolby Atmos® and Dolby Atmos Height Virtualization*

Feel every dimension in Dolby Atmos. Enjoy a 5.1 surround speaker system and two additional overhead speakers or two Dolby Atmos elevation speakers, delivering dramatic overhead effects for truly enveloping audio.

For those without in-ceiling or upward firing speakers in their system, Dolby Atmos Height Virtualization* technology can simulates the Atmos experience. Configure up to five speakers to replicate the effect of two in-ceiling speakers, or utilize all seven channels to simulate the powerful effect of four overhead speakers.

* Dolby Atmos Height Virtualization is available via a future update

DTS:X®

DTS:X immersive audio formatting places sound where it would naturally occur in space, creating life-like, multi-dimensional audio. The included spatial remapping engine of DTS Neural:X™ offers improved immersion and heightened realism in all your favorite movies.

CINEMA DSP 3D

This unique Yamaha proprietary sound field creation technology was created by combining measured sound field data with digital signal processing. Yamaha collected sound field data from famous concert halls and music clubs around the world, utilizing its wealth of experience in the fields of concert hall design, public address and mixing. By digitizing this vast trove of information and incorporating it into dedicated LSI devices, it effectively reproduces the spaces of concert halls and music clubs in your home. Immerse yourself in the astounding realism of your movies and enter a world of profound theater sound.

Compressed Music Enhancer

When music is encoded into a digitally compressed format like MP3, the frequency response suffers. The Yamaha Compressed Music Enhancer employs sophisticated digital signal processing using exclusive algorithms to restore what was lost, so the music always sounds the way it should.

MOVIES AND GAMES LIKE NEVER BEFORE

HDR and HDR10+*

HDR (high dynamic range) video provides incredible contrast, smooth tone and rich, bright colors—giving you full, high-definition enjoyment with an exceptionally realistic and natural picture quality.

HDR10+ greatly improves dynamic range (the ratio of light to dark) of video content on a scene-by-scene (or even frame-by-frame) basis. Also, using frame-by-frame metadata, it improves the scene characteristics between bright and dark so that important detail can remain. This enables displays to reproduce images more realistically, adhering to the creator's intent.

* HDR10+ is available via a future update

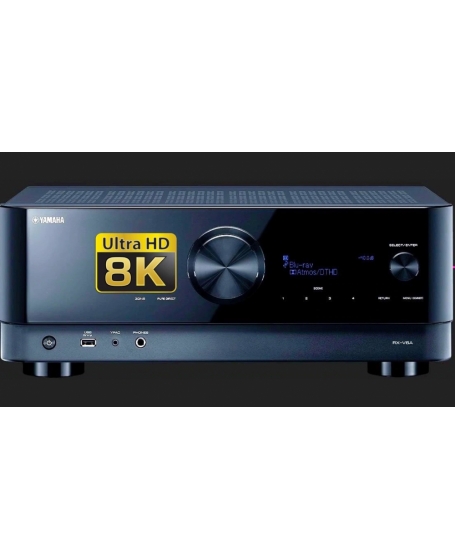

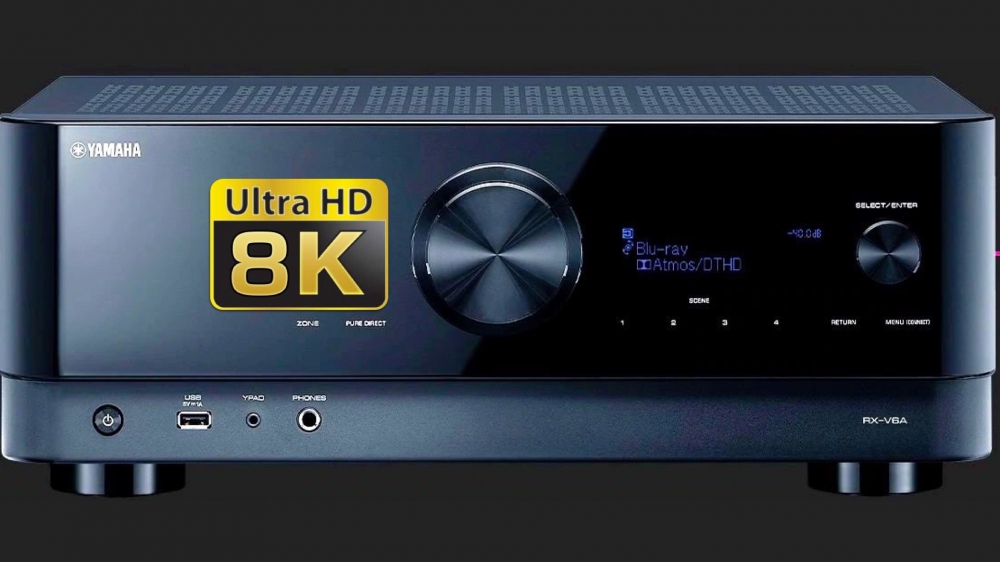

4K/120_AB* , 8K/60_B* and 4K/60

Supports end-to-end 8K/4K resolutions and higher refresh rate solutions with a single upgraded cable for seamless integration within the HDMI eco-system. 8K delivers a super-immersive viewing experience with 2x the horizontal and vertical resolution of 4K, and 4 times as many pixels; and combined with 60Hz refresh rate enables smooth and sharp viewing of content with high-speed action. 4K/120Hz enables ultra-fast motion UHD images to be crisp and razor sharp; allowing sports, action movies, high-performance gaming and VR to benefit significantly. It also supports Dolby Vision™ and Hybrid Log-Gamma.

* 4K/120_AB and 8K/60_B are available via a future update

Enhanced Media and Gaming (ALLM, VRR, QMS, QFT)*

Enhanced media and gaming features ensure an added level of smooth and seamless motion and transitions for gaming, movies and video. They include: Auto Low Latency Mode (ALLM), which enables the ideal latency setting to automatically be set allowing for smooth, lag-free and uninterrupted viewing and interactivity; Variable Refresh Rate (VRR) reduces or eliminates lag, stutter and frame tearing for more fluid and detailed gameplay; Quick Media Switching (QMS) for movies and video eliminates the delay that can result in blank frames before content is displayed; and Quick Frame Transport (QFT), which reduces latency for smoother, no-lag gaming and real-time interactive virtual reality.

* These features are available via a future update

SIMPLE TO SET UP, SIMPLE TO USE

AV Setup Guide App for Initial Setup

No worries, no confusion. Use this special app to receive expert set up assistance for your AV receiver and source devices. It even guides you through various other settings such as speaker connections, TV and source device connections and power amplifier assignments.

• Learn more about the AV Setup Guide App

Simple and Easy with the MusicCast App

Use your smartphone or tablet together with the MusicCast app to operate the AV receiver and change settings quickly and easily. The app offers the same functions as a remote control for all your MusicCast-compatible devices as well as full multi-room audio controls.

• Learn more about the MusicCast App

Voice Control (Alexa, Google Assistant and Siri)

Easily works with Alexa, Google Assistant and Siri (via Airplay 2), so your AV receiver is always at your command and your whole home can come alive.

*A third party device is required to initiate voice commands

MADE FOR YOUR ROOM

YPAO™ automatic room calibration with R.S.C. and Multipoint

YPAO (Yamaha Parametric room Acoustic Optimizer) analyzes your room acoustics, measures speaker characteristics and adjusts unwanted reflected sounds to optimize every channel of your home theater. R.S.C. (Reflected Sound Control) analyzes room acoustics and measures various speaker characteristics, then calibrates audio parameters to achieve optimum sound at any of eight listening positions.

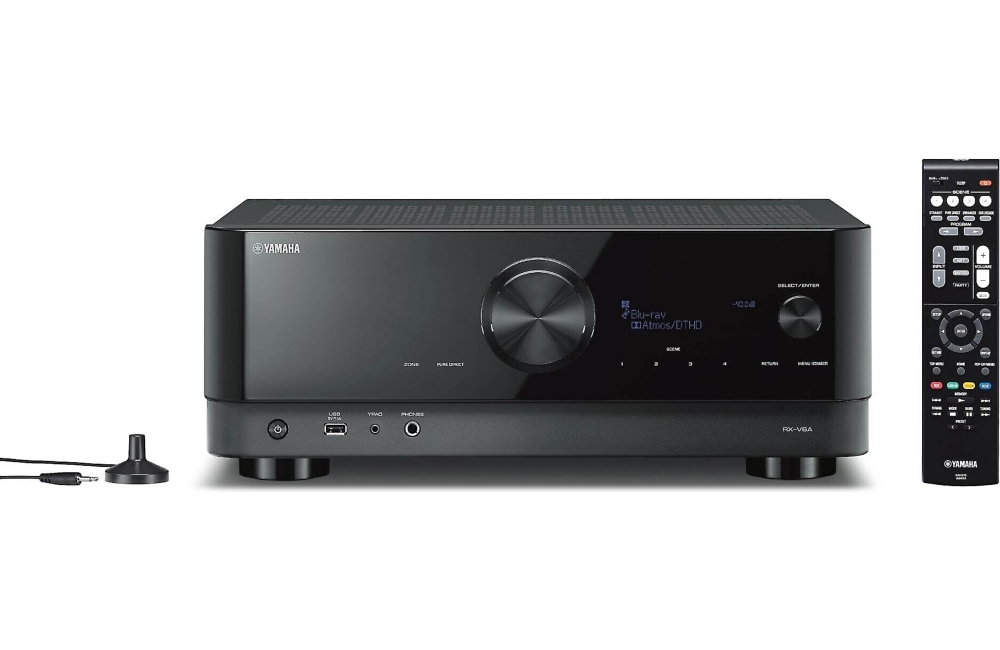

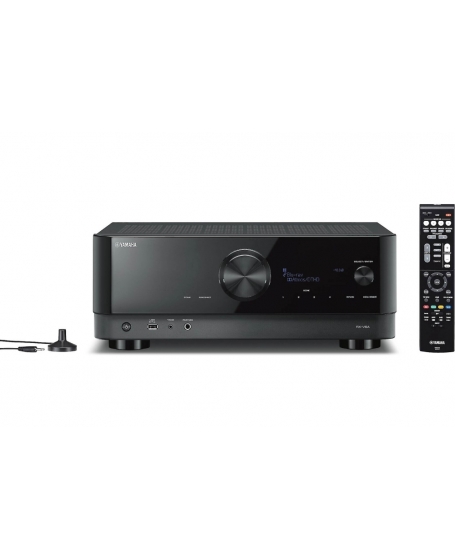

Simply by placing the supplied microphone at your listening position and switching YPAO on, the system is automatically calibrated ensuring your home theater room has the best sound.

MusicCast Surround

Combine this AV receiver with the MusicCast 50 or two MusicCast 20 wireless streaming speakers and enjoy MusicCast Surround, creating a 5.1-channel home theater with wireless surround sound. What’s more, you get stunningly realistic sound with a clean, clutter-free setup. Easily turn your living room into a home theater where you can fully enjoy movies and music.

• MusicCast 50
• MusicCast 20
• MusicCast SUB 100
• Click here for more MusicCast Surround information

SCENE Buttons with the Ability to Preset Songs and Stations

Easily program up to 8 different preset scenarios using 4 SCENE buttons. You can preset them for different inputs, as well as a sound field program, Music Enhancer, HDMI output and more. The inputs can be set to specific sources, such as an FM or Internet radio station, a station on a streaming service, a USB device or a song on a PC or NAS (Network-attached Storage). Once you’ve set the buttons, simply press one on the main unit or the remote control to power on the receiver and hear your desired music. The buttons can be re-set at any time.

STREAMING, APPS AND MORE

Stream it All

Explore a world of music with music streaming services built-in. Synchronizing your playlists and tracks from your smart phone or computer to the AV receiver, music streaming services make it easy to either listen to your favorites or discover new music.

Multi-room Audio - MusicCast

Imagine sharing all the music you love throughout the home – no matter the format. From your favorite vinyl to AirPlay®, Bluetooth® to music streaming services and even sound from your TV, MusicCast has it covered.

Additionally, all MusicCast products are designed with sound quality at the front of mind. High-res formats including Apple Lossless (ALAC) up to 96 kHz, WAV, FLAC and AIFF up to 384 kHz are supported.

AirPlay 2

Hey Siri. Play music in the kitchen and living room.

AirPlay 2 adds the ability to stream Apple Music and other streaming services to multiple MusicCast devices throughout your home. Easily control it from your iPhone or iPad, link it with a HomePod, or simply utilize voice control and ask Siri for an assist.

eARC

Unlock the full potential of your 4K content. Enhanced Audio Return Channel (also known as eARC) is the next generation of ARC – available in the industry-leading AV receivers from Yamaha.

eARC delivers full-resolution, multi-channel audio formats such as Dolby® TrueHD and DTS-HD® through your existing HDMI connection, giving you the most realistic surround sound experience for immersing yourself in your favorite movies and moments.

Zone 2

Featuring Zone 2 compatible speaker terminals, this system can send the same (or even different) AV source playing in the main room for playback in another room. For example, if you have speakers installed in your bedroom, kitchen or patio, you can go to that other room and enjoy listening to the same or different main room content.

Phono

This AV receiver provides dedicated phono input terminals, letting you connect a turntable and enjoy music from your vinyl collection.

Yamaha RX-V6A Specs
Amplifier
Channels    7.2
Power Output per Channel    2-Channel Driven:
100 W at 8 Ohms / 20 Hz to 20 kHz / 0.06% THD
Audio Processing
DTS Compatibility    DTS-HD Master Audio, DTS:X
Dolby Compatibility    Dolby Atmos, Dolby Digital Plus, Dolby TrueHD
Auro 3D Support    No
Supported File Formats    11.2 MHz DSD, AAC, AIFF, ALAC, FLAC, MP3, WMA
DAC    384 kHz / 32-Bit (BB PCM5102A)
Video
HDR Compatibility    HDR10
Pass-Through Support    4K60p
Upscaling    4K UHD
GUI    Yes

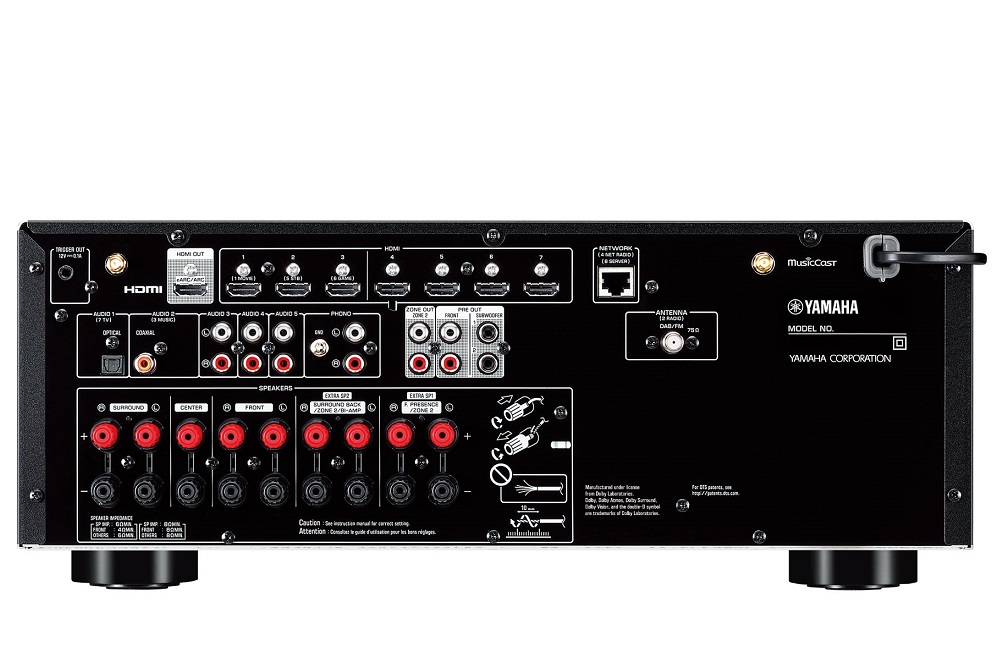

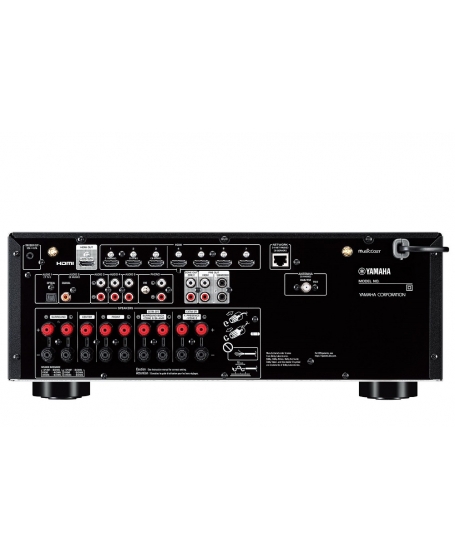

Connectivity
Rear A/V Inputs    7 x HDMI
1 x Optical TOSLINK
1 x Digital Coaxial
3 x Stereo RCA
1 x Stereo RCA (Phono) with Ground Screw
Rear A/V Outputs    1 x HDMI
2 x RCA Subwoofer Pre-Out
1 x Stereo RCA Zone 2 Pre-Out
1 x Stereo RCA Pre-Out
Front I/O    1 x 1/4" / 6.35 mm Headphone Output
1 x USB Type-A
1 x 1/8" / 3.5 mm Setup Mic Input
Other Rear I/O    1 x RJ45 (Ethernet)
2 x Bluetooth/Wi-Fi Antenna Terminal Input
1 x FM Antenna Terminal Input
1 x 1/8" / 3.5 mm (12 V Trigger) Output
Speaker Connectors    9 x Binding Post Pairs
HDCP Support    Version 2.3
Audio Return Channel (ARC)    Yes, eARC
HDMI CEC    Yes
Media Card Slot    None
A/B Speaker Selection    None
Bi-Amp Capability    Yes
Wireless Connectivity
Supported Audio Codecs    AAC, SBC
Wireless Audio Protocols    AirPlay 2, MusicCast
Control
Virtual Assistant Support    Amazon Alexa, Google Assistant
Tuner Section
Tuner Type    AM, FM
Power
Power Consumption    Standby: 0.1 W
Physical
Dimensions (W x H x D)    17.1 x 9.6 x 14.9" / 43.4 x 24.4 x 37.8 cm (Antenna Up)
17.1 x 6.8 x 14.9" / 43.4 x 17.3 x 37.8 cm (Antenna Down)
Weight    21.6 lb / 9.8 kg

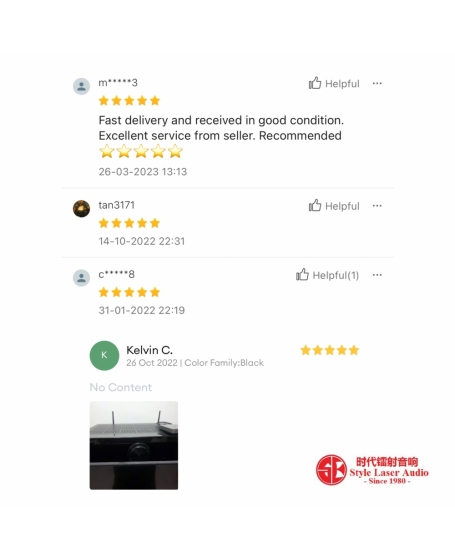

Review photo uploaded 4/8/2023-(4/2)
