Yamaha A-S2200 + Monitor Audio Gold 300 5G Hi-Fi System Package

Sale!

Ready Stock

Yamaha A-S2200 + Monitor Audio Gold 300 5G Hi-Fi System Package

SKU: Yamaha A-S2200 + Monitor Audio Gold 300 5G

~~RM 59,299.00~~ RM 56,334.05

Package Included:
Yamaha A-S2200 Integrated Amplifier
Monitor Audio Gold 300 5G Floorstanding Speaker

* Free Audioquest Rocket 11 Speaker Cable 5meter (Free cable Not included banana plugs)
* Free gift will be packed nicely in the product’s box for shipping option
* 如果需要邮寄，我们将会把赠品放进产品包装内。

Get it with 0% Credit Card Instalment Plan Up to 36 months
1) Maybank Credit Card up to 12 months ( Lazada )
2) Maybank Credit Card up to 18 months ( Shopee )
3) PBB Credit Card up to 12 months ( Shopee )
4) OCBC Credit Card up to 36 months ( SLAV )

Description
Specification

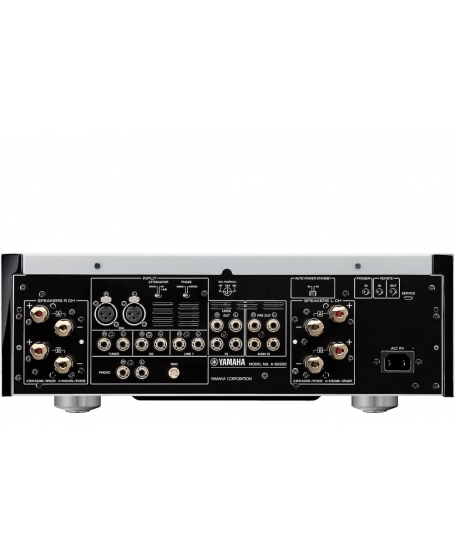

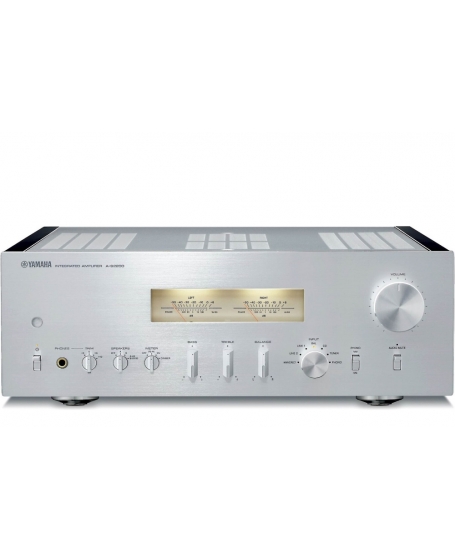

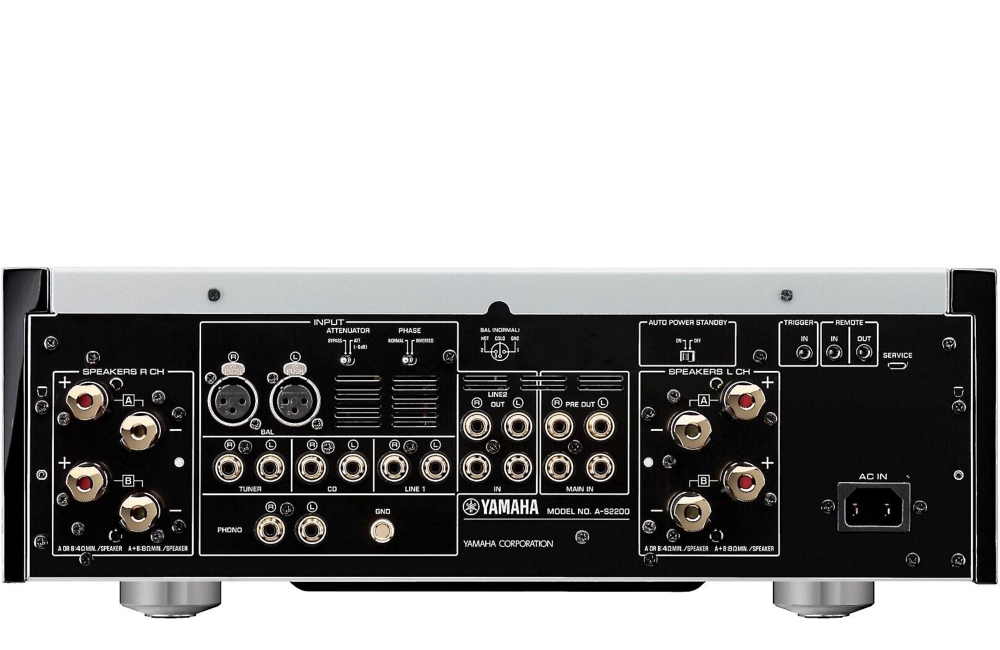

A-S2200

A performance fit for the global stage and inheriting many features from its big brother, the A-S2200 delivers an authentic, powerful yet somehow elegant and emotional Hi-Fi sound. Absolute musicality from a luxuriously beautiful instrument.

Fully balanced circuit design from input to speaker out
Large toroidal power transformer with enormous energy delivering an authentic Hi-Fi sound
Gorgeous level meters convey dynamics and music pulse with a nod to the nostalgic Hi-Fi era
Thick wires for ground connection contribute to low impedance design for a wide and open sound stage
Mechanical ground concept maximises rigidity for expressive and rhythmic bass

EMOTION

Conveying the emotional story of artists can only truly be achieved with an intimate understanding of how music is created. This understanding is embedded in Yamaha’s DNA, developed particularly through working with artists to help them create music. It’s this understanding that enables Yamaha to truly convey all the emotion ingrained in the music to the listener.

Toroidal Transformer

Toroidal power transformers, renowned for their superior performance in Hi-Fi components has been appointed to power the A-S2200. Its ability to maintain energy when compared to substitutes aids the A-S2200 in delivering all the emotional energy of the artist infused in the music.

Gorgeous Level Meters

The level meters are both a nod to the nostalgic era of Hi-Fi while simultaneously demonstrating the importance of pure Hi-Fi for today’s discerning enthusiast. Visually presenting the dynamics and pulse of the music, the level meters imbue a warm feeling through their softly illuminated LED’s.

OPENNESS

True Hi-Fi brings the artist to the fore and makes the listener forget where they are. Music listening becomes an active experience rather than a passive activity. The openness in Yamaha’s Hi-Fi range delivers this musical experience.

Thick Wires for Ground Connection by Low Impedance Concept

A naturally open sound stage is achieved through a culmination of design and component selection. Thick wires for ground connection were purposely selected, adding to the overall low impedance amplifier design, producing a wide and open sound stage for the listener. Consequently, the components disappear, leaving the artist in their place.

Original Speaker Terminals

Cut directly from pure brass, the luxurious speaker terminals effortlessly allowing tightening by the human hand achieving a highly secure connection.

GROOVE

Music is more than a story. The rhythm and groove of the music reaches the listener, consciously or subconsciously, to evoke a feeling from the story that’s within the music. Presenting the music as intended by the artist achieves this for the listener.

Mechanical Ground Concept

The Mechanical Ground Concept adopted in the A-S2200 maximises rigidity and reduces any unwanted vibration, achieving expressive and rhythmic bass. Further rigidity is achieved with the large power transformer, block capacitors and heat sink directly bolted to the chassis while the feet, with bolts directly welded to the main chassis, provide further reinforcement for absolute rigidity.

Silver Plating Brass Feet

Completing the amplifier rigidity are the heavy-duty silver-plated brass feet.

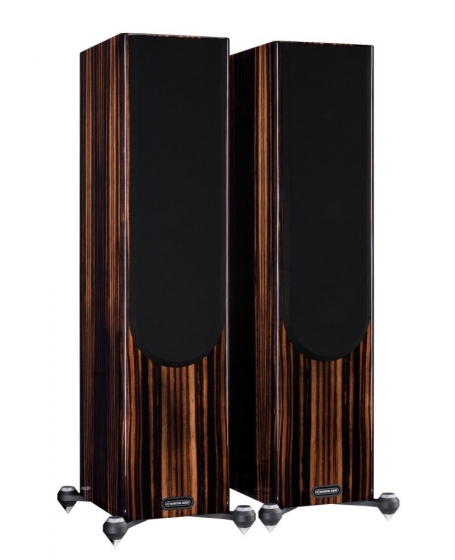

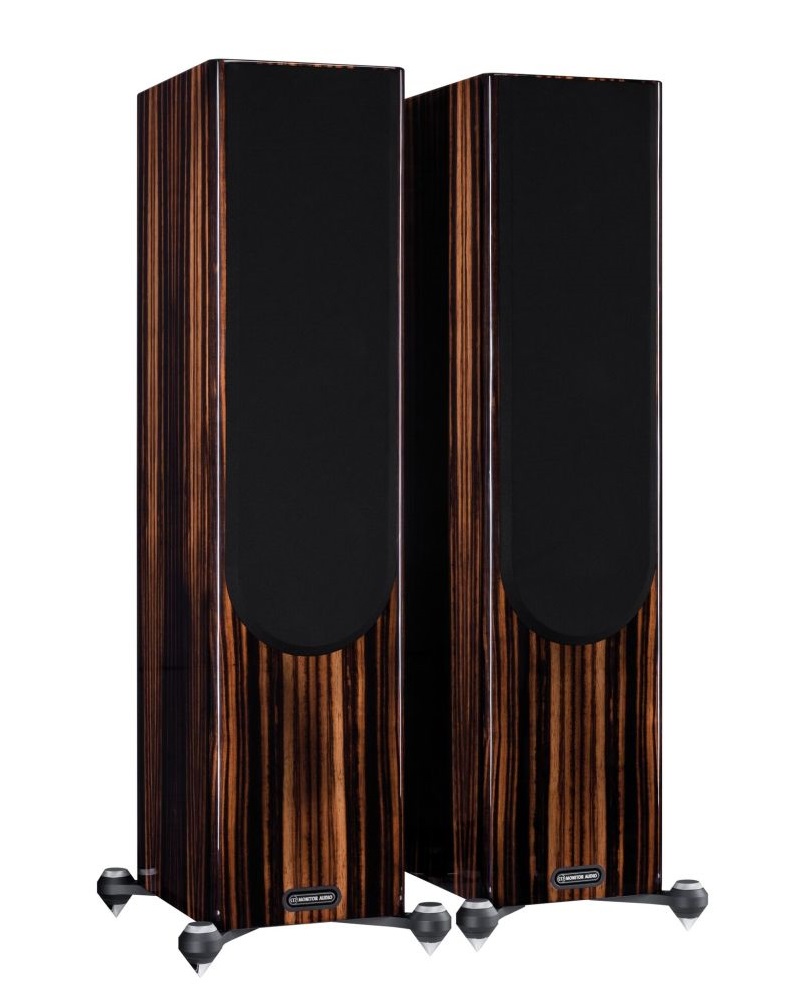

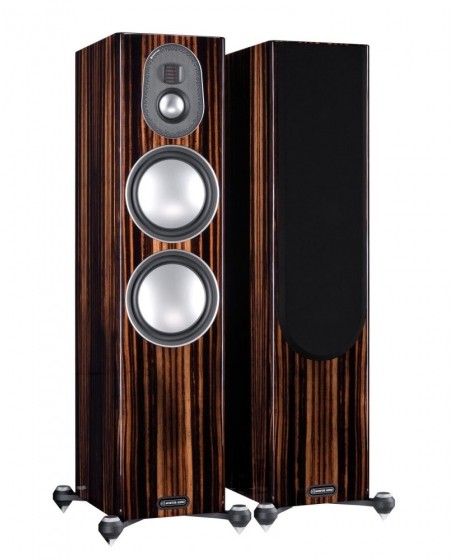

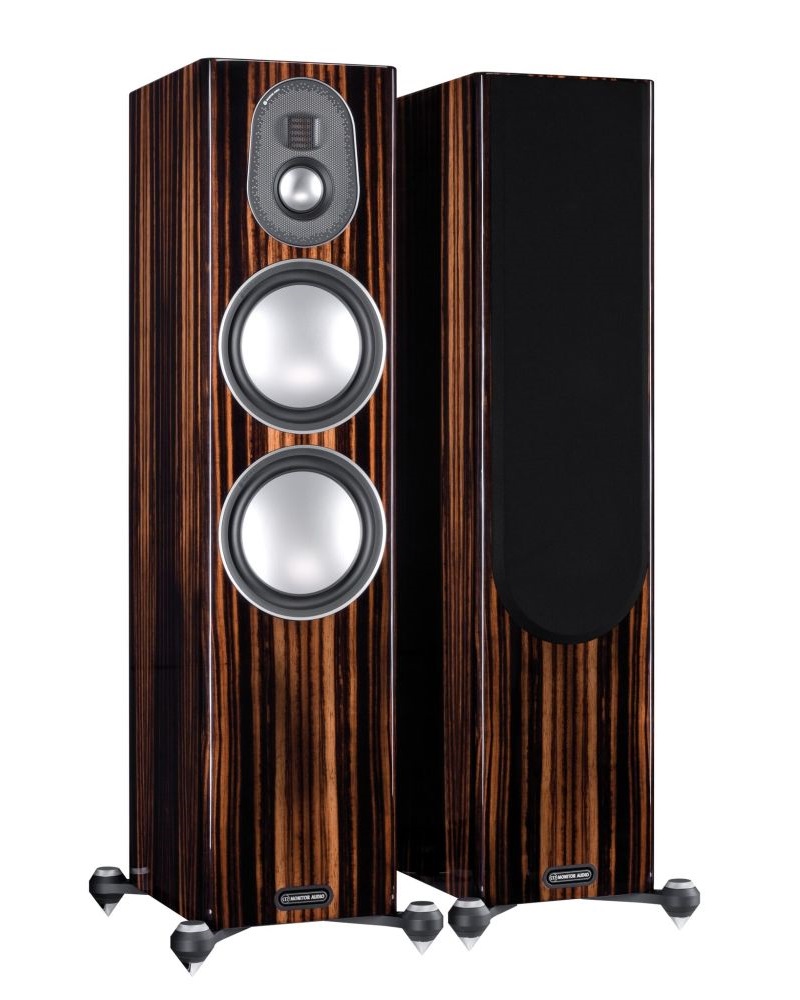

Gold 300

The Gold 300 has been engineered to deliver a true audiophile experience. Premium driver technology taken from our flagship Platinum II speakers has been melded with class-leading cabinet construction to produce a speaker designed to last a lifetime.

Gold 300 is the pinnacle of the range. Its deceptively large cabinet houses a 2½" (64 mm) C-CAM mid-range driver with a MPD high-frequency transducer above and a pair of 8" (203 mm) RDT II bass drivers below, in a true three-way arrangement.

Also featuring a pair of rear-facing HiVe II ports delivering smooth airflow and ample bass reinforcement, Gold 300 is the ideal speaker for larger rooms. Its punch and dynamism are matched only by its subtlety and fidelity – Gold 300’s effortless authority, from a crisp 50 kHz at the top end to an earth-moving 30 Hz at the bottom, makes it perfect for any and all listening requirements.

Key Features

MPD high frequency transducer – articulate, extended high frequencies, yet supremely smooth
Dual 8" bespoke bass drivers, featuring:
- – RDT II Cone technology – specially developed Sandwich cone technology using thin C-CAM, Nomex honeycomb core and woven carbon fibre back skin to return incredible stiffness, yet light and well damped
Dual HiVe II ports – improved transient response and tighter bass, due to smoother air-flow
Pureflow silver-plated OFC copper internal cabling – highest quality transfer through the signal chain
Soft touch top trim – giving a luxurious, premium quality furniture grade touch and appearance
Single-bolt-through driver technology – providing increased bracing strength, rigidity and driver/baffle de-coupling
Bespoke magnetic grilles – clean visual styling, virtually acoustically transparent
Custom-made, high-quality gold plated bi-wire terminals
Sturdy cast metal out-rigger feet with spike or rubber foot for carpet or hard flooring – provides more attractive appearance and takes up less floor space

Specification:
A-S2200
Receiver / Integrated Amplifier
Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe)    160 W + 160 W
High Dynamic Power/Channel (8/6/4/2 ohms)    105/135/190/220 W
Rated Output Power    [20 Hz-20 kHz, 0.07% THD] 90 W ＋ 90 W (8 ohms), 150 W ＋ 150 W (4 ohms)
Damping Factor    ≧ 250 (1 kHz, 8 ohms)
Frequency Response    +0 / -3 dB (5 Hz-100 kHz) , ＋0 / -0.3 dB(20 Hz-20 kHz)
RIAA Equalization Deviation    ＋/-0.5 dB (PHONO (MM/MC))
Total Harmonic Distortion (20Hz to 20kHz)    [Input 0.5 V] PHONO MC→LINE2 OUT: 0.02 % (1.2 mVrms), PHONO→LINE2 OUT: 0.005 % (1.2 Vrms), CD, etc./BAL→SP OUT: 0.035 % (50 W/8 ohms）
Signal-to-Noise Ratio    PHONO MC: 90 db, PHONO MM: 96 dB, CD, etc.: 110 dB, BAL: 114 dB
Input Sensitivity    [1 kHz, 100 W/8 ohms] PHONO MC: 150 uVrms/50 ohms, PHONO MM: 3.5 mVrms/47 kohms, CD, etc.: 200 mVrms/47 kohms, MAIN IN: 1 Vrms/47 kohms, BAL: 200 mVrms/100 kohms
Transformer    625VA (Toroidal)
Dimensions (W x H x D)    435×157×463 mm; 17-1/8" x 6-1/8" x 18-1/4"
Weight    22.7 kg; 50.0 lbs

Monitor Audio Gold 300 5G
System Format
3-way

Frequency Response (-6 dB)
30 Hz – 50 kHz

Sensitivity (1W@1M)
90 dB

Nominal Impedance
4 Ohms

Minimum Impedance
3.5 Ohms @ 1 kHz

Maximum SPL
117 dBA (Pair)

Power Handling (RMS)
250 W

Recommended Amplifier Requirements
100 – 250 W

Bass Alignment
Bass Reflex
Dual HiVe II port system

Crossover Frequency
L.F/ M.F: 650 Hz
M.F/ H.F: 3 kHz

Drive Unit Complement
2 x 8" RDT II long-throw bass driver
1 x 21/2" C-CAM mid-range driver
1 x MPD high-frequency transducer

External Dimensions (Including Grille and Terminals (H x W x D))
1000 x 240 x 360.6 mm (393/8 x 97/16 x 143/16")
