TEAC HA-P50 Portable Headphone Amplifier with USB DAC (Opened Box New)

HA-P50

High quality, portable headphone amplifier with built-in 24/96 USB DAC, providing high-resolution 'go anywhere' listening from iPhone, Android and PC/Mac

The enjoyed headphone environment of "Reference 501" can be brought outside. The perfect headphone amplifier for headphone users of such mobile faction is the "HA-P0".

High affinity with the mobile terminal with an attractive portable amplifier

Convert audio files that you have saved, for example, on iOS devices and Android devices with a high-performance D/A converter. it realizes a high-quality headphones output thanks to the push-pull circuit configuration, a distortion of 0.001% (32Ω load, 100mW + 100mW when output). In the pursuit of the high-quality sound that would not compromise even for mobile environments, we have launched to the full extent the know-how of cultivated best quality of sound in "HA-501".

A high-resolution reproduction application for iOS, the "TEAC HR Audio Player for iOS"

If you use the iOS device app TEAC HR Player for iOS (free download), just by connecting directly from the iPhone you can reproduce a 96kH/24bit high-resolution sound source. In addition to the high 160mW + 160mW output (at 32Ω load), it is equipped with a HIGH/LOW 2 stages of a gain selector, to match the impedance of the headphones to be used, you can switch the output gain.

Compatible with a digital connection and optical digital input of PC, As well as analog input!

Supports USB audio input from PC and optical digital input and analog LINE inputs, connected to portable audio devices with no digital output, enables high-quality headphone listening. With a compact body measures just 21.7mm thick, ideal for mobile environments where toughness, small size, and lightness are essential. Designed from the outset for mobile use. The HA-P50 has a USB charging system built-in Li-ion battery allowing a maximum of 8 hours of continuous battery life.

"HA-P50" is a DAC mounted headphone amplifier with which you can enjoy a pure headphone listening even at a high volume.

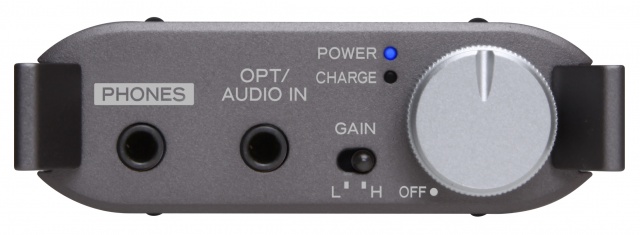

Headphone output
Connector    3.5mm (1/8") stereo mini jack
Effective maximum output    160mW+160mW(32Ω, 1KHz, 10%, JEITA)
65mW+65mW(300Ω, 1KHz, 10%, JEITA)
35mW+35mW(600Ω, 1KHz, 10%, JEITA)
Compatible impedance    8Ω to 600Ω
Analog audio input
Connector    3.5mm (1/8") stereo mini jack (combination optical digital input; automatic detection)
Digital audio inputs
USB 1
Connector    USB Micro B-type(USB2.0)
Compatible product    PCs (Windows, Macintosh) with the compatible product TEAC HR Audio Player installed
Compatible Formats(PCM)    96kHz/24bit
USB 2
Connector    USB A-type, (USB2.0)
Compatible products    iPhone 5s, iPhone 5c, iPhone 5,
iPad Air, iPad (4th generation) iPad mini with Retina display,
iPad mini. iPod touch (5th generation),
iPod nano (7th generation),
Android (AOA2.0 compatible Android phone handset)
Compatible Formats
iOS    96kHz/24bit (when using TEAC HR Audio Player for iOS)
Android    44.1kHz/16bit (AOA2.0 compatible Android phone handset)
OPTICAL
Connector    optical mini-jack (combination AUDIO IN port; automatic signal detection)
DAC Section
D/A converter    BurrBrown PCM5102
Battery    Built-in rechargeable Li-ion battery
Battery capacity    2,100mAh
Recharging method    USB (via USB-A DC recharging cable)
Continuous battery life    Approximately 8 hours (when using digital input)
Dimensions    64(W)×21.7(H)×112(D)mm (excluding protruding guards)
2.5"(W)×0.85"(H)×4.4"(D) (excluding protruding guards)
Weight    210g / 7.4oz
Included accessories    Electric recharging cable included (DC plug – USB A plug) Computer connection cable (USB micro B plug – USB A plug) Rubber fixing straps for fastening×2


Audio Performance
Frequency response    10Hz to 100kHz(when using AUDIO IN input)
Overall distortion    0.001%(32Ω, 1kHz, 100mW + 100mW, JEITA)
