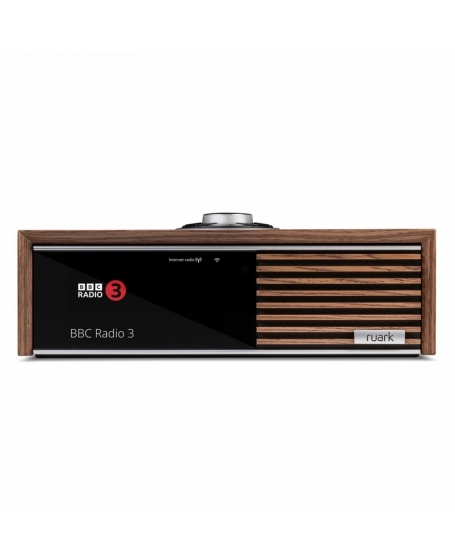

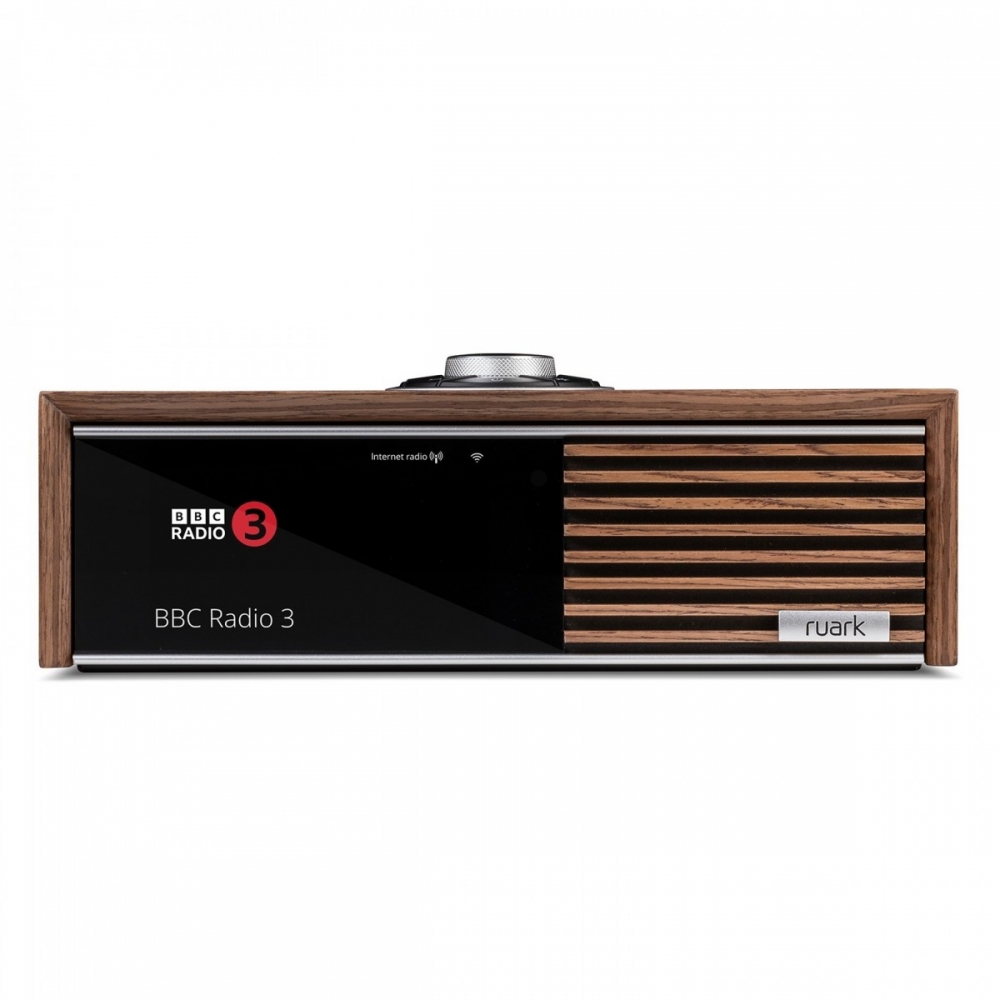

R610 Music Console

The Stereo Music Centres of the 1970s started the hi-fi revolution and our new R610 Music Console brings this highly popular concept back and completely up to date. With comprehensive connection and streaming capabilities, R610 has been designed and crafted for sound, to get people back to the joy of music.

• Apple AirPlay and Google Cast
• Spotify Connect, TIDAL Connect and Qobuz Connect built-in
• Apple Music, BBC Sounds, Deezer and more
• Hi-Res music file support up to 32-bit 192kHz
• Internet/DAB/DAB+ and FM tuners
• HDMI ARC/eARC connection

Designed to perform

R610 Music Console delivers aesthetic appeal seldom seen among hi-fi components and this same devotion to detail is matched within. Powering R610 is a modern switch mode power supply, providing optimised powerlines to the system’s motherboard and latest generation digital amplifiers. With Burr-Brown DACs and audio grade components used throughout and a nominal output of 75 watts per channel, R610 is controlled and dynamic – but most importantly, it delivers a delightfully natural sound that makes music thoroughly enjoyable.

You’re in control

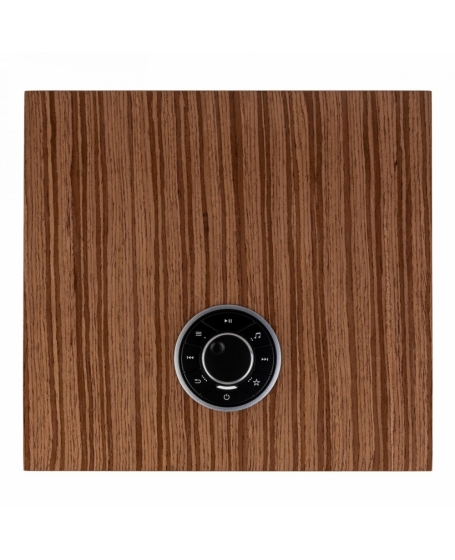

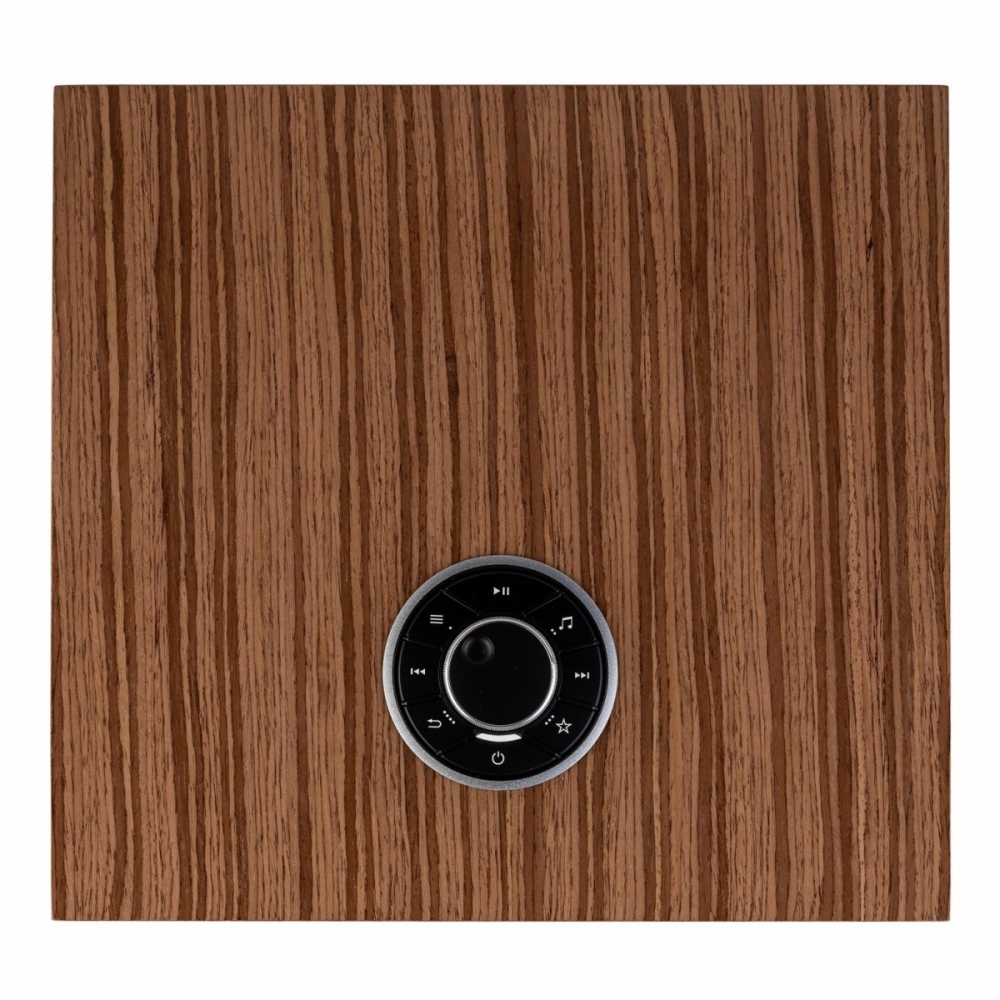

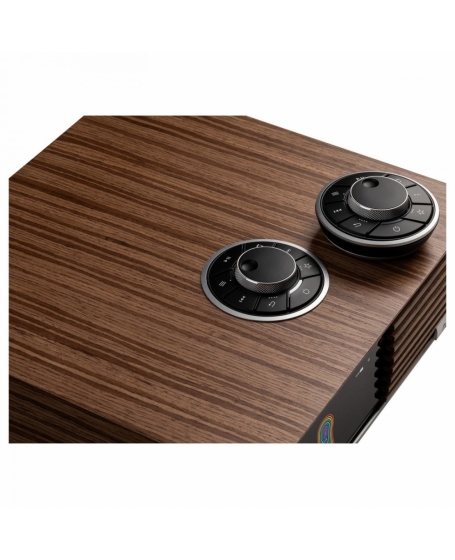

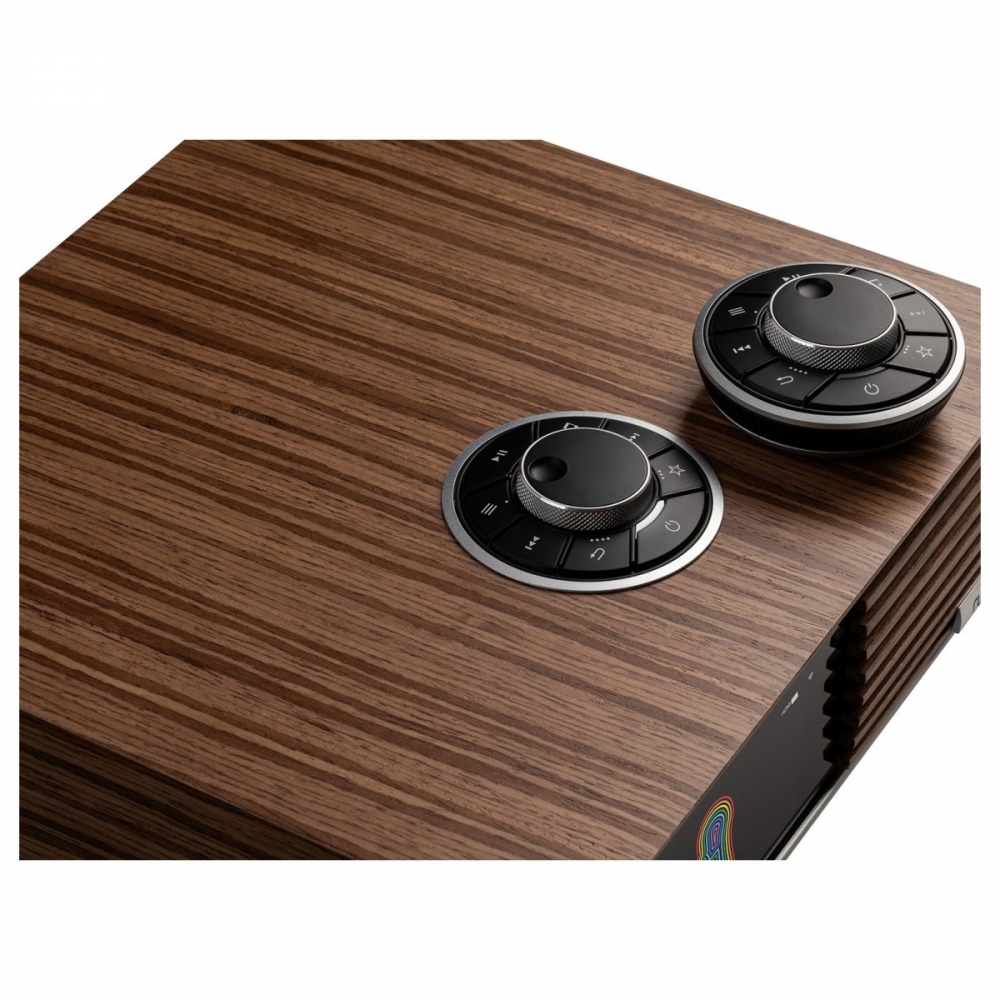

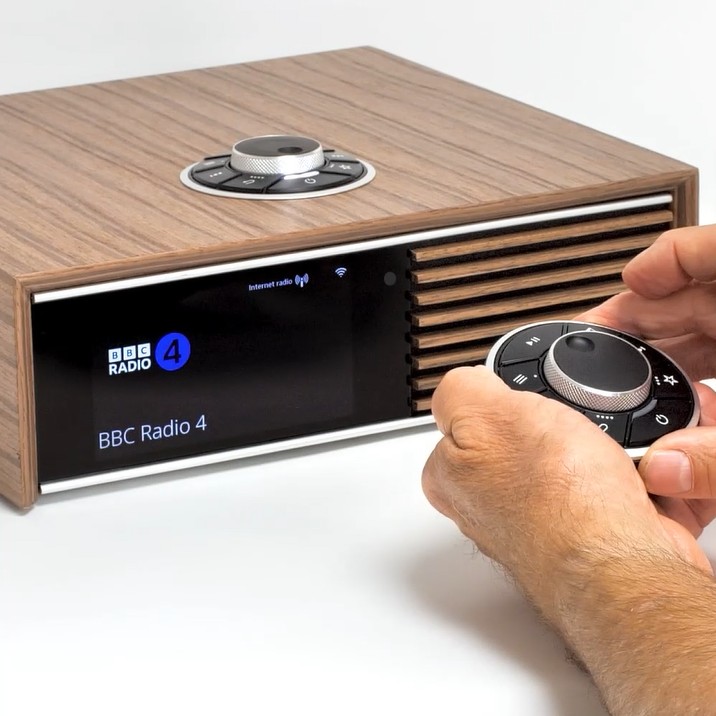

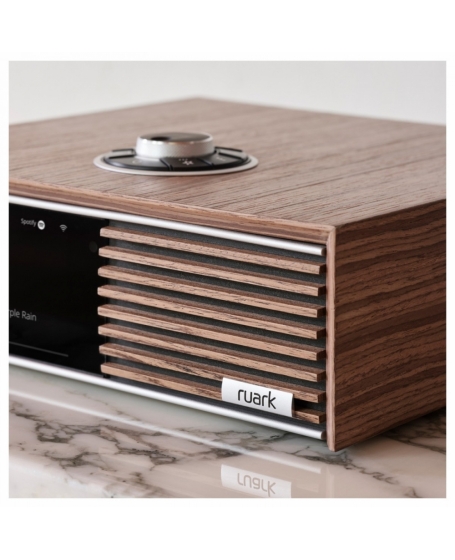

Our RotoDial controller has been a distinctive part of our products since 2006. For 100 Series we have refined its design further and with tactile soft touch buttons and a precisely weighted control dial, it makes operating R610 a delight. Enhancing the operating experience is the crisp 5" TFT display which confirms every command, as well as showing album and station artwork in perfect clarity. Also included is a matching rechargeable remote. Bluetooth connectivity means that aiming is not required, so you can relax and fully control R610 from afar.

Divine connection

R610 provides all the connectivity you are ever likely to need, and with its powerful CPU it can process the highest quality audio streams. With Internet Radio, Spotify Connect, TIDAL Connect, Qobuz Connect, Apple AirPlay and Google Cast all built in, a world of music awaits to be discovered.

R610 also makes it easy to rediscover treasured physical music formats. A quality phono stage makes it simple to connect a turntable, while for CD playback we have our own compact disc player called R-CD100 which integrates seamlessly with R610 via the USB-C connector on the rear. Last but not least, R610’s HDMI ARC/eARC connection provides a great sound solution for those seeking a system that also elevates TV and film enjoyment to a new level.

Also included with R610 are a pair of premium quality speaker cables, so you have everything you need to connect and to start enjoying sound as it should be.

Specifications
Audio
Frequency response (typical in-room)
22Hz-22kHz +0/-3dB
Amplifier
2 × 75W nominal Class D
Enhancements
Adjustable bass, treble and subwoofer (-6dB to +6dB),
Switchable Loudness EQ,
Switchable Stereo+
Digital to Analogue Converter (DAC)
Burr-Brown 32-bit 192kHz
Analogue to Digital Converter (ADC)
Burr-Brown 32-bit 192kHz
Features
Adjustable input levels
Line in, phono, HDMI and optical
Alarms
8 × daily, weekdays, weekends and custom (coming via an over-the-air update early in 2026)
Auto standby
Adjustable power saving mode
Daylight Saving Time (DST)
Automatic
Display
High-contrast 5" colour TFT with auto dimming
Presets
20 global presets
Remote control
Rechargeable wireless remote
Snooze function
Yes
Software updates
Over-the-air, LAN and USB
User interface languages
EN, DA, DE, ES, EL, FR, IT, JP, KO, NL, NO, PL, TR, ZH

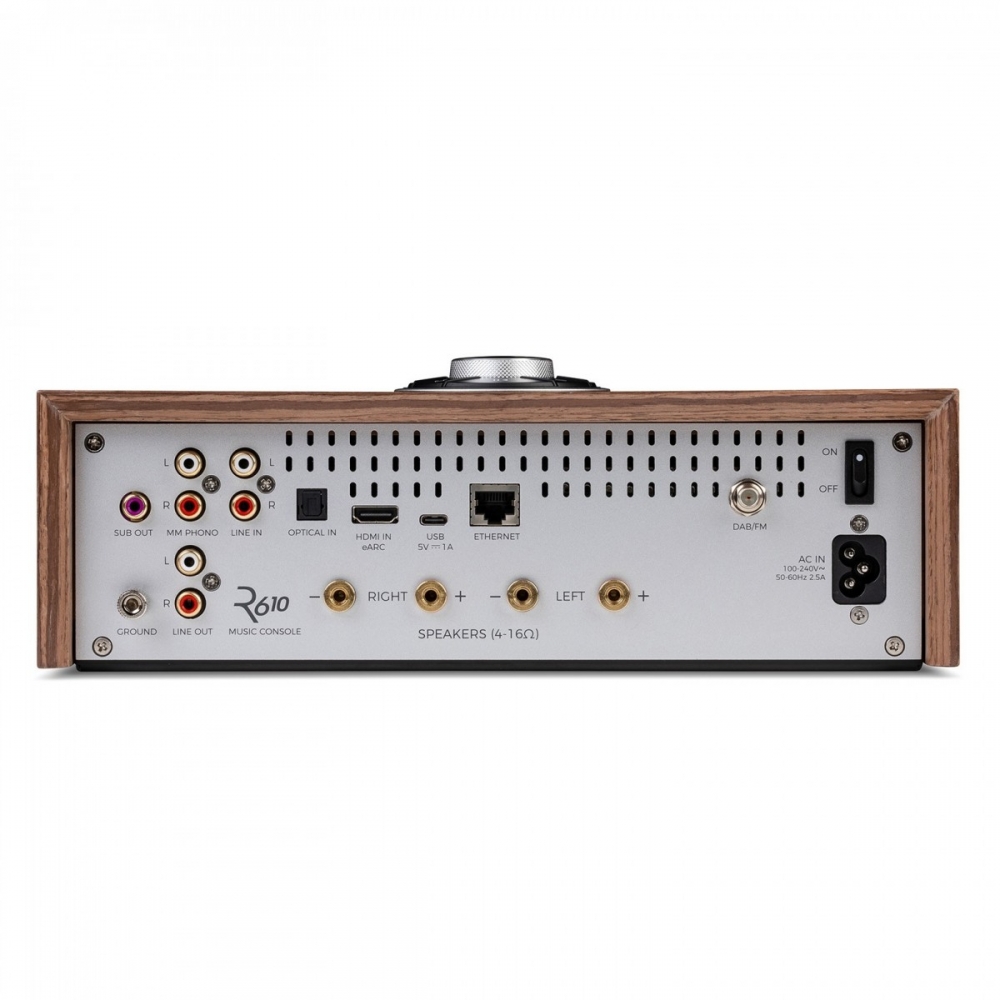

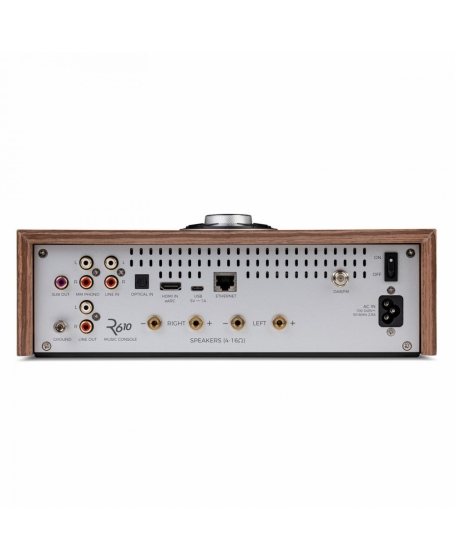

Connectivity
Aerial connector
75Ω F-type connector
Apple AirPlay 2
Yes
Google Cast
Yes
Bluetooth (version & codecs)
V5.1, aptX HD, SBC, AAC
Bluetooth headphone support
Yes (coming via an over-the-air update early in 2026)
Built-in music streaming services
Spotify Connect, TIDAL Connect and Qobuz Connect
CD player
CD playback via optional R-CD100 CD Player
UPnP™ DLNA media server compatible
Yes
Ethernet
RJ45 connector 10/100 Mbps
HDMI input
ARC and eARC
Line in
Stereo RCA input (up to 2.3Vrms)
Line output
Selectable Line-out/Pre-out, via RCA connectors
Turntable input
RCA input with MM phono stage with adjustable gain (2-7mv)
Multiroom capable
Yes with Apple AirPlay 2 and Google Cast
Optical input
Up to 24-bit 96kHz PCM
Radio
Internet Radio, DAB/DAB+, FM with RDS (Multi region 76.0-108MHz)
Subwoofer output
Mono RCA 2.0Vrms
USB-C port
USB 2.0, FAT, FAT32, exFAT, NTFS, ext2/3/4, 5V, 5W max,
charging and multi-format audio file playback
Wi-Fi
802.11 a/b/g/n/ac/ax, WPS2, WEP, WPA, WPA2
Supported audio formats
MP3 up to 48kHz 320kbps,
AAC up to 96kHz 320kbps,
FLAC, AIFF, ALAC and WAV up to 32-bit 192kHz
General specifications
Standard finishes
Fused Walnut cabinet with Fused Walnut facia,
Charcoal Lacquer cabinet with Fused Walnut facia
Product dimensions (cabinet)
H95 × W300 × D280mm
Product dimensions (max – inc. feet, controls and cables etc.)
H105 × W300 × D315mm
Product weight
4.3kg
Product power input
90-240VAC 50-60Hz 2.5A
Power inlet connector
IEC C8 cloverleaf AC socket
Power consumption
2W standby 10W typical
In the box
R610
2m AC power cable (IEC C5 cloverleaf)
Quick Start Guide
Telescopic aerial and spanner
Rechargeable wireless remote
2 × 3m oxygen-free copper 400-strand speaker cables
Carton
Carton dimensions
H225 × W375 × D365mm
Packaged weight
6.6kg
