Rotel CD11MKII

CD PLAYER

The CD11MKII CD Player furthers Rotel’s 30+ year legacy of delivering high performance, high value CD players. The player’s heavy steel chassis supports a proprietary Rotel disc transport exclusively for the playback of compact discs. The CD 11MKII’s smooth, tray-loading mechanism, precise laser pickup and silent running motor controller ensures seamless, worry-free playback of your CD collection.

The CD11MKII CD Player furthers Rotel’s 30+ year legacy of delivering high performance, high value CD players.

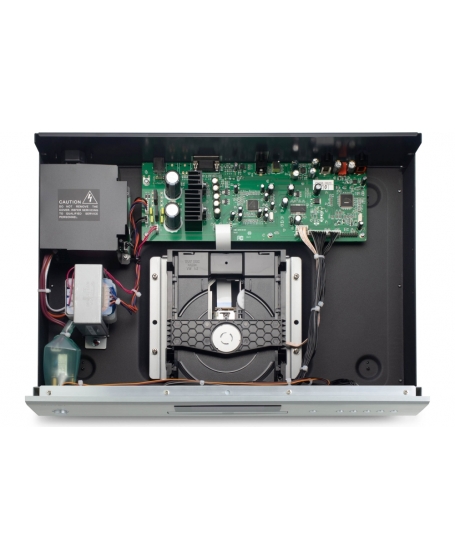

The player’s heavy steel chassis supports a proprietary Rotel disc transport exclusively for the playback of compact discs. The CD11MKII’s smooth, tray-loading mechanism, precise laser pickup and silent running motor controller ensures seamless, worry-free playback of your CD collection.

Digital to Analog conversion is handled by a premium Texas Instruments PCM5102A 32-bit/384kHz DAC feeding custom-tuned digital low pass filter circuits. This sound-first design renders music on a large, open sound stage with exceptional details, precision, and finesse.

A linear power supply provides isolated outputs to the CD motor control circuit and critical audio circuits reducing noise and distortion presenting even the smallest of details from your CD collection.

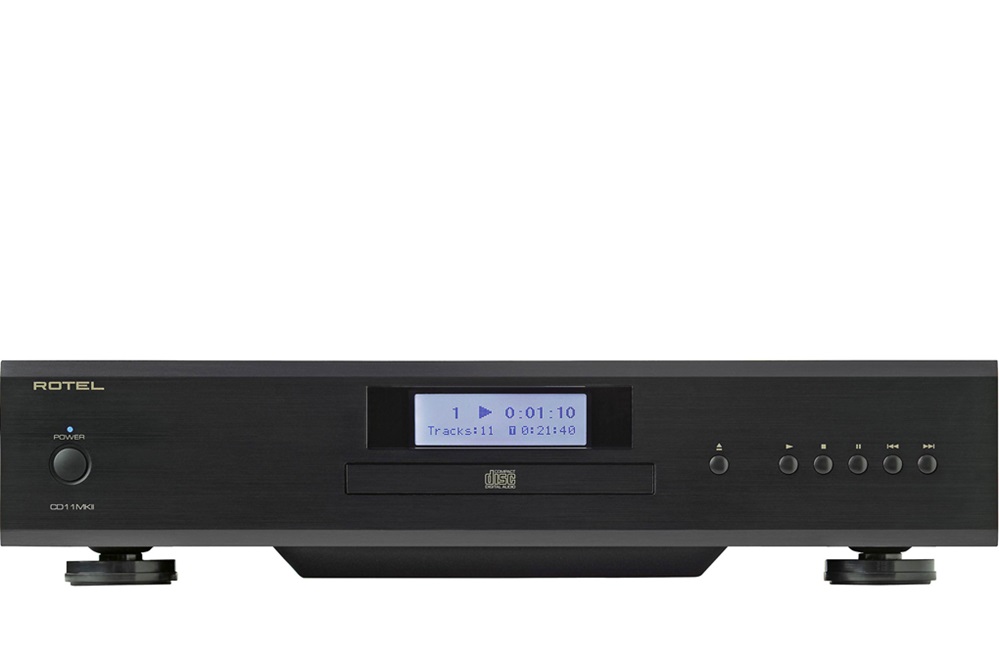

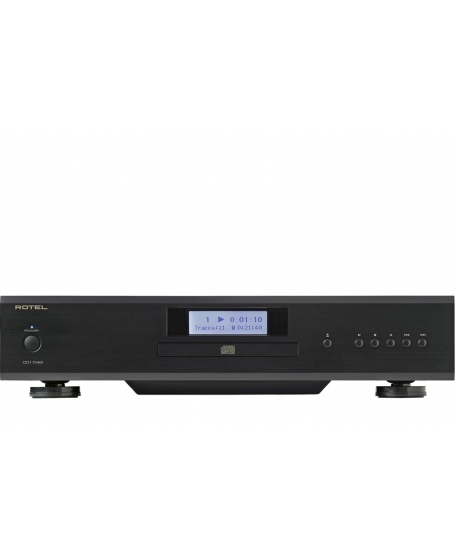

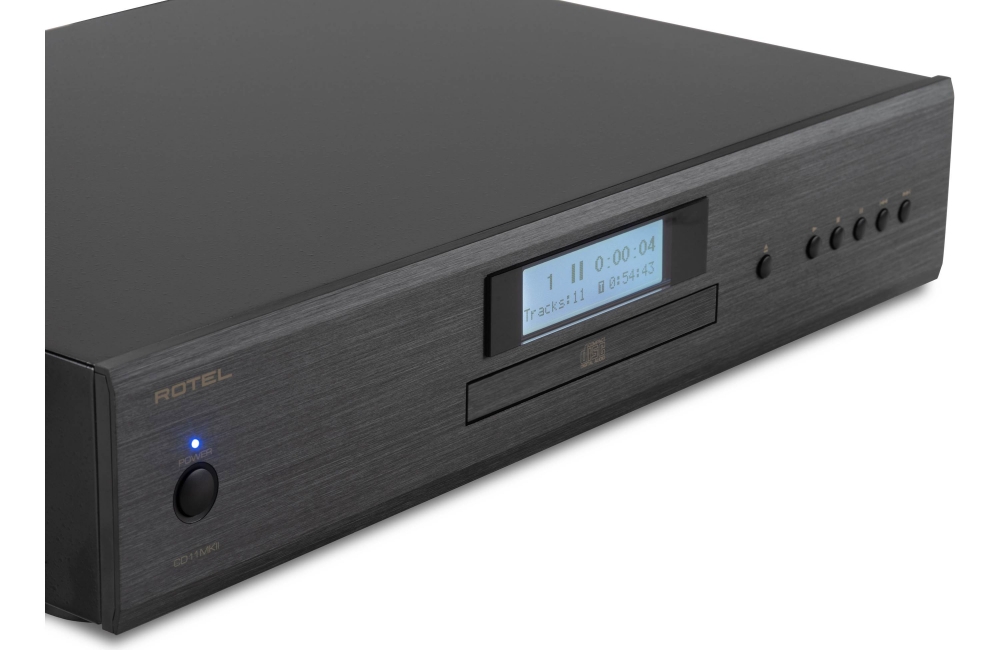

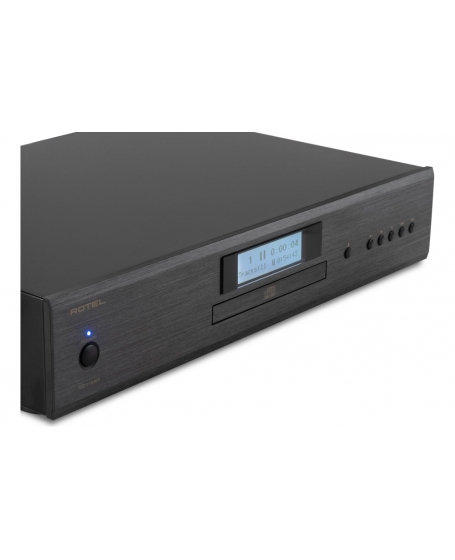

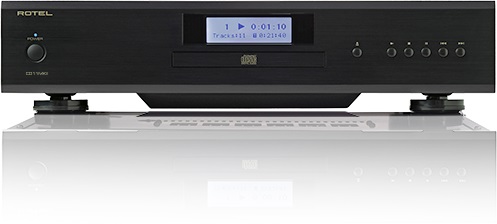

Intuitive CD control functions on the front panel and included remote control ensure simple operation. The front panel graphic display shows playback status and disc meta data information including the title and artist.

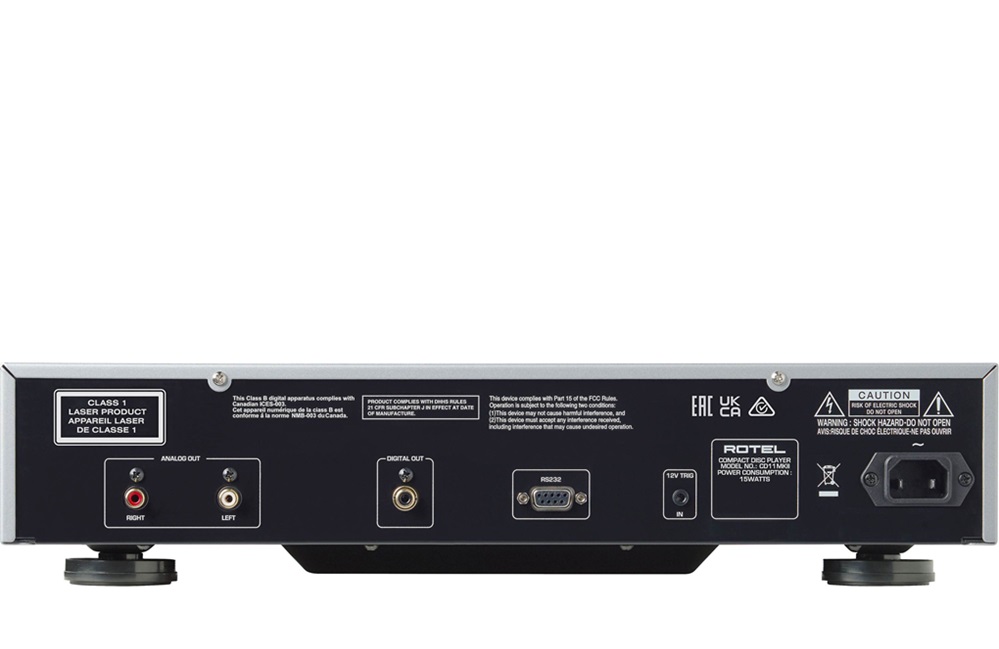

The digital coaxial output allows the CD11MKII to be utilized as a Disc Transport. A rear panel 12V trigger input and RS232 connector allows seamless integration into even the most complex systems.

TOTAL HARMONIC DISTORTION + NOISE
0.009% @ 1kHz

FREQUENCY RESPONSE
20Hz - 20kHz ±0.5dB

S/N RATIO (IHF "A" Weighted)
>125dB

DYNAMIC RANGE
>99dB

DIGITAL TO ANALOG CONVERTERS
Texas Instruments

CHANNEL BALANCE
±0.5dB

CHANNEL SEPARATION
>115dB @ 10kHz

DIMENSIONS (W × H × D)
430 × 98 × 314mm
17" × 3.8" × 12.4"

FRONT PANEL HEIGHT
80mm (3.15")

POWER REQUIREMENTS
230V, 50Hz

POWER CONSUMPTION
15W

STANDBY POWER CONSUMPTION
<0.5W

NET WEIGHT
6.2kg (13.7lbs.)

BTU RATING
40 BTU/h

INTERMODULATION DISTORTION
0.009% @ 1k Hz

PHASE LINEARITY
± 0.5 degree

ANALOG OUTPUT IMPEDANCE
470Ω

DIGITAL OUTPUT
0.5 V, Peak to Peak

LOAD IMPEDANCE
75Ω
