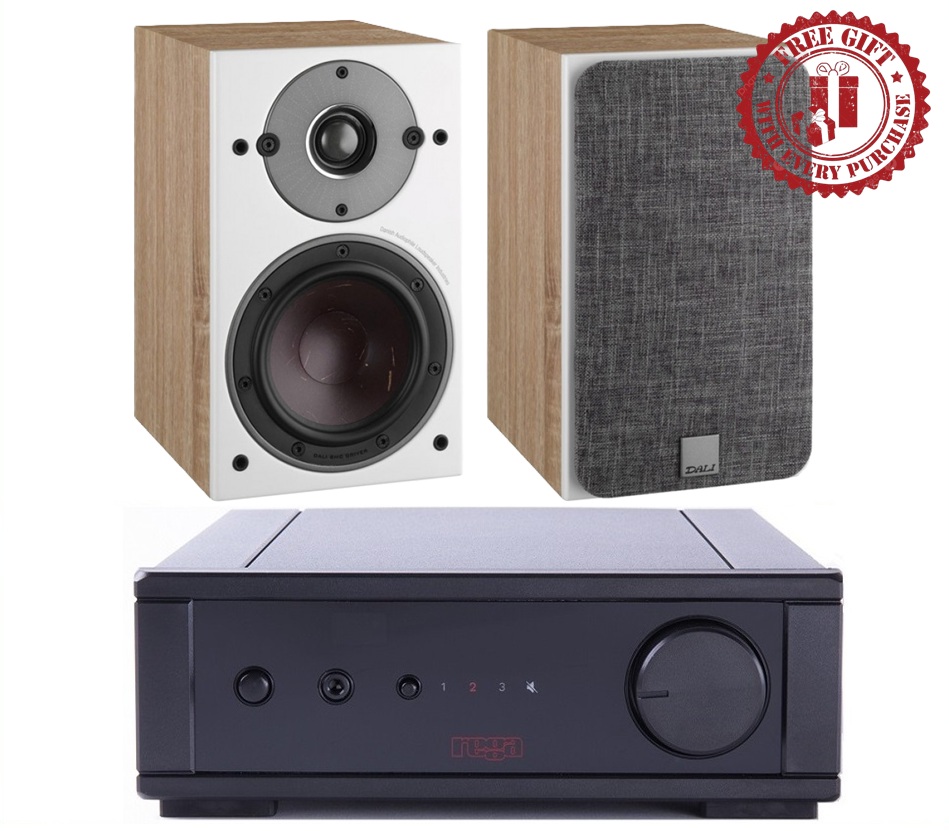

Rega io + Dali Oberon 1 Hi-Fi System Package TOOS

Rega io + Dali Oberon 1 Hi-Fi System Package

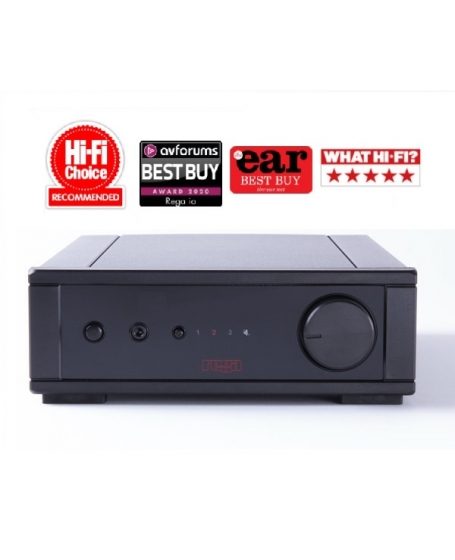

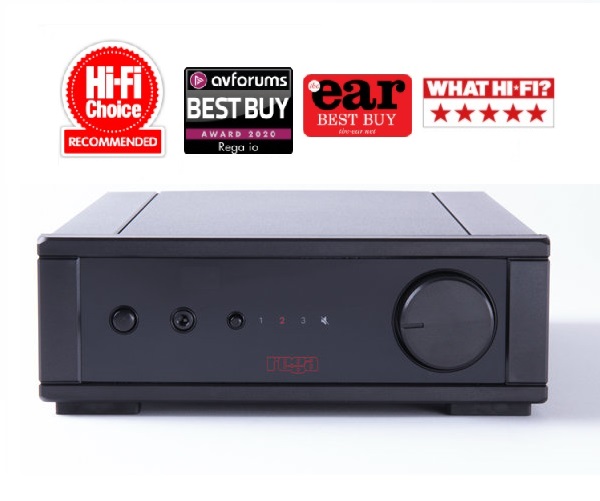

Rega io

The io has been designed to offer exceptional Rega performance at an affordable price point. It uses the same amplifier stage as the multi-award winning Brio now designed to run at 30 W per channel into 8 Ω. The io features two line level inputs, a high specification Rega moving magnet phono stage, and a dedicated high quality headphone output. The io will integrate seamlessly into any home audio system whilst remaining simple to use and easy to set up. A must for demonstration.

KEY FEATURES

• Integrated phono stage
• Headphone socket
• Mini remote control
• All new custom designed chasis

Because music matters

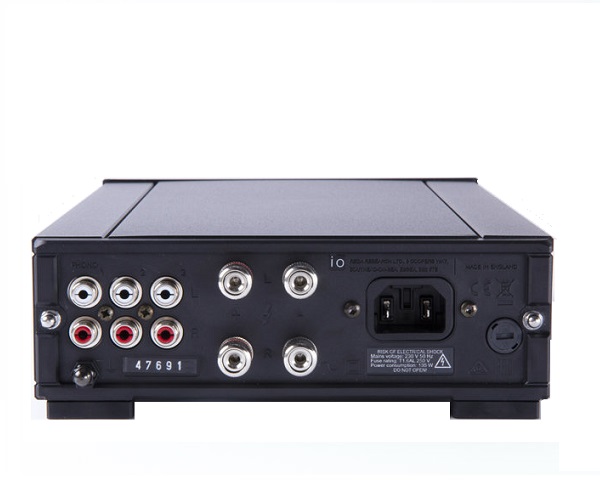

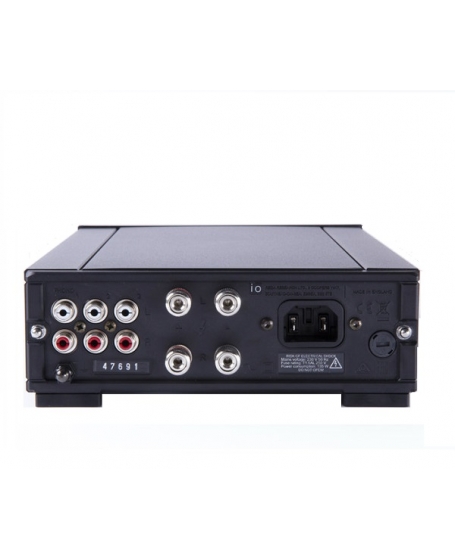

The io uses the same power amplifier and phono stage as its larger brother, the multi-award winning Brio. The io aims to deliver exceptional sound quality in a smaller and more cost effective package. The class A/B circuit shares its DNA with the rest of Rega’s amplifiers, and as usual, great care has been taken in component selection. Sanken output transistors and an Alps volume potentiometer and a linear power supply that enables an output of 30 watts per channel into 8 Ω. Two line level inputs and a high quality moving magnet phono input are available as sources. There is a headphone output provided on the front of the unit for powering standard hi-fi headphones; this is driven from the power amplifier stage of the unit through relays to avoid signal degradation when headphones are inserted or the product is muted. A new redesigned mini remote handset is included.

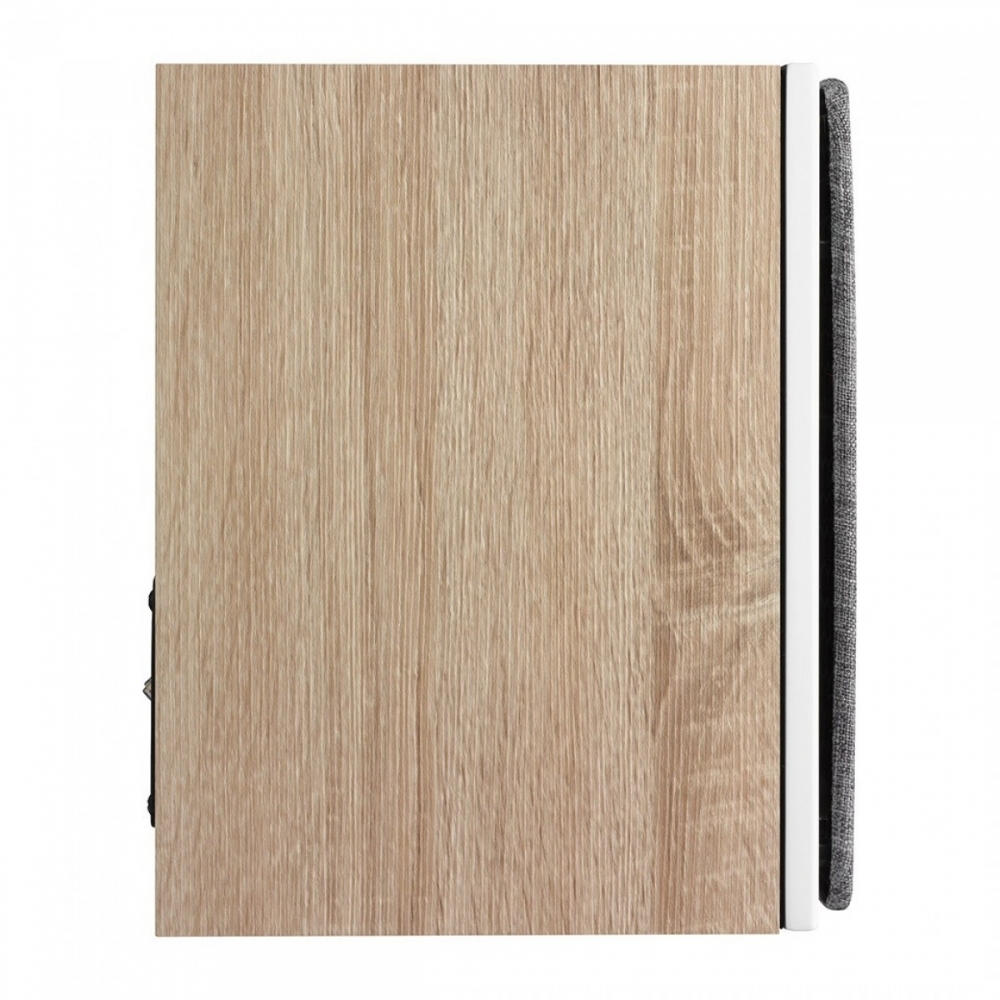

DALI OBERON 1

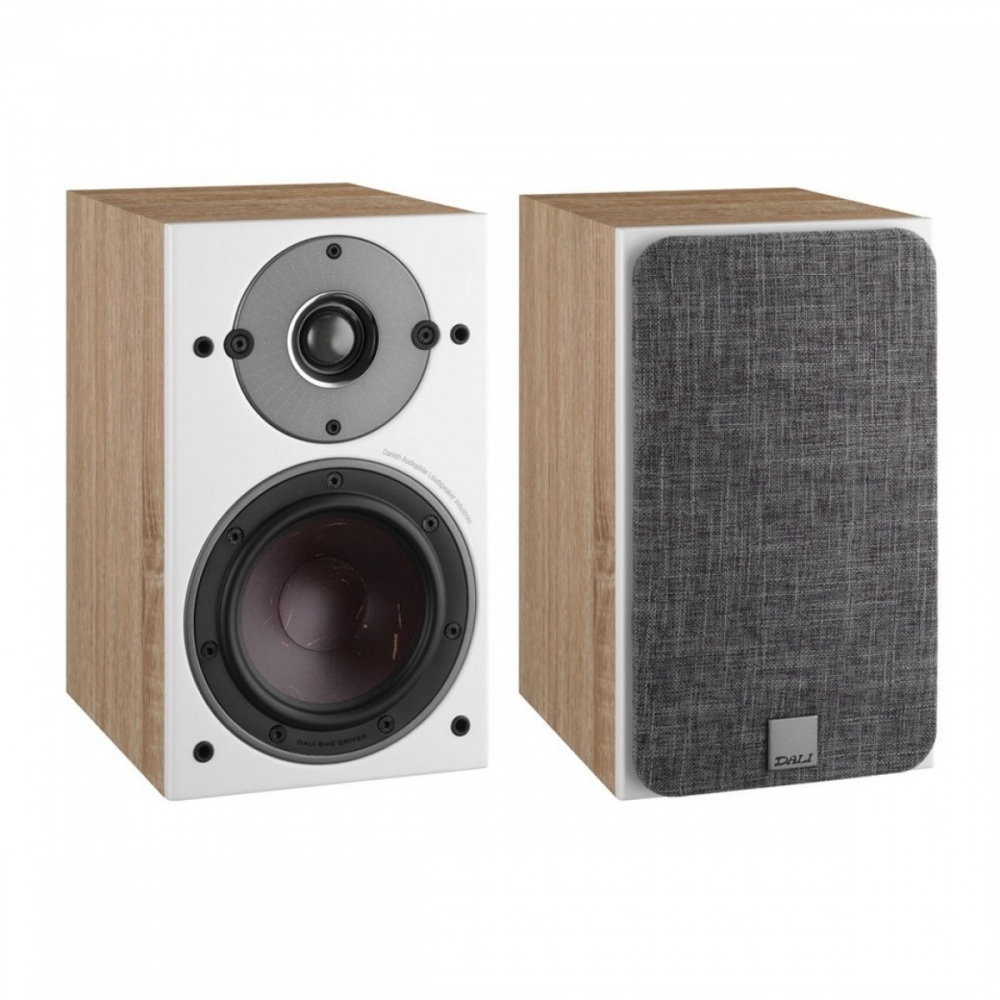

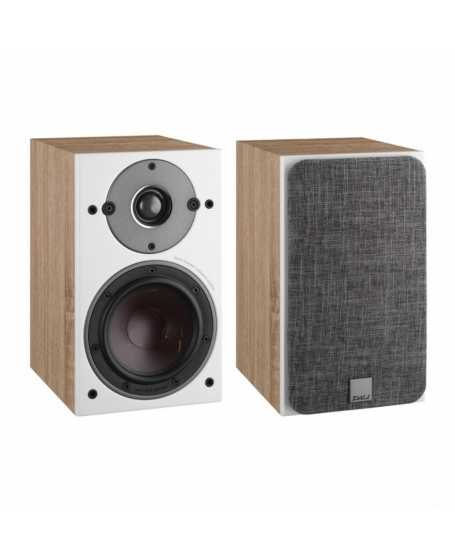

The DALI OBERON 1 is a ultra compact bookshelf speaker. The cabinet size enables an optimal balance between inner volume for bass performance and a compact appearance for easy integration - suited for smaller rooms, discreet audio setups or wall mounting. It features the same oversized 29 mm ultra-lightweight soft dome tweeter as its floor-standing siblings, and a SMC based 5.25" wood fibre woofer to handle lower midrange and bass. The OBERON 1 is based on the most innovative DALI ideas, traditions and inventions - united in a sleek compact design.

EASY TO POSITION

The driver materials, crossover design and geometry applied in the OBERON series has been selected to achieve a wide dispersion pattern. This ensures a well-integrated sound, even when listening at a significant off-axis angle. An added benefit is seriously reduced harmonic distortion and diffractions causing frequency distortion. This is why all DALI speakers are not designed to be toed-in.

CONTEMPORARY DESIGN

The rounded edges and rustic fabric of these new DALI front grilles add a lighter and more contemporary visual look to the OBERON series. This look is enhanced by the elegantly shaped aluminium base mounted on the two floor-standing models.

WOOD FIBRE CONE

The OBERON woofer features a wood fibre cone with a blend of fine grain paper pulp, reinforced with wood fibres, which creates a stiff, light-weight and well-behaving structure. In combination with a low-loss surround and spider suspension, this cone reproduces the micro details in the signal - unfiltered and with high accuracy.

PATENTED SMC

The iron pole piece of the OBERON woofer magnet is crowned by a patented SMC disk - minimizing the negative effects of the iron. The use of the SMC disk greatly reduces mechanical distortion, which lowers third order distortion. This allows for a longer listening pleasure, a relaxed midrange and a surprising amount of detail for its price class.

PRODUCT DETAILS

Given its ultra-compact size, the OBERON 1 is the smallest addition to the OBERON line-up. The cabinet size enables an optimal balance between inner volume optimised for bass performance, and a compact cabinet design suited for smaller rooms, discreet audio setups or wall mounting.

Like its larger siblings, the OBERON 1 makes use of the oversized 29 mm ultra light-weight soft dome tweeter to handle the highs and detailed mids, while the SMC based 5.25" wood fibre woofer renders the lower midrange and well-timed bass. With the launch of the DALI OBERON loudspeaker series, we have picked the best elements from our current speakers and brought them together in a series that delivers on audio quality, looks and versatility.

The compactness of the OBERON 1 makes it easy to integrate into any room. To achieve a wide dispersion pattern in the listening area, the driver materials and geometry applied in the OBERON 1 have been carefully selected. The same principles have been applied in the design of the crossover.

As result, you will experience a well-integrated sound, even when listening at a significant off-axis angle. This is important as you are rarely seated directly in front of your loudspeakers when listening to music. An added benefit is seriously reduced harmonic distortion and diffractions causing frequency distortion, as these will always be stronger in an on-axis response. This is also the reason why all DALI speakers are not designed to be toed-in.

Rega io
Technical Specification
Power outputs at 230/115 V supply voltage
30 W RMS both channels driven into the rated load of 8 Ω

Input 1 (Phono) input sensitivity 2.1 mV @ 47 kΩ in parallel with 220 pF
Maximum input 1 (Phono) input level 100 mV
Input 2-3 (Line) input sensitivity 210 mV @ 47 kΩ
Maximum input 2-3 (Line) input level 10.25 V

Headphone output
No load 8 V
32 Ω 1.6 V
54 Ω 2.4 V
300 Ω 5.7 V
Source impedance: 109 Ω

Power consumption
135 W @ 230 V / 220 V / 115 V / 100 V into the rated load of 8 Ω

Frequency response
Phono: 15 Hz to 40 kHz (-3 dB points) / 27 Hz to 20.5 kHz (-1 dB points)

RIAA accuracy: (100Hz to 10 kHz) ±0.4 dB typically better than ±0.3 dB

Line: 12 Hz (-1 dB points) to 43 kHz (-3 dB points)

Remote control
Batteries included –2 x AAA Alkaline.

Fuse ratings
T1.6 AL 250 V: 230 V / 50Hz and 220 V / 60 Hz
T3.15 AL 250 V: 115 V / 60 Hz and 100 V / 50/60 Hz

Weight
2.9Kg

Dimensions (W x D x H) in mm
180 x 290 x 68

DALI OBERON 1
Product series    OBERON
Frequency Range (+/-3 dB) [Hz]    51 - 26,000
Sensitivity (2,83 V/1 m) [dB]    86
Nominal Impedance [ohms]    6
Maximum SPL [dB]    106
Recommended Amplifier Power [W]    25 - 100
Crossover Frequency [Hz]    2,800
Crossover Principle    2-way
High frequency driver, Quantity    1 x 29 mm
High frequency driver, Diaphragm type    Soft Textile Dome
Low frequency driver, Quantity    1 X 5.25"
Low frequency driver, Diaphragm type    Wood Fibre Cone

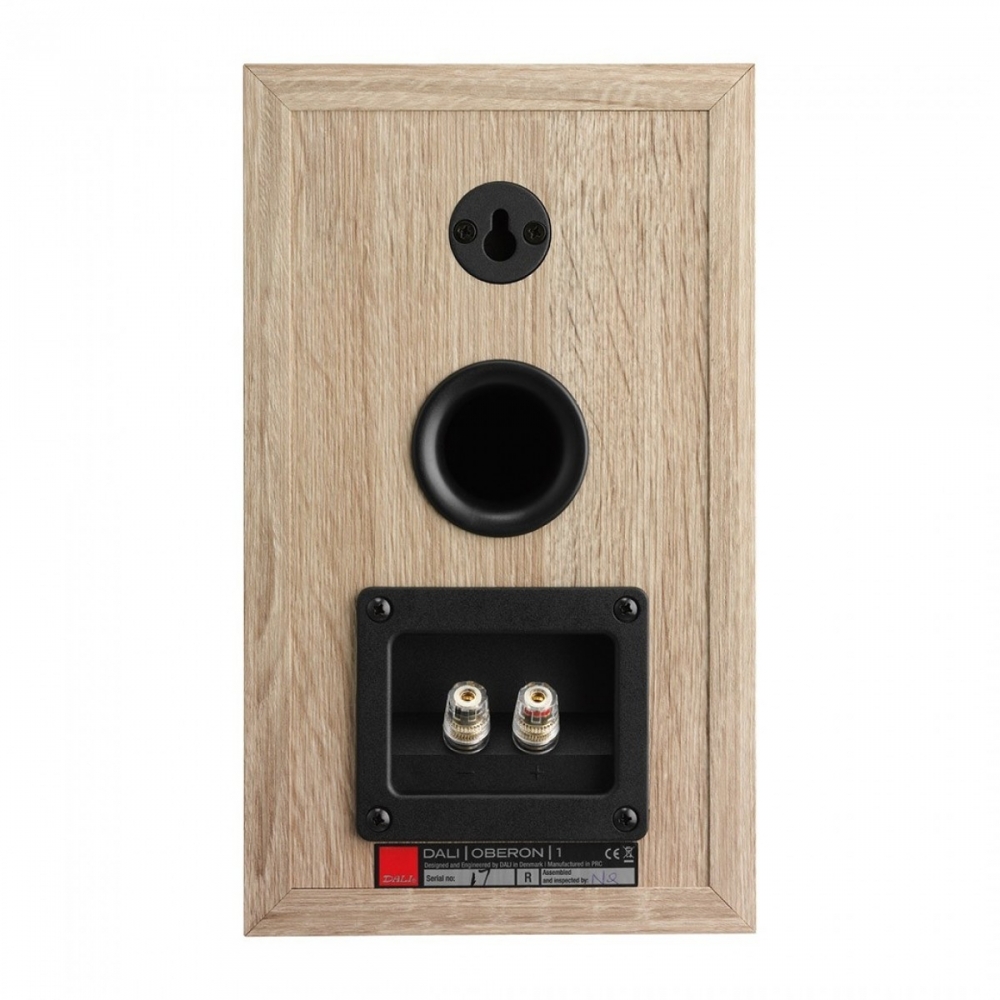

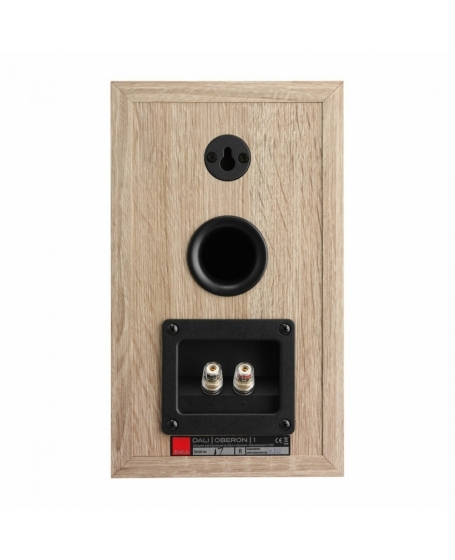

Enclosure type    Bass Reflex
Bass Reflex Tuning Frequency [Hz]    50
Connection Input    Single Wire
Recommended Placement    Shelf or stand
Recommended Distance From Wall [cm]    1 - 50
Dimensions With Base (HxWxD) [mm]    274 x 162 x 234
Accessories Included    Manual
Rubber Feet
Front Grille
Weight [kg]    4.2
