Pro Ktv CA63MKii Premium Karaoke Amplifier

Pro Ktv CA63MKii karaoke amplifier is a high-power digital karaoke amplifier built for users who demand premium sound performance and flexible control. With a robust 200W + 200W RMS output, it is ideal for large home karaoke rooms, KTV VIP rooms and commercial entertainment spaces such as restaurant private VIP rooms.

This amplifier delivers clean and powerful audio, and features digital key control, adjustable echo, repeat, and mic speed settings. Its independent 3-band EQ for both music and microphone allows users to fine-tune the sound to suit different room acoustics and vocal preferences.
Whether use at home or in commercial settings, the CA63MKII is a reliable solution for delivering high-quality sound and an exceptional karaoke experience.

Key Features
• 200W + 200W RMS power output for large spaces
• Suitable for large home karaoke rooms and commercial KTV setups
• Digital key control, echo, repeat, and mic speed adjustment
• Independent 3-band EQ for both music and microphone
• Supports 4 to 16-ohm speaker output
• Clean and clear sound performance for high-demand users
• Energy-efficient with low power consumption

Pro Ktv CA63MKII 是一款为高要求用户设计的高功率数码卡拉OK功放，具备强劲的 200W + 200W RMS 输出功率，特别适用于家庭大型K房、KTV、餐饮贵宾包厢与私人娱乐空间等应用场合。
本机提供清晰有力的音效表现，搭载数码升降Key功能、回音调节、重复与麦克风速度控制，并配备音乐与麦克风的独立三段EQ调节，能精准调配音色，满足不同空间与人声表现的需求。
无论在家庭还是商业场景中，CA63MKII 都能带来稳定、优质的卡拉OK音效体验。

主要功能
• 200W + 200W RMS 大功率输出，适合大空间使用
• 支持家庭大K房与商用KTV贵宾包厢等场景
• 内建数码升Key、回音、重复与麦克风速度调节
• 音乐与麦克风具备独立三段EQ调节功能
• 支援4至16欧姆扬声器输出，系统搭配更灵活
• 声音清晰强劲，满足对音质有较高要求的用户
• 低耗节能设计，稳定耐用

Pro Ktv KV2150 Copyrighted All In One KOD Player 4000GB

Ultimate Karaoke-On-Demand System

New Advance features:

With 21.5” Built In LED Touch Screen
Unlimited cloud songs library​
Song Reverse & Forward
Connect HP by QR code
Singer scoring
Huge Volume Song Storage (4000GB)
Select song Via Touch Screen Monitor Or Smart Devices
Convinient And Quicker
Song Order Function Up to 200 Songs On Queue
New Songs Update Via Free Cloud Download System
Voice Command
Key Control
Internet Browser
Youtube
Floor Standing Or Desk Top Version
Preloaded 57000 Songs
400000++ Songs Using Wifi
One year Warranty

Pro Ktv KV2150正版一体机 4000GB 智能点歌机功能：
带21.5”电容触摸屏
云端歌库更加齐全
免费新歌下载
歌曲倒带，快进
云端加歌即唱
手机扫码点歌
歌曲评分
触摸屏或手机点歌
云端下载速度更快
语音点歌
音调升降功能
容易安装方便携带
Youtube
刷屏上网
可选择站立式或桌面式
4000GB硬盘 (57000 歌曲)
400000++ 歌曲，需有Wifi
一年保用

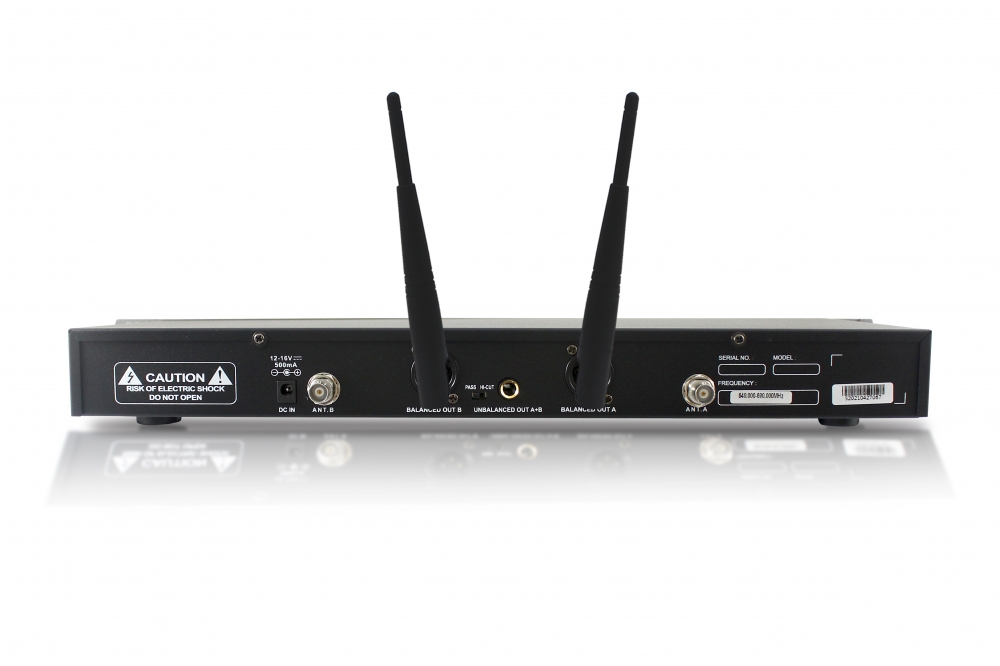

Pro Ktv WM-83 MK2 Wireless Microphone

High Definition Multi-Channel Wireless Microphone

• 200 Channel
• Multi-Channel Function
• LCD Display Screen
• Modern Design
• Features Rugged And Lightweight Construction
• Antena Design Which Advance RF Transmission Reliability

~Two-channel UHF wireless microphone system with Receiving Mode CPU-controlled diversity.

• Dual “Pilotone & NoiseLock” squelch prevent random noise interference sources like computers, karaoke machines and DVD players.
• Ideal for for DJ,Karaoke. Stable , easy to install.

JBL Ki510

10 Inch 3-Way Full Range Loudspeaker System

Ki510 is a full-range speaker designed specifically for KTV applications. The 3-way speaker combines a 10” woofer, a 5” squawker and a 1” aluminum dome tweeter and is able to handle continuous power of 350 Watts.

The high-power10” woofer features a long fiber pulp cone and pure nitrile butadiene rubber surround and provides necessary stiffness and capacity to withstand the tremendous accelerating force from the motor. The 5” paper cone squawker and the 1” aluminum dome tweeter optimizes middle and high range reproduction and guarantees non-compromised sound quality for the whole speaker system.

Ki510 takes on a bold and unique appearance. Its asymmetric cool brown enclosure echoes the deliberately-defined three-way system. The clear-cut outlines indicate the quality and performance the speaker possesses. The front panel comprises a paillette fabric and a snow-flake patterned grille and highlights a rose gold strip. The trendy enclosure creates an air of elegance and professionality.

As a showcase of JBL’s addiction to technology, JBL ENTERTAINMENT illuminate its logo through PSL (Passive Sound Lighting) Technology. Whether you are enjoying your time singing loud, or appreciating the music sitting still, you will see JBL sound with your naked eyes.

10英寸3路​​全頻揚聲器系統

Ki510是專為KTV應用而設計的全頻揚聲器。三路揚聲器結合了10“低音揚聲器，5”中頻揚聲器和1“鋁質圓頂高音揚聲器，能夠處理350瓦的連續功率。

高功率10“低音單元採用長纖維紙漿錐體和純丁腈橡膠環繞，並提供必要的剛度和承受來自電機的巨大加速力的能力。5“紙錐中頻器和1”鋁質圓頂高音揚聲器優化了中高頻範圍的再現，保證了整個揚聲器系統的無損音質。

Ki510呈現出大膽而獨特的外觀。它的不對稱的酷棕色外殼呼應了故意定義的三路系統。清晰的輪廓表示說話者擁有的質量和表現。前面板包括一個亮片織物和雪花圖案的格柵，並突出玫瑰金條。時尚的外殼營造出優雅和專業的氣氛。

作為JBL對技術上癮的展示，JBL ENTERTAINMENT通過PSL（被動聲音照明）技術照亮其標誌。無論你是享受時間大聲歌唱還是欣賞靜坐的音樂，你都會用肉眼看到JBL的聲音。

FEATURES

• A true 3-way full range loudspeaker designed for KTV applications
• Linear suspension and vented yoke design for 10” woofer effectively reduce distortion and power compression
• Optimized 5” paper cone squawker realizes better midrange vocal reproduction
• 1” aluminum dome tweeter delivers optimal high frequency response
• Precision engineered crossover for accurate and optimal frequency response
• Built-in protection circuit protects high frequency driver from excess power without interrupting performance
• Venting port is designed to the side for versatile installations
• PSL (Passive Sound-Lighting) Technology indicates JBL devotion to scientific advancement

特徵

• 為KTV應用設計的真正的3路全頻揚聲器
• 10“低音揚聲器的線性懸掛和通風支架設計有效減少了失真和功率壓縮
• 優化的5“紙錐中音器實現更好的中音聲樂再現
• 1“鋁球頂高音揚聲器提供最佳的高頻響應
• 精確設計的分頻器，實現精確和最佳的頻率響應
• 內置的保護電路可以保護高頻驅動器免受過量的電力衝擊而不中斷性能
• 通風口設計用於多功能安裝
• PSL（無源聲光）技術表明JBL致力於科學進步

Pro‑Ktv CA63MKII — Full Specifications
High-Performance Digital Karaoke Amplifier
Audio Performance
Specification Details
Output Power (RMS) 200W + 200W @ 8Ω
Frequency Response Less than 0.5% Total Harmonic Distortion (THD)
Output Impedance 4Ω – 16Ω
Output Sensitivity 0.707V / 1Ω

Input Specifications
Input Type Sensitivity / Impedance
Microphone Input 5mV – 100mV / 600Ω
Line Input 250mV / 47kΩ

Tone Controls
Function Adjustment Range
Music EQ - Low ±10dB
Music EQ - Mid ±10dB
Music EQ - High ±10dB
Microphone EQ - Low ±10dB
Microphone EQ - Mid ±10dB
Microphone EQ - High ±10dB

Karaoke Features
Function Description
Digital Key Control Yes
Echo Control Yes
Repeat Adjustment Yes
Microphone Speed Control Yes

Power & Efficiency
Specification Details
Maximum Power Supply Less than 600W
Power Consumption Less than 35W
Power Source AC 220–240V / 50–60Hz
OutputPower RMS  ~  200W + 200W (8ohm)
Frequency Response  ~  Less than 0.5%
Input Sensitivity / Impedance
Microphone - 5mV - 100mV / 600 ohm
Line - 250mV / 47k ohm

Music
Low (gain / decline) - + 10dB
Middle (gain / decline) - + 10dB
High (gain / decline) - + 10dB

Microphone
Low (gain / decline) - + 10dB
Middle (gain / decline) - + 10dB
High (gain / decline) - + 10dB

Output Sensitivity  ~  Audio Frequency - 0.707V / 1ohm
Output Impedance  ~  4 ~ 16ohm
Power Supply  ~  Less than 600W
Power Consumption  ~  Less than 35W
Dimensions 44(W) × 140(H) × 420(D) mm
Weight 20kg

Pro Ktv KV2150
Size  ~  515mm(W) - 311mm(H)
Weight  ~  7.5 kg
Measure  ~  Dv 12v
Video Output  ~ NTSC,75Ω,1VP-P
Sound Output  ~  Setreo R/L,1KΩ, 20Hz - 20KHz
Static Noise  ~  -105dB
IR Reception  ~  INFR , 38KHz
PS/2 Device Input  ~  Mouse
VGA Output  ~  RGB ,75Ω, Monitor
Externally Connected IR Receiver  ~  INFR , 38KHz

JBL Ki510
System Type    10′′, 3-way, bass-reflex
Frequency Range (-10 dB) *1    58 Hz - 20 kHz
Frequency Response (-3 dB) *1    69 Hz - 16 kHz
Sensitivity (1w/1m) *1    92 dB
Nominal Impedance    8 Ohms
Maximum SPL    117 dB (123 dB peak)
Power Rating *2
(Continuous/Program/Peak)    350 W/700 W/1400 W
Coverage Pattern    80° × 60° (H × V)
Dimensions (H × W × D)    310 mm × 510 mm × 342 mm
12.2 inch × 20 inch × 13.4 inch
Net Weight    24.8 Kg (54.7 lbs)
LF Driver    1 × 10′′ woofer
MF Driver    1 × 5′′ squawker
HF Driver    1 × 1′′ aluminum dome tweeter
Input Connectors    Binding post
Enclosure Construction    Vinyl covered15 mm MDF
