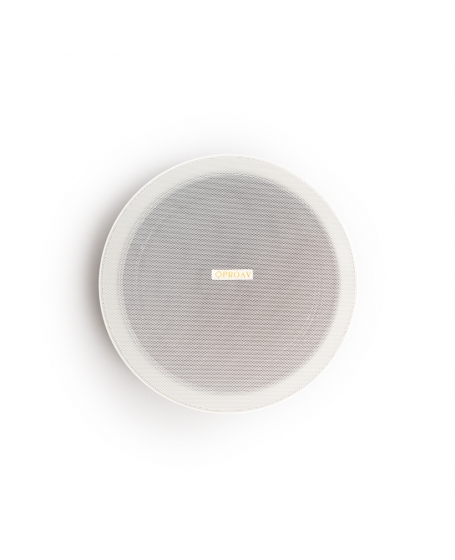

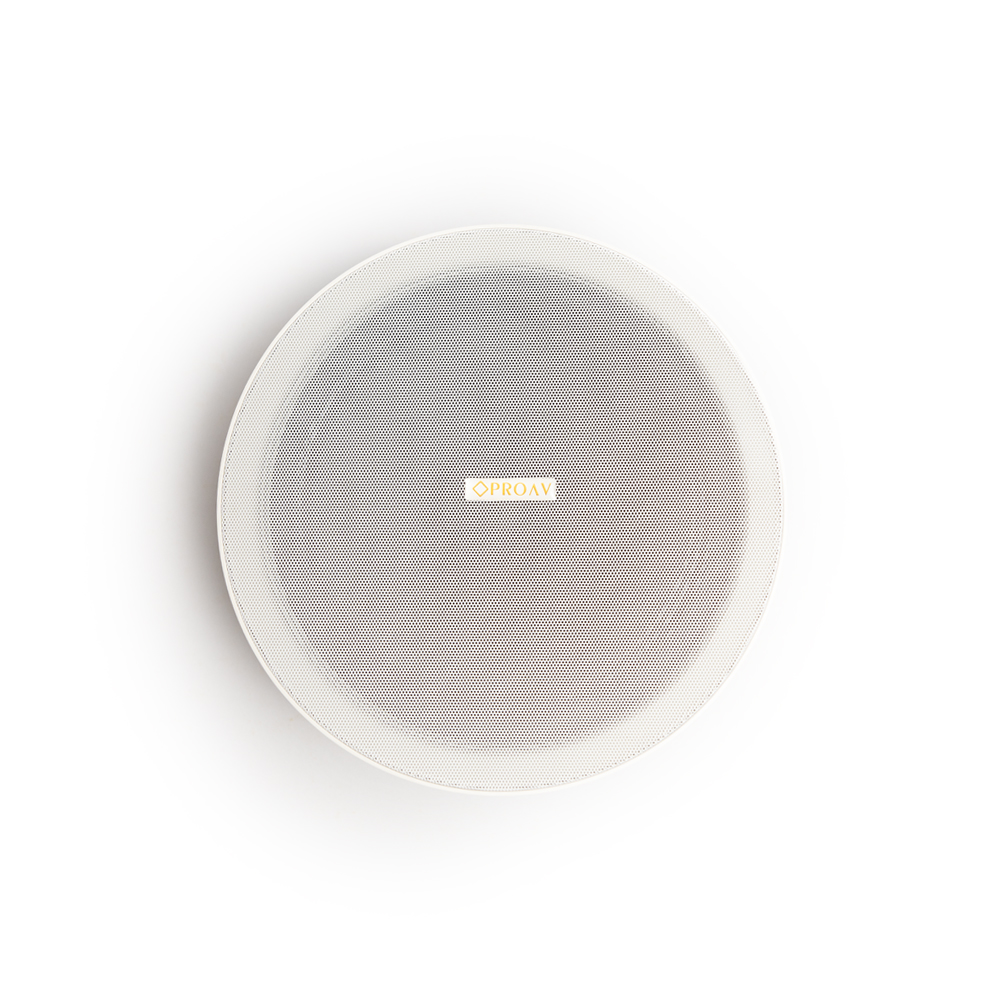

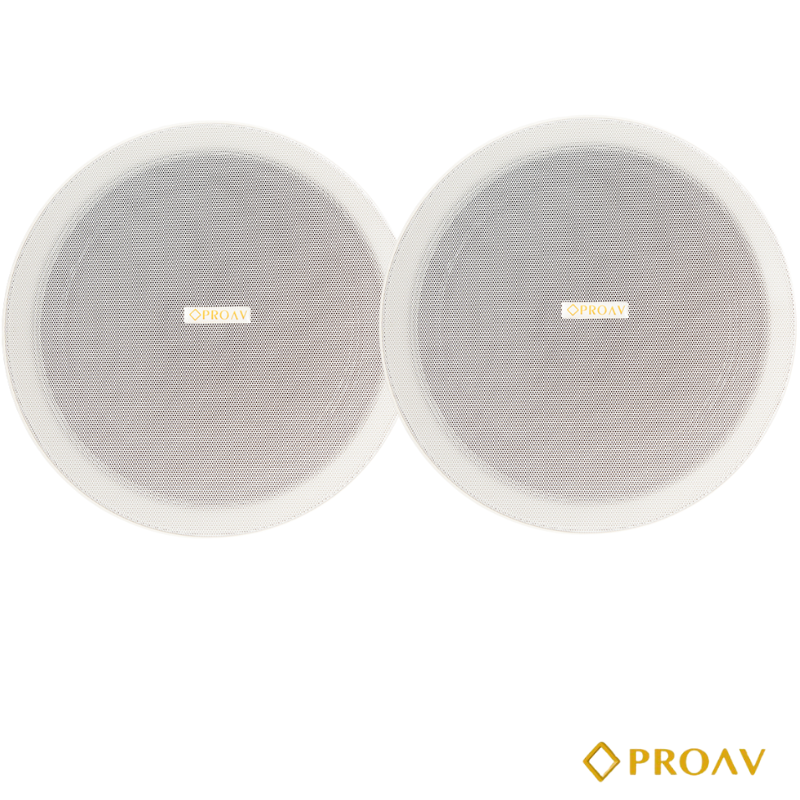

Pro Av CS-80 8'' 10W Ceiling Speaker ( Pair )

Pro Av CS-80 8'' 10W Ceiling Speaker is a premium-grade 8-inch ceiling speaker designed to deliver superior audio coverage and performance in demanding commercial and residential environments. With its larger driver size and enhanced acoustic specifications compared to the CS-60 model, the CS-80 is ideal for installations where wider dispersion, higher output, and fuller sound are required.

Engineered for clarity and consistency, the CS-80 offers an impressive sensitivity of 99dB (at 10W/5W) and a wide frequency response of 100Hz–15kHz, making it perfect for background music playback, voice announcements, and public address systems. Whether used in shopping malls, hospitals, airports, office buildings, or high-end homes, this speaker ensures evenly distributed, rich sound throughout any space.

The speaker supports 100V constant voltage systems with 5W and 10W selectable power taps, allowing flexible configuration based on room size and acoustic needs. Its durable ABS enclosure and RAL9016 white aluminum grille blend seamlessly with modern ceiling aesthetics while offering long-term reliability.

Key Features:

• 8-inch full-range speaker for deeper bass and wider coverage

• High sensitivity (99dB at 10W/5W) for efficient sound distribution

• Wide frequency response: 100Hz–15kHz for natural, balanced audio

• Power taps: 5W / 10W (100V line) for flexible system design

• Quick installation with φ210mm cut-out and spring-loaded mounting clips

• High-strength ABS housing and white aluminum grille (RAL9016)

• Impedance: 7.2Ω

• Net weight: 0.94kg per unit

Ideal Applications:

• Shopping centers & retail spaces

• Offices & corporate buildings

• Hospitals & public institutions

• Airports, transport hubs

• Educational facilities

• Hotels & residential homes

Specification Model CS-80

Frequency Response 100Hz – 15kHz

SPL (at 10W / 5W) 99dB

Sensitivity (1W/1m) 93±3dB

Rated Power 10W

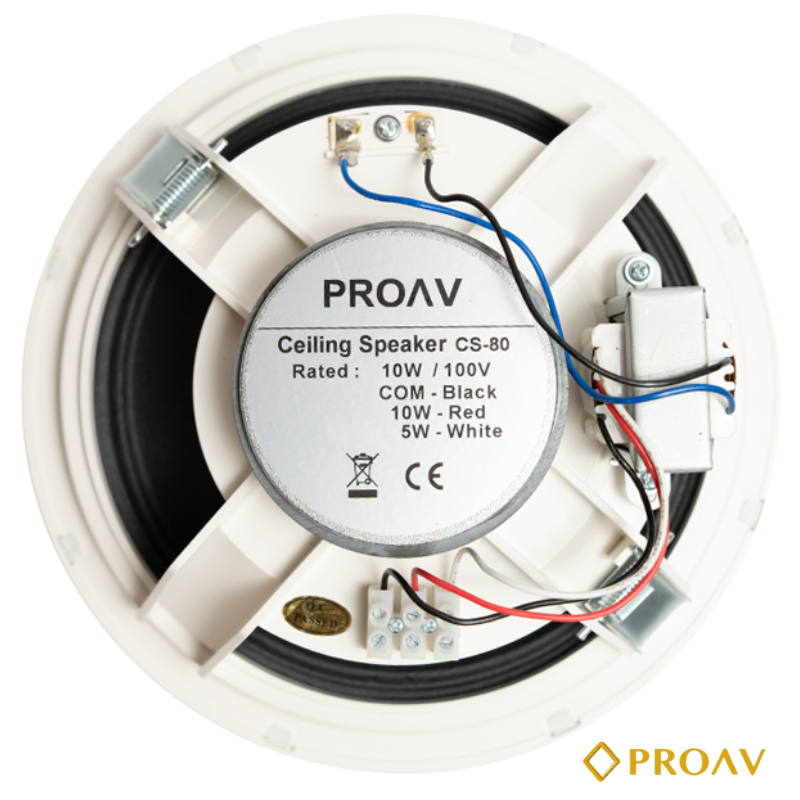

Power Taps 5W / 10W

Input Voltage 100V

Cut-out Size Ø210mm

Product Dimensions Ø232 × 90mm

Baffle Material ABS (Adult White)

Grill White Aluminum Grill (RAL9016)

Speaker Size 8 inches

Product Color White

Net Weight (each) 0.94kg

Speaker Driver Specifications

Item Specification

Voice Coil PSV20.4 × Ø0.12” × 2T

Impedance 7.2Ω

Cone Material Paper

Magnet Type Ferrite Magnet (270g)

Magnet Size Ø80 × 32 × 12mm (Y25)

Frame Material ABS

Surround Material Cloth

Dust Cap Paper

Net Driver Weight 680g
