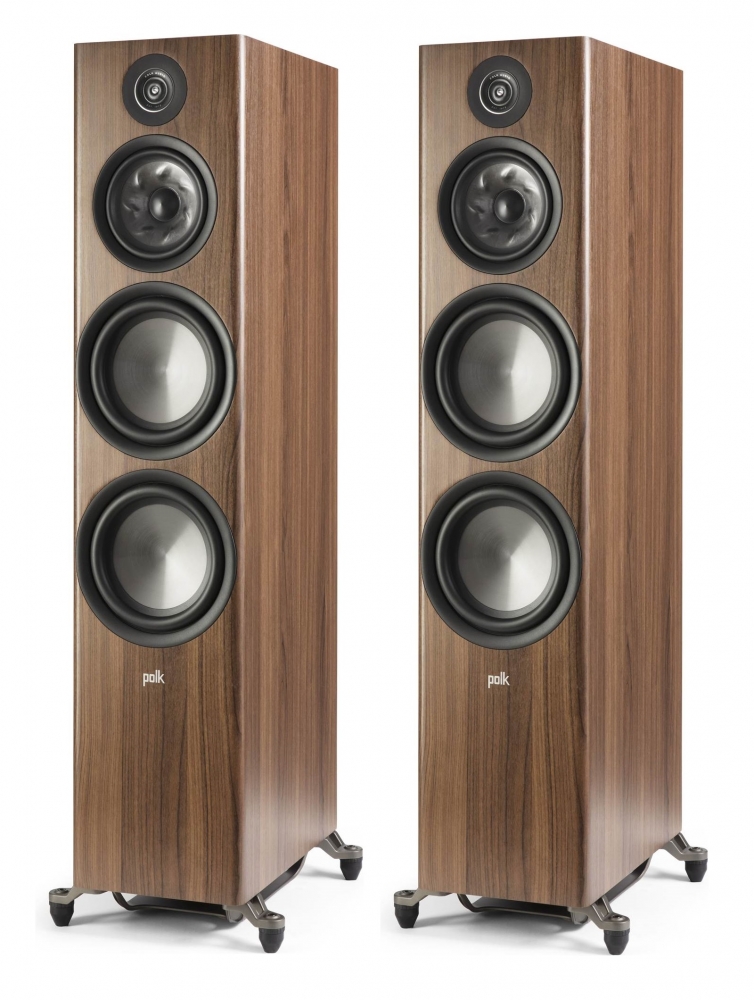

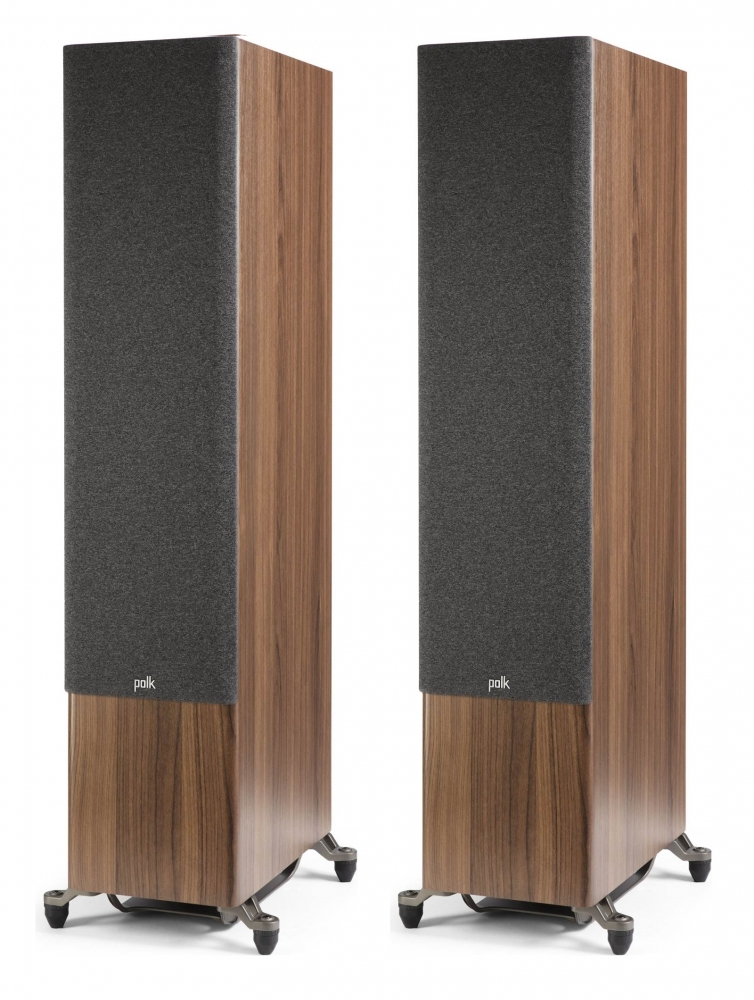

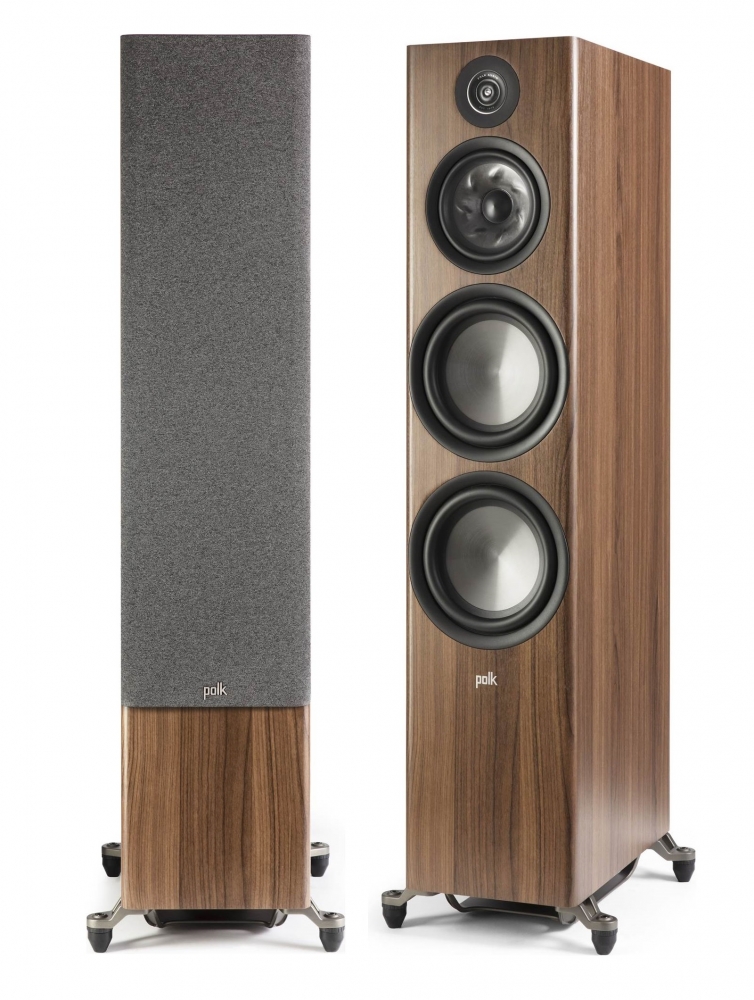

Reserve R700

Premium Large Floor-Standing Tower Speaker

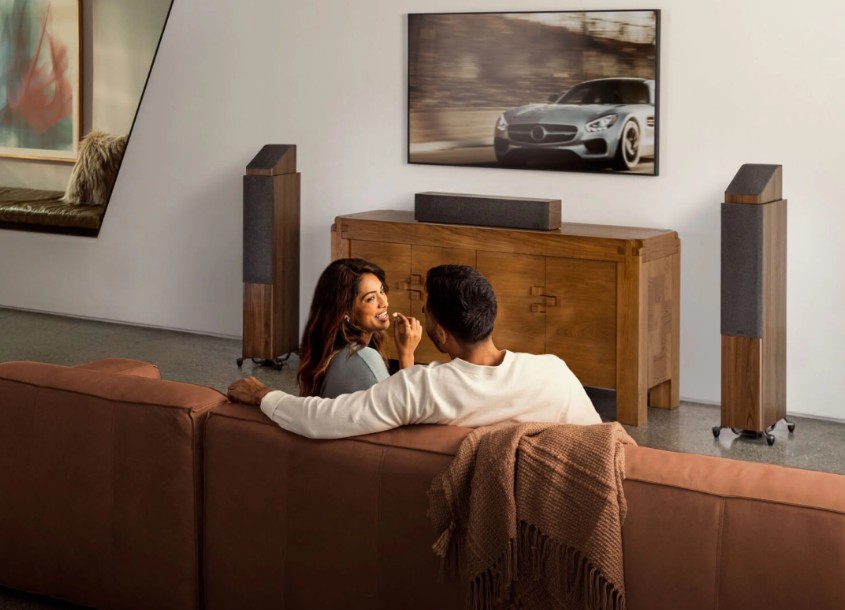

The R700 offers uncompromising sonic performance. This full throttle loudspeaker adds two 8” woofers to deliver massive impact with striking audio clarity and detail. Perfect for use as a reference stereo pair or as the cornerstone of the ultimate home cinema.

• Dual 8" woofers & 6.5" Turbine Cone woofer
• 1" Pinnacle Ring Radiator tweeter
• Power Port® 2.0 with X-Port for ultimate bass
• Exceptional & sleek cabinetry
• Hi-Res Audio certified
• Dolby Atmos & DTS:X compatible

Strength in motion

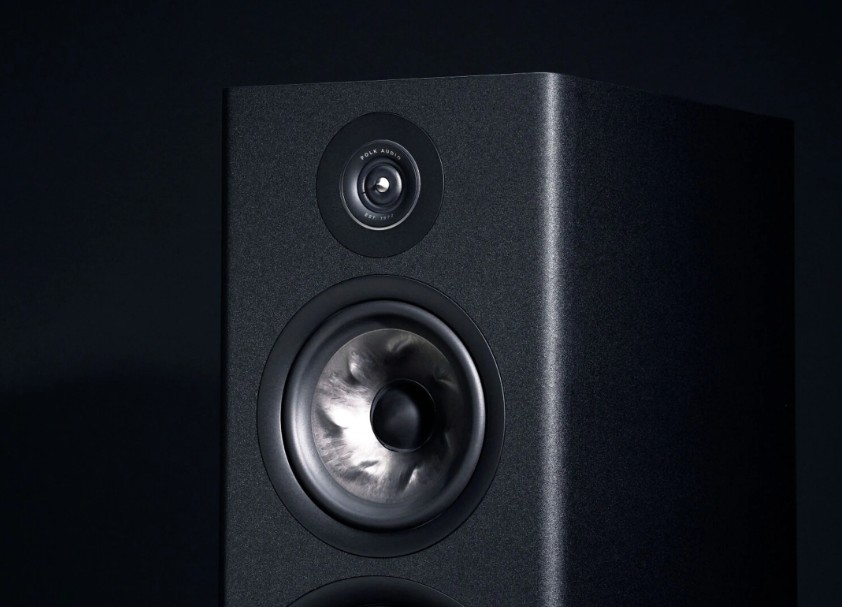

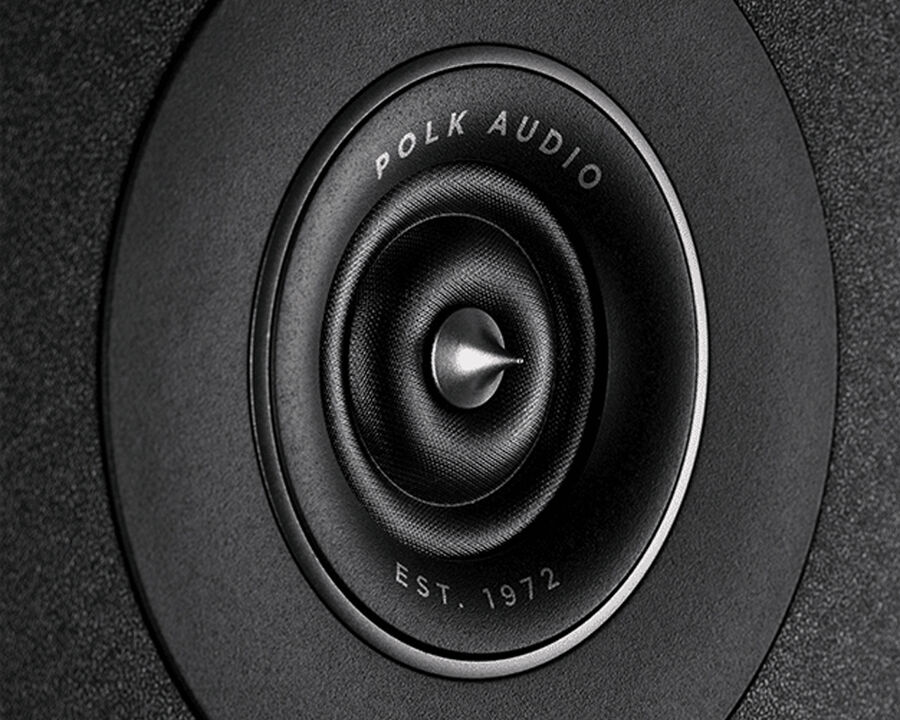

Pinnacle Ring Radiator Tweeter

The Pinnacle Ring Radiator Tweeter’s distinctive pointed shape guides the dispersion of high frequency sounds around a room. This innovation widens the sweet spot and allows you freedom to enjoy your music and movies wherever you choose to sit.

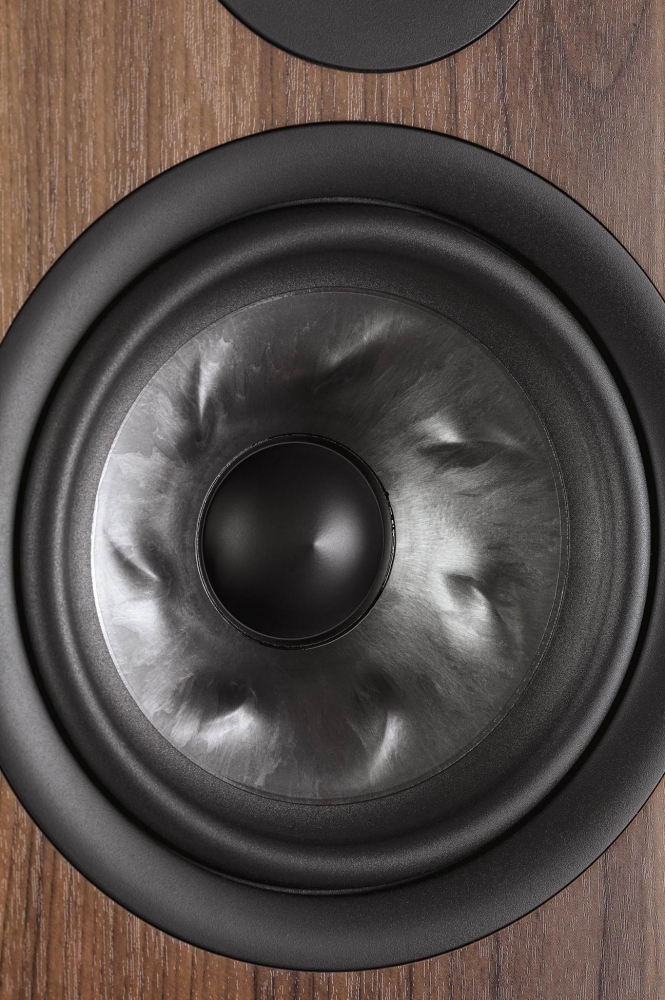

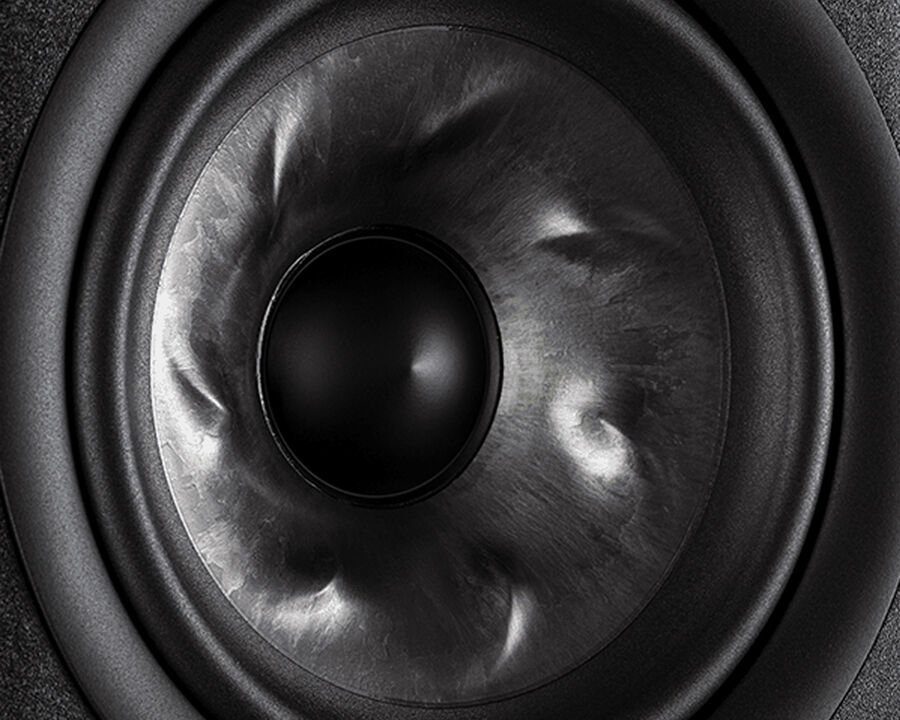

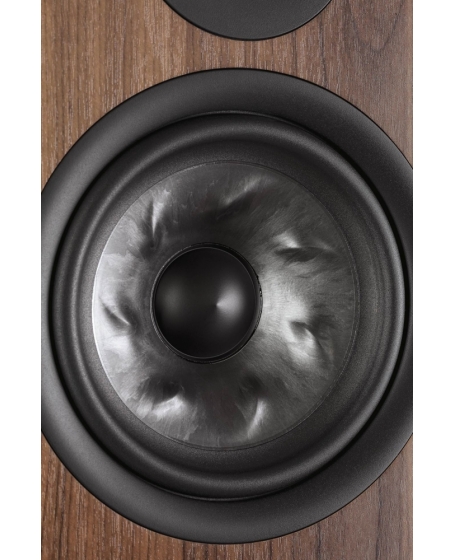

Turbine Cone Woofer

Our pioneering turbine design delivers a significant increase in cone rigidity without increasing mass. This innovation means the woofer can move with increased accuracy and speed to deliver enhanced sound resolution, enabling you to experience a breathtaking level of detail in your music and movies.

Power Port 2.0

Enjoy the latest version of our patented Power Port technology for louder, cleaner bass and more defined midrange. Now, in addition to smoothing airflow as it exits the cabinet to reduce port noise, Power Port 2.0 integrates X-Port with eigentone filters specifically tuned to eliminate cabinet and port resonances.

Form and function

Exceptional Cabinetry

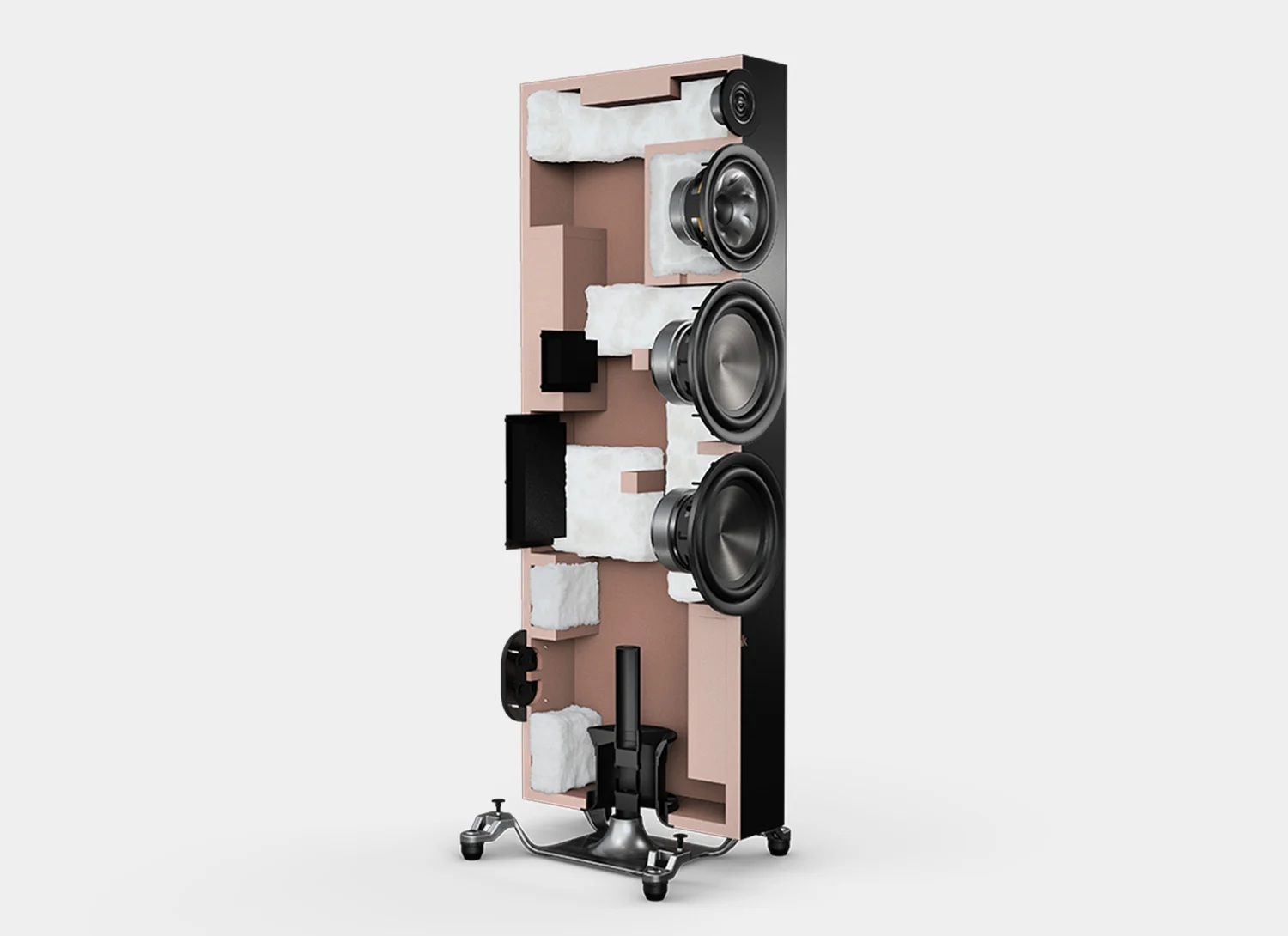

Reserve’s sleek cabinetry hides a world of audio innovation. Cabinets are carefully cross-braced to best eliminate unwanted interior resonances. Rounded exterior corners help disperse sound broadly around the room with minimal diffraction, creating an open sound stage.

Multidimensional Sound

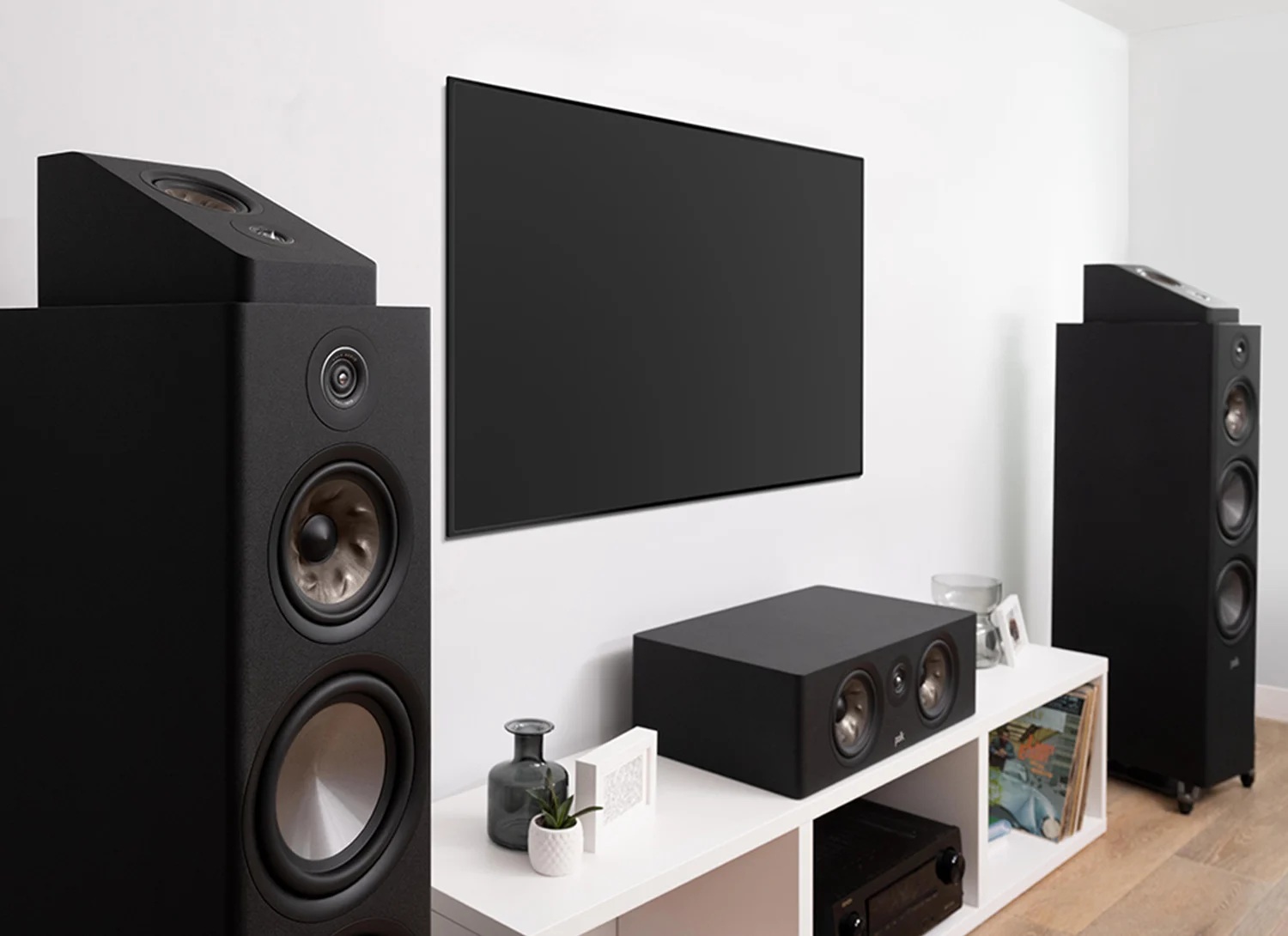

Optional Height Module

For immersive vertical sound, add compatible Reserve R900 height modules (sold separately). These optional height modules perform beautifully with the latest home theater technologies, including: Dolby Atmos, DTS, DTS:X, DTS:X Virtual, IMAX Enhanced, and Auro-3D.

Every detail

Hi-Res Audio Certified

Delivers clear and detailed high-end response up to 40Khz for improved high frequency signals for today’s high-quality audio.

Dolby Atmos Enabled

Listening to Atmos and DTS:X-enabled content on Reserve Series speakers brings you deeper into the story or music every time.

IMAX Enhanced Certified

IMAX Enhanced certification guarantees an unforgettably huge and dynamic home theater experience when enjoying IMAX Enhanced movies, television shows and music.

TRANSDUCER
Tweeter    1" Pinnacle Ring Radiator
Mid-range/Mid-bass    6 ½” Turbine Cone

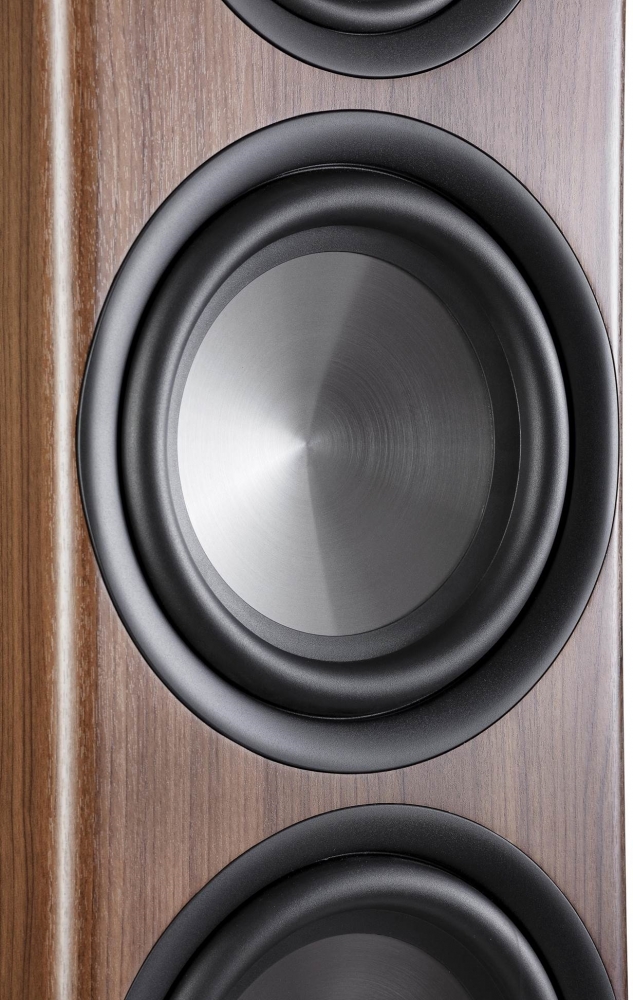

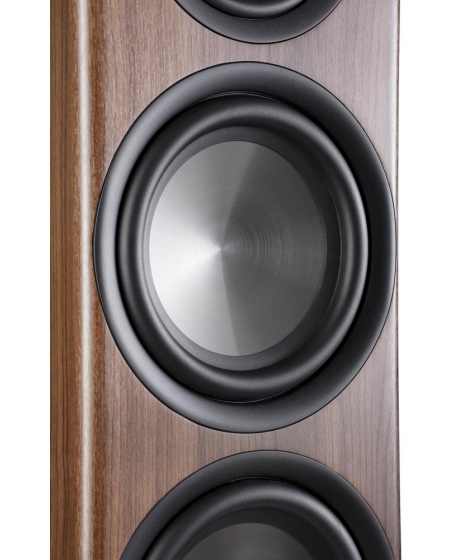

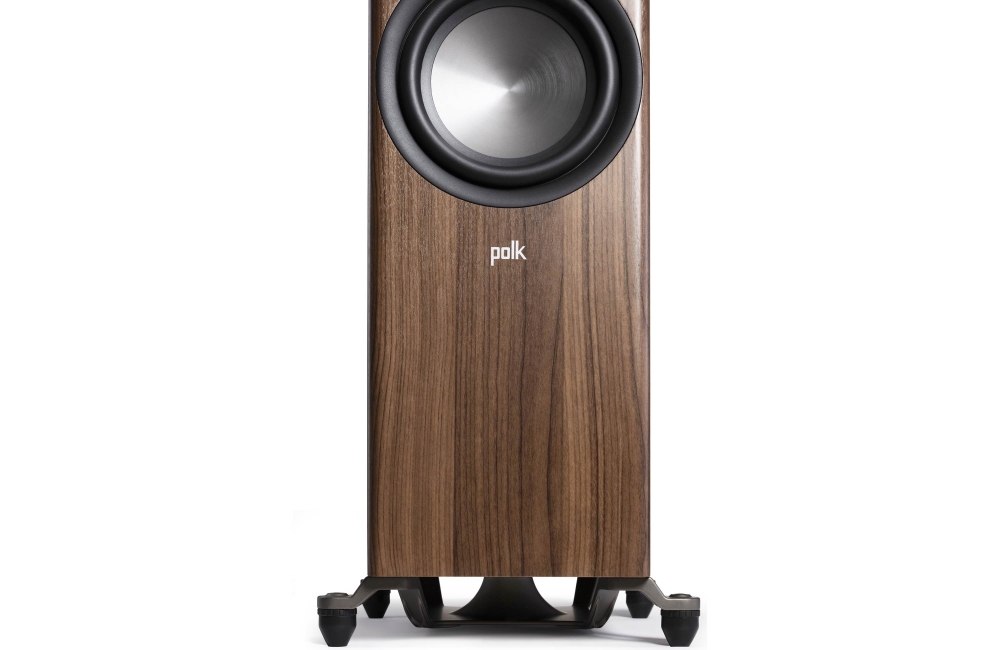

Woofers    Two 8" Polypropylene
Overall Frequency Response    30Hz - 50kHz
Frequency Response (-3dB limits)    38Hz - 38kHz
Recommended Amplifier Power    50 - 300W
Amplifier Output Compatibility    8Ω / 6Ω / 4Ω
Minimum Impedance (ohms)    3.6Ω
Sensitivity (2.83V/1m)    88dB
CROSSOVER
Tweeter/Mid-range Crossover Frequency    2700
Mid-range/Mid-bass Crossover Frequency    350
MEASUREMENTS
Product Dims W x H x D (Includes width of feet)    320.7 x 1143.8 x 428.3mm
12.6 x 45 x 16.9 in
Product Weights (each)    79.1 lbs/35.9 kg
Shipping Weight    94.4 lbs/42.8 kg
CABINETRY
New CRC (Mid-Range Enclosure Type)    Sealed with CRC

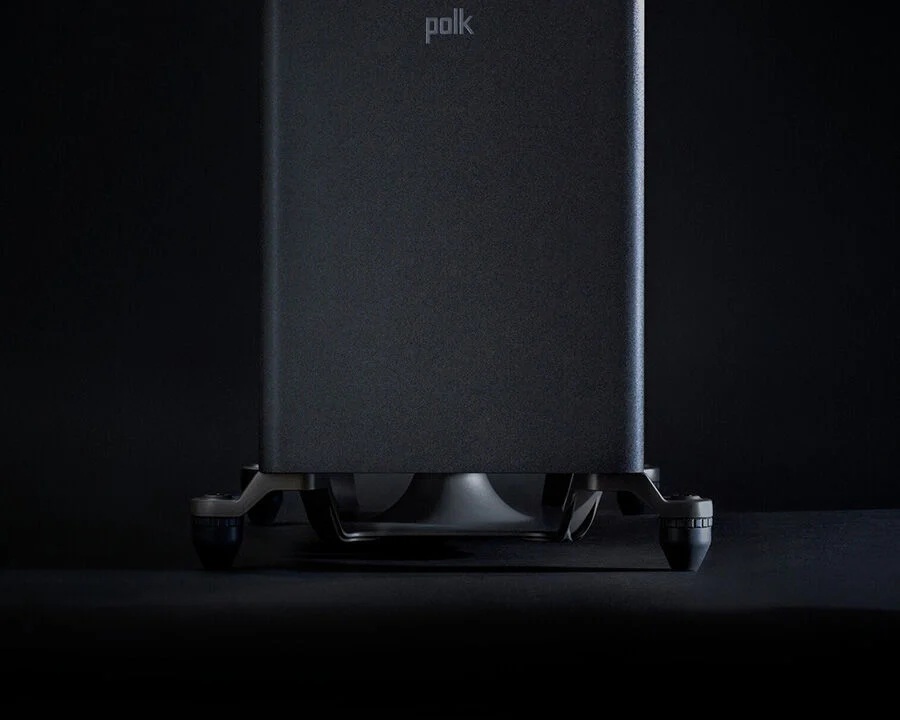

Mid-Bass / Woofer Enclosure Type    Floor Firing Power Port with X-Port
Available Finishes    Black / Walnut
Feet    Spike and Pad
Wall-Mountable (keyhole slots)    No

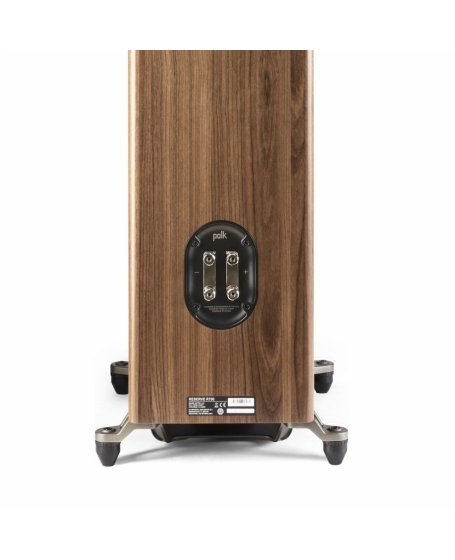

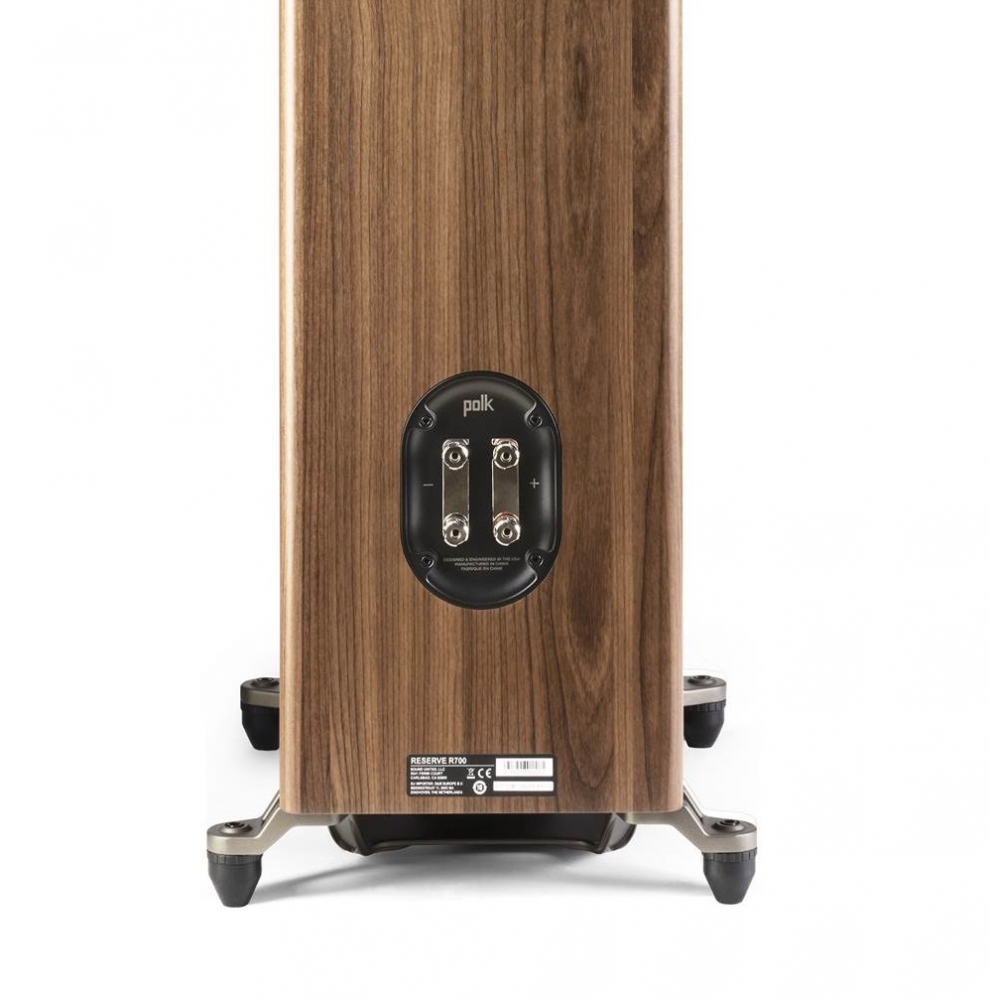

Binding Posts: Nickel-plated 5-Way    Dual
Certifications (Non-Safety and Regulatory)
Hi-Res Certified    Yes
IMAX Certified    Yes
Shipping Dims (WxHxD)    550 x 423 x 1250mm
(21.6 x 16.7 x 49.2) in
