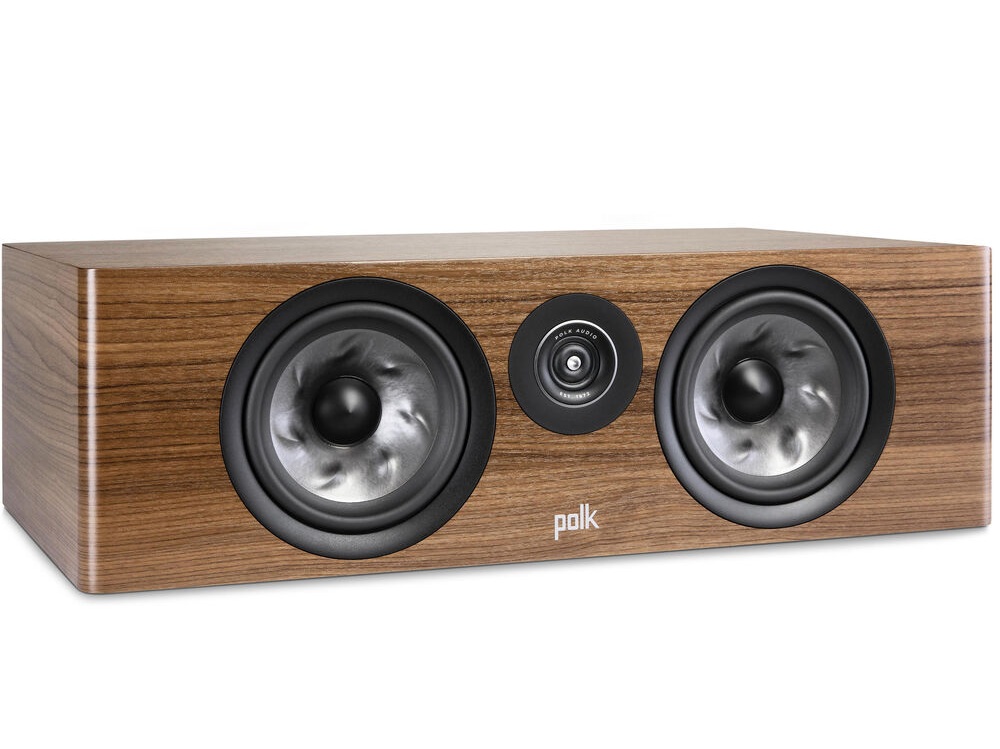

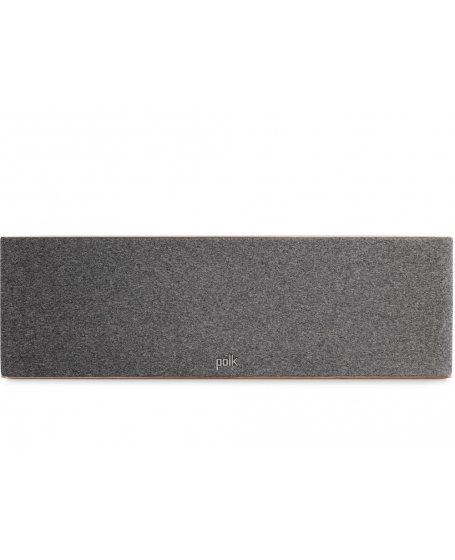

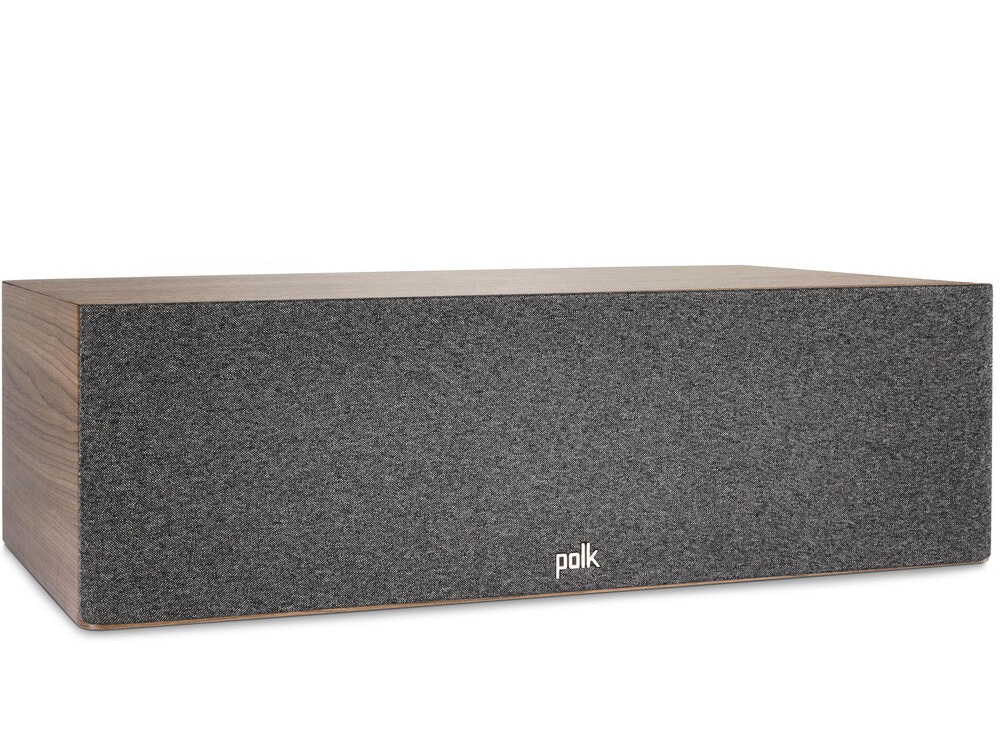

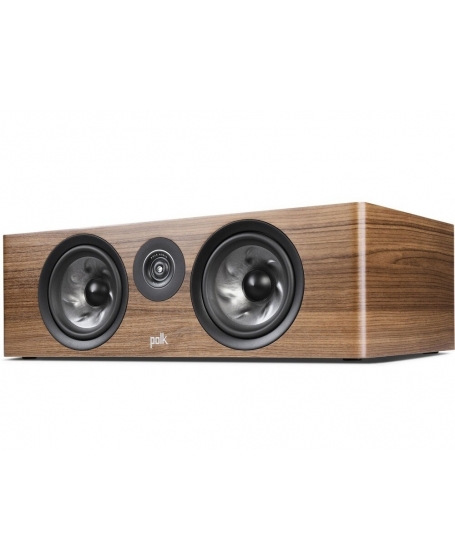

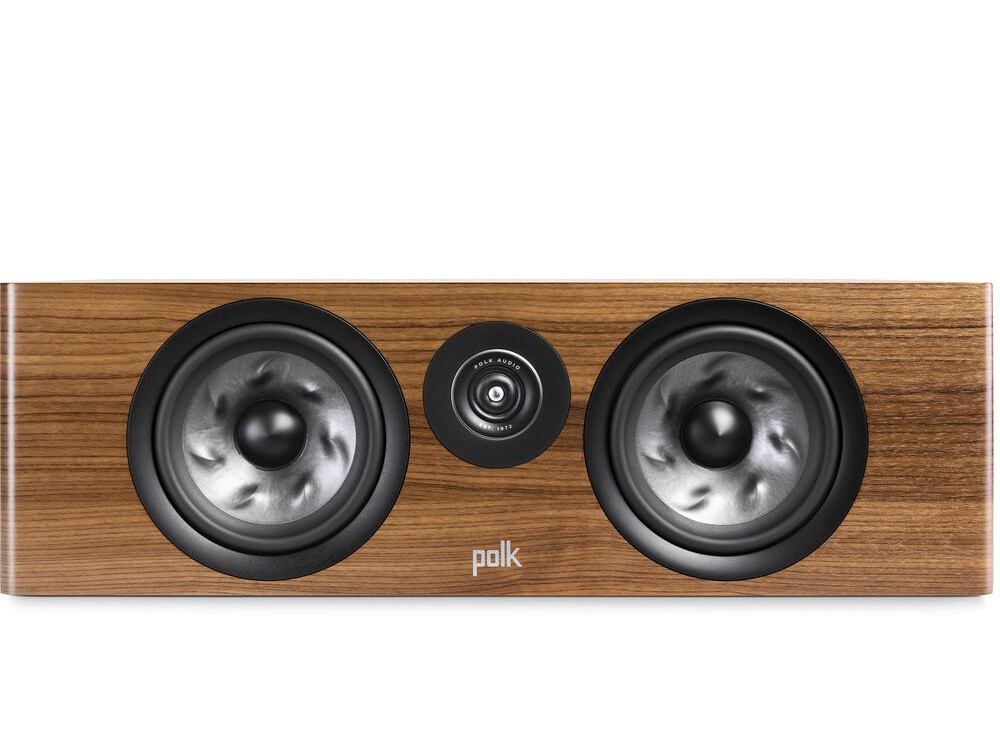

Reserve R400

Premium High-performance Center Channel Speaker

The R400 offers unrivalled power and clarity from a center channel speaker. The addition of two 6.5” turbine cone woofers and Polk’s unique X-Port technology means it delivers enormous yet balanced sound, ideal for the ultimate home theater system.

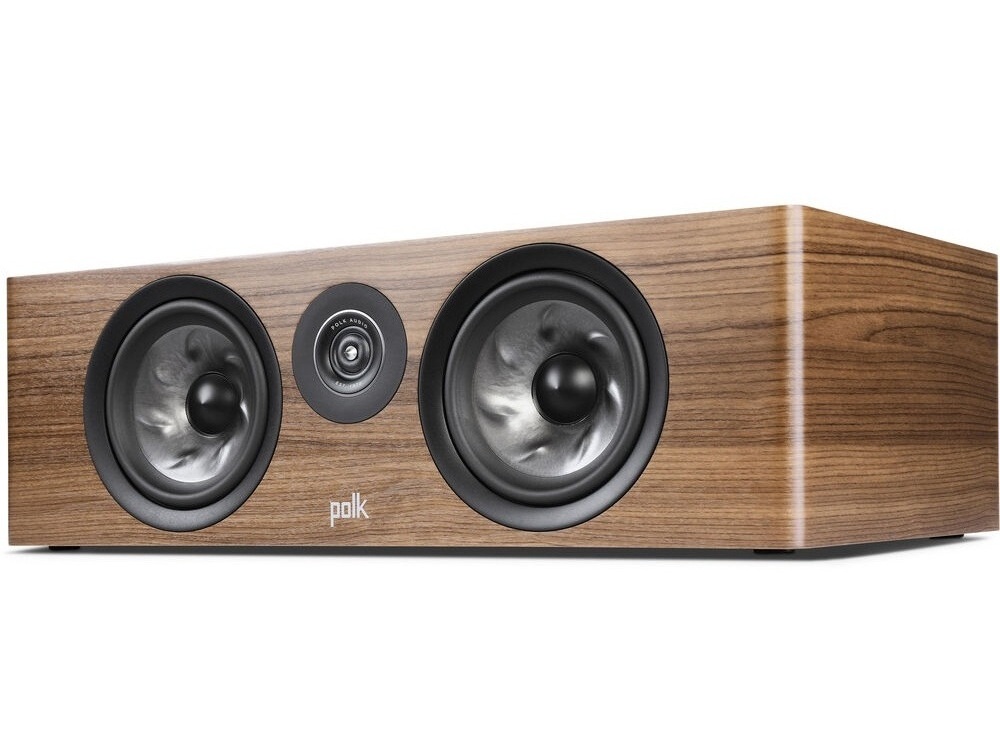

• Dual 6.5" Turbine Cone woofers
• 1" Pinnacle Ring Radiator tweeter
• X-Port for deep bass
• Hi-Res Audio certified
• Dolby Atmos & DTS:X compatible

Reference quality sound

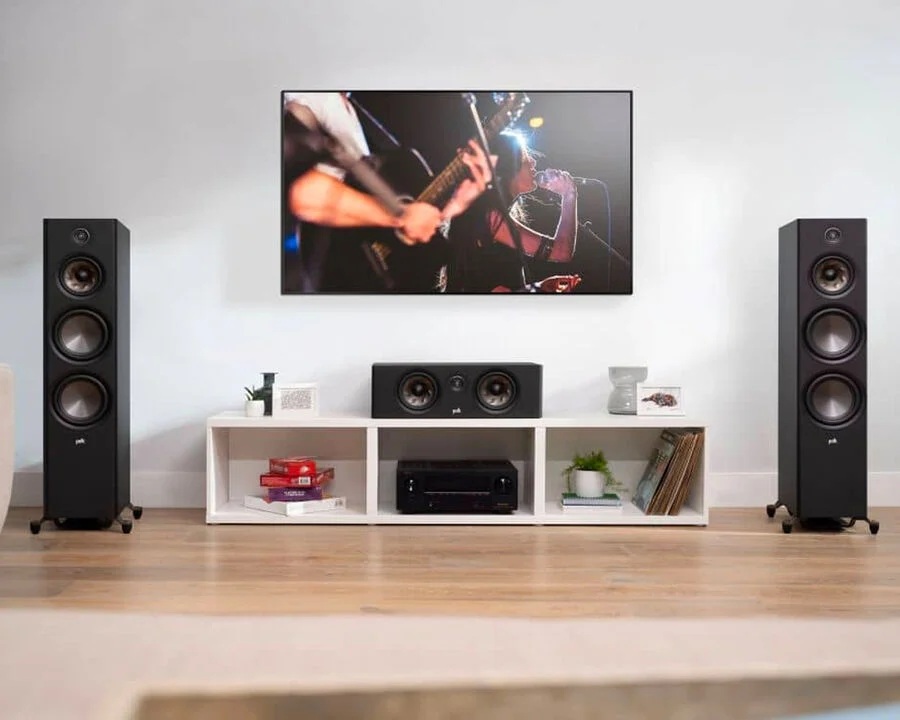

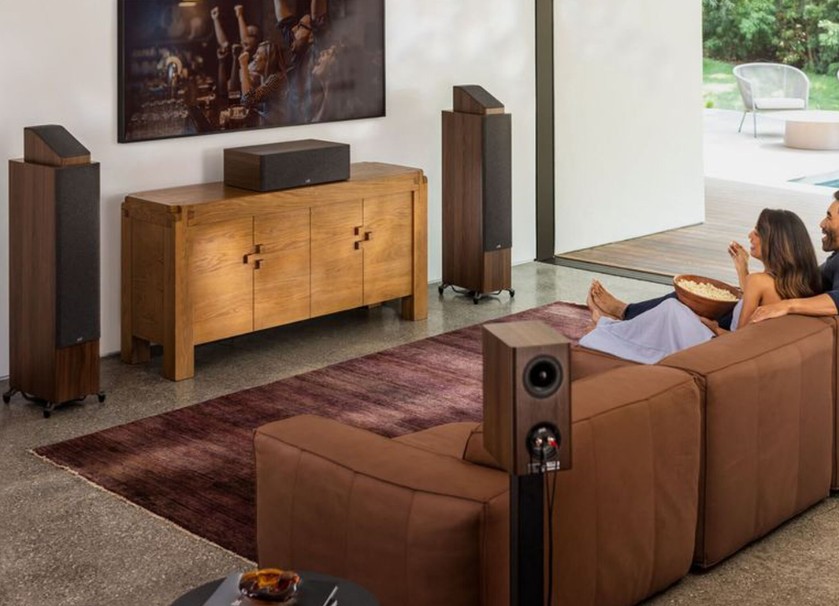

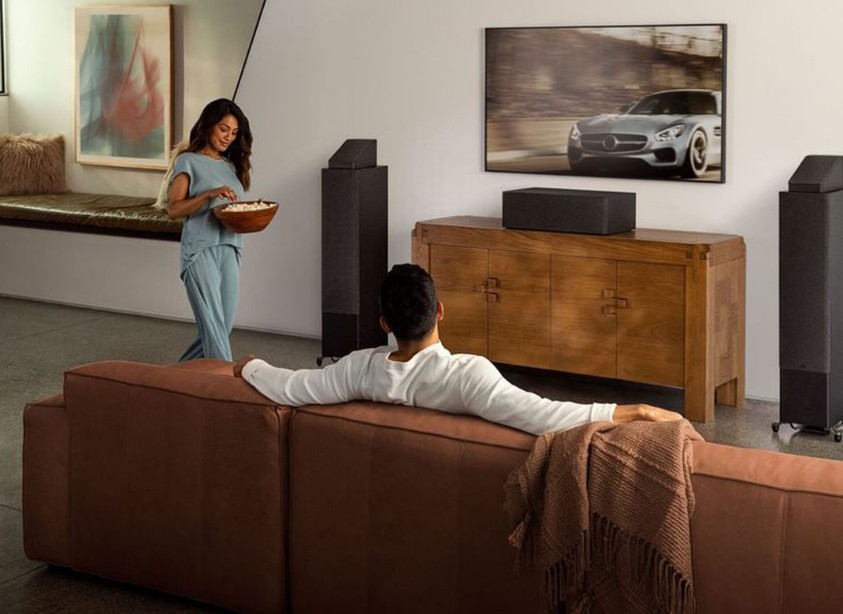

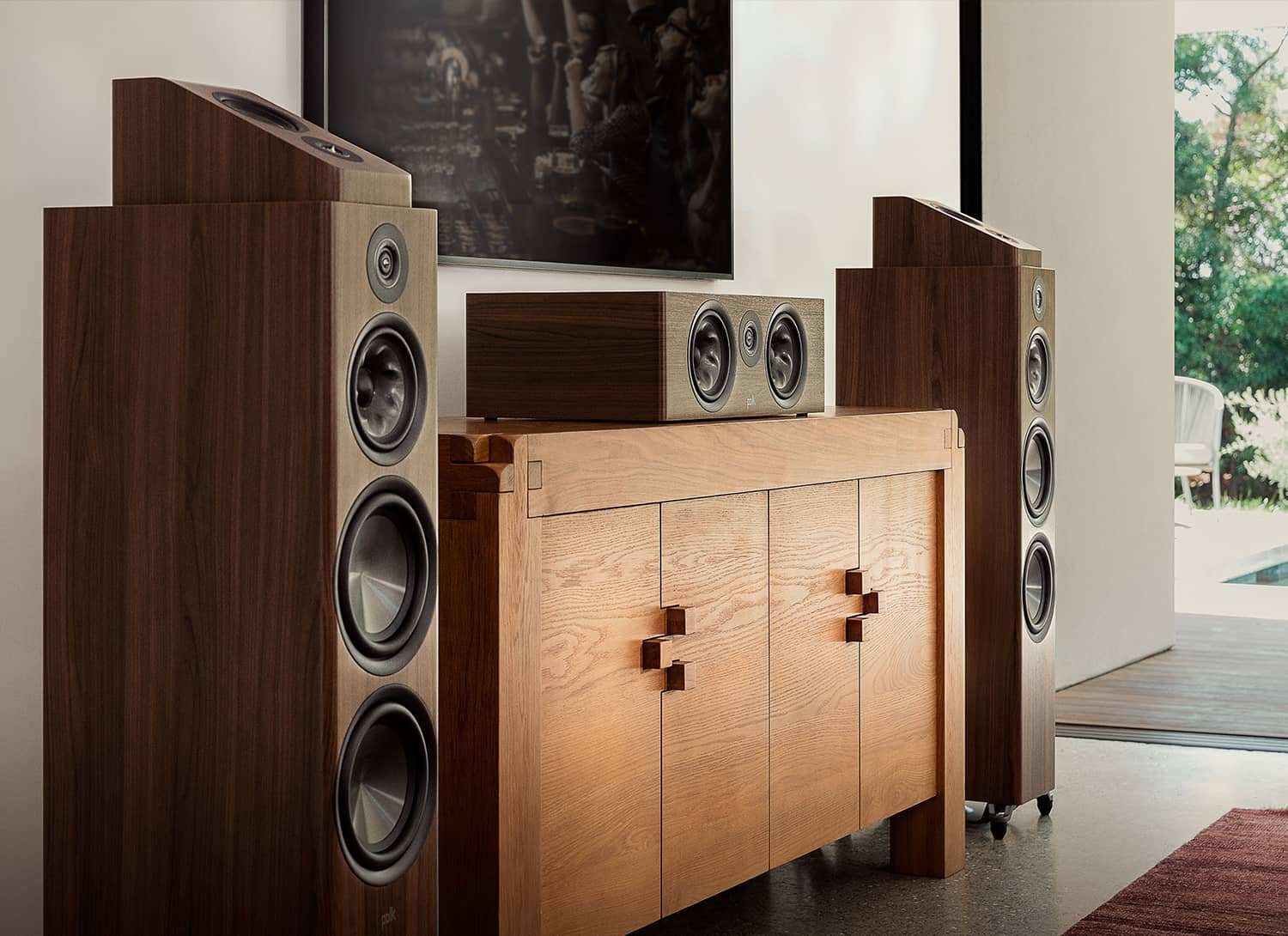

Crystal Clear Vocals for Home Theater

The center channel is the most important speaker in any home theater setup. The Reserve R400 uses Polk’s latest flagship transducer array to deliver clear, crisp, intelligible dialogue no matter where you sit.

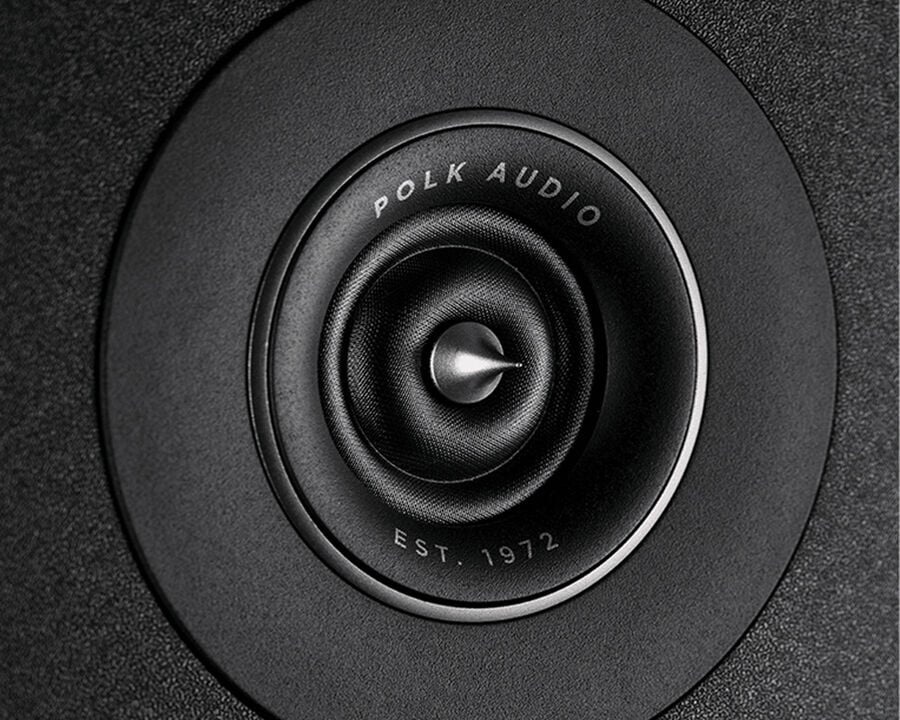

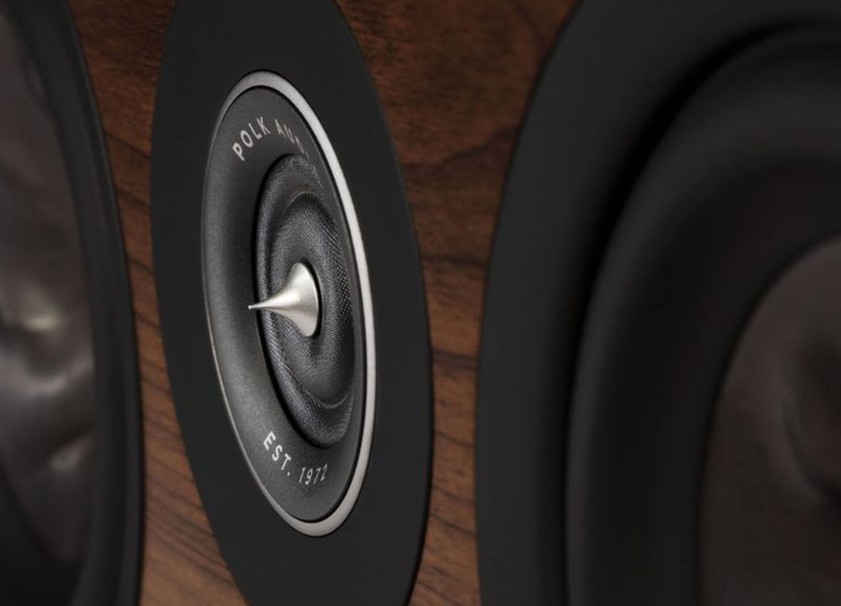

Pinnacle Ring Radiator Tweeter

The Pinnacle Ring Radiator Tweeter’s distinctive pointed shape guides the dispersion of high frequency sounds around a room. This innovation widens the sweet spot and allows you freedom to enjoy your music and movies wherever you choose to sit.

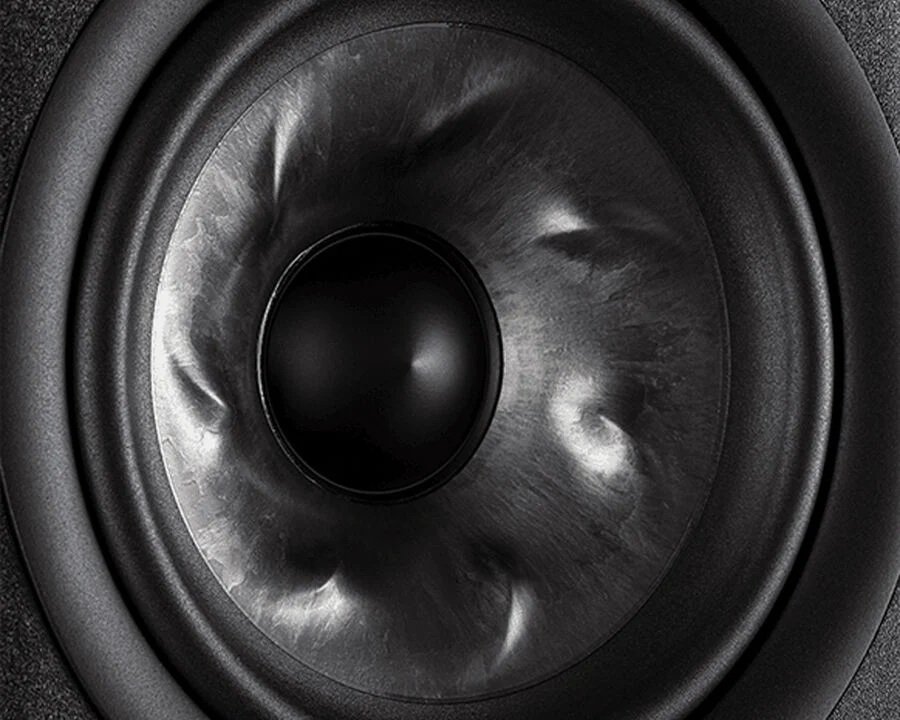

Turbine Cone Woofer

Our pioneering turbine design delivers a significant increase in cone rigidity without increasing mass. This innovation means the woofer can move with increased accuracy and speed to deliver enhanced sound resolution, enabling you to experience a breathtaking level of detail in your music and movies.

Purity of Sound

X-Port

Reserve R400 features two X-Ports, featuring a set of closed-pipe resonators, called Eigentone filters that are tuned to absorb unwanted port and cabinet resonances, providing you pure, unadulterated, crystal clear sound and more bass output.

Form and Function

Exceptional Cabinetry

Reserve’s sleek cabinetry hides a world of audio innovation. Cabinets are carefully cross-braced to best eliminate unwanted interior resonances. Rounded exterior corners help disperse sound broadly around the room with minimal diffraction, creating an open sound stage.

Every detail

Hi-Res Audio Certified

Delivers clear and detailed high-end response up to 40Khz for improved high frequency signals for today’s high-quality audio.

Dolby Atmos Enabled

Listening to Atmos and DTS:X-enabled content on Reserve Series speakers brings you deeper into the story or music every time.

IMAX Enhanced Certified

IMAX Enhanced certification guarantees an unforgettably huge and dynamic home theater experience when enjoying IMAX Enhanced movies, television shows and music.

Specification
Speaker Type
Performance Center Channel
UOM (Sold As)
Each
TRANSDUCER
Tweeter
1" Pinnacle Ring Radiator
Mid-range/Mid-bass
-
Woofers
Two 6 ½” Turbine Cone
Overall Frequency Response
36Hz - 50kHz
Frequency Response (-3dB limits)
48Hz - 39kHz
Recommended Amplifier Power
20 - 200W
Amplifier Output Compatibility
8Ω / 6Ω / 4Ω
Minimum Impedance (ohms)
4.1Ω
Sensitivity (2.83V/1m)
89dB
CROSSOVER
Tweeter/Mid-range Crossover Frequency
2500
Mid-range/Mid-bass Crossover Frequency
-
MEASUREMENTS
Product Dims W x H x D (Includes width of feet)
615 x 196.6 x 350mm
24.2 x 7.8 x 13.8 in
Product Weight (each)
32.8 lbs/14.9 kg
Shipping Weight
39.5 lbs/17.9 kg
CABINETRY
New CRC (Mid-Range Enclosure Type)
-
Mid-Bass / Woofer Enclosure Type

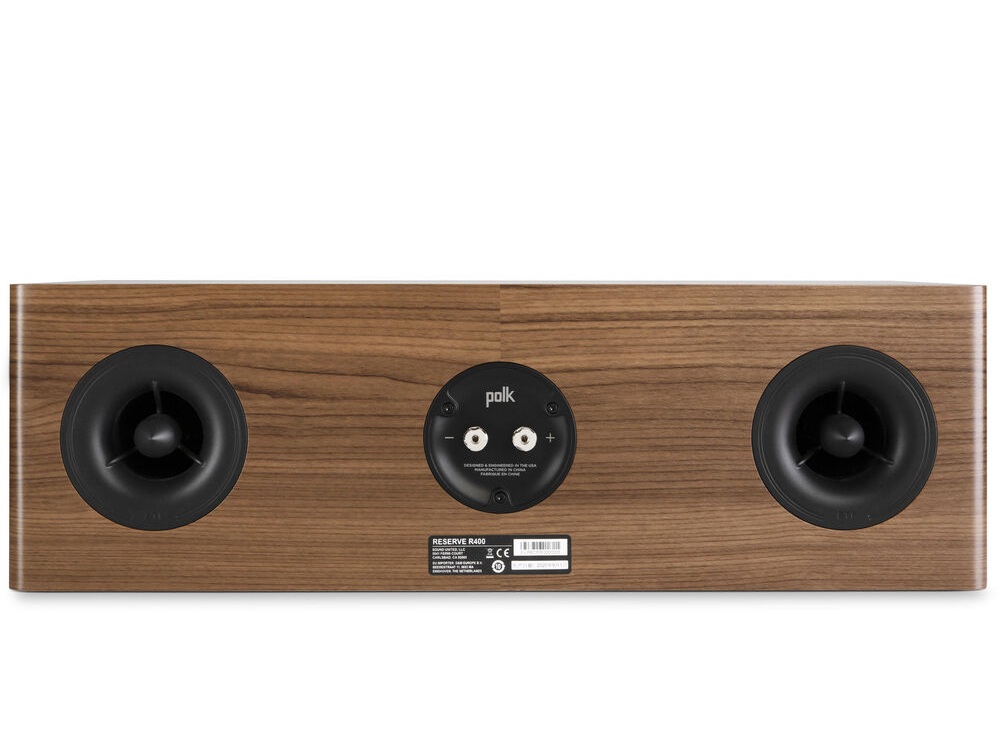

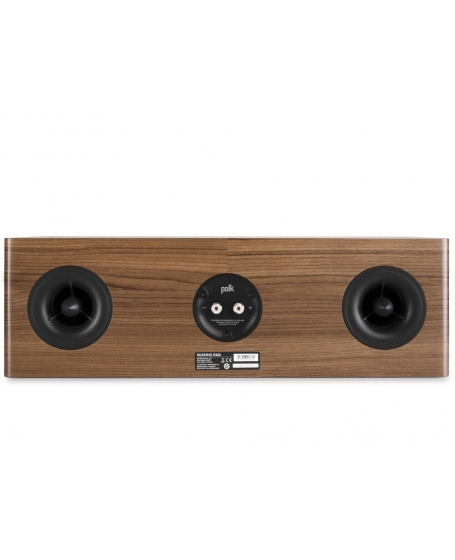

Dual Rear X-Ports
Available Finishes
Black / Walnut
Feet
Rubber pads
Wall-Mountable (keyhole slots)
No
Binding Posts: Nickel-plated 5-Way
Single
Certifications Non-Safety and Regulatory
Hi-Res Certified
Yes
IMAX Certified
Yes
Shipping Dims (WxHxD)
740 x 483 x 293mm
(29.1 x 19 x 11.5) in
