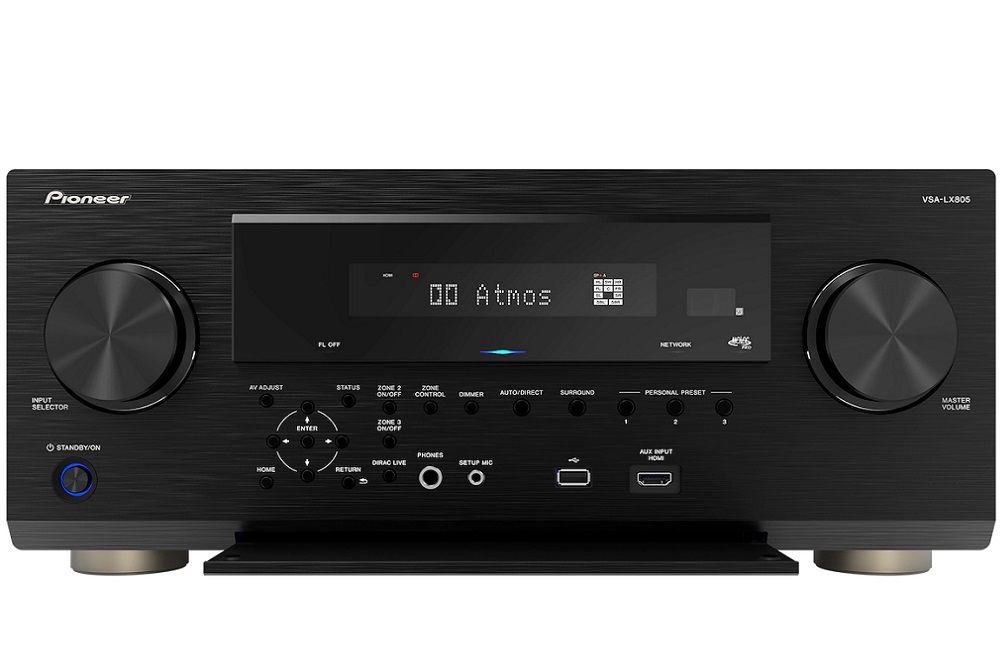

VSA-LX805

11.4-Channel AV Receiver

Sound. Vision. Soul. Get ready for the ultimate home theater setup with the Pioneer LX VSA-LX805 11.4 Channel Network AV Receiver. Boasting next-gen technology and brimming with studio-grade circuitry, the VSA-LX805 has been engineered to satisfy your every AV need, delivering premium sound and stellar vision to fulfill your home entertainment dreams.

From the pioneers of hi-fi

We’ve spent decades perfecting the ideal acoustic environment, determined to take your home entertainment system into the stratosphere. We’ve spared no expense bringing the VSA-LX805 to market, enhancing on past successes and leveling-up features for the modern age.

150 Watts, 11 channels

The Pioneer LX VSA-LX805 is engineered to support 11 channels amplified in a 7.2.4 configuration at 150 Watts per channel (8 ohms). Simply put, that’s a lot of power.

Powering up to three distinct zones

That’s enough power to support up to three distinct zones simultaneously. So, you can sit back and relax with your favorite show while the teens are gaming and the kids watch a movie in the other room.

Premium componentry & studio-level processing

Experience movies, music, and games as though you’re in the producers’ booth. With our long-standing commitment to innovation and the hard work of our world-renowned engineers, we’ve delivered yet another ground-breaking AVR.

8K/4K Ultra HD capabilities

Live up to the potential of your high definition TV. Elevate your shows, games and films to the highest level with exceptional 8K/4K Ultra HD audio-video performance.

Take the room out of the equation

Odd room shape? No problem. An included Dirac Live^® premium license comes standard to help account for sound bouncing around any room, and an optional Bass Control upgrade is available for those who can’t get enough precision bass.

LEARN MORE FROM DIRAC

Precision connectivity

Transport yourself into the concert hall with precise audio reproduction through hardline cable (HDMI, RCA, Phono, and more) or one of the many streaming and smart home assistant platforms that come standard with this model.

Multi-dimensional entertainment

Everyone deserves a custom-fit home entertainment solution as personalized and unique as the user. That’s why the Pioneer LX VSA-LX805 comes packed with all the connections you need to enjoy your favorite content.

Theater-quality picture

Experience powerful 4K HDR images and sound with IMAX^® digitally remastered content, just as the filmmaker intended. Pioneer Elite’s IMAX Enhanced Mode is meticulously optimized to play digitally remastered content to deliver the best viewing and listening experience on Earth.

All Encompassing Sound

Just like your choice in content, you’ll never settle for less than exceptional with this AVR. With or without upfiring speakers, E-ARC (Enhanced Audio Return Channel) simplifies connectivity and supports the latest high-bitrate audio formats including Dolby Atmos^®, DTS-HD Master Audio^™, DTS:X^® and Dolby TrueHD. Say hello to lifelike, object-oriented sound in smooth, curving movements or realistic overhead height effects.

Stream however you like

The VSA-LX805 comes with built-in access to several streaming and smart home assistant platforms. Use Apple AirPlay, Google Home, Alexa, TIDAL, Pandora, Roon, Spotify, Amazon, Deezer, Chromecast or Sonos to control and play whatever music you have. With this much access, you'll never run out of music.

We know audio

The Pioneer LX VSA-LX805 was custom engineered by and for the most sophisticated consumers on the planet.

Auto Phase Control Plus & Advanced Sound Retriever tech

Auto Phase Control Plus compensates for lag in low-frequency signals while two-channel Advanced Sound Retriever technology restores the output of compressed audio for lossless sound.

Clearer, stronger audio & reduced digital noise

Balanced XLR inputs and outputs deliver clearer, stronger audio reproduction while low impedance polymer capacitors reduce high frequency digital noise for an exacting performance.

Amplifier Section
Rated Output Power
11 ch × 220 W at 6 ohms, 1 kHz, 1 ch driven of 1% THD (IEC)
Maximum Effective Output Power
11 ch × 260 W at 6 ohms, 1 kHz, 1 ch driven of 10% THD (JEITA)
THD+N (Total Harmonic Distortion + Noise)
0.08% (20 Hz - 20,000 Hz, Rated output power)
Input Sensitivity and Impedance
200 mV/47 kΩ (LINE(RCA))
3.5 mV/47 kΩ (PHONO MM)
±0.2 mV/44 kΩ (LINE(XLR))
Rated RCA Output Level and Impedance
PRE OUT: 1 V/470 Ω
PRE OUT (ZONE 2): 1 V/470 Ω
LINE OUT (ZONE 2, ZONE B): 200 mV/2.2 kΩ
LINE OUT (ZONE 3): 200 mV/470 Ω
Rated XLR Output Level and Impedance
PRE OUT: 2 V/220 Ω
Phono Maximum Input Signal Voltage
70 mV (MM 1 kHz 0.5%)
Frequency Response
10 Hz - 100 kHz/+1 dB, –3 dB (Direct/Pure Direct)
Tone Control Characteristics
MAIN: ±10 dB, 20 Hz (BASS), ±10 dB, 20 kHz (TREBLE)
ZONE 2: ±10 dB, 100 Hz (BASS), ±10 dB, 10 kHz (TREBLE)
ZONE 3: ±10 dB, 100 Hz (BASS), ±10 dB, 10 kHz (TREBLE)
Signal to Noise Ratio
107 dB (IHF-A, LINE IN, SP OUT)
78 dB (IHF-A, PHONO IN, SP OUT)
Supported impedance of Speakers
4 Ω - 16 Ω
Headphone Rated Output
75 mW + 75 mW (32 Ω, 1 kHz, 10% THD)
Supported impedance of Headphones
8 Ω - 600 Ω
Headphones Frequency Response
10 Hz - 100 kHz
Video Section
Signal Level
1 Vp-p/75 Ω (Composite Video)
1 Vp-p/75 Ω (Component Video Y)
0.7 Vp-p/75 Ω (Component Video Pb/Pr)
Correspoinding maximum resolution
480i/576i (Component Video)
BLUETOOTH Section
Communication system
BLUETOOTH Specification version 4.2
Frequency band
2.4GHz (2.402 - 2.480GHz)
Modulation method
FHSS (Frequency Hopping Spread Spectrum)
Compatible BLUETOOTH profiles
A2DP 1.2
AVRCP 1.3
Supported Codecs
Receiving: SBC, AAC
Transmitting: SBC, aptX, aptX HD
Transmission range (A2DP)
20 Hz - 20 kHz (Sampling frequency 44.1 kHz)
Maximum communication range
Line of sight approx. 15 m(*)
(*)The actual range will vary depending on factors such as obstacles between devices, magnetic fields around a microwave oven,static electricity, cordless phone, reception sensitivity, antenna's performance, operating system, software application, etc.
HDMI
Input
6 Rear, 40Gbps (8K60p/4K120p, 4:2:0 (uncompressed)) (8K60/4K120p, 4:4:4 (DSC)
1 Front, 9Gbps (4K60p, 4:2:0 (uncompressed))
All Inputs Support HDR
Output
Main, 40Gbps, eARC, 8K
Sub, 40Gbps, 8K
Zone 2, 18Gbps, 4K
All Outputs support HDR
Network Section
Ethernet LAN
1 (10BASE-T/100BASE-TX)
Wireless LAN
IEEE 802.11 a/b/g/n/ac standard (Wi-Fi® standard) 5 GHz/2.4 GHz band
Supported Audio Formats
MP3 (MPEG-1/MPEG-2 Audio Layer-3/44.1 kHz, 48 kHz/Between 8 kbps and 320 kbps, and VBR)
WMA (44.1 kHz, 48 kHz/Between 5 kbps and 320 kbps, and VBR)
WAV (Up to 24bit, 192kHz)
AIFF (Up to 24bit, 192kHz)
AAC (MPEG-2/MPEG-4 Audio/44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz/Between 8 kbps and 320 kbps, and VBR)
FLAC (Up to 24bit, 192kHz)
LPCM (Up to 16bit, 48kHz)
Apple Lossless (Up to 24bit, 192kHz)
DSD (Up to 11.2MHz)
USB Section
USB
1 (Rear : Ver.2.0, 5 V/1 A)
Supported Audio Formats
MP3 (MPEG-1/MPEG-2 Audio Layer-3/44.1 kHz, 48 kHz/Between 8 kbps and 320 kbps, and VBR)
WMA (44.1 kHz, 48 kHz/Between 5 kbps and 320 kbps, and VBR)
WAV (Up to 24bit, 192kHz)
AIFF (Up to 24bit, 192kHz)
AAC (MPEG-2/MPEG-4 Audio/44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz/Between 8 kbps and 320 kbps, and VBR)
FLAC (Up to 24bit, 192kHz)
Apple Lossless (Up to 24bit, 192kHz)
DSD (Up to 11.2MHz)
General
Power Supply
AC 220 - 240 V, 50/60 Hz

Power Consumption
1190W PEAK
0.2W Standby
1.8W Network Standby (wired)
1.9W Network Standby (wireless)
1.9W Bluetooth Wakeup
0.2W HDMI CEC Standby
1.9W Standby with ALL on)
Dimensions
435mm Width
468mm Depth
185.5mm Height
Weight
21.5kg
Video Inputs
Composite
2
Component
1
Audio Inputs
Analog
5 RCA Inputs (Including 1x MM Phono)

1 XLR Input

Digital
2 Coaxial
3 Optical
Supports up to 24bit, 96kHz
Audio Outputs
Analog
FRONT L/R
CENTER
SURROUND L/R
HEIGHT 1 L/R
SURROUND BACK L/R
HEIGHT 2 L/R
SUBWOOFER
ZONE 2 PRE/LINE OUT or ZONE B LINE OUT
ZONE 3 PRE/LINE OUT
Speaker Outputs
FRONT L/R
CENTER
SURROUND L/R
SURROUND BACK L/R
HEIGHT 1 L/R or FRONT BI-AMP
HEIGHT 2 L/R or ZONE 3 L/R or ZONE 2 L/R or CENTER BI-AMP
Headphones
1 6.3mm port on front
Others
Setup Mic
1 (front)
Control Terminals
RS-232
12V Trigger Out (100mA)
1 IR In
