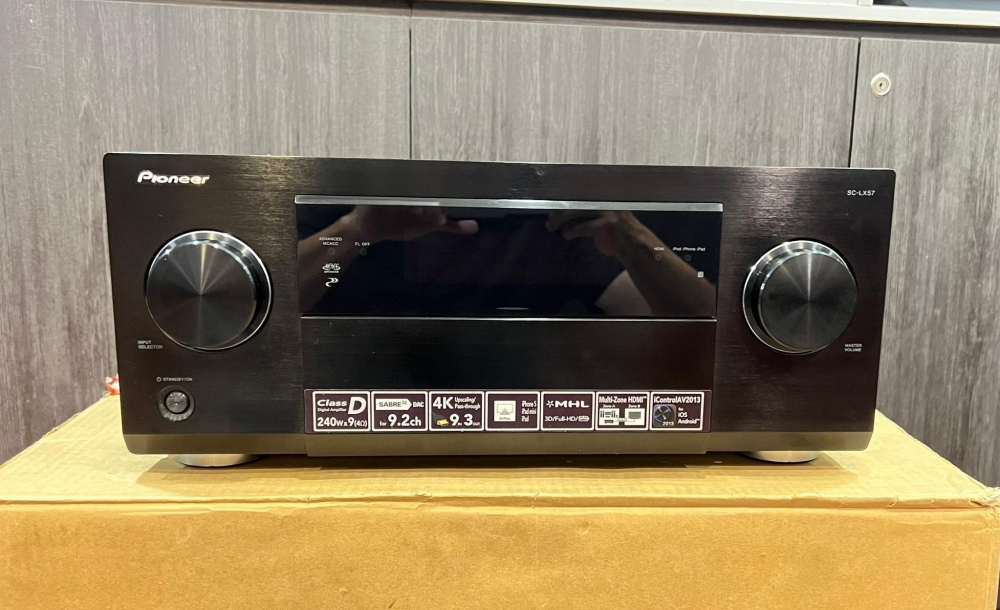

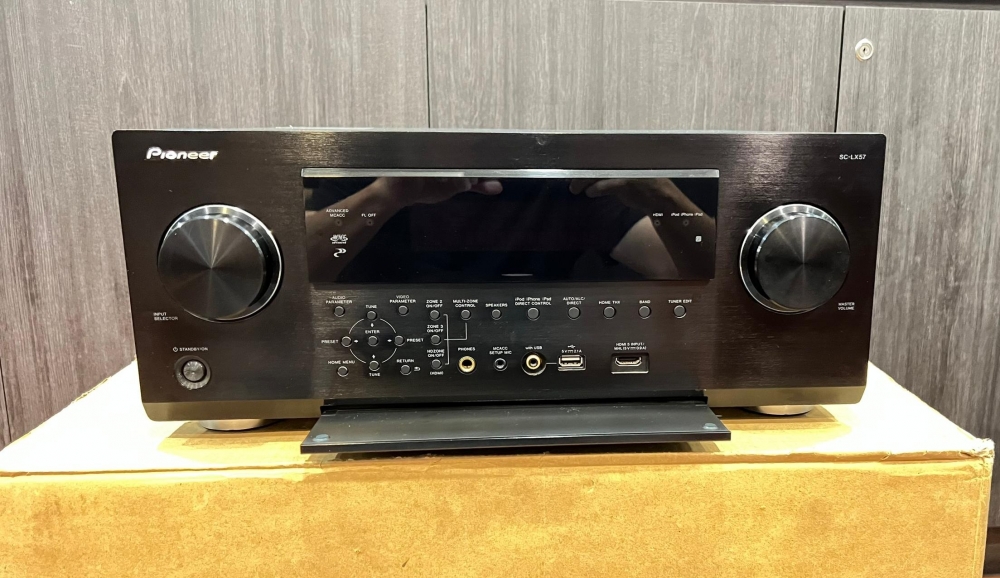

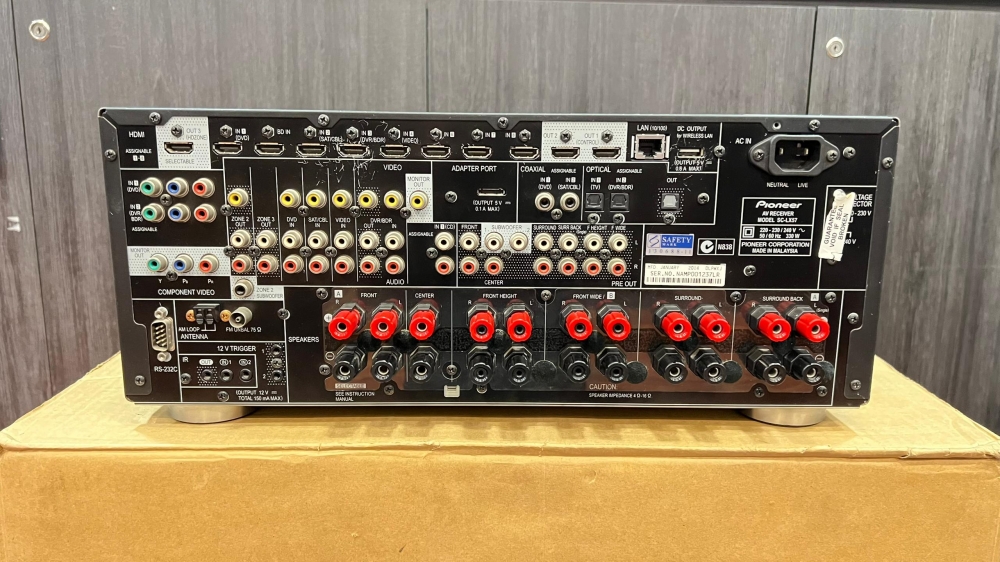

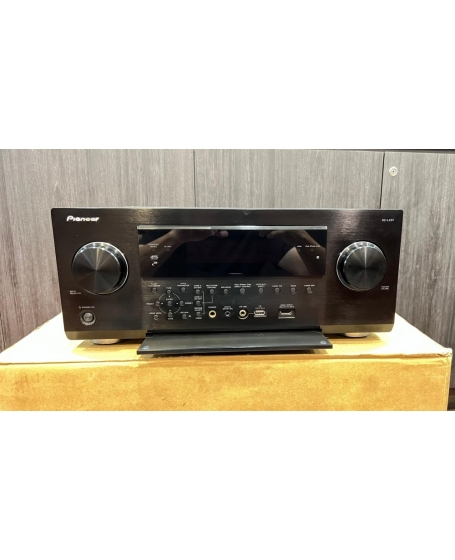

SC-LX57

9.2-CHANNEL A/V RECEIVER WITH HDMI 1.4 THX SELECT2, COMPATIBLE WITH DOLBY TRUEHD / DTS-HD MASTER AUDIO AND ADVANCED NETWORK FEATURES

Enjoy your music to the fullest with the SC-LX57, which delivers 190W of continuous output power thanks to its powerful Class D amplifier. The SC-LX57 features an integrated SABRE 32bit Ultra DAC from ESS Technology Inc., the industry benchmark for digital-to-analog audio conversion, for music reproduction with complete fidelity. With Audio Scaler, even standard CD-quality content is upscaled up to 192kHz/32-bit for a "Hi-Res" experience. The receiver plays and supports gapless playback of DSD, Hi-Res AIFF, Apple Lossless, WAV, and FLAC files.

Play music in other rooms via HDZone, a Zone 2 HDMI output to send the same signal as the main zone or a separate source to a second zone via HDMI. There's also a digital connection to connect the receiver to your iPod, iPhone, iPad, or Android device (via MHL), and you can enjoy worldwide internet radio (vTuner) and network streaming via DLNA or Apple AirPlay when connected via LAN.

ECO mode saves power without compromising sound and video performance. Compatible smartphone and tablet apps include the free iControlAV2013 advanced remote control app.

Enhanced Audio
The Audio Scaler increases audio quality by expanding the two-channel digital signal to 32-bit for improved resolution and density, increasing the sampling rate to 192 kHz, reducing noise, and enhancing the characteristics of the digital signal to enrich sound reproduction.

Immense Power.
Audiophile-grade Class D amplification brings you unprecedentedly powerful output. Short signal paths ensure pristine sound, and efficient cooling delivers superior performance with lower power consumption (-44% vs. analog amps). Now with 4-16Ω speaker support.

Energy Saving Settings
Use ECO Mode to save energy. Sources are analyzed in real time, adjusting power consumption according to your needs, or you can choose the most suitable energy-saving setting. You can control ECO Mode using the receiver's front panel, the included remote control, or the ECO Manager page of Pioneer's free iControlAV2013 app for your smartphone or tablet.

Connect an Android smartphone
Stream high-quality video and audio from an Android device using a single cable. Thanks to the MHL-compatible HDMI connection on the front panel, you can also charge your device at any time.

Easy Streaming:
DLNA and AirPlay are widely compatible with PCs, laptops, smartphones, and other devices. Since this receiver is DLNA and AirPlay certified, you can easily stream audio from these devices. Apple AirPlay lets you stream music from your entire iTunes library.

The reimagined iControlAV2013 remote control
lets you modify all the receiver's important functions from your smartphone or tablet (iOS/Android). The 2013 version features a new user interface and easy-to-navigate menu, as well as a dedicated "ECO MANAGER" page for energy-saving settings. Pioneer's PUSH PLAYER, a new streaming option, lets you access music libraries stored on your device and create playlists that can be wirelessly streamed to the receiver, all from within the app.

4K Ultra HD Passthrough and Upscaling
Enjoy true high definition with 4K Ultra HD video. The receiver is designed for the next generation 4K Ultra HD resolution standard, with the ability to pass through 4K video signals to compatible displays, delivering the highest video picture quality available. It can also upscale lower-resolution video signals to 4K Ultra HD when used with the latest 4K displays.

High-Resolution Audio
In addition to playing MP3, WMA, AAC, FLAC, and WAV music files from a networked computer or USB drive, you can now also enjoy playback of high-resolution Apple Lossless and AIFF files, as well as gapless playback for AIFF, Apple Lossless, WAV, and FLAC.

Multi-Zone Capability
All new receivers offer simultaneous entertainment in multiple zones—including an HDZone with a dedicated HDMI output for an additional room. Up to four different iOS devices with Pioneer's iControlAV2013 app can simultaneously control the AV receiver to take full advantage of the receiver's multi-zone capabilities.

• Channels: 9
• Amplification Type: Class D (Direct Energy HD)
• 760 W Multi ch Simultaneous Drive (8 ohms, 1 kHz, 1 %)
• 240 W/ch (4 ohms, 1 kHz, 1 %, 1 ch Driven)
• 190 W/ch (6 ohms, 1 kHz, 1 %, 1 ch Driven)
• THX® Select2 Plus Certified
• Dolby^® TrueHD/Dolby Pro Logic IIz/Dolby Digital Plus
• DTS-HD Master Audio/DTS-ES/DTS Neo:X
• DSD Music File Playback via USB (2.8 MHz)
• DSD Disc (SACD) Playback via HDMI (2.8 MHz)
• Digital Core Engine with Texas Instruments Aureus™ DSP
• SABRE 32 DAC for 9.2 ch
• Audio Scaler 192 kHz/32-bit Enhancer
• HDMI™ Audio Return Channel
• Pioneer Advanced MCACC Room Calibration
  • 3D Time Axis Measurement
  • Polarity Check
  • Automatic Crossover Setting
  • Reverb Before and After Calibration Results (OSD or AVNavigator)
  • Standing Wave Control
• Pioneer Sound Enhancements
  • Full Band Phase Control/Auto Phase Control Plus
  • PQLS Bit-stream/Multi-Surround/2 ch Audio
  • Jitter Reduction
  • Auto Sound Retriever/Auto Sound Retriever for ARC
  • Sound Retriever Link
  • Auto Level Control (Multi-Channel)
  • Optimum Surround (Auto Bass, Dialogue, and Surround Balancing)
  • Virtual Speakers (Wide/Height/Surround Back)
  • Virtual Depth
• Advanced Surround Modes
  • Action, Drama, Advanced Game, Sports, Classical, Rock/Pop
  • Front Stage Surround, Extended Stereo
  • Sound Retriever Air, Phones Surround
  • ECO Mode 1, ECO Mode 2
• Input Volume Absorber
• Speaker System 11 Patterns
