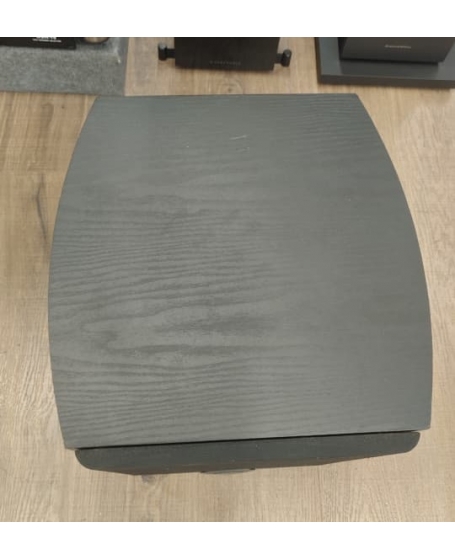

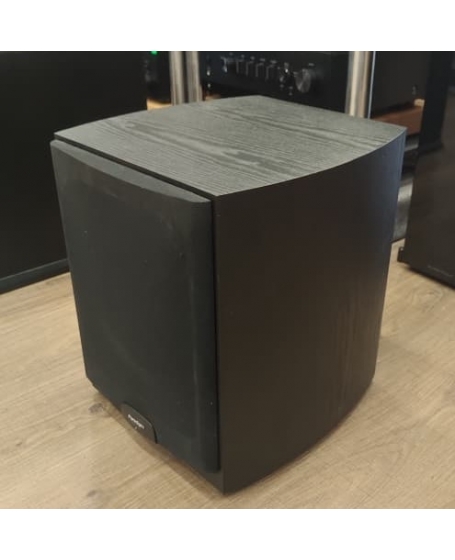

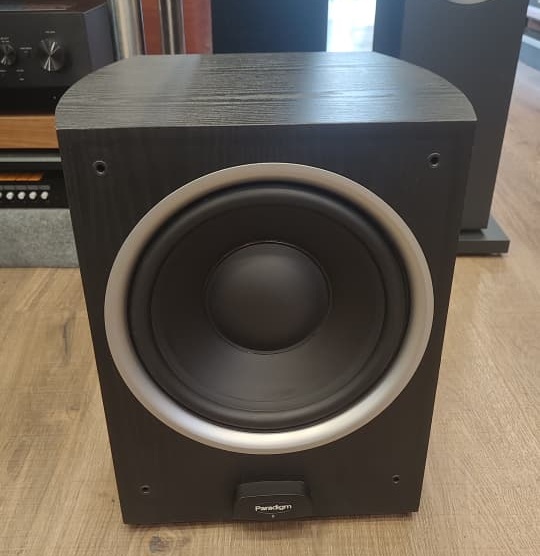

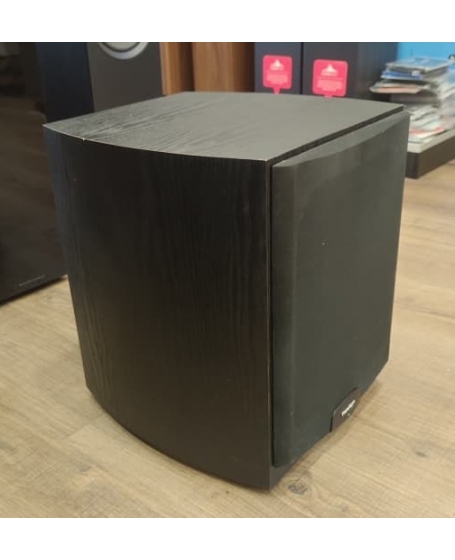

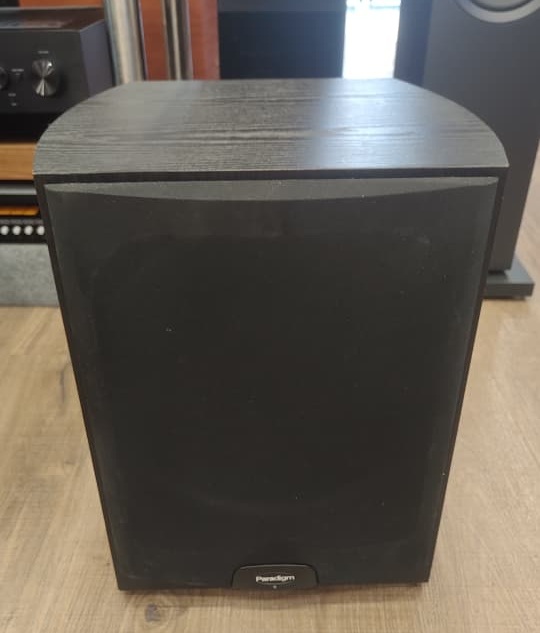

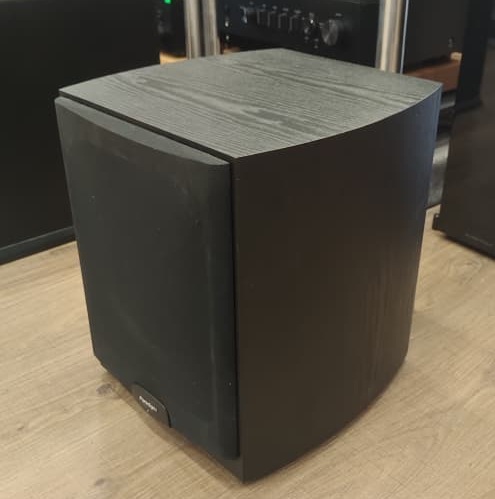

PDR 80

8-inch single driver, bass-reflex, high-velocity low-turbulence resistive port. Built-in amplifier boasts improved soft-clipping circuitry for lower amplifier distortion and even cleaner maximum output levels.

DESIGNSingle driver, bass reflex, high-velocity low-turbulence resistive port, built-in amplifier
AMPLIFIER300 watts Dynamic Peak / 100 watts RMS
AMPLIFIER FEATURESAuto-On / Standby, soft clipping
LOW FREQUENCY DRIVER210-mm (8 in) reinforced polymer-composite cone, 38-mm (1-1/2 in) voice-coil
LOW FREQUENCY EXTENSION32 Hz (DIN)
LOW PASS FILTER FREQUENCYVariable 35 Hz - 150 Hz; Bypass Option
SUB / SAT PHASE ALIGNMENTVariable 0° - 180°
INPUTSTwo RCA (L/R-Mono) for L/R Line-Out or Sub-Out / LFE-Out of receiver, processor or other line-level source
DIMENSIONS HXWXD (INCLUDES GRILLES AND FEET)14" × 12" × 14.375" (35.6cm × 30.5cm × 36.5cm)
WEIGHT24 lbs. (10.9 kg)
