D2+

• Laser Light Source with life span up to 30,000 hours (ECO Mode).
• Bright 3,000 lumens and stable output, achieves 1,800,000 : 1 Contrast.
• Amazing Color for spectacular and accurate colors.
• Full 4K, 8 million pixel display, perfect pixel alignment and great contrast.
• Stunning HDR 10 performance. Brightest Whites, Deepest Darks, and Lifelike Color.
• Superb gaming experience with extremely low 4ms Input Lag for 240Hz at 1080P, 16.9ms for 60Hz at 4K UHD
• eARC (Enhanced Audio Return Channel) for higher-quality audio experience
• Ultra short throw feature, 120″ big screen in inches away.

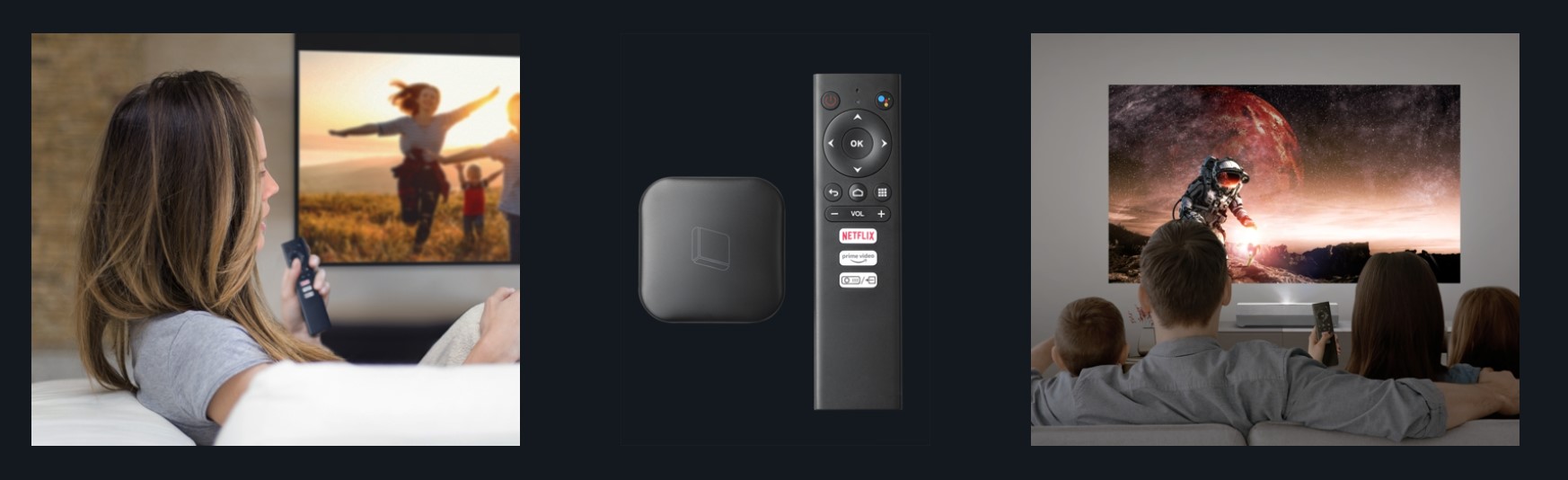

• 4K entertainment with Android TV certified HAKO mini dongle

CinemaX D2+ features 4K UHD resolution and supports eARC audio, offering the ultimate cinematic experience like no other. The ultra short throw technology allows you to enjoy up to 120″ screen in just inches away. With Amazing Color and 121% of Rec.709 gamut coverage, D2+ can deliver richer color performance and makes pictures even more realistic.

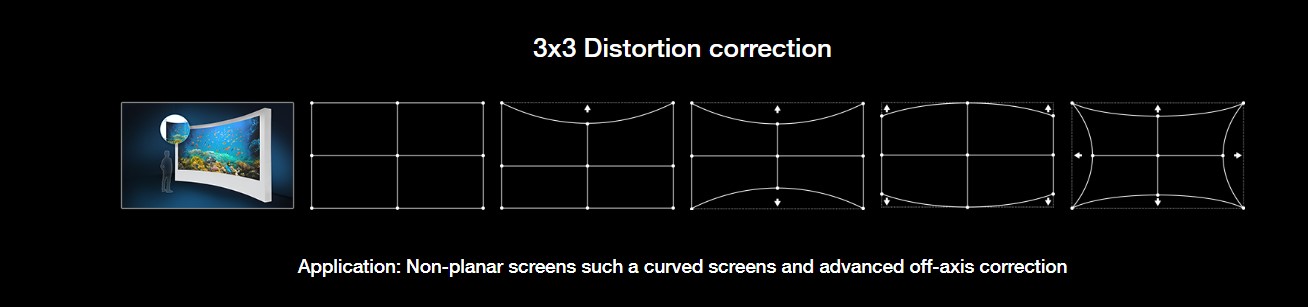

CinemaX D2+ brings the ultimate home entertainment experience, with Enhanced Gaming mode which supports up to 240Hz refresh rate at 1080P and 60Hz at 4K UHD, and extremely low input lag down to 4ms. D2+ also come with a Google & Netflix certified Android TV dongle from Hako mini, easily turning your projector into a Smart 4K TV in just a minute. The ability to implement 4-corner adjustment, 2D keystone correction, digital zoom, and warping at 3*3 matrix, allows CinemaX D2+ to be installed any way you want.

CinemaX D2+

4K UHD Ultra Short Throw LaserHome Cinema with Long-Lasting Performance

Laser light source

Laser technology delivers up to 30,000 hours of light source life that maintains stunning image quality throughout its lifespan.

What is True 4K UHD

At least 8 million active pixels

The Consumer Technology Association (CTA) ® definition of 4K Ultra HD resolution states the display resolution must have at least 8 million active pixels.

Optoma HDR

HDR10 / HLG

CinemaX D2+ supports HDR10 and HLG. When a HDR / HLG signal is detected, the projector automatically switches to HDR / HLG display mode. Through Optoma’s HDR color mapping and tone mapping technology, it enables HDR / HLG movies or games to be presented at their best in terms of color accuracy and improved contrast ratio through dynamic contrast.

The smart and simple way towatch movies

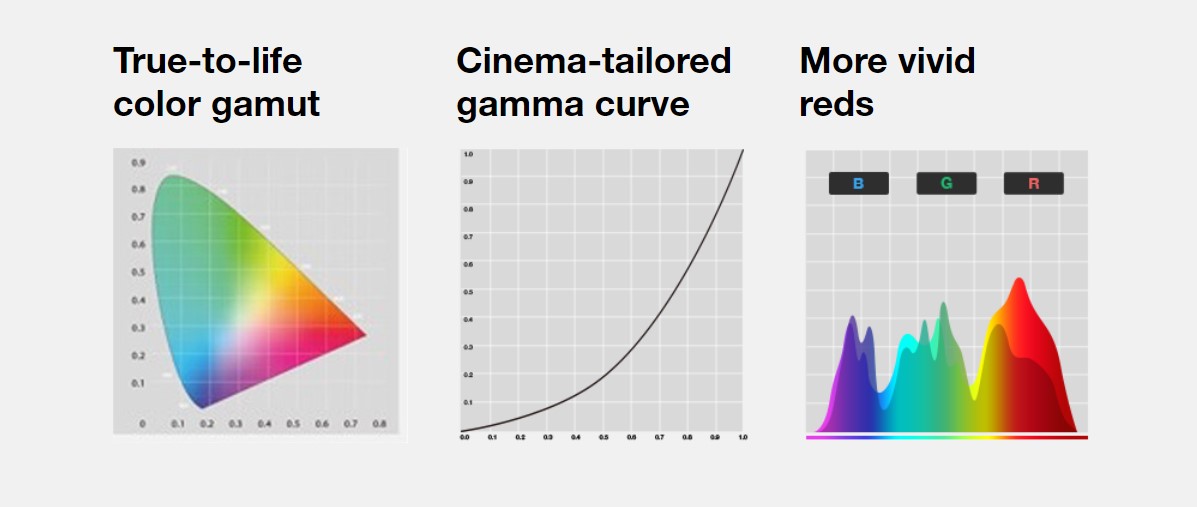

With the touch of a button, switch to “Cinema” display mode and watch as colors become true-to-life thanks to the enhanced color gamut and cinema-tailored gamma curve. Reds will be enhanced to provide more natural skin tones, better color saturation and an overall more enjoyable viewing experience.

[Cinema]vibrant & brilliant

eARC for higher-fidelity movie soundtracks and music

• Supports up to 37 Mbps of high-speed audio transmission, increased from ~1Mbps of ARC bandwidth.

• Supports pass through of uncompressed 5.1. No need for an AV receiver. Connect your source directly to projector

•Allows you take advantage of next-gen sound formats without having to buy a new receiver ifyour existing soundbar supports eARC.

Note * eARC stands for Enhanced Audio Return Channel

Play big with family and friends.Drastically scale up your gaming experience.

Optoma takes gaming to the next level. CinemaX D2+ packs in everything a gamer could want: An immersive large screen image with a rich color gamut, extremely-low input lag, high refresh rates, good motion handling and excellent contrast—perfect for intense gaming as well as casual gaming.

Upgrade your gaming display to match your next-gen consoleImmerse yourself in your game as you would in a movie

Safe & comfortable with eye protection sensor

Built-in PIR sensors can detect when children approach the laser light source, automatically reducing brightness to safeguard their eyes. Unlike the direct light source of traditional TVs, projector’s reflective light allows longer viewing without eyestrain.

Normal Brightness

Brightness Reduced

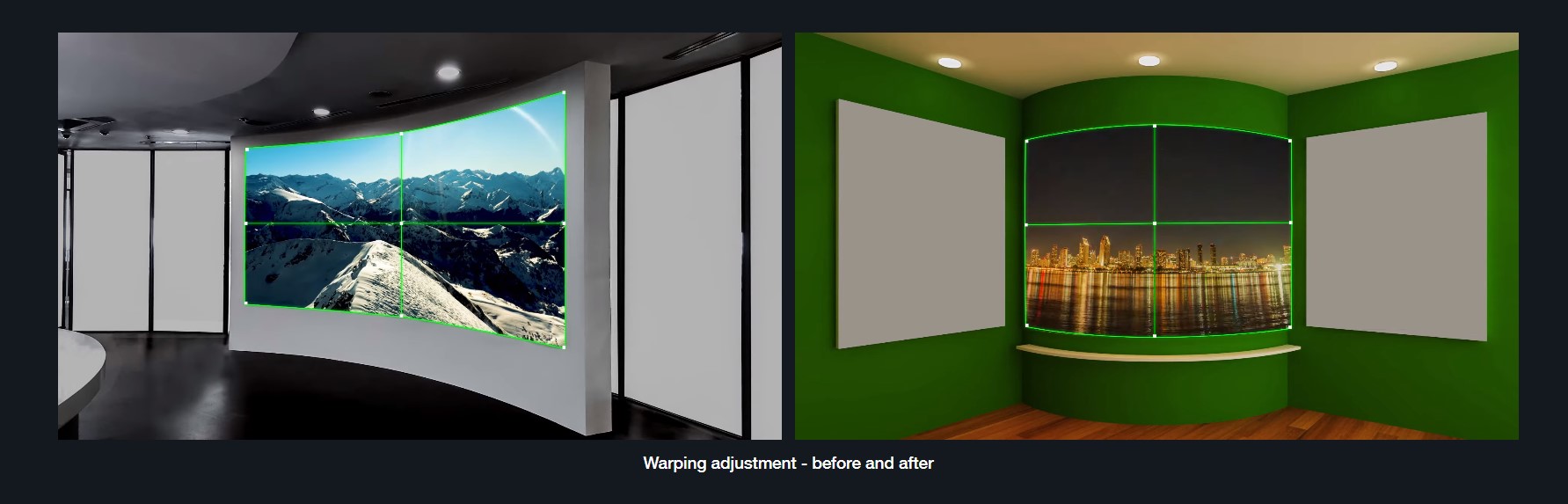

A more intense level of realism and immersion with CinemaX D2+ curved-screen projection

Excellent for gaming, exhibitions and training simulators eg. flight, driving and helicopter simulation.

Built-in or external speakerfantastic sound for 4K home entertainment

Long-lasting performance thanks toIP5X airtight optical engine

The CinemaX D2+ features Optoma’s airtight optical engine with IP5X certification. The airtight enclosure prevents dust particles from entering and ensures long-lasting and reliable performance of up to 30,000 hours.

Specification:
Display Technology
DLP 4K UHD chip

Native Resolution
4K UHD (3840 × 2160)

Brightness
3,000 Lumens

Contrast
1,800,000:1

Light Source
Laser

Light Source Life
30,000 hours (Eco mode)

Throw Ratio
0.25:1

Zoom Type
Fixed

Keystone Correction
±10° Vertical, ±10° Horizontal

I/O Connectors
HDMI 2.0 x 3 (HDMI1 support eARC out, Lower latency), USB-A x1 (5V/1.5A Power, service), S/PDIFx1, RS232x1, Audio Out x1

Speaker (Watts)
10W x 2

Weight (Kg)
8.4

Dimensions (W x D x H) (mm)
576 x 383 x 115 mm (w/o feet), 576 x 383 x 130 mm (w/ feet)

Aspect Ratio
16:9

Projection Screen Size
85" – 120"

Projection Lens
F# 2.04; f 525mm

Uniformity
90%

Horizontal Scan Rate
31~135KHz

Vertical Scan Rate
24~120 Hz

Displayable Colors
1073.4 million colors (10 bit)

Noise Level
26dB (Eco mode)

Power Supply
100V ~ 240V ± 10%, 50-60Hz

Power Consumption
Power Consumption (Min) @110V 144.5W, Power Consumption (Max) @110V 241.5W, Power Consumption (Min) @220V 140.25W, Power Consumption (Max) @220V 230W

RoHS
Compliant
