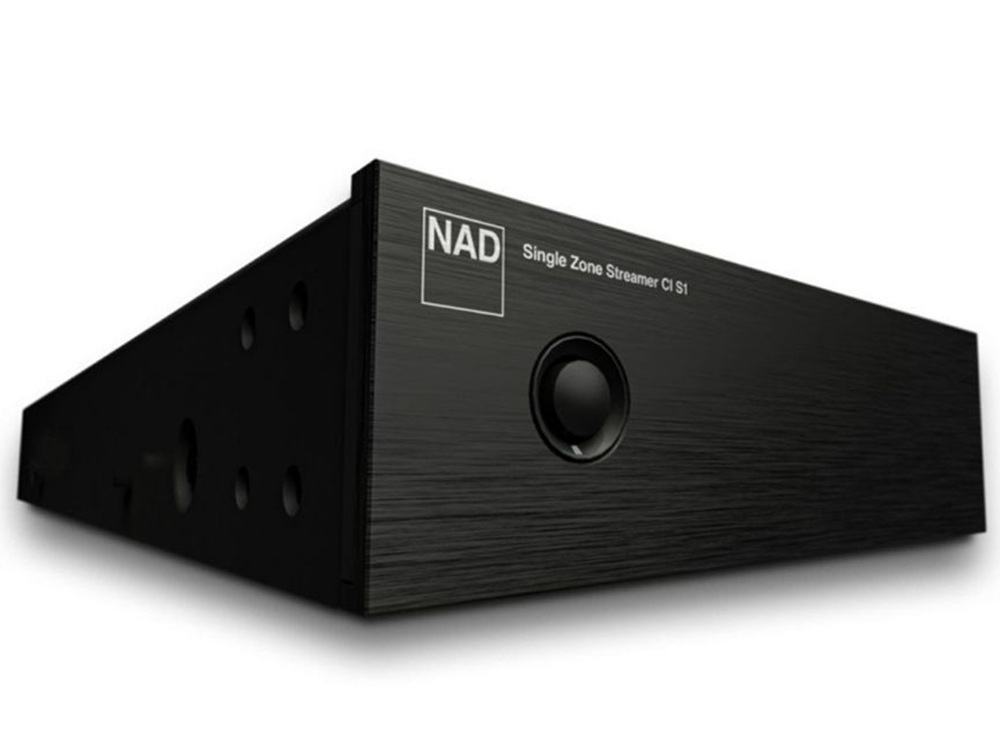

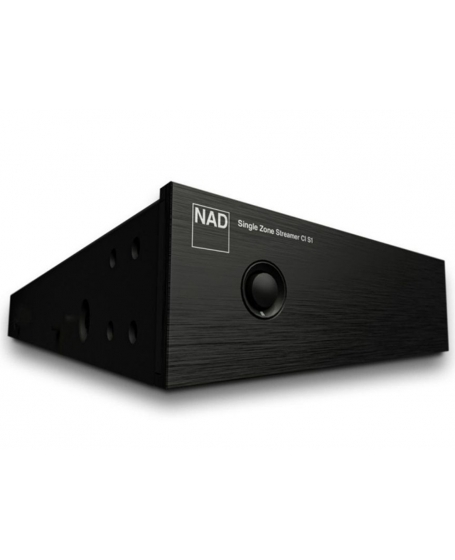

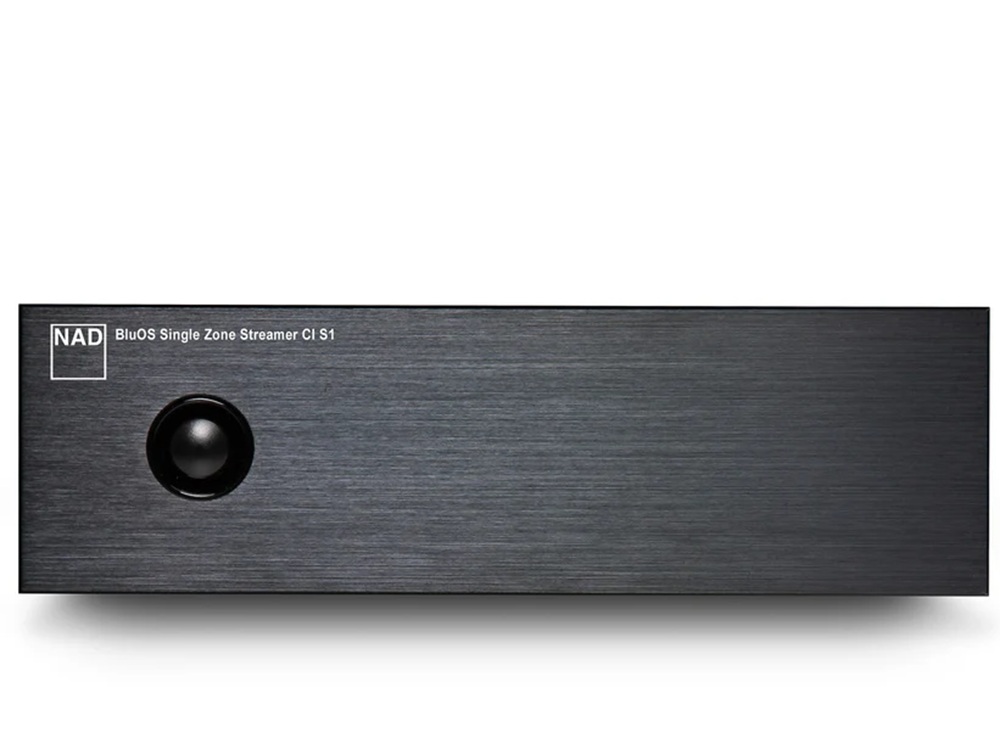

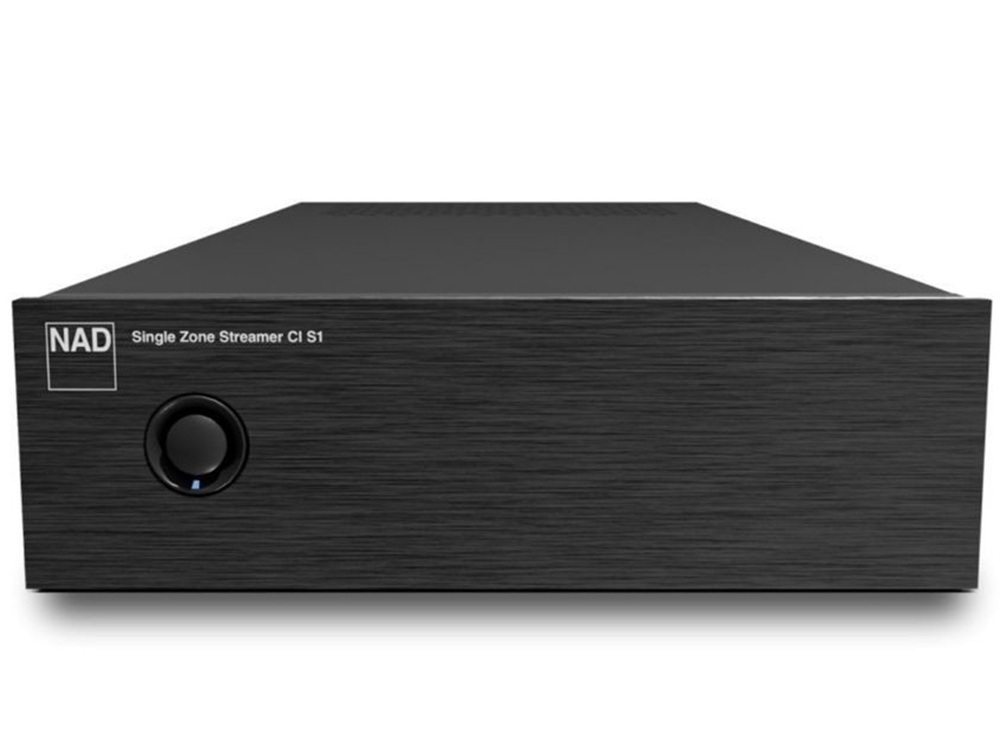

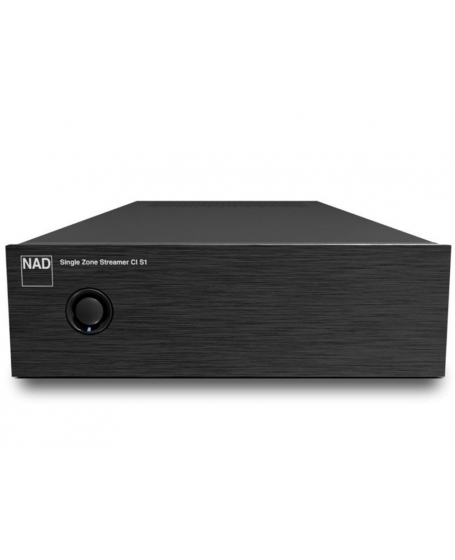

CI S1

BluOS Streaming Module

The CI S1 BluOS Module is a versatile single zone streamer and source capture, designed for scalability in a compact 1/3 width x 1U height design. With the award-winning BluOS hi-res multi-room platform on board and out of the box, it features virtually limitless audio content with the flexibility to control where, how, and when that content is played.

Compact Performance

Part of NAD’s new CI Modular Series, the CI S1 is designed with minimal rack space requirements (1/3 width x 1U height) while offering virtually limitless audio content and an in-built audiophile-grade ESS Sabre ES9039Q2M DAC. BluOS Enabled right out of the box, stream from over 20 natively integrated music services and access global internet radio, cast content from Bluetooth or Apple AirPlay2 devices, and physically connect to and distribute content from other digital or analogue devices. Manage which sources to play when and where, all through BluOS, or through any of the popular control systems with driver support integrated, including Control4, Crestron, URC, RTI, NICE, Lutron, and KNX. Monitor device status remotely via our broader ecosystem partner, Domotz.

Add Streaming to New or Retrofit

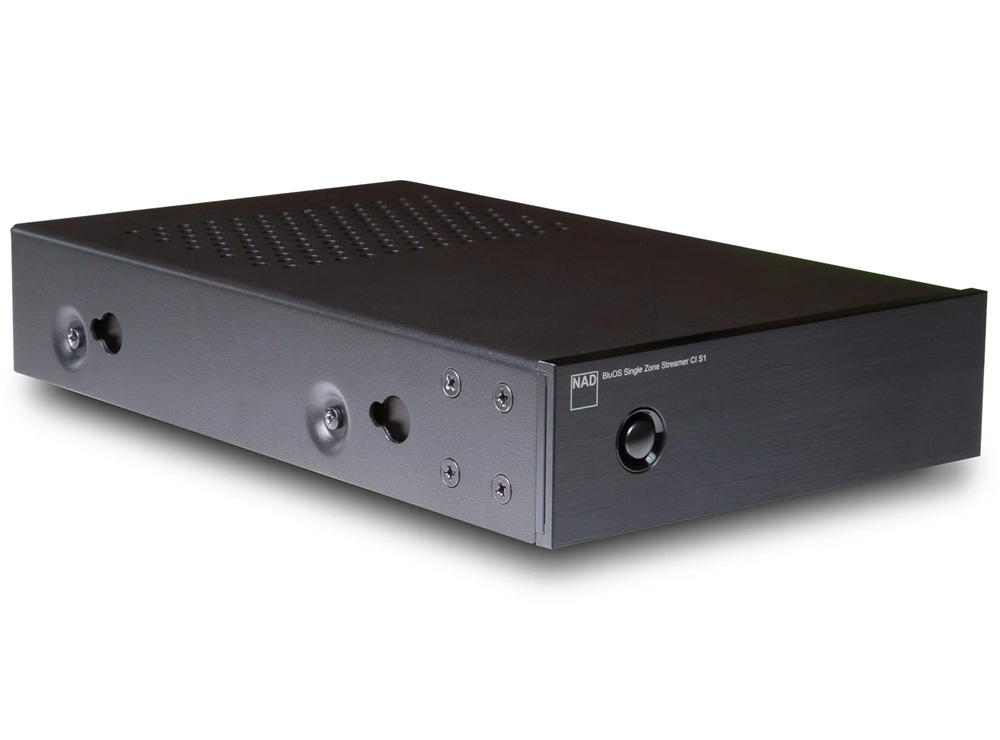

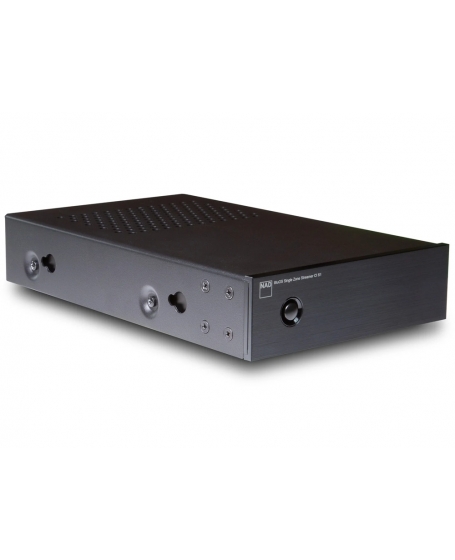

Although the CS S1 is a single zone streamer, it offers extra flexibility via its Main Zone/Sub Zone configuration option where two pre-outs can feed the same stream to two amplified outputs, complete with separate volume controls. Designed with wall-mount keyholes, two styles of rack ears, and a tool-free interlocking in-rack design, and rubber feet for surface placement, it offers integrators ultimate use case versatility to deliver modern streaming solutions to any installation for any use case. The CI S1 is the easiest and most space-efficient way to add streaming, connectivity, and audio zone management to a new or existing installation.

Abundant Connectivity

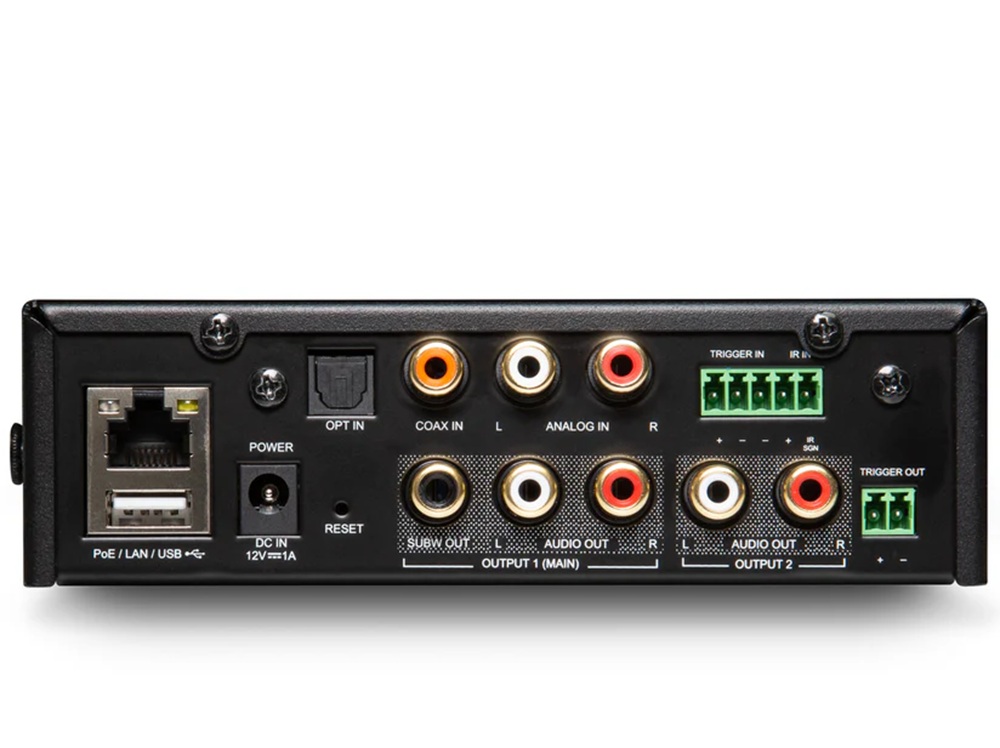

The CI S1 has a comprehensive set of inputs and outputs available, ensuring that any source, whether cloud or direct, can be connected and streamed wherever the client wants it. With WiFi and ethernet, digital and analogue audio inputs with signal sensing, sub out, and assignable 12V trigger in and 12V trigger out, it offers integrators an unprecedented amount of flexibility in connectivity.

Key Features

• Compact 1/3 width x 1U height rack size
• BluOS Enabled
• Main Zone/Sub Zone configuration
• Robust drivers for the most popular control systems
• Remote monitoring and control via Domotz
• Inputs: TOSLINK, Digital Coax (with Dolby Decoding) and Analogue RCA
• Outputs: TOSLINK, 2 x Stereo RCA, Subwoofer out
• Flexible wall or rack mount, or surface placement options
• 12v DC Power

AUDIO
Supported Audio File Formats
MP3, AAC, WMA, WMA-L, OGG, OPUS
Supported High-Quality Audio File Formats
FLAC, MQA, ALAC, WAV, AIFF, MPEG-4 SLS
Supported Multi-Channel Audio Formats
Dolby Digital® Downmixing to stereo PCM
Native Sampling Rates
up to 192 KHz
Bit Depth
16-24
DAC
ESS Sabre 9039Q2M
Audio Controls & EQ
BluOS Control App
Signal-to-Noise Ratio
-118dBA
Distortion
THD+N, 0.0007%

SOFTWARE & INTEGRATIONS
Operating System
BluOS
App Controller Operating System
iOS, Android, Windows, macOS
Processor
ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core
Supported Network File Sharing
Server Messsage Block (SMB) up to 200,000 files
Album Art Supported
JPG, PNG
Music Services & Internet Radio
23+
3rd-Party Integrations
AirPlay 2, Spotify Connect, Qobuz Connect, Tidal Connect
Room Correction Software
No
Control System Integrations
Creston, Control4, RTI, Nice, URC, Lutron, Gira, Rako, Rithum, Free@Home, Josh.AI
Voice Control Integrations
Amazon Alexa Skills

CONNECTIONS
Power Supply
12v, 1.25a DC Universal Power Supply
PoE
Yes (PoE can be used instead of supplied DC PSU)
Ethernet/LAN
Ethernet RJ45, Gigabit 1000Mbps
Wi-Fi Built In
No
Bluetooth
No
IR Optical Built In
No
IR Input
2-pin PHX connector (IR extender kit required)
Inputs
Toslink Optical, Digital Coax, Stereo RCA
HDMI Input
No
USB In
Type A (Fat32, NTFS Formatted) – External Storage Only
Local Server Mode
Dual RCA Outputs
Yes
Main Zone/Sub Zone Capability
Yes (independent volume control over Speaker Output 2
when activated)
Subwoofer Output
RCA x 1; Wireless to PULSE SUB+(Linked to Output1/
Main Zone only)
Headphone Output
None
12v Trigger Input
x1 Programmable Trigger Input
12v Trigger Output
Yes (PHX connector)

USER INTERFACE & CONTROL
Status Indicator
BluOS Status LED
Source Status Indicator
No
Output Status Indicator
No

GENERAL
Finish
Black
Max Power Consumption
15w
Storage Environment
-10°C to 50°C, 20% to 80% relative humidity
Operating Environment
0°C to 40°C
SKU/Version
CI S1
Generation
1

Product Dimensions
146.5 x 44 x 238 mm
5.77 x 1.73 x 9.4 inches
1.21 kg/2.66 lbs
Dimensions
(Shipping, Single Unit)
366 x 228 x 140 mm
14.4 x 8.97 x 5.51 inches
2.2 kg/4.85 lbs
