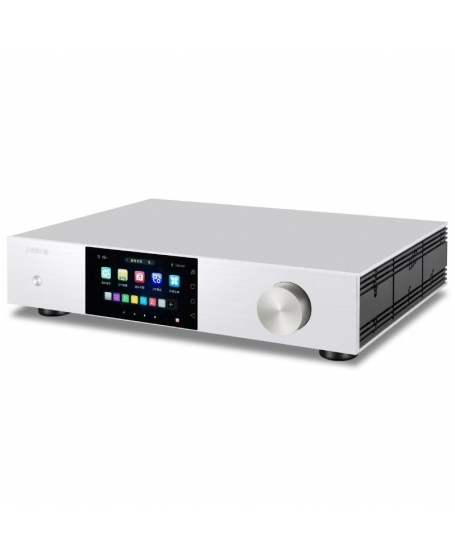

Mymei DMP35 High Resolution Streaming Music Player ( Opened Box New )

Mymei DMP35 High Resolution Streaming Music Player

Mymei DMP35 is a all-in-one digital playback and decoding machine designed for audiophiles who demand both convenience and top-tier sound quality. Powered by the RK3568 processor with 8GB RAM + 64GB ROM and running on Android 14, it supports virtually all high-resolution formats including DSD512 and PCM 32bit/768kHz.

Equipped with the ESS9069 DAC + XMOS316 USB processor, dual toroidal transformers, and a precision temperature-compensated clock, the DMP35 ensures accurate and natural sound reproduction.

It features multiple input/output options (USB, HDMI, Coaxial, Optical, Balanced XLR, RCA), dual-band WiFi, Gigabit LAN, Bluetooth 5.4 (LDAC/aptX HD), as well as support for NAS, local storage, and cloud services. Streaming services such as TIDAL, Qobuz, Apple Music, and NetEase Cloud are fully supported, making the DMP35 a complete hub for digital music playback.

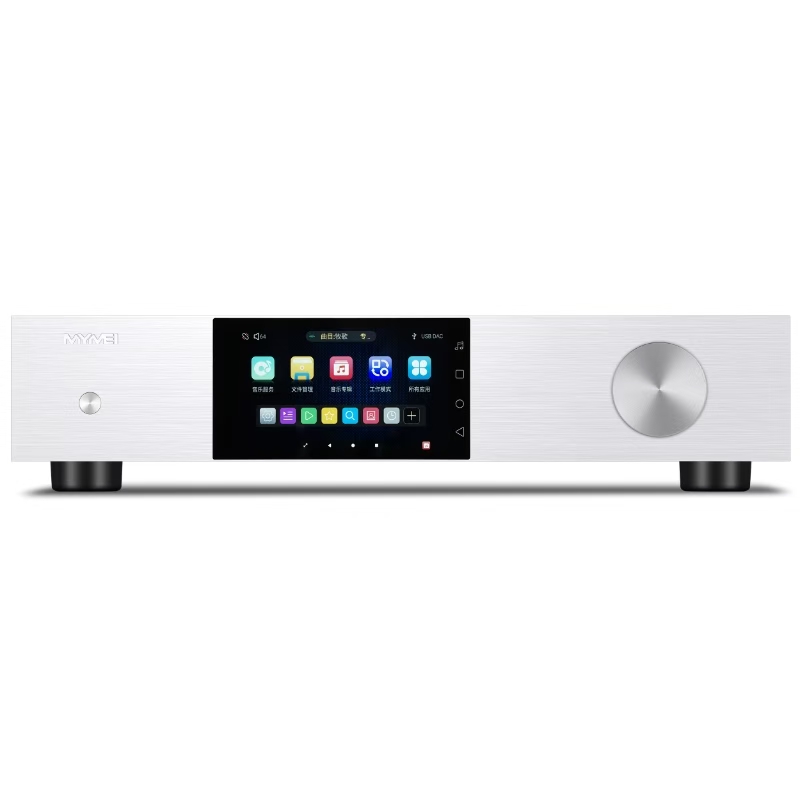

With a 5.5” Full HD touchscreen and user-friendly interface, the DMP35 offers seamless control and compatibility with external CD drives for playback and ripping. It is the perfect combination of versatility, high resolution, and premium build for serious music lovers.

Display & System

• Display: 5.5” 1080×1920 Full HD Multi-Touch

• Operating System: Android 14

• CPU: RK3568 Quad-Core

• Memory: 8GB RAM + 64GB ROM

Audio & DAC

• DAC Chip: ESS9069 + XMOS316

• Master Clock: Femtosecond, temperature-compensated (±0.03 PPM)

• Digital Sampling Rates: 44.1 kHz – 768 kHz

• Digital Filter: 32-bit, 8x oversampling

• Supported Audio Formats:

• DSD: DSD64 – DSD512 (DSF/DFF/ISO-DSD/ISO DST)

• PCM: WAV, FLAC, AIFF, APE, ALAC, MP3, MP2 (8 kHz – 768 kHz, 16–32 bit)

• MQA: Full decoding, 8 kHz – 768 kHz

• CUE Files: Track splitting, selection, FF/RW

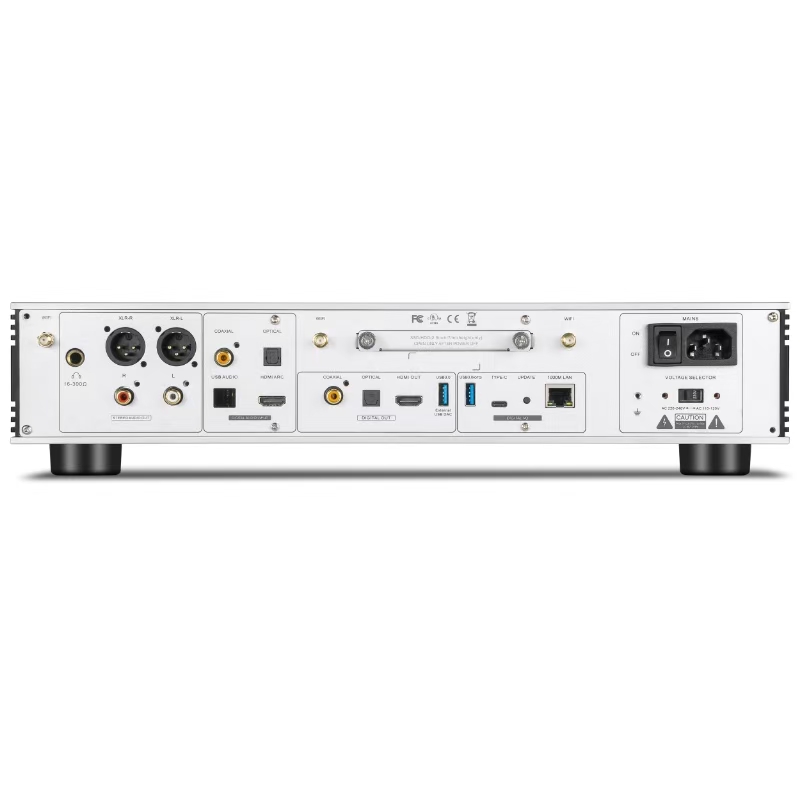

Inputs

• USB: PCM 32bit/768kHz, DSD512 (D2P, DoP, Native)

• Coaxial: PCM 24bit/192kHz, DSD (D2P)

• Optical: PCM 24bit/192kHz, DSD (D2P)

• HDMI eARC: PCM 24bit/192kHz, DSD (D2P)

Outputs

• USB Audio Out: PCM up to 32bit/768kHz, DSD512 (D2P, DoP, Native)

• Balanced XLR: PCM 32bit/768kHz, DSD512

• RCA (Unbalanced): PCM 32bit/768kHz, DSD512

• HDMI Out: PCM 24bit/192kHz, DSD (D2P)

• Coaxial Out: PCM 24bit/192kHz, DSD (D2P)

• Optical Out: PCM 24bit/192kHz, DSD (D2P)

• Headphone Out: 16 – 300 Ω headphones supported

• Bluetooth Transmitter: PCM 24bit/96kHz, DSD (D2P)

Network & Wireless

• LAN: 1000M / 100M / 10M

• WiFi: Dual-band 2.4GHz / 5GHz (802.11 a/b/g/n)

• Bluetooth: v5.4 (Qualcomm QCC3083)

• Codecs: LE Audio, LDAC (96kHz), aptX, aptX HD, AAC (48kHz), SBC (48kHz)

• Protocols: DLNA, AirPlay, QPlay, SAMBA, Roon Ready

Storage & Expansion

• Internal Support:

• 2.5” SATA 3.0 HDD/SSD up to 4TB

• M.2 NVMe SSD up to 8TB

• USB Ports: 2 × USB 3.0 (OTG supported), 1 × USB-C

• CD Support: USB/SATA optical drives for playback & ripping

Music Management & Playback

• Upsampling: 2x–4x (local, DLNA, AirPlay, QPlay)

• Cover Display: Embedded, external, or folder cover art

• Metadata: Sample rate, bit depth, ID3 tag, filename

• Playback Modes: Sequential, shuffle, single loop, all loop

• Folder Skip: Supports quick navigation

• File Server: Built-in SMB server

• File Management: Auto-scan, search, edit, playlist, favorites

App & Streaming

• Control: Android, iOS, Windows, tablet & smartphone apps

• Third-Party Apps: Supports Apple Music, TIDAL, Qobuz, QQ Music, NetEase Cloud, etc.

• Exclusive Mode: Global SRC bypass, original bitrate output, exclusive USB output

Power & Build

• Power Supply: Dual toroidal transformers (separate digital/analog), 3rd-gen silicon carbide rectifiers

• Power Consumption: 78W

• Chassis: Silver aluminum case

• Weight: 8kg

• Dimensions: 430 × 335 × 98 mm

• Package Size: 525 × 380 × 195 mm

Measured Audio Performance

• Frequency Response: 2 Hz – 22 kHz (44.1 kHz)

• Amplitude Linearity: ±0.1 dB (20 Hz – 20 kHz)

• Phase Linearity: ±3° (20 Hz – 20 kHz)

• Dynamic Range: 123 dB (1 kHz)

• SNR: 123 dB (20–20 kHz, A-weighted)

• Channel Separation: –136 dB (1 kHz)

• THD: 0.0004% (1 kHz)

• Audio Output Level:

• RCA: 2.0V RMS @ 0 dB / 3.0V RMS @ +8 dB

• XLR: ±2.0V RMS @ 0 dB / ±3.0V RMS @ +8 dB
