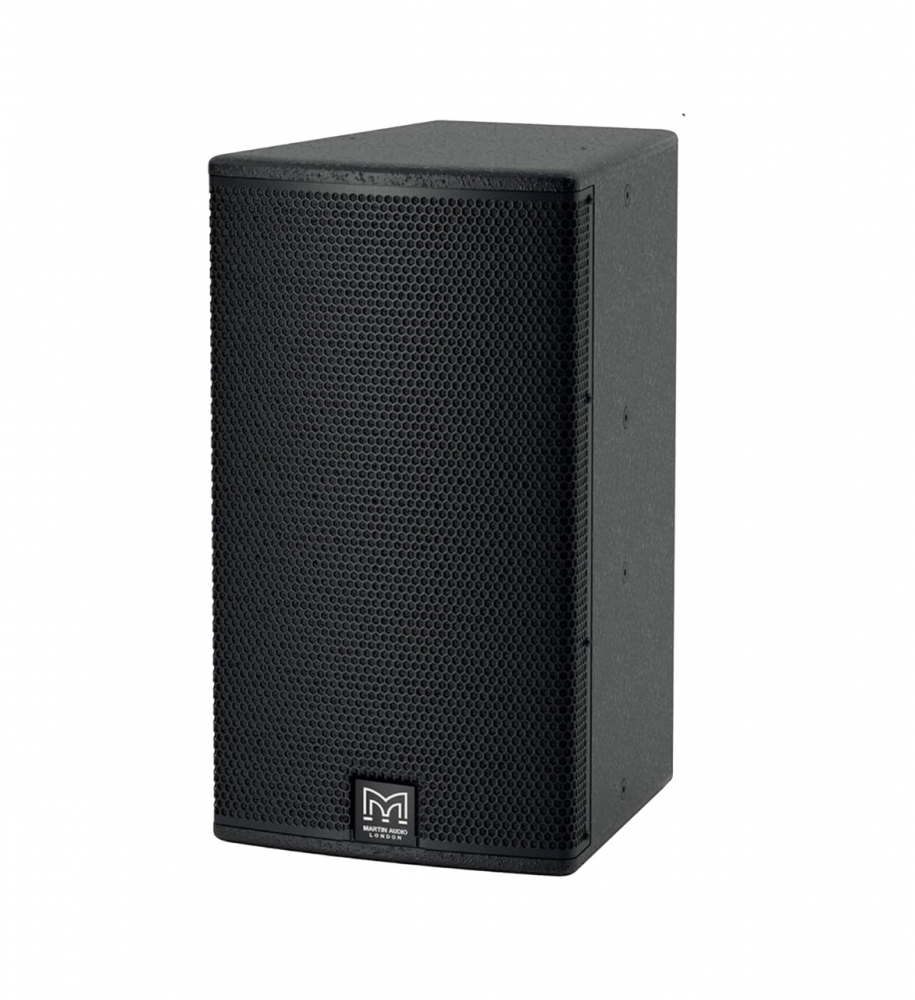

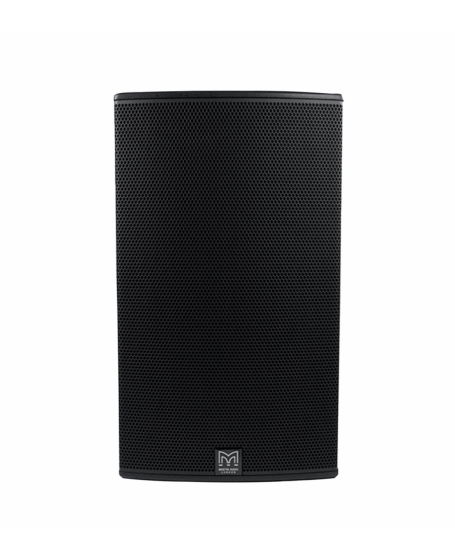

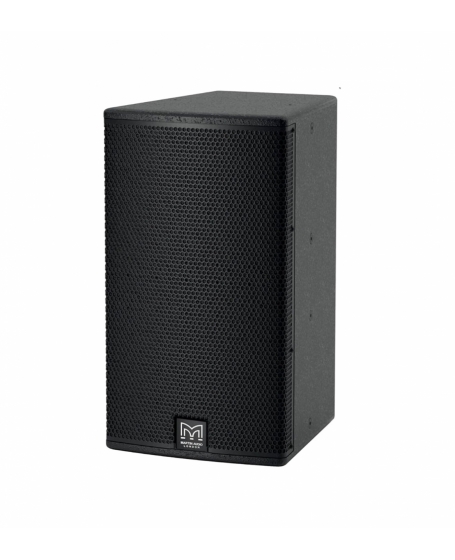

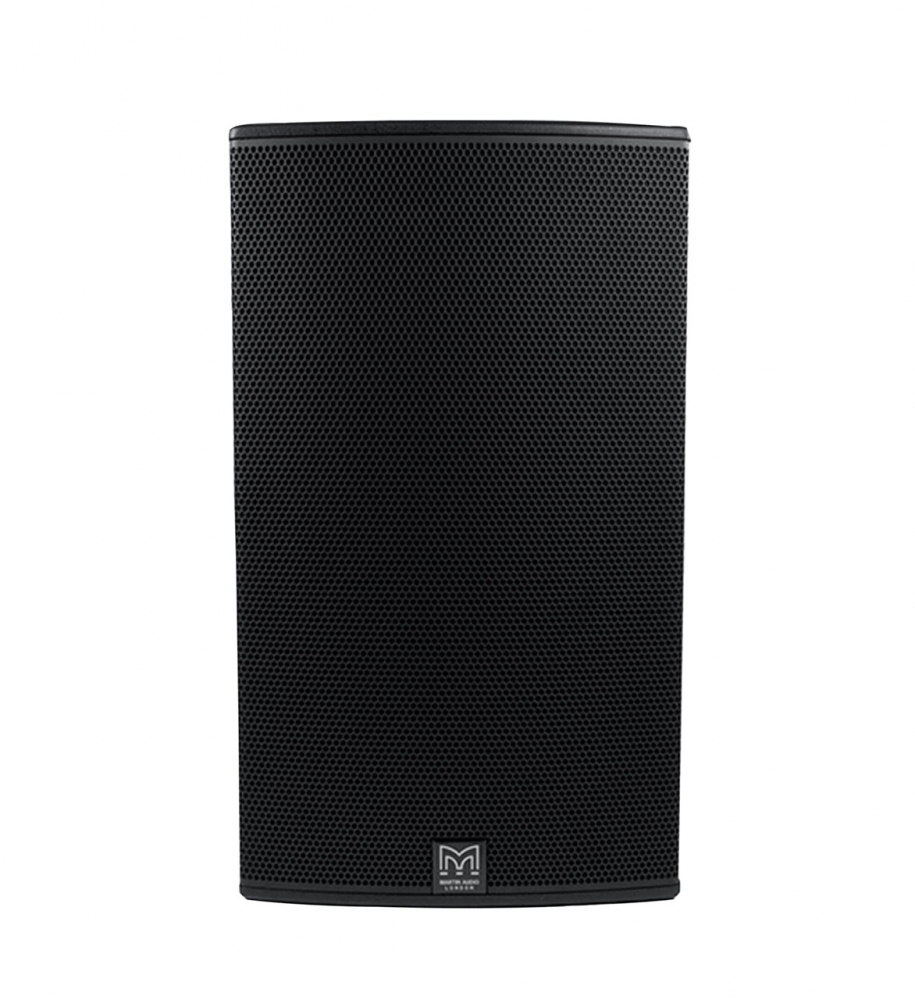

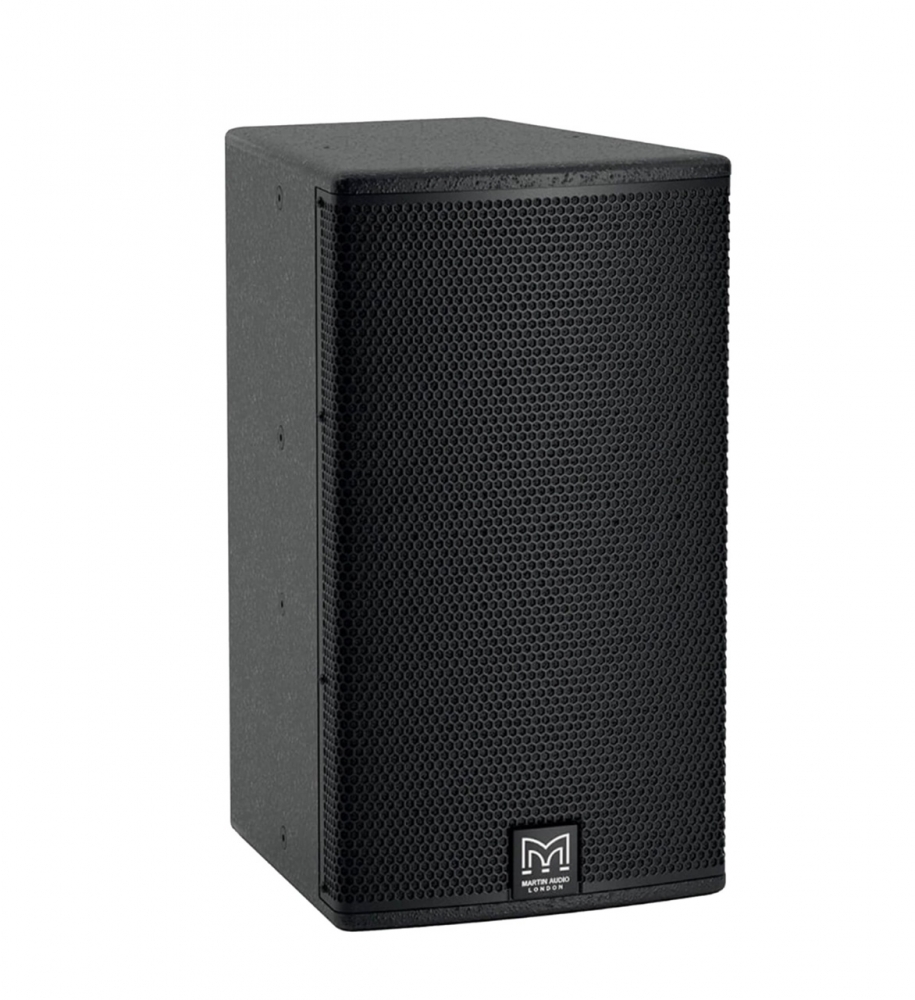

V.10

10" Passive Two-Way On-wall KTV Loudspeaker

With the new V·Series, Martin Audio engineers have designed a range of premium full-range loudspeakers specifically for small-medium scale entertainment installations and family KTV. Three, passive two-way systems — the V.10, V.12 and V.15 —combine the Martin Audio signature sound of warmth, clarity and smooth response with the vocal presence required for a great Karaoke experience.

Features

• Full-range, passive two-way system
• KTV specific voicing

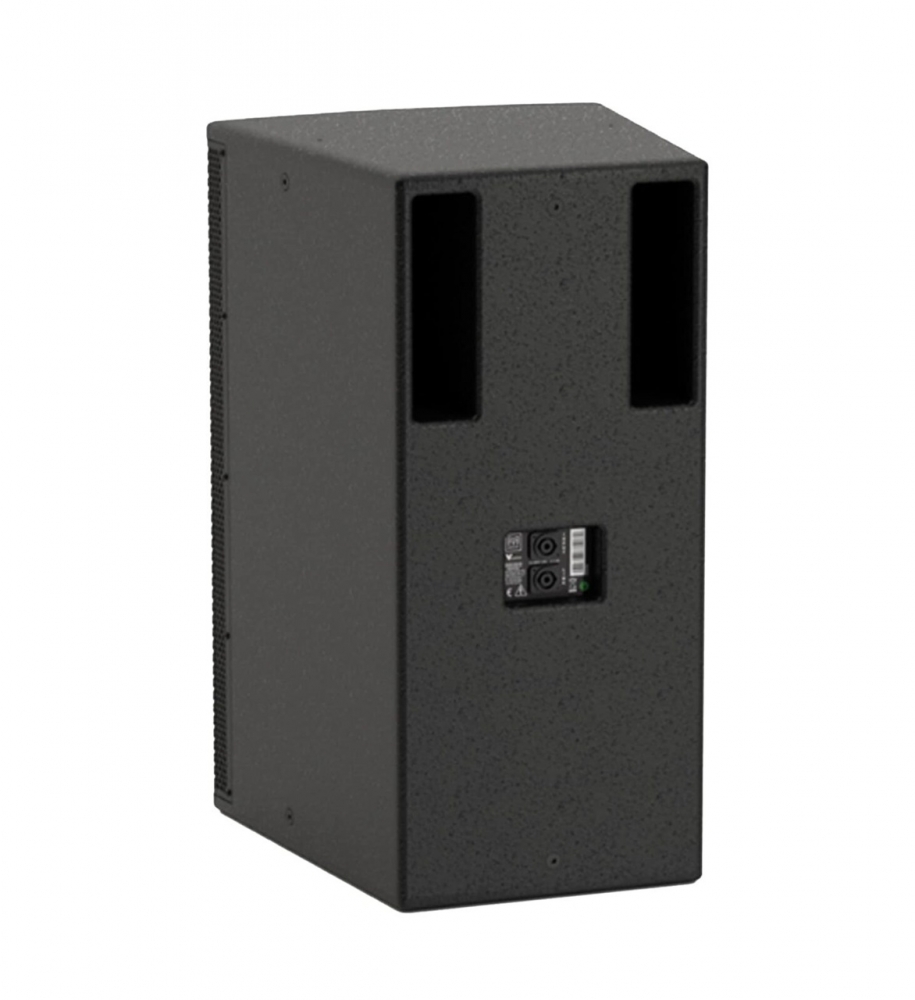

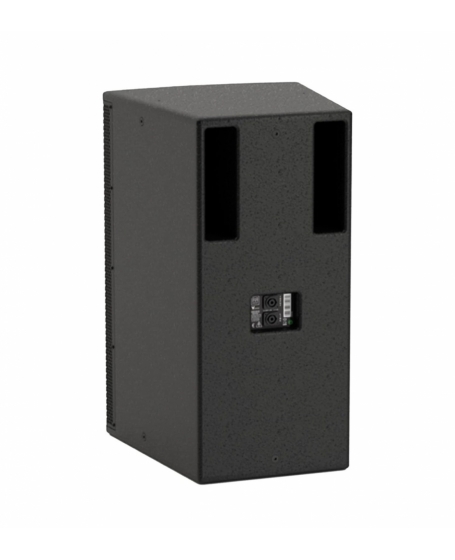

• Enhanced bass response from rear port
• LF driver with demodulating ring for distortion-free vocals
• User-rotatable horn
• Vertical and horizontal mounting option
• Cloth-backed perforated steel grille
• Trapezoid enclosure with textured finish
• 8Ω nominal impedance
• Internal crossover network with LF and HF driver protection
• Twin NL4 connectors
• Multiple M8 rigging inserts

Applications

• Family and Premium KTV
• Music bars

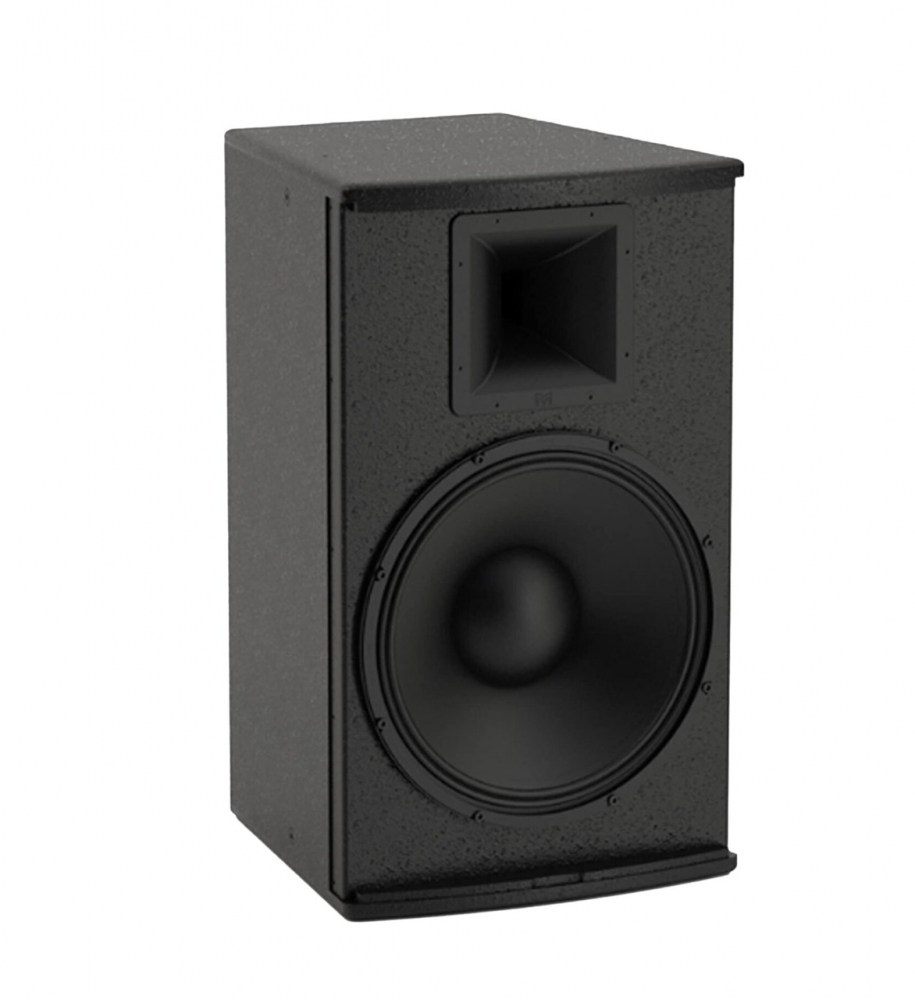

The V.10 is very compact, two-way passive loudspeaker designed for family KTV rooms which call for superior sound over short throw distances. It utilises a 10” (250mm)/2.5” (63mm) voice coil LF driver and a 1” (25mm) exit HF compression driver with a 1.4” (35mm) polyimide diaphragm.

It is capable of high output levels for its small size and its rotatable 90° x 50° HF horn provides extremely smooth coverage. Equal horizontal and vertical horn mouth dimensions ensure its excellent directivity control is maintained in both planes. The V.10’s trapezoid enclosure is constructed from 15mm engineered wood fibre and finished in a textured black paint. It is fitted with a cloth-backed protective steel grille and M8 inserts are provided for eyebolt suspension and installation.

Specification
TYPE    Compact, passive two-way system
FREQUENCY RESPONSE (5)    65Hz-20kHz ± 3dB,
-10dB @ 49Hz
DRIVER
LF: 10” (250mm)/2.5” (63.5mm) voice coil,ferrite motor system
HF: 1” (25mm) exit/1.4” (35mm) voice coil, polyimide dome compression driver
RATED POWER (2)    500W program, 1000W peak
SENSITIVITY (8)    98dB
MAXIMUM SPL (9)    125dB program, 128dB peak
NOMINAL IMPEDANCE    8Ω
DISPERSION (-6dB)    90° H x 50° V (user-rotatable)
CROSSOVER    2.8kHz passive
ENCLOSURE    Trapezoid
FINISH    Black textured paint
PROTECTIVE GRILLE    Black perforated steel with scrim cloth backing
CONNECTORS    2 x NL4 type
PIN CONNECTIONS (INPUT)    1+/1-
PIN CONNECTIONS (LINK)    1+/- to 1+/-
FITTINGS    14 x M8 inserts
DIMENSIONS
(W) 300mm x (H) 530 x (D) 345mm
(W) 11.8ins x (H) 20.9ins x (D) 13.6ins
WEIGHT    16kg (35.3lbs)
