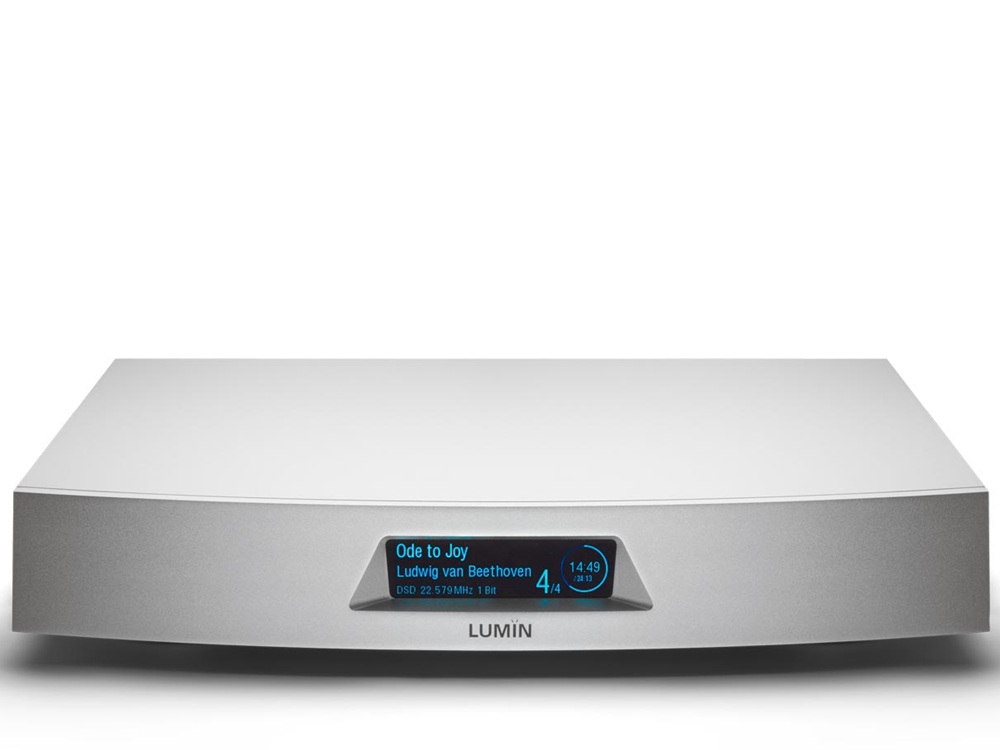

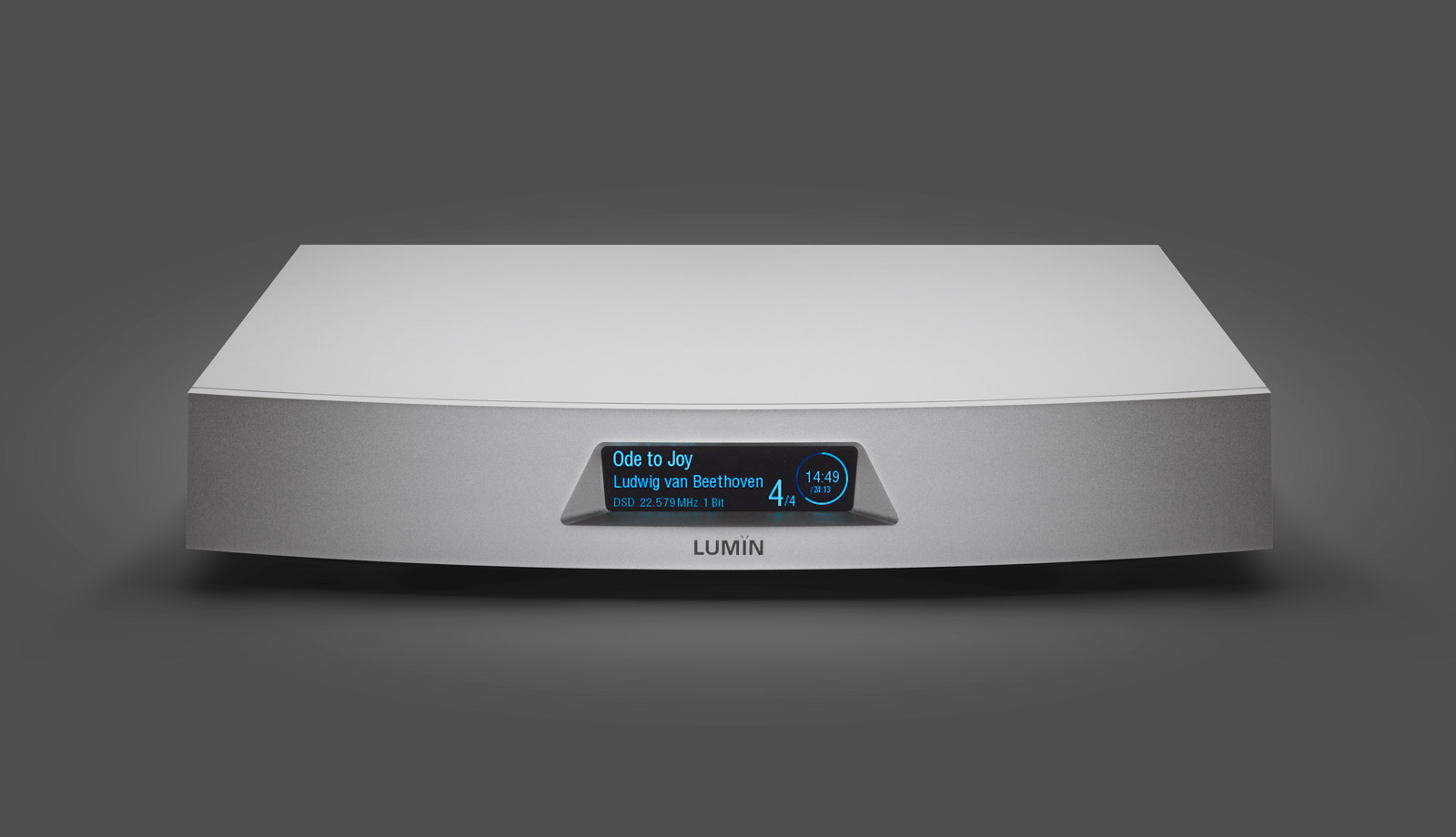

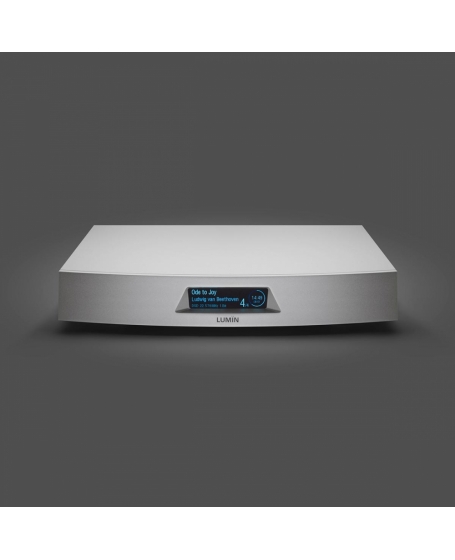

Lumin U2

Why LUMIN U2

After the huge success of our sweetspot price/performance LUMIN T3, LUMIN U2 brings the same design philosophy to a transport for the first time.

Taking chassis construction methods, linear power supply design and dual-network from the multi-award-winning LUMIN P1, the all-new LUMIN U2 brings high-end digital right into the heart of the LUMIN range.

Transport-only unit featuring the finest LUMIN components

• First LUMIN Transport to use new all-in-one chassis
• Latest processor provides greater resampling flexibility
• New integrated toroidal linear power supply
• Fibre Network provides complete isolation from network digital noise
• Increased capacity for future updates
• 3 USB ports including a NEW dedicated low-noise USB output
• Dual-Network interface with built-in Network Switch
• DSD512 and PCM768 playback
• 4 exceptionally low-phase-noise crystal clock oscillators
• New surface finish taken from the high-end P1
• Leedh Processing lossless volume control

All-new processing system

• Completely new next-generation hardware and software provide a new foundation for LUMIN
• Increased processing power and storage capacity provide greater resampling flexibility, audio processing performance and future-proofing.
• Up/down sampling up to DSD256

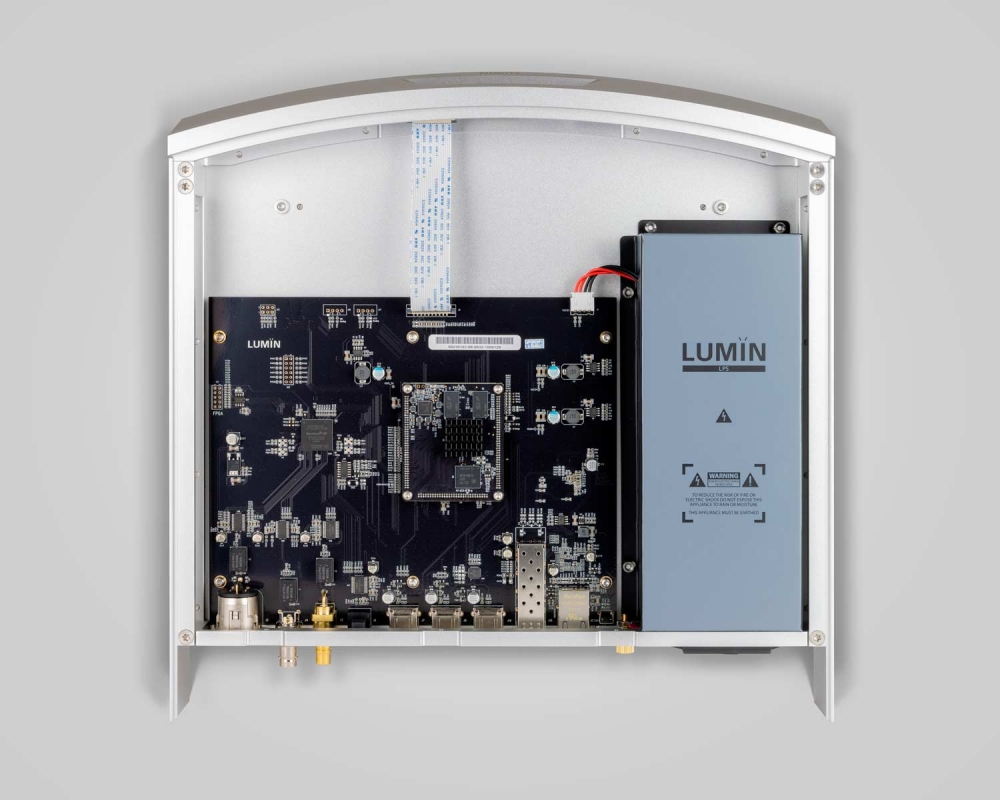

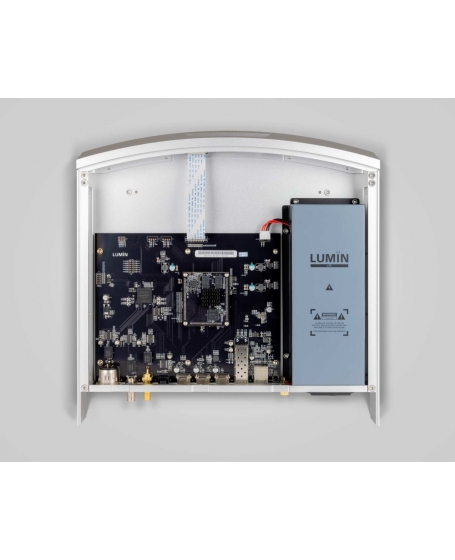

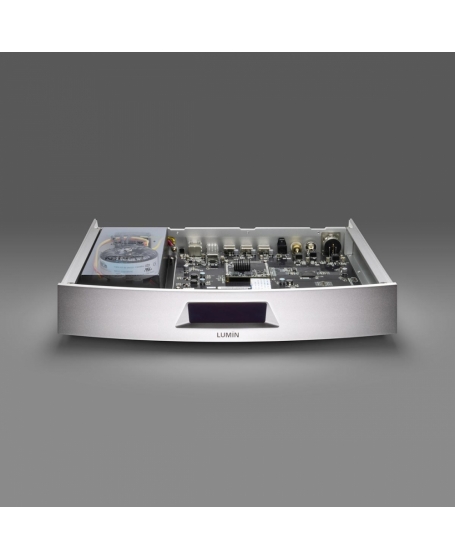

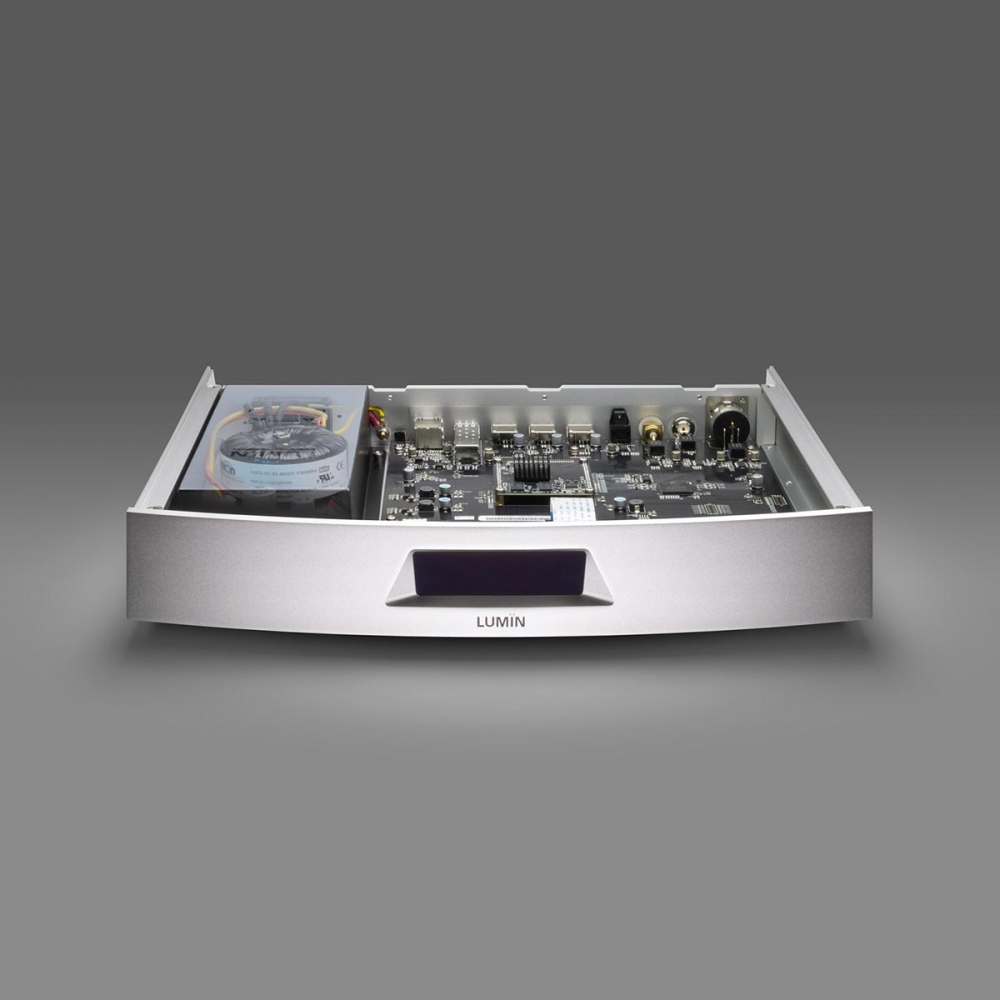

Internal ultra-low-noise linear power supply

• First LUMIN Transport with a built in linear power supply
• Ultra-low-noise rectifier and linear regulator
• Extra large toroidal transformer

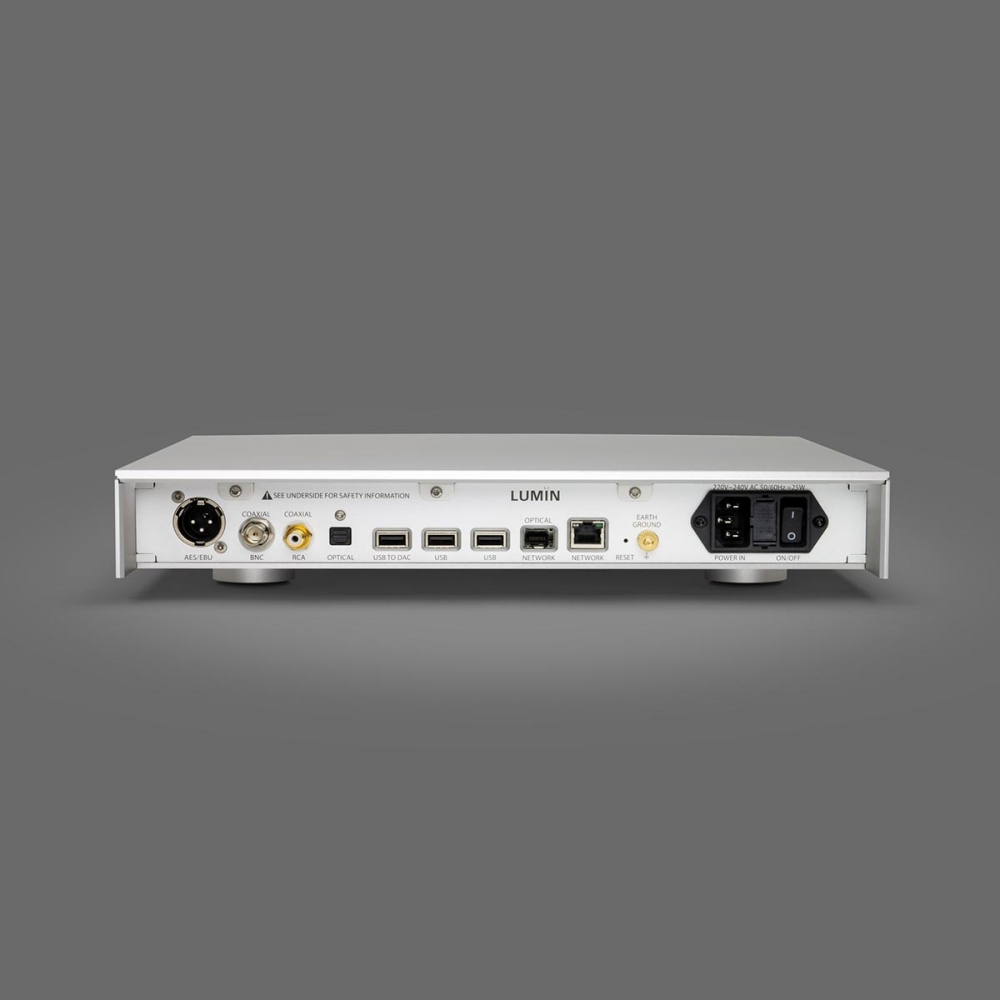

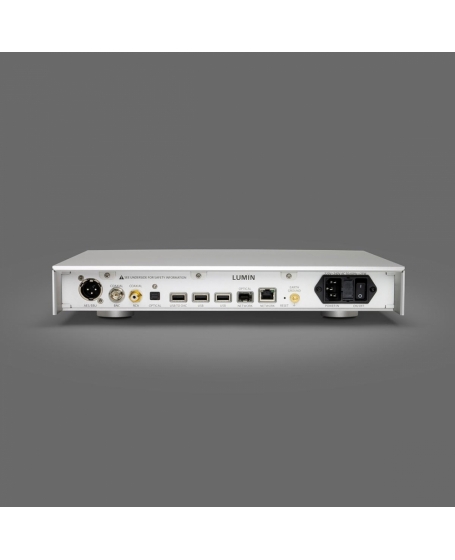

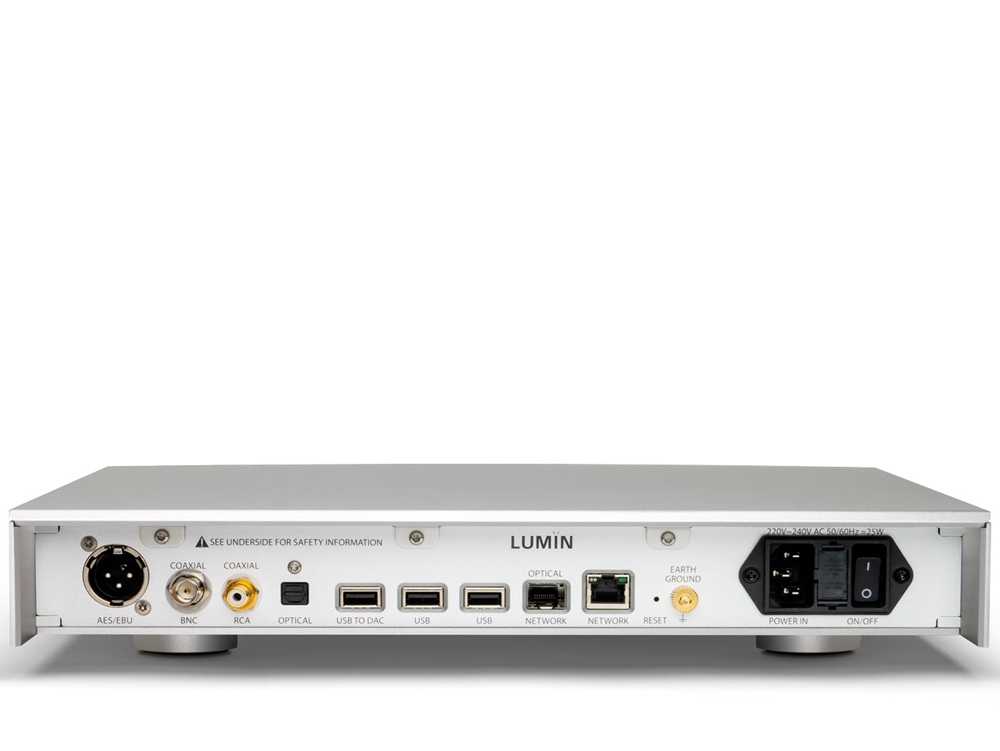

Dedicated USB port for Audio Output

• First LUMIN to feature 3 USB ports
• New dedicated “Direct-Coupled” USB digital audio output port
• Leaves two ports free for music storage and accessories

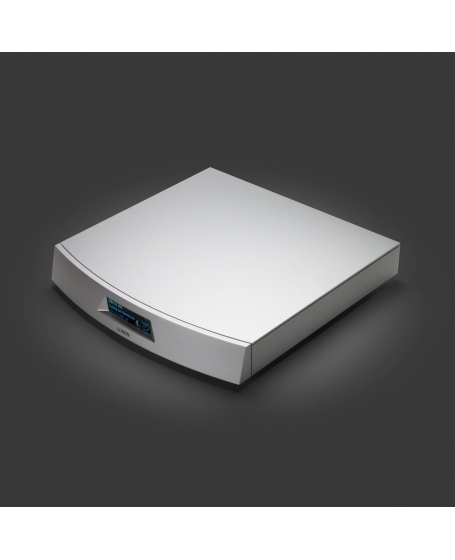

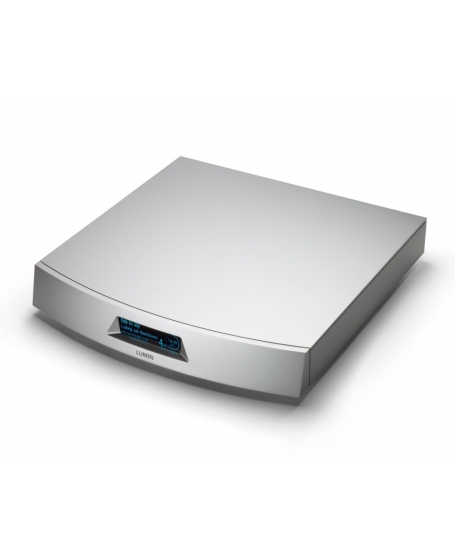

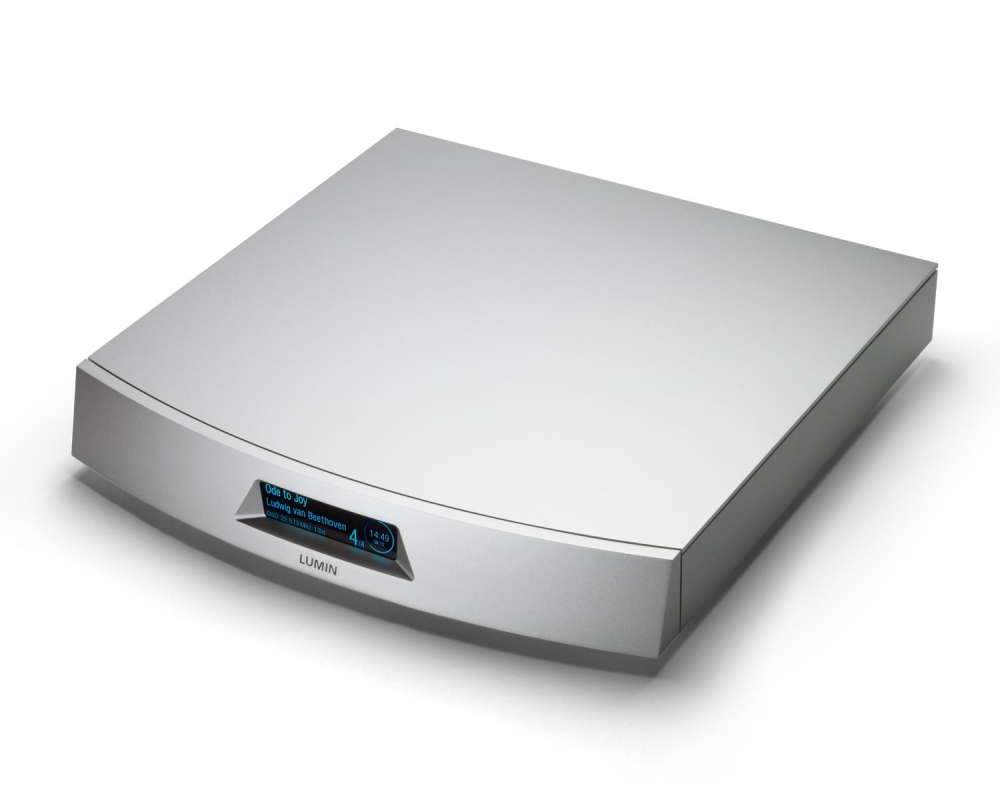

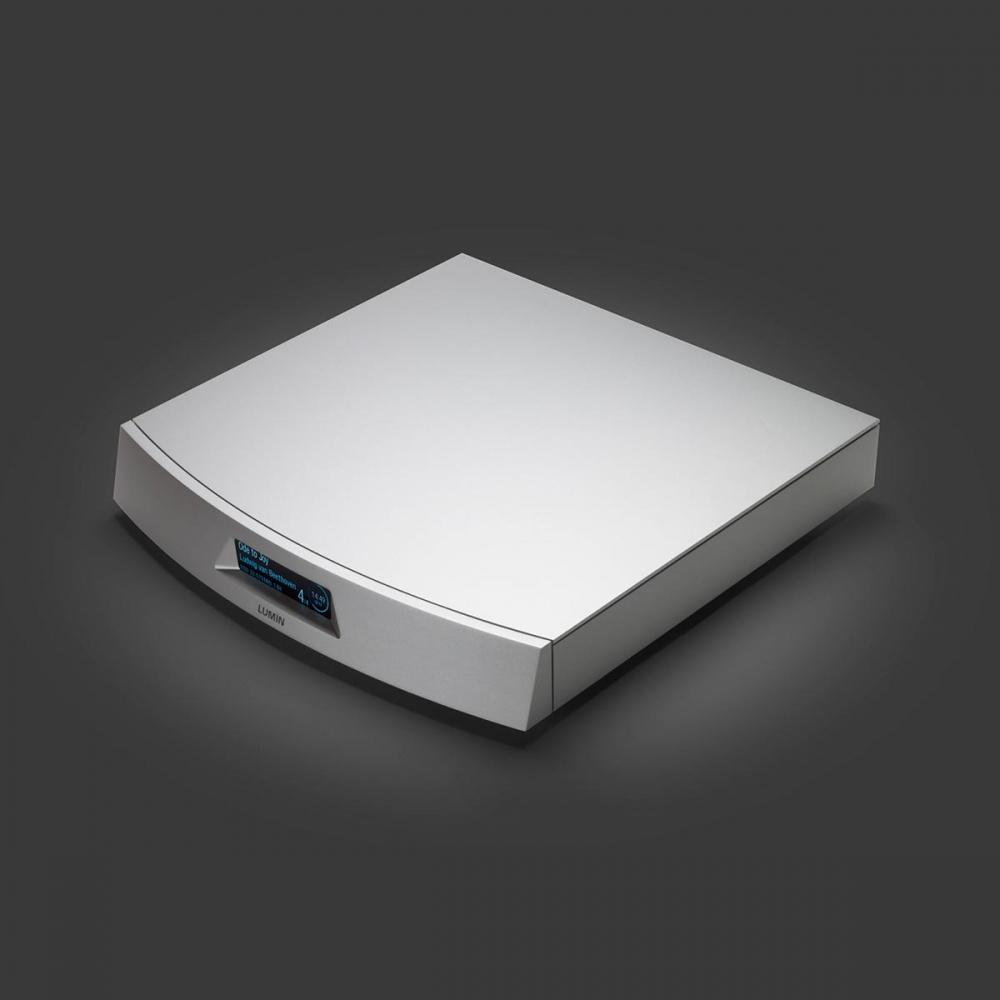

CNC chassis construction

• First LUMIN Transport to use new all-in-one chassis
• The thick CNC panelled aluminium construction offers upgraded structural rigidity and sheilding compared to the U2-Mini
• Precision CNC milling techniques from our flagship products provide the high-end LUMIN family aesthetic

Draws the very best aspects from throughout the LUMIN range

New processing hardware and software first introduced with the U2-Mini and T3

The best features used from our flagship players such as Fibre Networking, Linear Power Supply and Dual-stage voltage regulators

New for a LUMIN Transport - U2 uses CNC panel construction finished in a new silky surfacing process taken from our high-end P1 that is less susceptible to finger marks and easier to clean.

All the usual LUMIN refinements

• From MQA to DSD, FLAC to WAV, LUMIN can play all the high-resolution formats you could ever want
• Native support for TIDAL, Qobuz, Spotify and AirPlay-compatible, giving you access to tens of millions of songs
• The unique and intuitive LUMIN App described as "the most convenient interface in existence" by TINMAN
• LUMIN programme of continuous development that has seen Roon, MQA, and Spotify support added in 2017 alone.

Advanced streaming services & technologies

Every LUMIN player comes with support for a wide range of popular streaming services including Roon, TIDAL, TIDAL Connect, Qobuz, Spotify, KKBox, QQMusic, FLAC Radio Stations and more...

Lossless volume control for all LUMIN players.

An innovative new digital volume adjustment algorithm that eliminates rounding errors is now included (at no additional cost) on all LUMIN players!

U2 Specification
DSD Support:
Up to DSD512 22.5MHz, 1-bit
PCM Support:
Up to 768kHz, 16–32-bit, Stereo
Upsampling rates & bit depths:
DSD256 upsampling option for all files
PCM 384kHz upsampling option for all files
Digital Output Stage:
USB:
Native DSD512 support
PCM 44.1–768kHz, 16–32-bit, Stereo
Optical, Coaxial RCA, Coaxial BNC & AES/EBU:
PCM 44.1kHz–192kHz, 16–24-bit
DSD (DoP, DSD over PCM) 2.8MHz, 1-bit
Optical Network:
Industry-standard SFP
1000Base-T Gigabit Ethernet
Adapter may be needed for your particular switch/cables
Use simultaneously with RJ45 (e.g. connect one to router and one to LUMIN L1 or NAS)
Power Supply:
Internal toroidal linear
Low-noise linear regulator
Physical:
Finish:
Black anodised aluminium
Raw anodised aluminium
Dimensions
350mm (W), 350mm (D), 60.5mm (H), 6kg
Specification for all LUMIN music streamers
Streaming Protocol:
UPnP AV protocol with audio streaming extension (OpenHome)
Roon Ready
Qobuz Connect
TIDAL Connect
Spotify Connect
Plāys with Audirvāna
AirPlay-compatible
QPlay-compatible for QQMusic
Gapless Playback
On-Device Playlist
App Features:
Native support for TIDAL, MQA, Qobuz, KKBox and TuneIn Radio.
Tidal MAX and MQA icons to identify high-res music
Qobuz high-res icons to identify high-res music
Volume control
High-resolution artwork
Artwork caching
Search
Multiple tag handling
Composer tag support
Album-grouping in playlist
Automatic internet links to artists/album/songs
Saving and restoring of playlists (including Tidal and Qobuz)
Supported Audio File Formats:
DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD)
PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF
Compressed (lossy) Audio: MP3
MQA
Input:
Ethernet RJ45 network 1000Base-T
USB storage, flash drive, USB hard disk (Single-partition FAT32, exFAT and NTFS only)
Supported Control Devices:
Apple devices. iOS 11.0 or later (List of supported devices)
Android devices. Android 4.0 (Ice Cream Sandwich) or later required
Apple Silicon. macOS 11 or later. (Download the iOS App from the iOS App Store)
Chromebook. Google Play Store required.
Other:
Leedh Processing lossless digital volume control
Programme of Continuous Development – Firmware-upgradable for further features and enhancements
