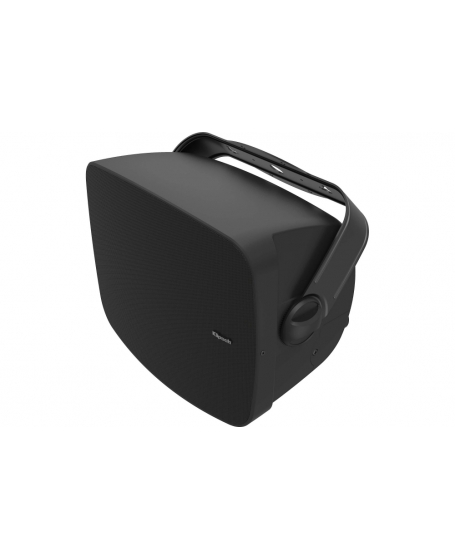

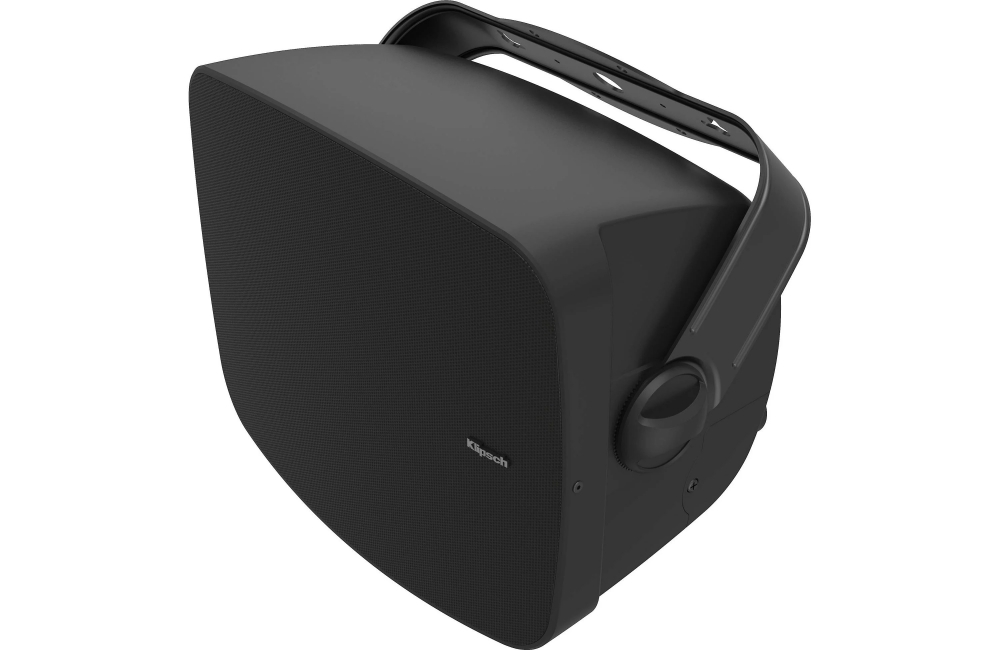

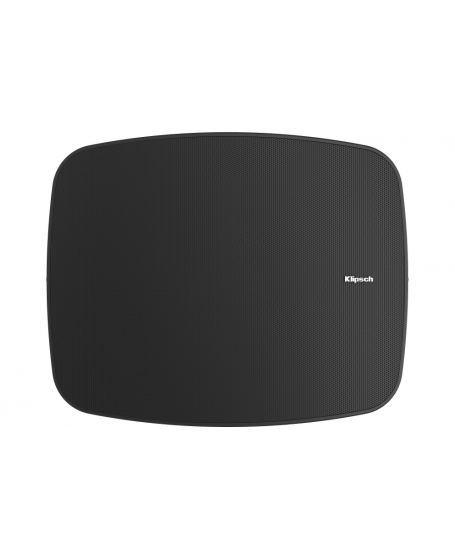

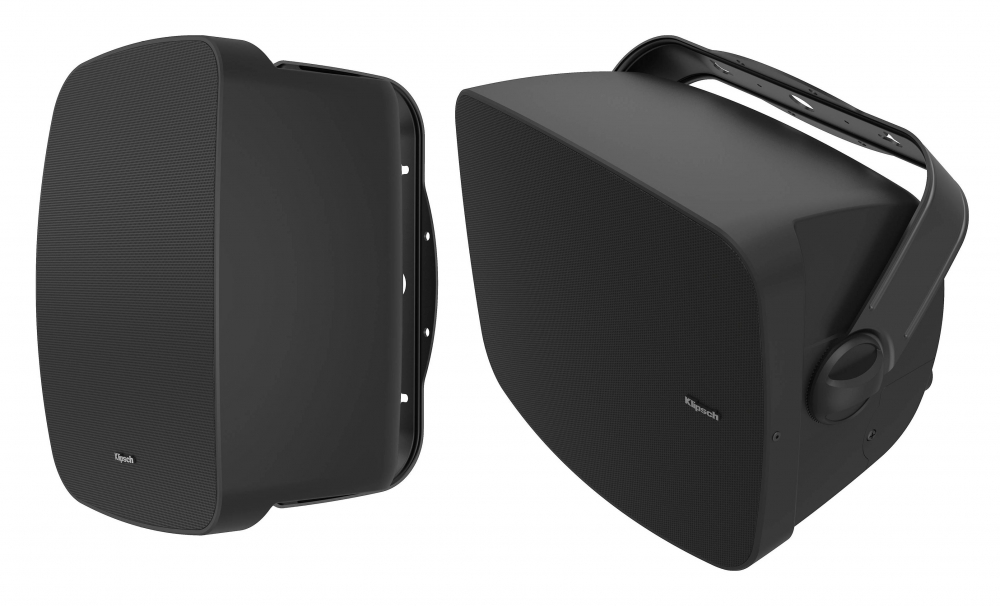

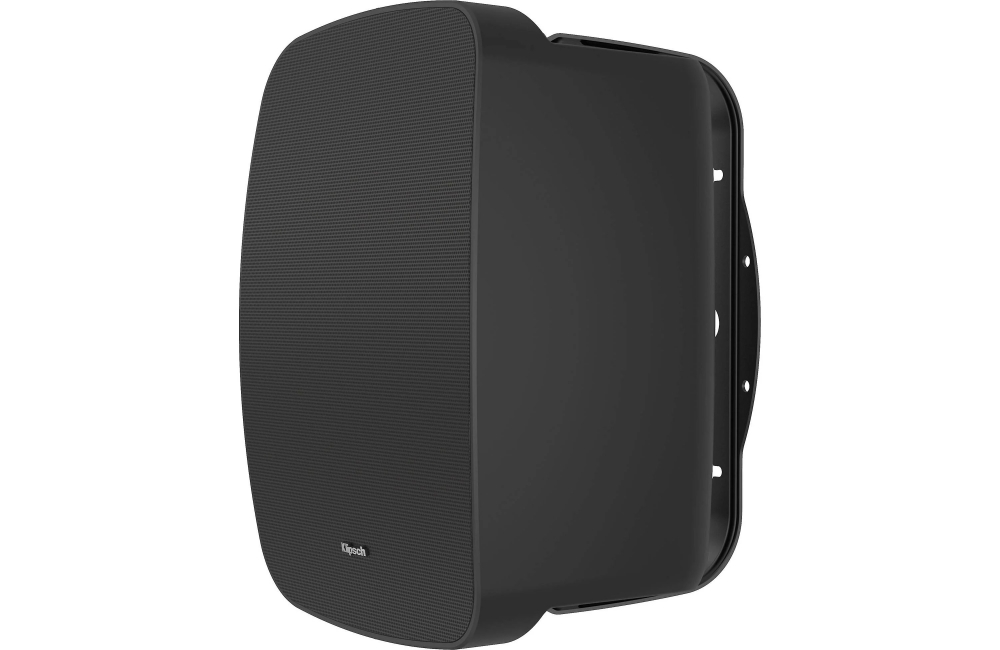

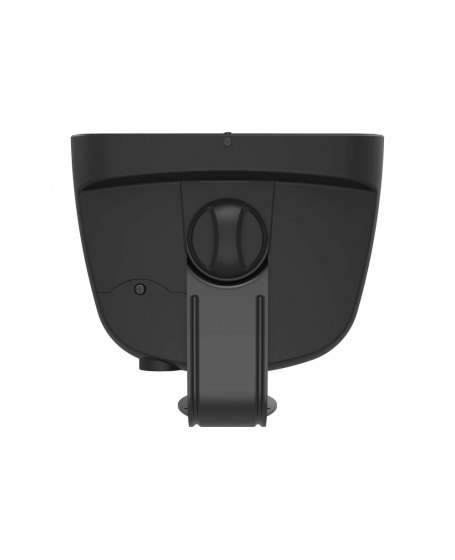

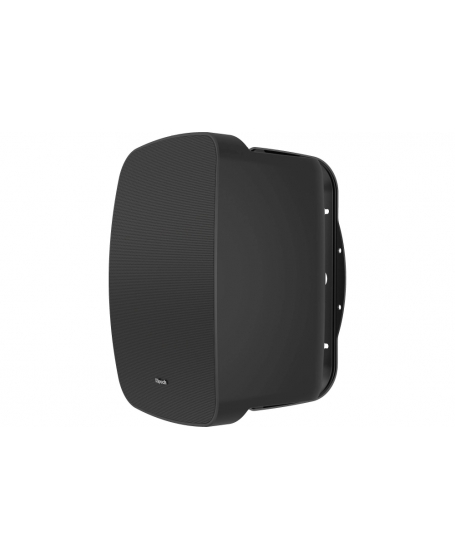

Klipsch RSM-650 Outdoor speakers

MORE BASS, LESS SPACE WITH THE ALL-NEW TRACTRIX® HYPERFOLD PORT™
Klipsch is all about high efficiency, low distortion. Building upon that legacy, we’re introducing the all-new patented Tractrix® Hyperfold Port™ engineered to extend port length for maximum bass power via proprietary five-step folded design. Its increased airflow eliminates chuffing and port noise while providing a greater dispersion pattern for larger coverage areas.

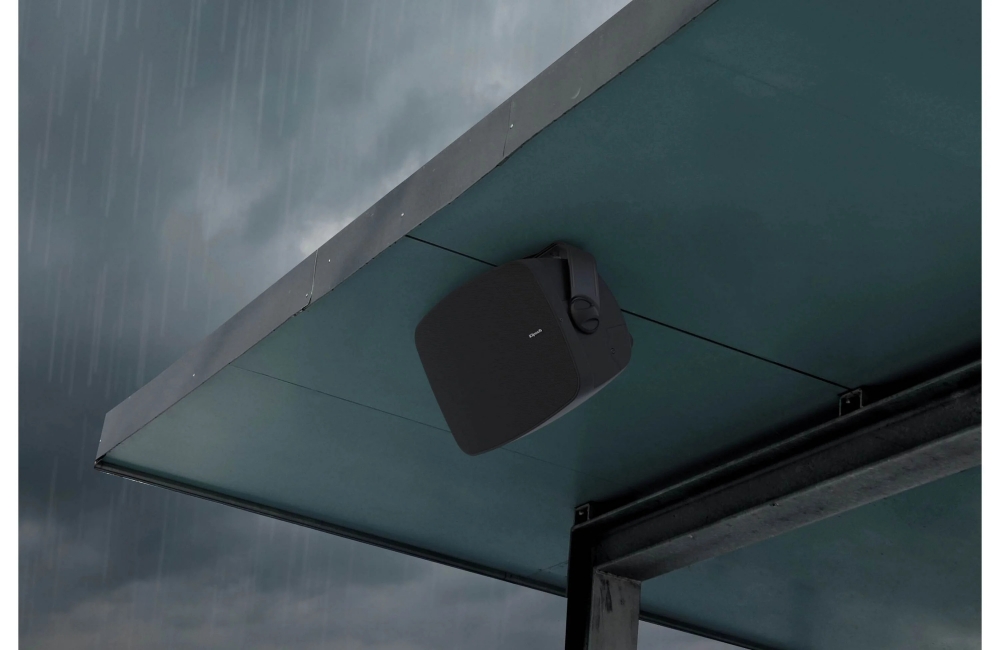

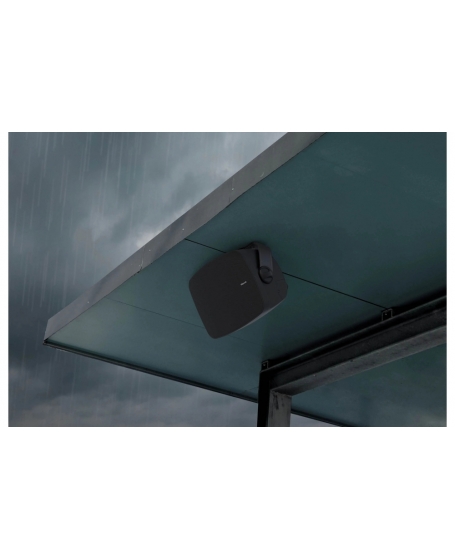

IPX5 RATED FOR RESIDENTIAL ENVIRONMENTS
Perfect for indoor and outdoor residential installations, the Klipsch RSM-650 is IPX5 Rated. Your clients will rest easy knowing their new speakers will be water-resistant and rainproof for the most challenging residential environments.

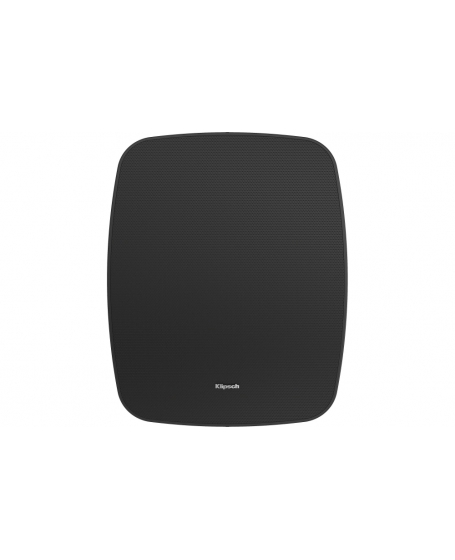

SET SCREWS ON GRILLE
The included set screws on each grille ensures a secure fit between the speaker and grille , while making sure the grilles stay on the enclosures regardless of the environment.

1” TITANIUM COMPRESSION DRIVER FOR EFFORTLESS, HIGH-CLARITY DETAIL
Klipsch outperforms the competition with our all-new 1” Titanium-loaded floating driver bridge with wide dispersion phase plug. Using our patented mumps technology, the RSM-650 gives any space extra-wide coverage while providing even and consistent energy for your project.

DUAL 5-WAY BINDING POST FOR VERSATILE INSTALLATION
The RSM-650 employs dual 5-way binding posts for versatile connection.

SPECIFICATIONS
FREQUENCY RESPONSE1 56Hz-20kHz +/- 4dB, 46Hz -10dB
POWER HANDLING2 80 watts (19V) 53Hz-10kHz (320 watts peak)
CALC. MAX. CONT. OUTPUT3 106dB
SENSITIVITY4 90dB
COVERAGE 100° +/- 20° 900Hz-20kHz
DIRECTIVITY INDEX 7dB +/- 1.5dB 800Hz-20kHz
NOMINAL IMPEDANCE 8 ohms 4.5 ohms at 160Hz minimum
ACOUSTIC CROSSOVER 2kHz
TRANSDUCERS 6.5” woofer
1” titanium compression driver,
on a K-1200M horn/tweeter bridge
ENCLOSURE MATERIAL All Weather ABS Plastic, Paintable
IP RATING IPX5
ENCLOSURE TUNING Vented via 3 folded Tractrix ports
INPUT CONNECTORS Dual 5-way binding post
DIMENSIONS
[WITH BRACKET]
12.81”(326mm) x 10.19”(259mm) x 7.57”(193mm)
[9.19”(234mm)]
WEIGHT 11.25 lbs (5.11kg)
