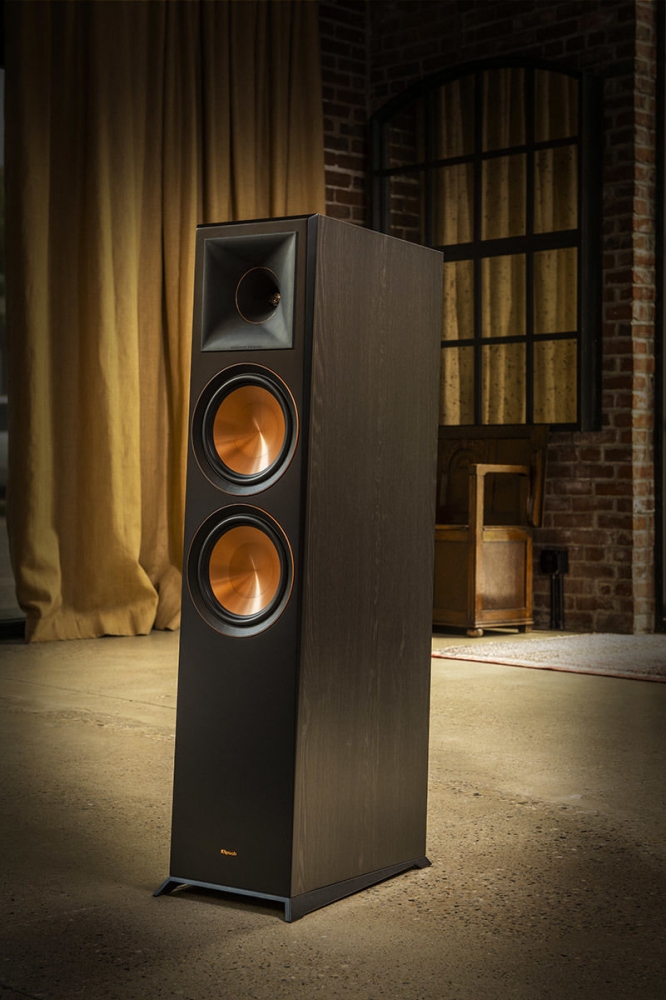

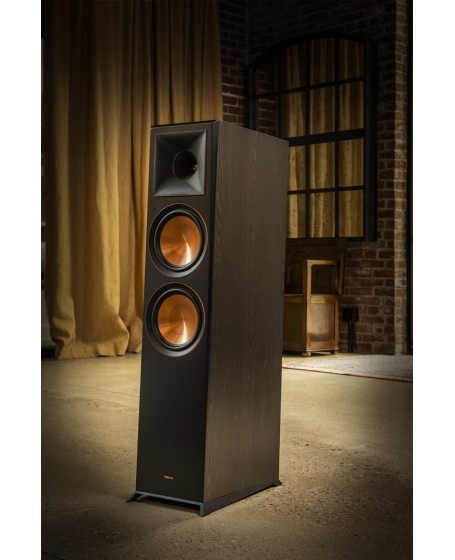

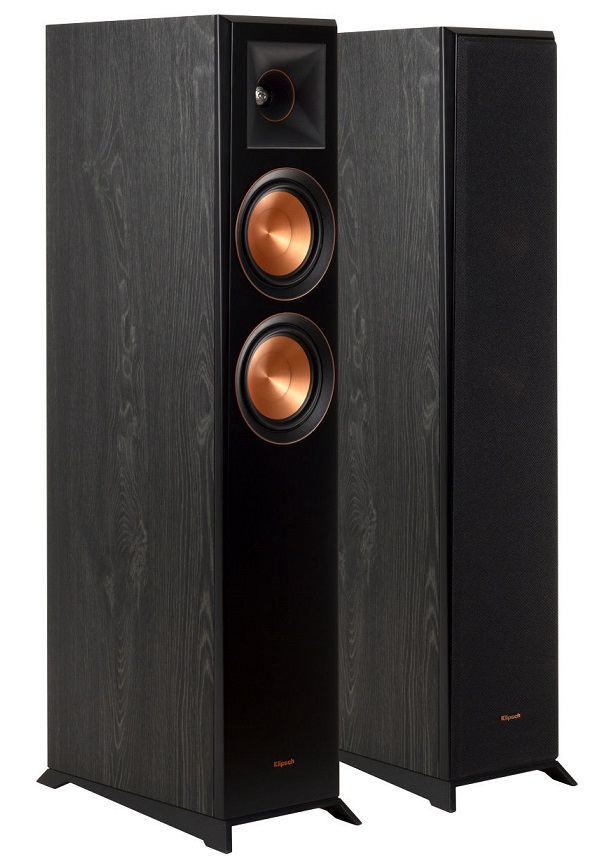

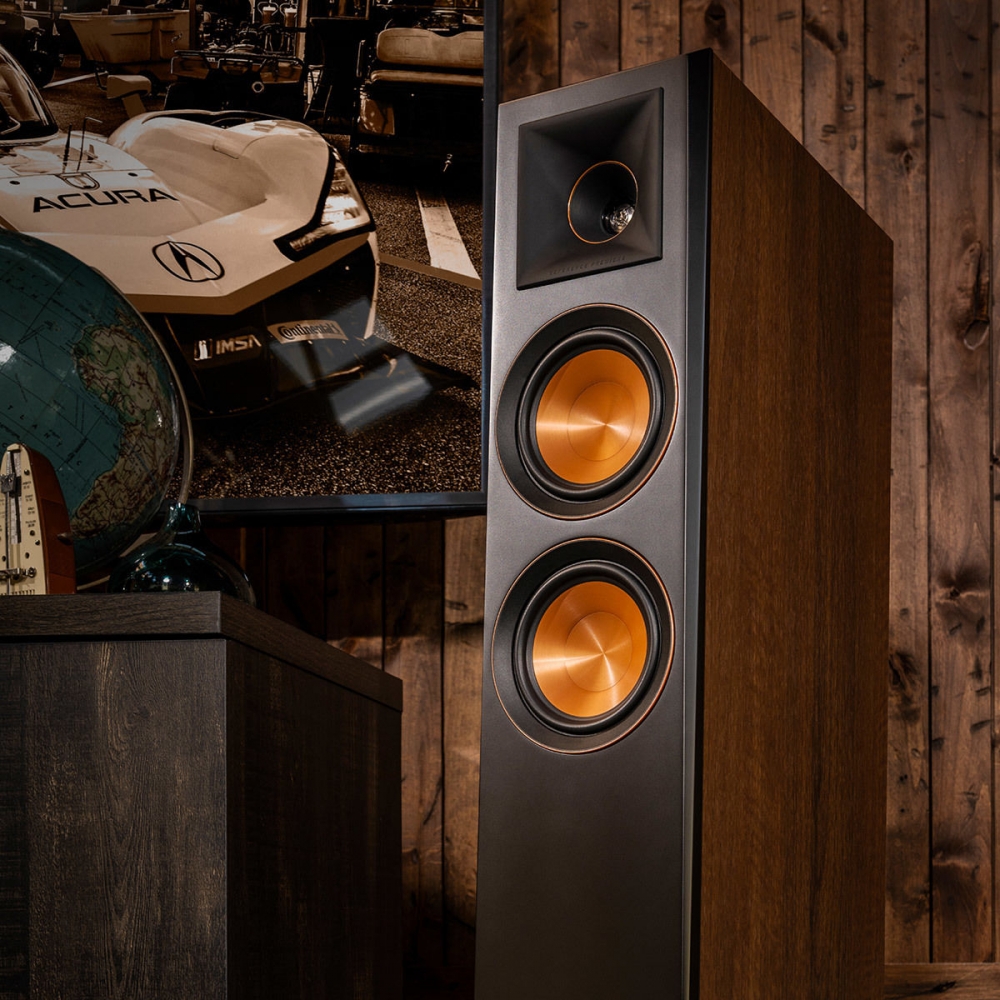

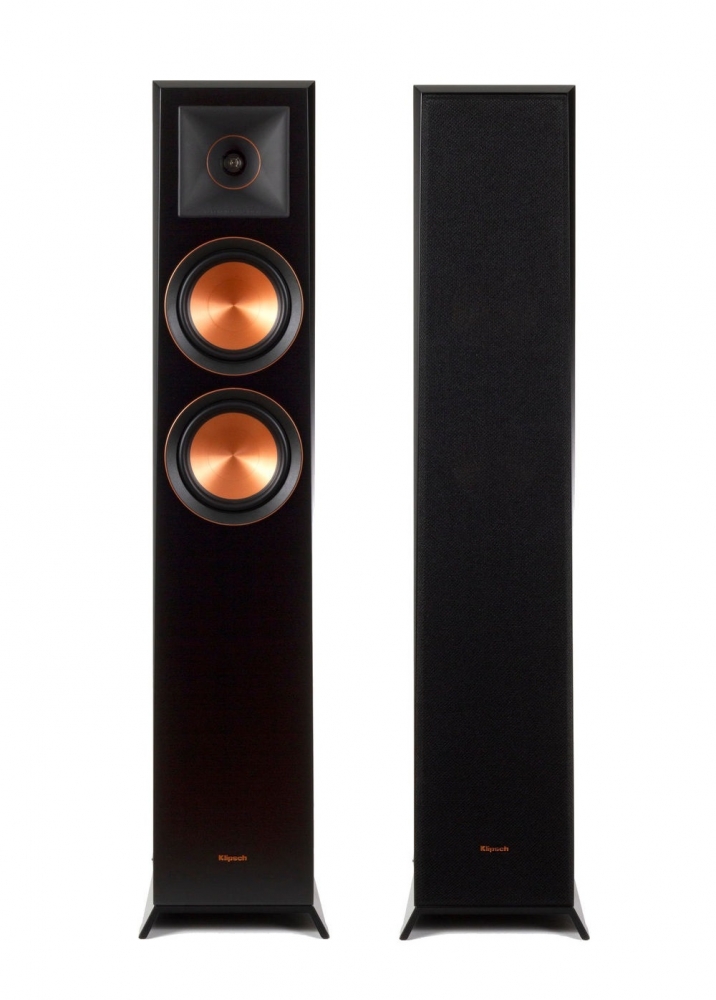

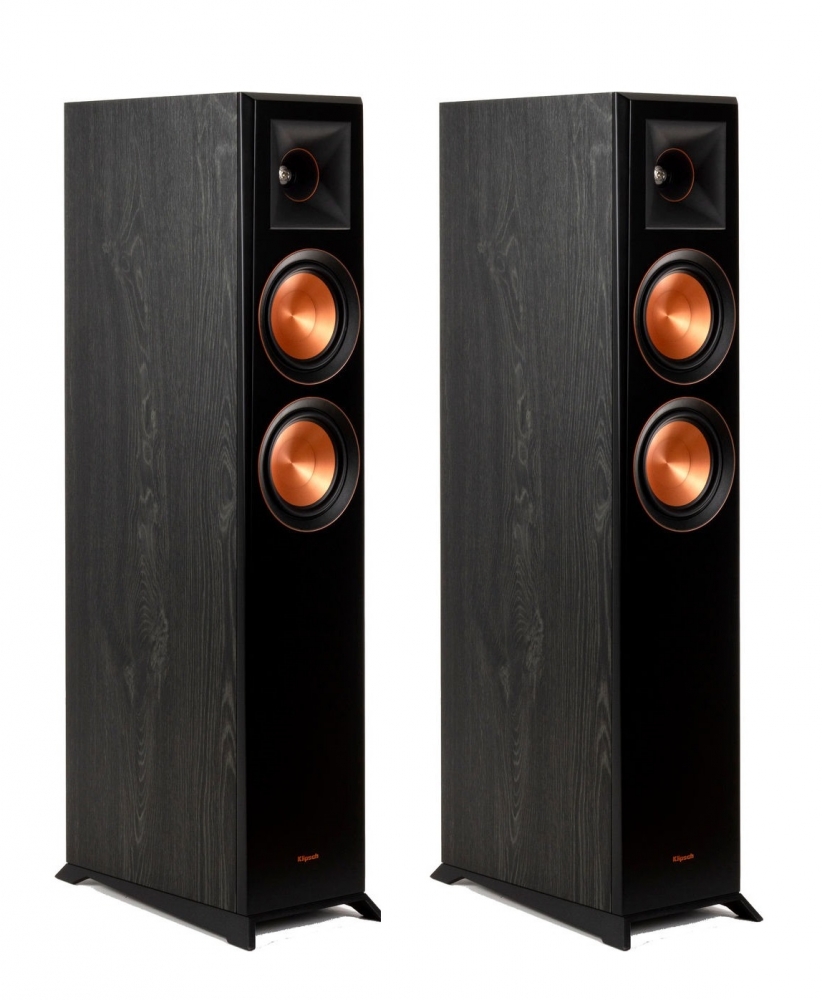

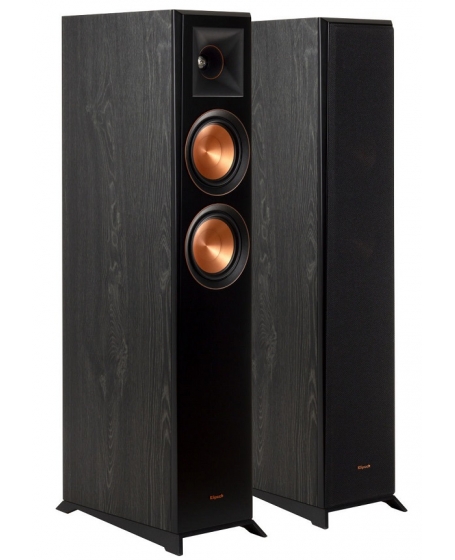

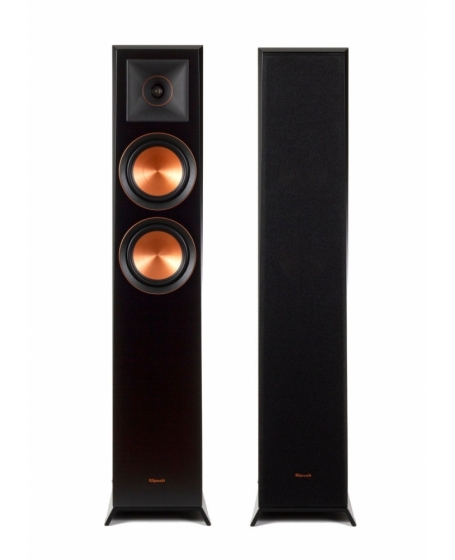

Klipsch RP-5000F Floorstanding Speaker

Klipsch RP-5000F Floorstanding Speaker

The Klipsch RP-5000F floorstanding speaker takes your movies and music to a new level. Featuring our proprietary hybrid Tractrix® horn-loaded technology and dual 5.25" spun copper Cerametallic™ woofers, this floorstanding speaker is the ideal home theater audio solution.

Features:

• 1” Titanium LTS Vented Tweeter with Hybrid Tractrix® Horn
• Dual 5.25" Spun Copper Cerametallic™ Woofers
• Bass-Reflex via Rear-Firing Tractrix^® port
• Dual binding posts for bi-wire/bi-amp

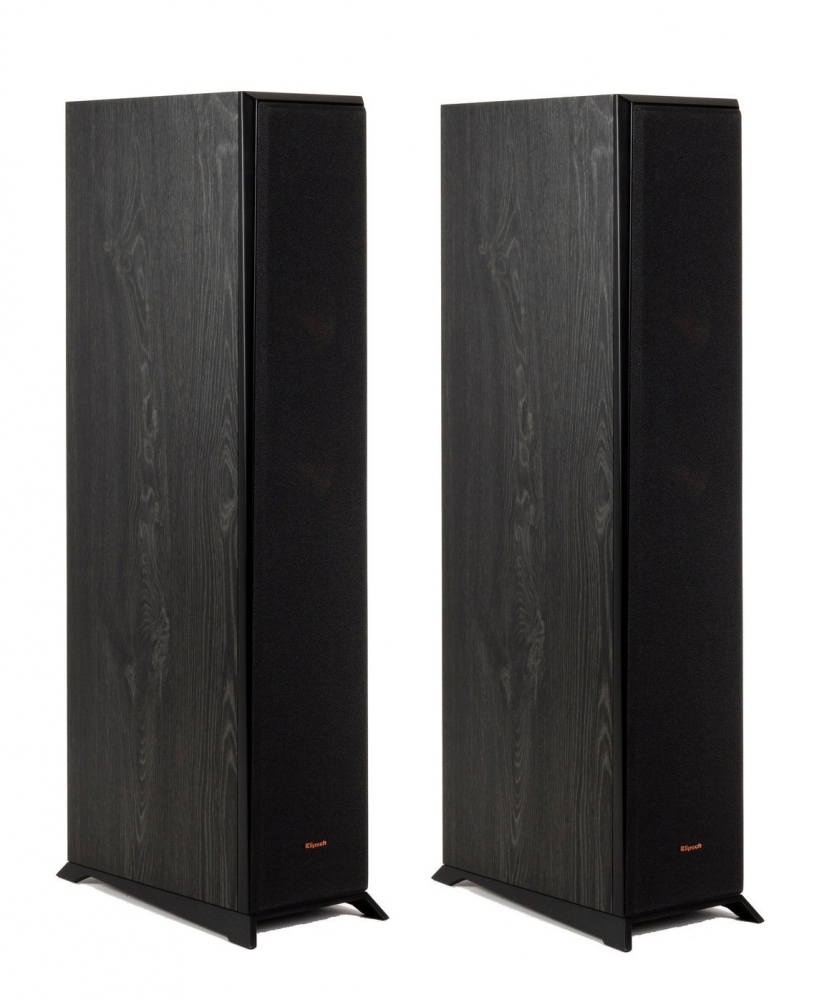

• Strong, Flexible Removable Magnetic Grille
• Dimensions: 36.12” x 8.21” x 14.38”

HYBRID TRACTRIX® HORN TECHNOLOGY

Klipsch proprietary Tractrix® horn-loaded technology ensures the high-frequency energy of the RP-5000F floorstanding speaker is aimed directly at the listener and reduces unwanted, artificial reverb caused by indirect sound bouncing off walls - meaning you experience the most clear, detailed, lifelike sound possible.

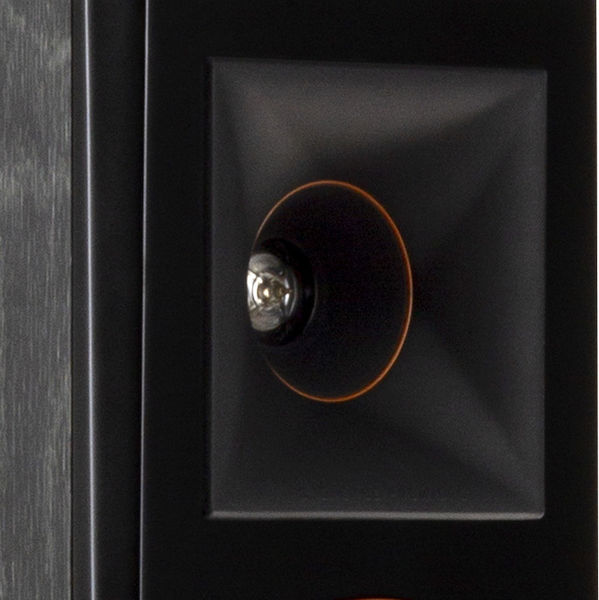

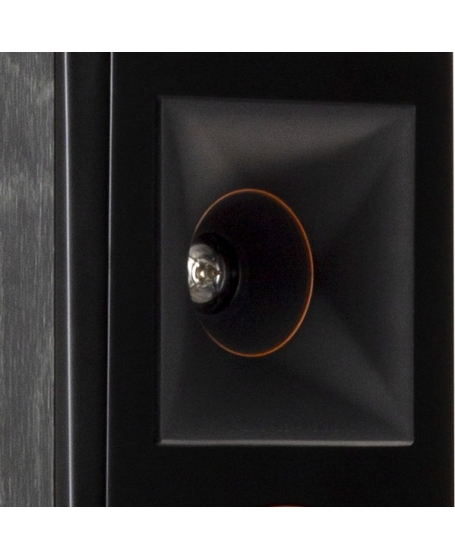

HORN ANATOMY

Klipsch Reference Premiere series speakers feature a compressed molded silicon face thats matted to the 90x90 Tractrix horn to reduces horn resonance for a smoother frequency response. Klipsch computer modeled phase plugs acts as a mechanical filter to further ensure a smooth, flat frequency response while protecting the tweeter from damage.

ALL-NEW VENTED TWEETER

Klipsch titanium tweeter diaphragms delivers a smooth high-frequency reproduction thanks to the material’s light weight yet rigid composition that exceeds the performance of aluminum, polymer or silk tweeters.

Our award-winning Linear Travel Suspension technology leverages a pistons motion of the titanium diaphragm that lowers distortion and delivers real-to-life sound.

Housed in a ceramic magnet structure for premium performance, Klipsch Reference Premiere tweeters set the standard in acoustic reproduction.

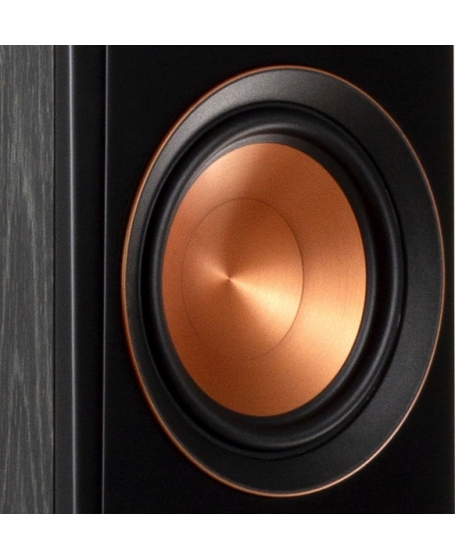

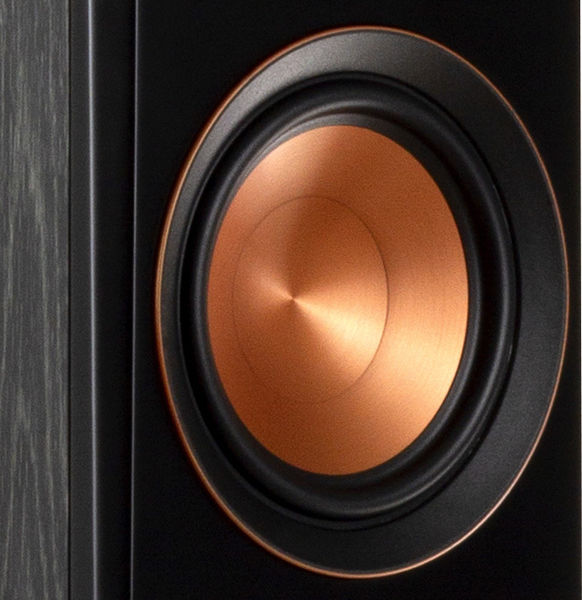

CERAMETALLIC™ WOOFERS

Klipsch Proprietary Cerametallic™ woofers are the RP-5000F floorstanding speaker signature statement for both sound and aesthetics. This extremely light, rigid materials holds its shape while being able to deliver lower frequencies with maximum efficiency.

WOOFER ANATOMY

Klipsch Cerametallic™ cones are matted to a dual-layer, copper-wound voice coil for exceptional conductivity.

Reference Premiere woofers are housed in a non-resonating, stamped-steal basked that’s secured to a large magnet motor for exceptional efficiency and low distortion thats matched to our horn-loaded tweeters for optimal acoustic execution.

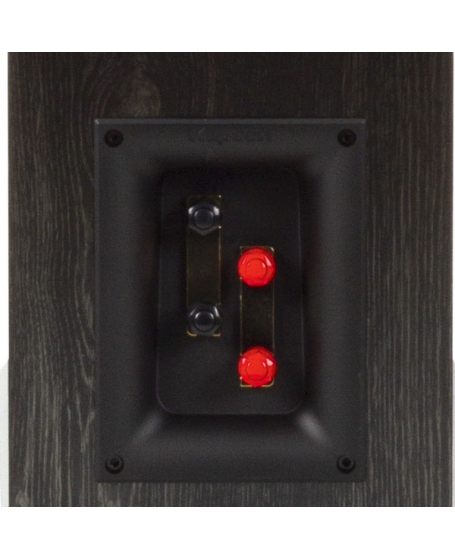

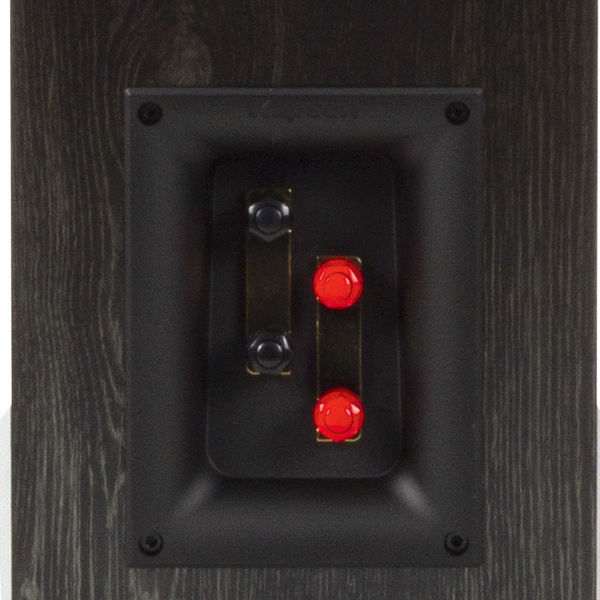

TRACTRIX® PORT + DUAL TERMINALS

The rear Tractrix port is perfectly matched to the cabinet and woofers, creating ideal airflow with minimal distortion or turbulence even at the lowest frequencies.

The RP-5000F floorstanding speaker features dual input terminals so you can bi-wire or bi-amp your speakers for a custom, high-performance experience.

FINISHED TO PERFECTION

The RP-5000F ebony and walnut finishes boast satin painted baffles with a scratch resistant design. The cast aluminum feet provides a modern look with less resonance than MDF or ABS plastic. It is mechanically designed to minimize surface area in contact with the floor, decoupling the speaker for faster, tighter low frequencies and more detail.

Specification:
FREQUENCY RESPONSE 35-25kHz +/- 3dB
SENSITIVITY 96dB @ 2.83V / 1m
POWER HANDLING (CONT/PEAK) 100W / 400W
NOMINAL IMPEDANCE 8 Ohms Compatible
CROSSOVER FREQUENCY 1800Hz
HIGH FREQUENCY DRIVER 1” Titanium LTS Vented Tweeter with Hybrid
Cross-Section Tractrix® Horn
LOW FREQUENCY DRIVER Dual 5.25” Cerametallic Cone Woofers
ENCLOSURE MATERIAL MDF
ENCLOSURE TYPE Bass Reflex via rear-firing Tractrix® Port
INPUTS Dual binding posts / bi-wire / bi-amp
HEIGHT 36.12” (91.7 cm)
WIDTH 8.21” (20.8 cm)
DEPTH 14.38” (36.5 cm)
WEIGHT 37 lb (16.8 kg)
