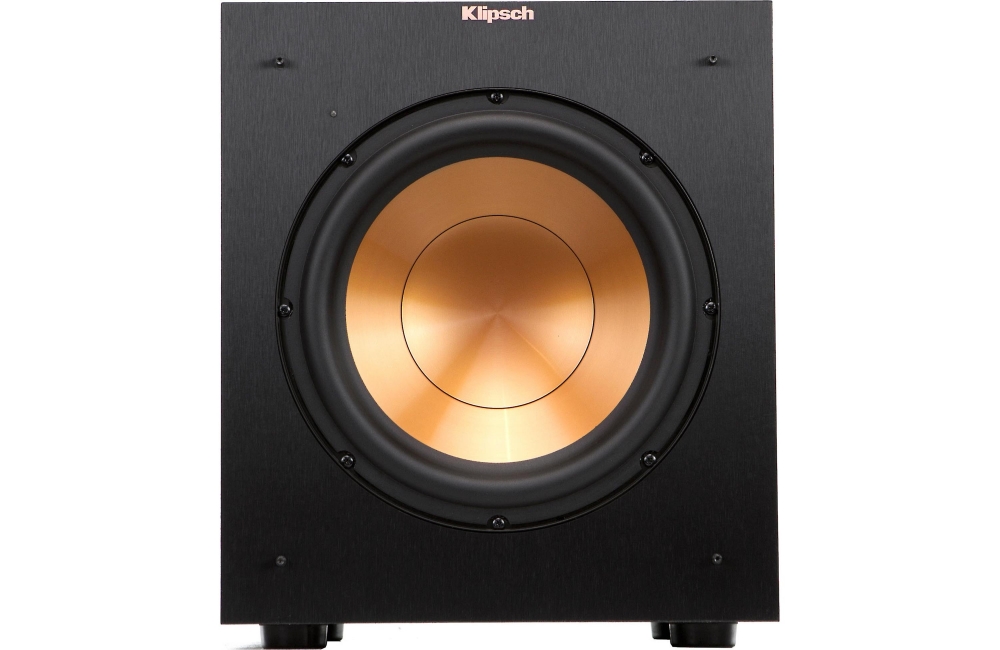

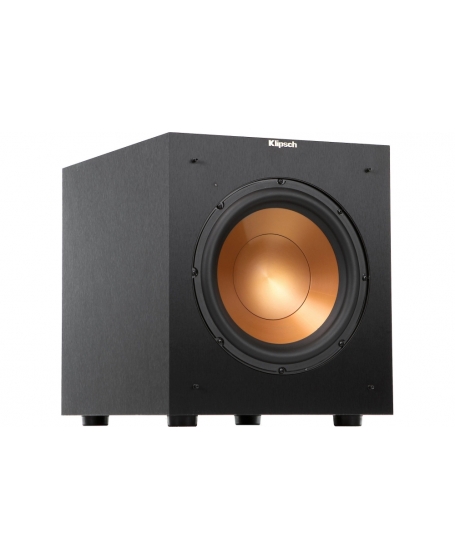

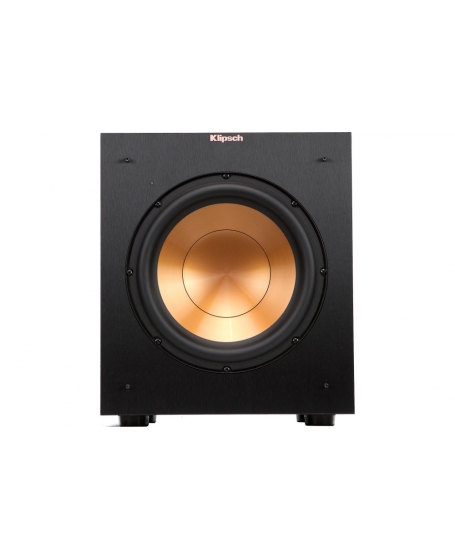

R-10SW

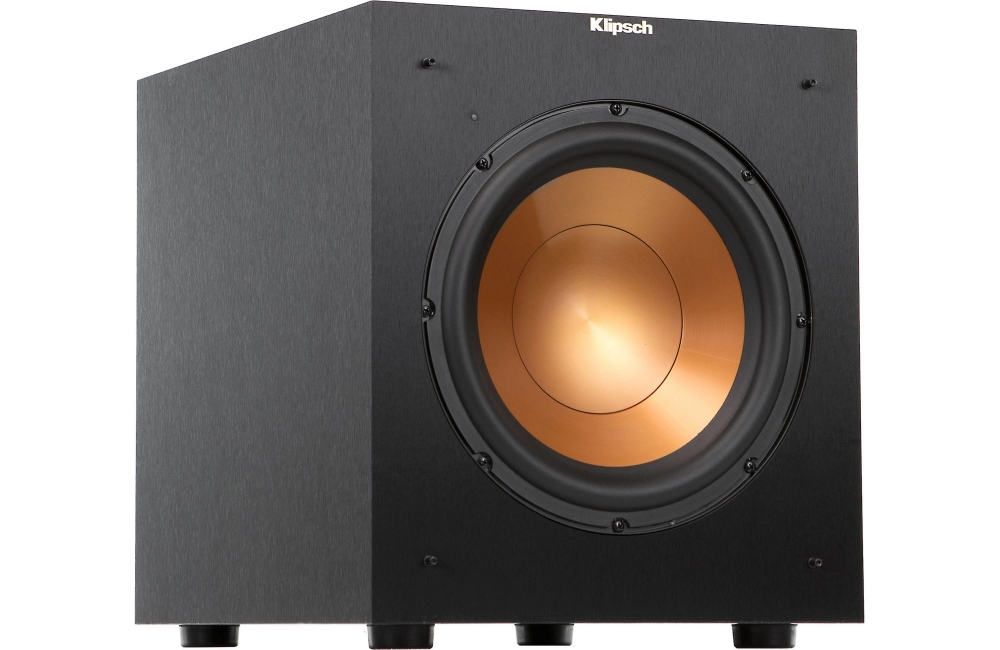

SPUN COPPER IMG WOOFER Injection Molded Graphite (IMG)
woofers are exceptionally light while being extremely rigid – providing remarkable low frequency response, with minimal cone breakup and distortion.

ALL-DIGITAL AMPLIFIER
The built-in all-digital amplifier delivers ample power with high efficiency and true-to-source accuracy in reproduction.

FRONT-FIRING DRIVER
The high performance driver provides deep bass and placement flexibility.

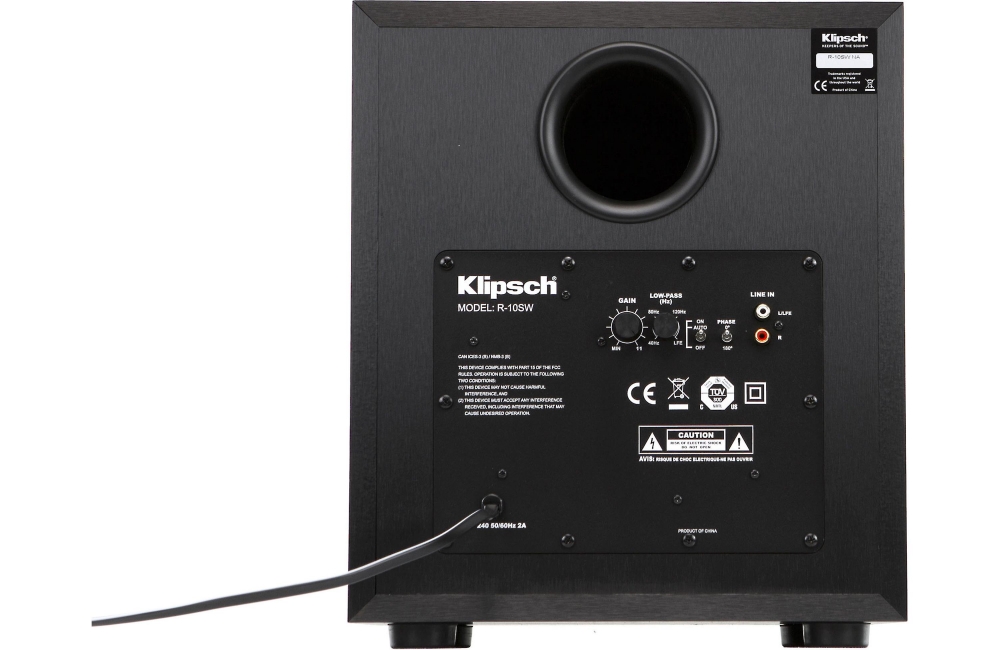

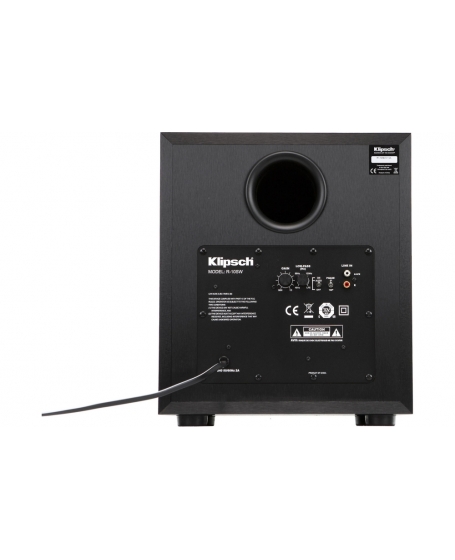

LOW PASS CROSSOVER AND PHASE CONTROL
Allows you to blend the subwoofer’s low-frequency tones with other Klipsch speakers as well as establish the ideal level of bass.

LINE/LFE INPUTS
Ensures compatibility with old and new receivers.

MDF CABINETS WITH BRUSHED POLYMER VENEER FINISH
Contemporary aesthetic with absolute durability that results in a seamless integration into any décor.

FRONT-MOUNTED LED POWER INDICATOR
Let’s you know when the system is on or off.

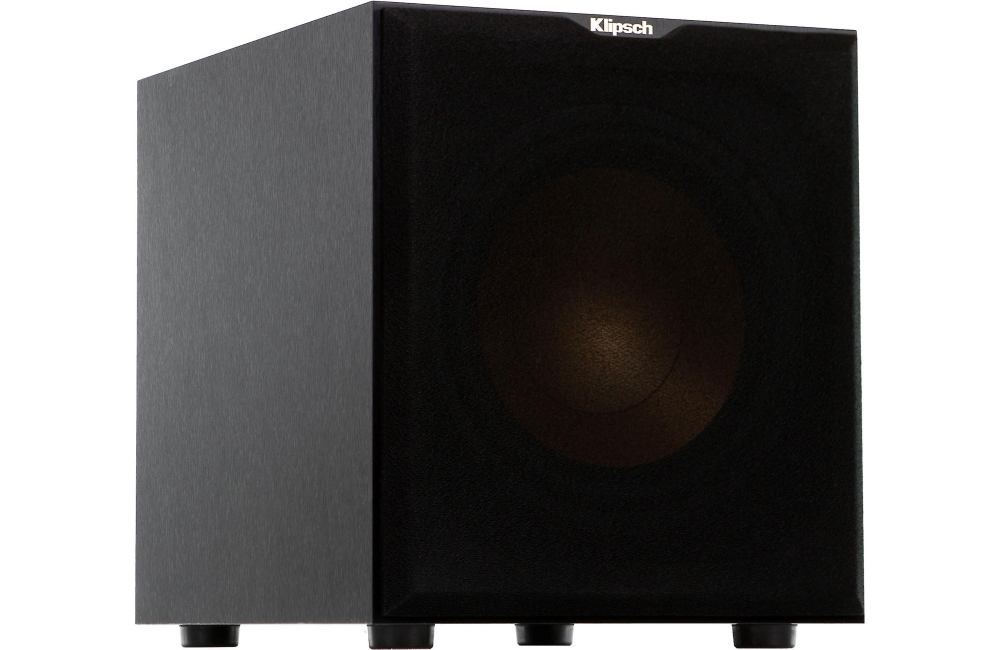

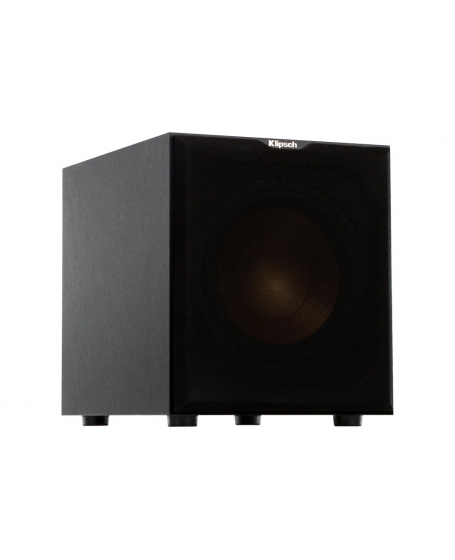

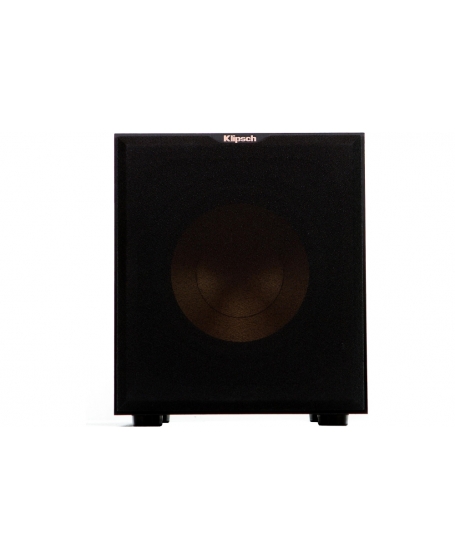

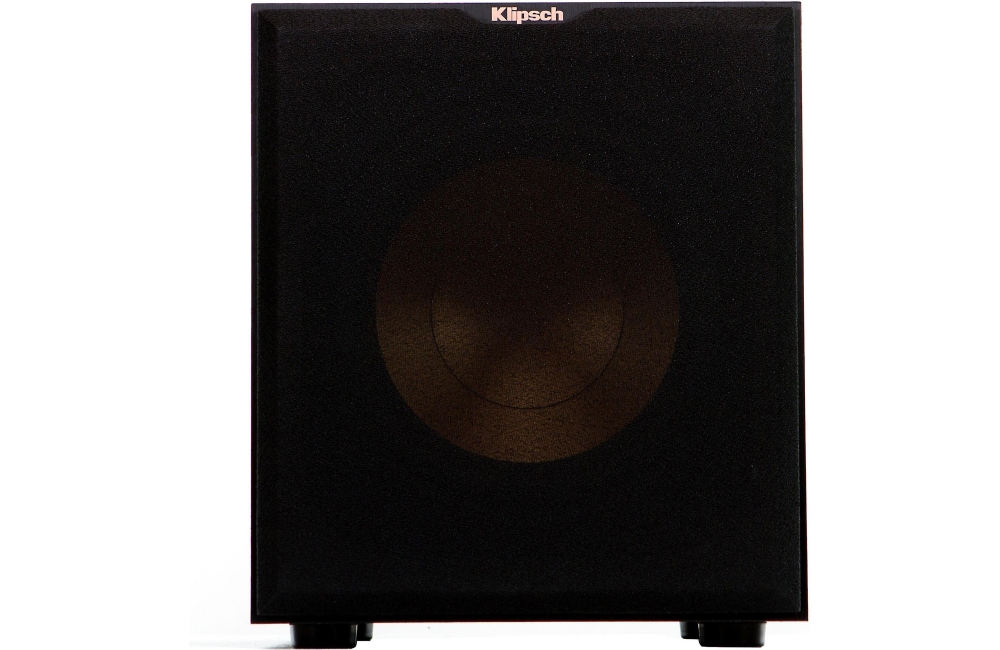

STRONG, FLEXIBLE, REMOVABLE GRILLE
Adds a rich, refined look that is acoustically transparent.

SPECIFICATIONS
FREQUENCY RESPONSE 32Hz-120Hz +/-3dB
MAXIMUM ACOUSTIC OUTPUT 112dB
AMPLIFIER All digital
AMPLIFIER POWER 150W / 300W
DRIVE COMPONENTS 10" (25.4cm) high excursion, IMG, front-firing woofer
ENCLOSURE MATERIAL MDF
ENCLOSURE TYPE Bass Reflex
INPUTS Line level/LFE RCA jacks
HEIGHT 14" / 35.56 cm (14.5" with feet)
WIDTH 12.5" / 31.75 cm
DEPTH 15.7" / 39.8 cm (16.4" with grille)
WEIGHT 25.5 lbs (11.6 kg)
FINISH Brushed Black Polymer Veneer
BUILT FROM 2014
FEATURES Volume, Lowpass, Phase, Auto Power
PHASE Switchable 0-180 degrees
